Beltwin портативный ПВХ ремень с воздушным охлаждением сварочный сращивающий пресс
- Категория: Plastic Welders >>>
- Поставщик: Wenzhou,Beltwin,Industrial,Equipment,Manufacture,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.46 $* | 0.3 $* |
| Aug-16-2025 | 0.6 $* | 0.76 $* |
| Jul-16-2025 | 0.53 $* | 0.41 $* |
| Jun-16-2025 | 0.1 $* | 0.37 $* |
| May-16-2025 | 0.77 $* | 0.50 $* |
| Apr-16-2025 | 0.47 $* | 0.58 $* |
| Mar-16-2025 | 0.79 $* | 0.85 $* |
| Feb-16-2025 | 0.93 $* | 0.15 $* |
| Jan-16-2025 | 0.47 $* | 0.34 $* |
Характеристики
Product Description
Product Details
Brand: Beltwin Power :1.2 KW

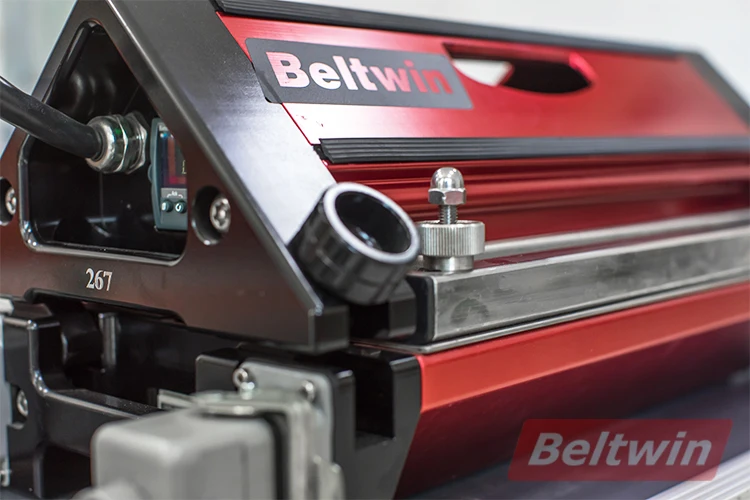

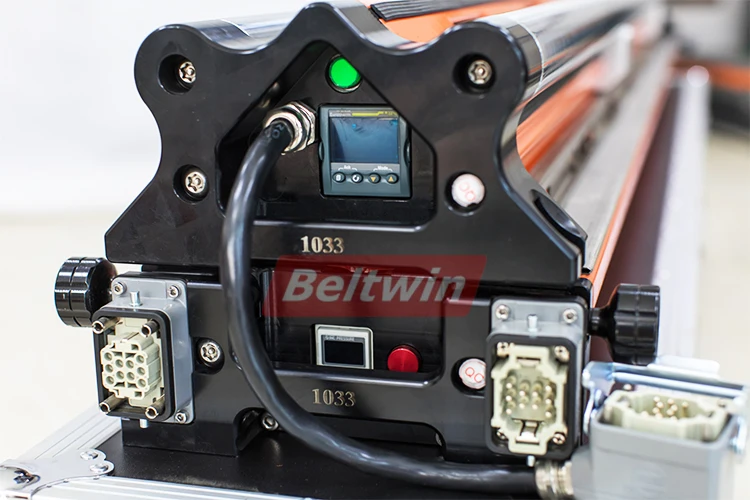

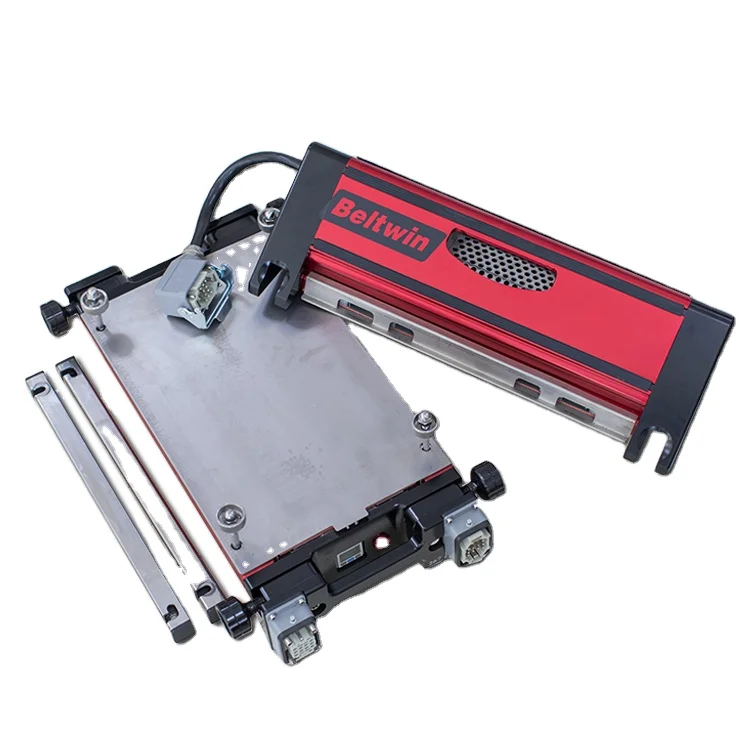

Item: Beltwin All in One Air Cooling Press
Weight: 56 KG
Model : PA- 300
Feature: This air cooled press has all components integrated into the tool, allowing a user to simply plug it into electricity and it is ready for use. Fast and Portable Splicing, can bring to anywhere easily.
The PA series air cooled press, have different models for width from 24″ (300 mm) to 84″ (2100 mm)
Model | 300 | 600 | 900 | 1200 | 1500 |
Effective length | 305mm / 12″ | 610mm / 24″ | 914mm / 36″ | 1219 mm / 48″ | 1524 mm / 60″ |
Effective width | 120mm / 4.7″ | 120mm / 4.7″ | 120mm / 4.7″ | 120 mm / 4.7″ | 120 mm / 4.7″ |
Weight lower part | 11.5 kg | 18kg | 23kg | 28.5 kg | 32 kg |
Weight upper part | 12kg | 13kg | 18kg | 25.5 kg | 30 kg |
Total weight | 21kg | 30kg | 38kg | 54 kg | 62 kg |
Overall height | 220mm | 225mm | 225mm | 225mm | 225mm |
Max. pressure | 2 Bar / 28 PSI | 2 Bar / 28 PSI | 2 Bar / 28 PSI | 2 Bar / 28 PSI | 2 Bar / 28 PSI |
Max. temperature | 200 ℃/390 ℉ | 200 ℃/ 390 ℉ | 200 ℃/ 390 ℉ | 200 ℃/ 390 ℉ | 200 ℃/ 390 ℉ |
Packaging list(L x W x H) | 790x430x420mm | 1090x430x420mm | 1390x430x420mm | 1720*450*430mm | 2030*470*410mm |
Gross weight | 50 kg | 72 kg | 85kg | 104 kg | 127 kg |
New Type
Model | 1800 | 2100 |
Effective length | 1829mm / 72″ | 2360mm / 92″ |
Effective width | 120mm / 4.7″ | 120mm / 4.7″ |
Weight lower part | 32kg | 36kg |
Weight upper part | 42kg | 55kg |
Total weight | 111kg | 134kg |
Overall height | 255mm | 255mm |
Max. pressure | 1.5 Bar | 1.5 Bar |
Max. temperature | 200 ℃/390℉ | 200 ℃/ 390 ℉ |
Packaging list (L x W x H) | 2330x460x550mm | 2567x352x310mm |
Gross weight | 40 kg | 56 kg |
How to make effect better?
We could line straightly out on the position of heating part as below:
It’s for better matching and better effect as below:
More Splicing Tips, we would like to offer to you for free
Our Services
 |  |
 |  |  |
Company Information
Conveyor Belt Splicing on Steel Cord Belts
Conveyor Belt Splicing, Fabric Belts, PVC
Conveyor Belt Repairs
Transmission Belts, Tangential Belt, Spindle Tape Splicing
Good Feedback
FAQ
01) Q: Normal delivery time?
A: We have table produce line, hot sale products normally HAVE STOCK. If customized, need about 30 working days
02) Q: Will you test the machine before shipping?
A: Yes, each machine, we will install and test before shipping. And testing pressure is higher than working pressure.
03) Q: Can you print our logo or without any logo?
A: It’s no problem OEM. Before order, please send us the clear document of your logo, also the authorization paper to allow us to print your logo.
04) Q: Whether can visit your workshop and to see how to process the machine?
A: No problems, you are always welcomed to visit us, before order or before shipping.If need to see how to process the machines, please inform us what type machines you want to see, we will try to prepare the similar machines ready before you come.
05) Q: What's the payment term?
A:Normally we accept T/T 30% as deposit before production, pay the rest before delivery.
Credict Assurance is the best choice. And other methods of payment need negotiation.
