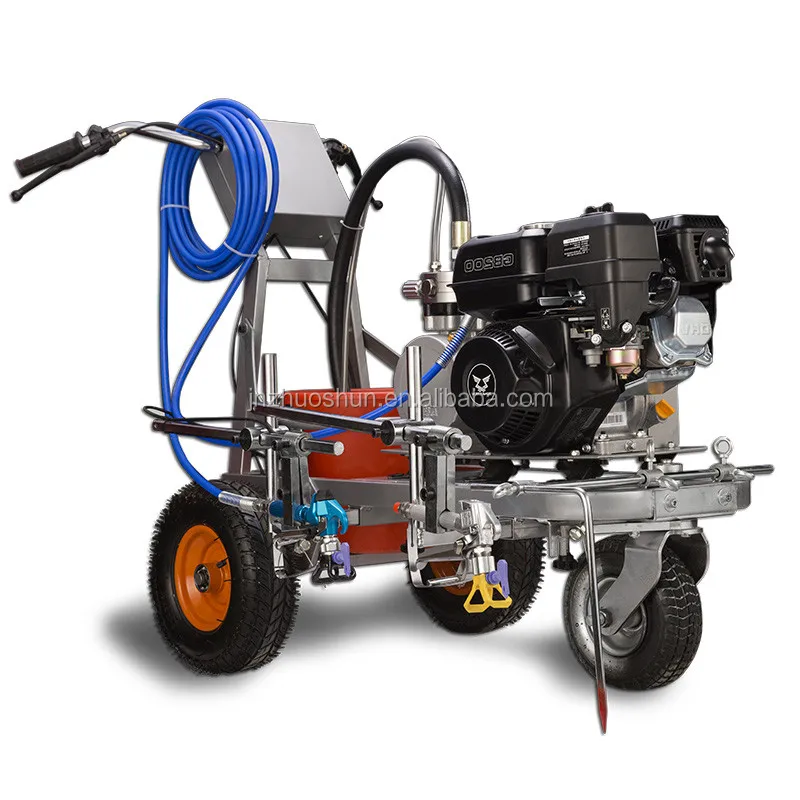

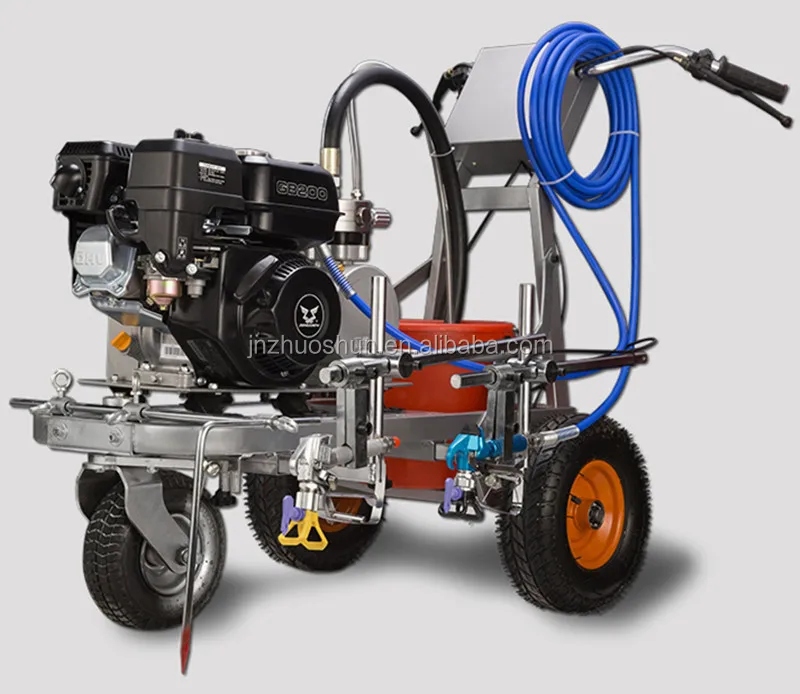

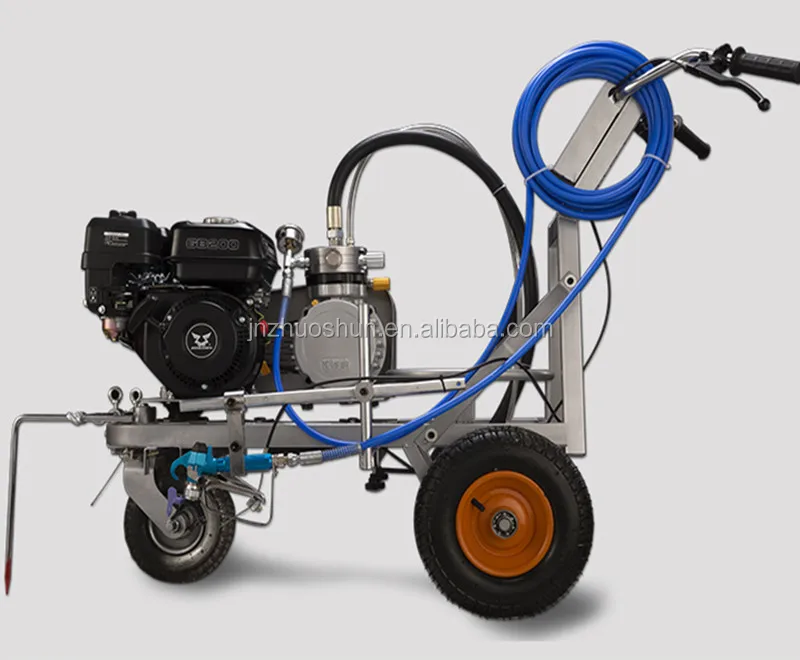

Straight Line Making Plastic Racetrack Plastic Track Road Marking Machine Introduction

The Road Marking Machine has the following features as high flow capacity, wide application scope and easy operation. It is suitable for both the spray of ordinary paint and that of higher viscosity paint, such as oil paint, alkyd resin lacquer, nitro lacquer, epoxy resin lacquer and other kinds of paint.
Structure & Function:
1. Airless spraying painting technology for which the high-pressure pump is driven by a gasoline engine has been adopted in the line marking machine to create clear, smooth, saturating and even limes, providing a high working efficiency.
2. Both sides of the spraying gun are equipped with a paint-limiting plates, ensuring the line free of raw edges. Such plates may be lift through a pulling line in steering, turning flexibly.
3. The spraying gun may be conveniently dismantled to change different nozzles and control the line width, suitable for common airless spraying for marks or labels.
4. It runs by pushing, with convenient turning, reliable orientation, and flexible turning.

Straight Line Making Plastic Racetrack Plastic Track Road Marking Machine Parameter



Marking width	10 ~ 450mm (adjustable)
Spraying thickness	0.2 ~ 0.4mm
Paint pump maximum flow	8L/min
Max output pressure	250Bar
Nozzle standard configuration	0.017mm
Max. Nozzle Size	0.025mm
High pressure pipe length	15m
Tank capacity	10L
Net weight	75kgs
