Аппликатор горячей краски/машина для маркировки дорог/машина линейки
- Категория: >>>
- Поставщик: Tongling,Longshun,Environmental,Protection,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.41 $* | 0.55 $* |
| Aug-15-2025 | 0.67 $* | 0.27 $* |
| Jul-15-2025 | 0.8 $* | 0.55 $* |
| Jun-15-2025 | 0.26 $* | 0.83 $* |
| May-15-2025 | 0.79 $* | 0.80 $* |
| Apr-15-2025 | 0.67 $* | 0.99 $* |
| Mar-15-2025 | 0.6 $* | 0.51 $* |
| Feb-15-2025 | 0.91 $* | 0.3 $* |
| Jan-15-2025 | 0.26 $* | 0.51 $* |
Характеристики
Product Description

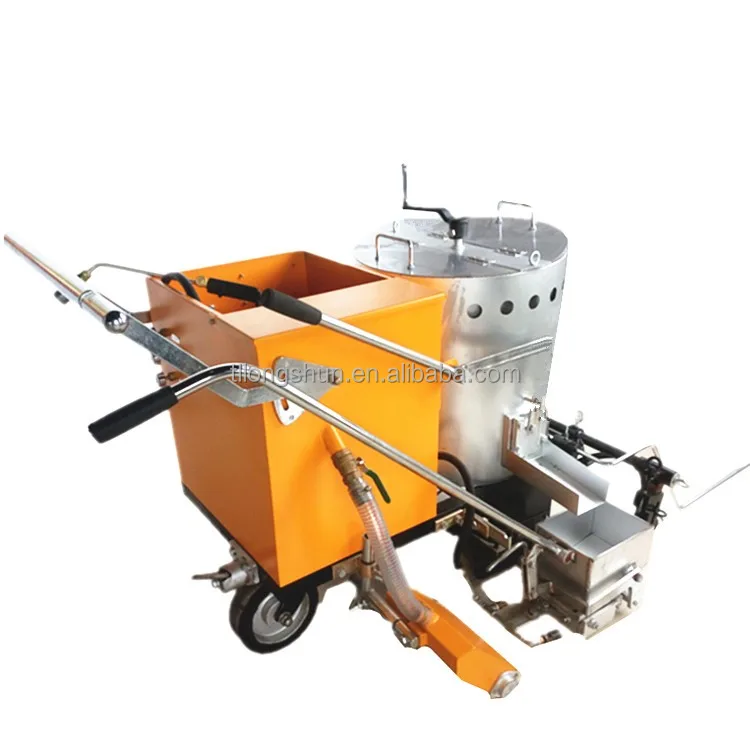

Hot Paint Applicator/Road marking machine/highway lineation machine
Application: It Used in railway, highway, bridge, tunnel, mine, construction and other fields.
Fatures and benefits :
1. Paint barrels: double stainless steel heating insulation barrels, capacity 100 kg, plug-in manually mixer devices, removable devices.
2. Glass Bead storage box: 10 kg / box.
3. Glass beads beads sow browser: synchronous clutch spread with speed gearshift device.
4. Crossed Doo: High-precision ultra-thin material manufacturing, scraper-type structure, the standard configuration of 150 mm.Be exchangeable.
5. Landing knife: Carbide, with eccentric sleeve device can adjust the thickness of the scope marking :1-2.5 mm.
6. Tire: Alloy Wheel Unit, a special heat-resistant rubber, after the last round with positioning devices for the body along a straight line direction.
7. Heating method: liquefied petroleum gas.
8. Subscript Line Width: engineering requirements in accordance with the replacement of different specifications crossed hopper.
Technical parameters:
Content of Paint container | 100kg |
Line thickness | 1.0-2.5mm |
Speed | 2km/h |
Heating Temperature | 170-250ºC |
Heating Method | LPG |
Suggest gas tank | 30kg |
Dimension | 1320×820×1000mm |
G.W. | 135kg |
Power | 4.8kw |
rated speed | 3200r/min |
Roller diameter | 220mm |
Line marking wideth | 100/150/200/300mm or adjust as requires |
Processing flow
Packaging & Shipping
Pack the shipment in a strong container
Shipping after receiving 50% advance payment
Any specific request for packing
Company Information
Tongling Longshun Environmental Protection Equipment Co.,Ltd. was founded in 2012, our company is a professional supplier of roadway safety and traffic facilities products, we are engaging in the Pavement maintenance equipment products' production, construction and sale . Our products focus on the pavement maintenance and "Let the road more safety "is our purpose, Our products are sold to worldwide ,our product got CE approval and CNAS certification, Our market includes EU,USA, South America, Middle East , East South Asia, Africa,Russia, Australia ETC.
Our Services
Welcome to visit our company website, Any question,pls contact Coco Guo ,
FAQ
