Характеристики

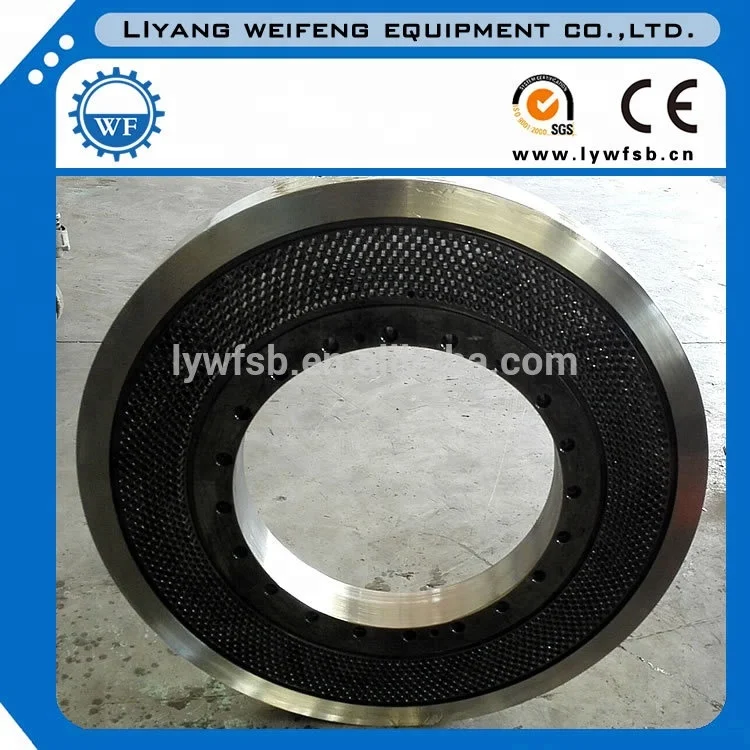

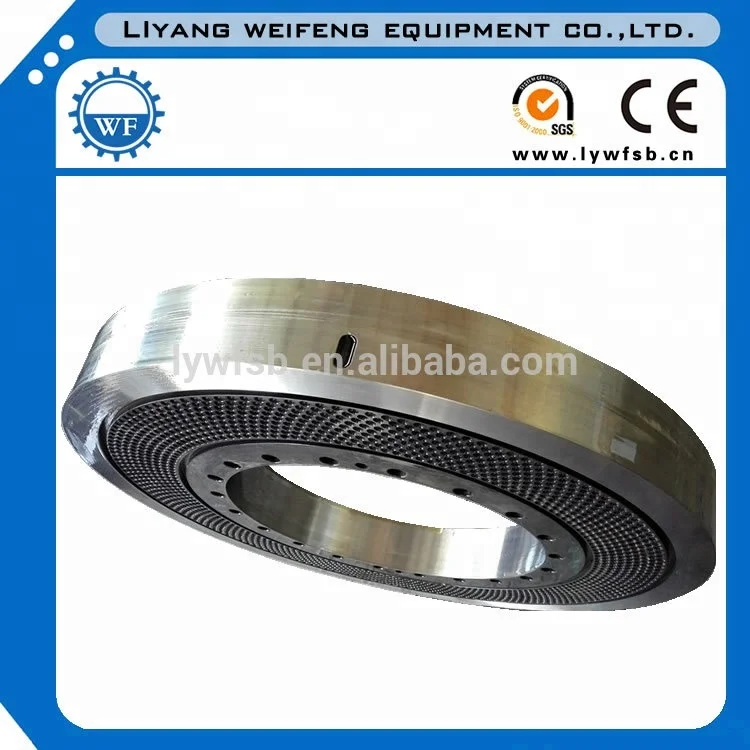

37-850, 35-780, 45-1250,39-1000, 60-1250 Amandus Kahl flat dies and rollers
37-850, 38-780, 45-1250,39-1000, 60-1250 Amandus Kahl flat dies and rollers
37-850, 38-780, 45-1250,39-1000, 60-1250 Amandus Kahl flat dies and rollers
Company Information
Introduction for our pellet mill ring die, pellet die factory
We are a professional manufacturing factory for Ring Dies,Pellet Dies,Flat dies,Feed Mill Pellet Ring Dies,Pellet Mill Ring Dies,Animal Feed Pellet Mill Ring Die,Pellet Machine Ring die,Pellet Press Ring Die,Wood Pellet Machine Ring Die,ring die accessories etc. spare parts.
We have own ring die factory and technical engineers with 20 year's experience. Every year, we manufactured and sold over 5000pcs ring die,pellet dies and 100,000pcs rollers around the world.
Ring die is very important part of ring die pellet machine in the whole manufacturing process. The quality of ring die not only directly relates with the quality and output of pellets, but also the running state of equipment and maintenance cost.
Product Description
Range of ring die spare parts' Application
Applicable for Biomass pellet machine: wood pellet mill, sawdust pellet mill, grass pellet mill, straw pellet mill, crop stalk pellet machine, alfalfa pellet mill etc.
Applicable for Fertilizer pellet machine, all kinds of animal/poultry/livestock feed pellet machine too.
Introduction of pellet mill ring die, pellet die, feed die
1. Material of the ring die: X46Cr13 /4Cr13(stainless steel), 20MnCr5/20CrMnTi (alloy steel) or customized
2. Hardness of ring dies: HRC54-60.
3. Diameter of ring die can do: 1.0mm up to 28mm
4. Pellet die type can do: Ring Die or Flat Die
5. Outer diameter can do: Outer diameter up to 1800mm
6. Pellet Die model we can customize:
CPM, Buhler, CPP, OGM, Zhengchang(SZLH/MZLH), Amandus Kahl, Muyang(MUZL), Yulong(XGJ), AWILA,PTN, Andritz Sprout, Matador, Paladin, Sogem, Van Arssen, Yemmak, Promill; etc. We can customize for you according to your drawing.
For Zhengchang pellet mill: SZLH250, SZLH300,SZLH320,SZLH350,SZLH400,SZLH420,SZLH508, SZLH678, SZLH768, etc
For Muyang pellet mill: MUZL180, MUZL350, MUZL420, MUZL600, MUZL1200, MUZL610, MUZL1210, MUZL1610, MUZL2010;
MUZL350X, MUZL420X, MUZL600X, MUZL1200X(Especially for shrimp feed pellet, diameter: 1.2-2.5mm)
For Awalia pellet mill: Awalia 420, Awalia350, etc
For Buhler pellet mill: Buhler304, Buhler420, Buhler520, Buhler660, Buhler900, etc.
For Kahl pellet mill(Flat die): 35-780, 37-850, 45-1250, etc
1. Material of the ring die: X46Cr13 /4Cr13(stainless steel), 20MnCr5/20CrMnTi (alloy steel) or customized
2. Hardness of ring dies: HRC54-60.
3. Diameter of ring die can do: 1.0mm up to 28mm
4. Pellet die type can do: Ring Die or Flat Die
5. Outer diameter can do: Outer diameter up to 1800mm
6. Pellet Die model we can customize:
CPM, Buhler, CPP, OGM, Zhengchang(SZLH/MZLH), Amandus Kahl, Muyang(MUZL), Yulong(XGJ), AWILA,PTN, Andritz Sprout, Matador, Paladin, Sogem, Van Arssen, Yemmak, Promill; etc. We can customize for you according to your drawing.
For Zhengchang pellet mill: SZLH250, SZLH300,SZLH320,SZLH350,SZLH400,SZLH420,SZLH508, SZLH678, SZLH768, etc
For Muyang pellet mill: MUZL180, MUZL350, MUZL420, MUZL600, MUZL1200, MUZL610, MUZL1210, MUZL1610, MUZL2010;
MUZL350X, MUZL420X, MUZL600X, MUZL1200X(Especially for shrimp feed pellet, diameter: 1.2-2.5mm)
For Awalia pellet mill: Awalia 420, Awalia350, etc
For Buhler pellet mill: Buhler304, Buhler420, Buhler520, Buhler660, Buhler900, etc.
For Kahl pellet mill(Flat die): 35-780, 37-850, 45-1250, etc
For IDAH pellet mill:PM-42L,PM-51SA,PM-53SA,PM-53SC,PM-53WS,PM-635D
Process for making pellet mill ring die, pellet die, feed die
Blank raw material Forging---Rough turning---Half finished turning---Drilling the hole---Grinding inner bore---Treaded hole--- Keyway milling---Heat treatment---Finish turning---Package
Compression Ratio of Ring Die, pellet die, pellet mill ring die
Buyers can customize dies with different hole diameter and compression ratio, according to different situation and requirement.
| Hole Diameter(mm) | Compression Ratio | |
| Ring die for animal feed pellet machine | ||
| Poultry&livestock feed | 2.5 - 4 | 1:4-1:11 |
| Fish feed | 2.0 - 2.5 | 1:12-1:14 |
| Shrimp feed | 0.4 - 1.8 | 1:18-1:25 |
| Ring die for biomass pellet machine | ||
| 6.0 - 8.0 | 1:4.5-1:8 |
The most common structure of die hole are straight hole; release stepped hole; external conical hole and internal conical hole, etc. Different die holes structure are suitable for different raw material and feed formula for making pellets.
Tipical ring die, pellet dies,flat dies we have ever produced for our customer:
1. 800mm feed pellet ring die for UK customer:

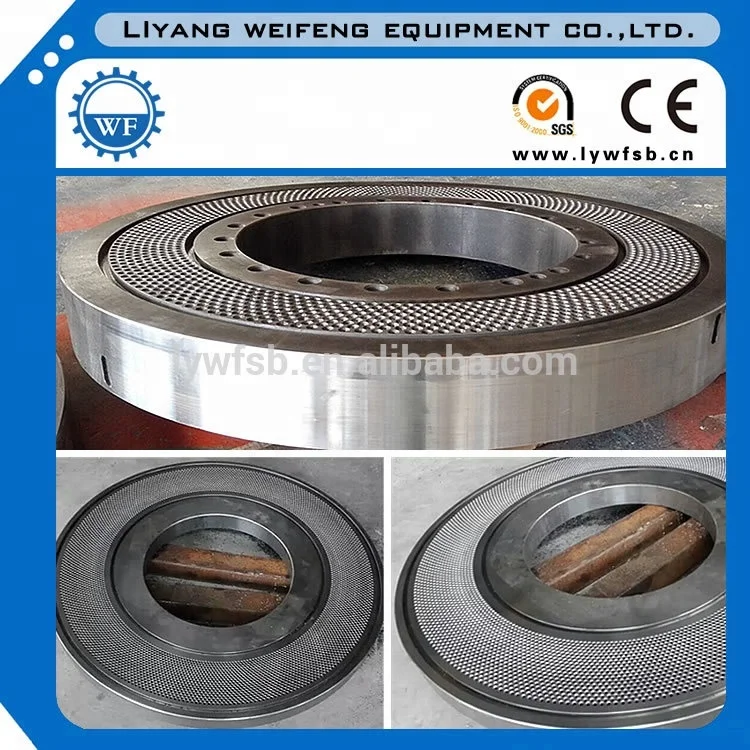

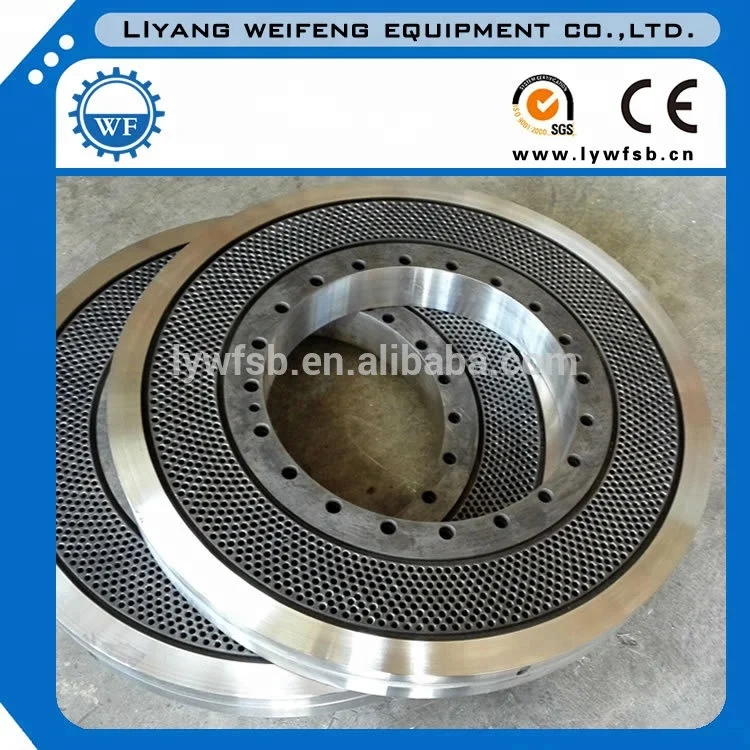

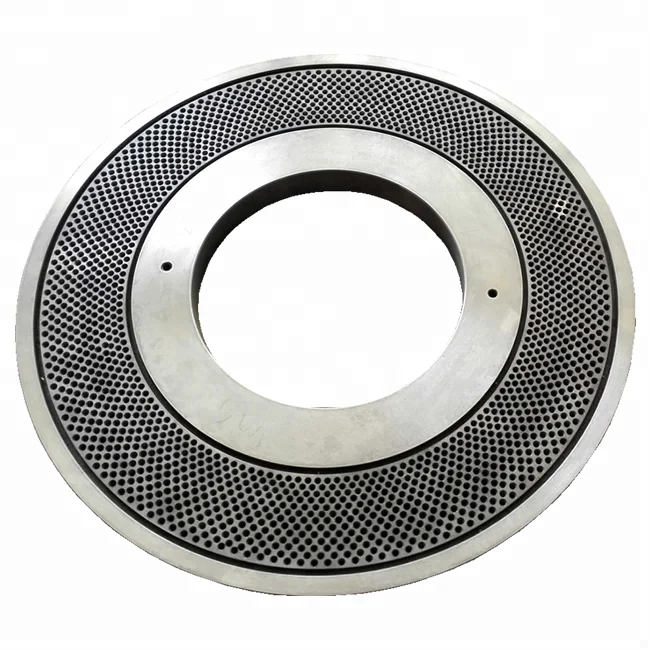

2.Falt die 37-850(Stainless Steel):
3.Buhler/Awila Series ring die, feed pellet die

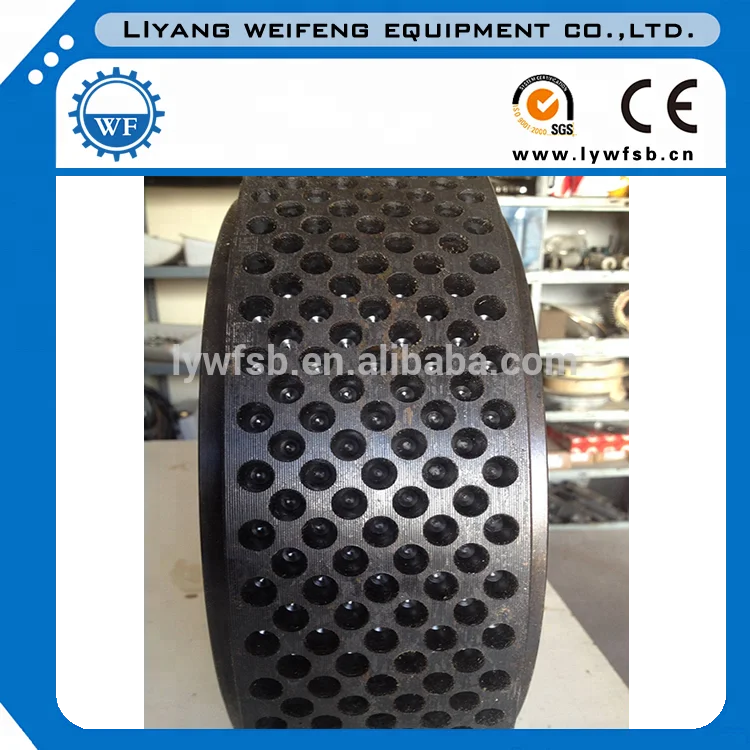

4.Different kinds of ring dies, pellet dies for biomass pellet/wood pellet mill
