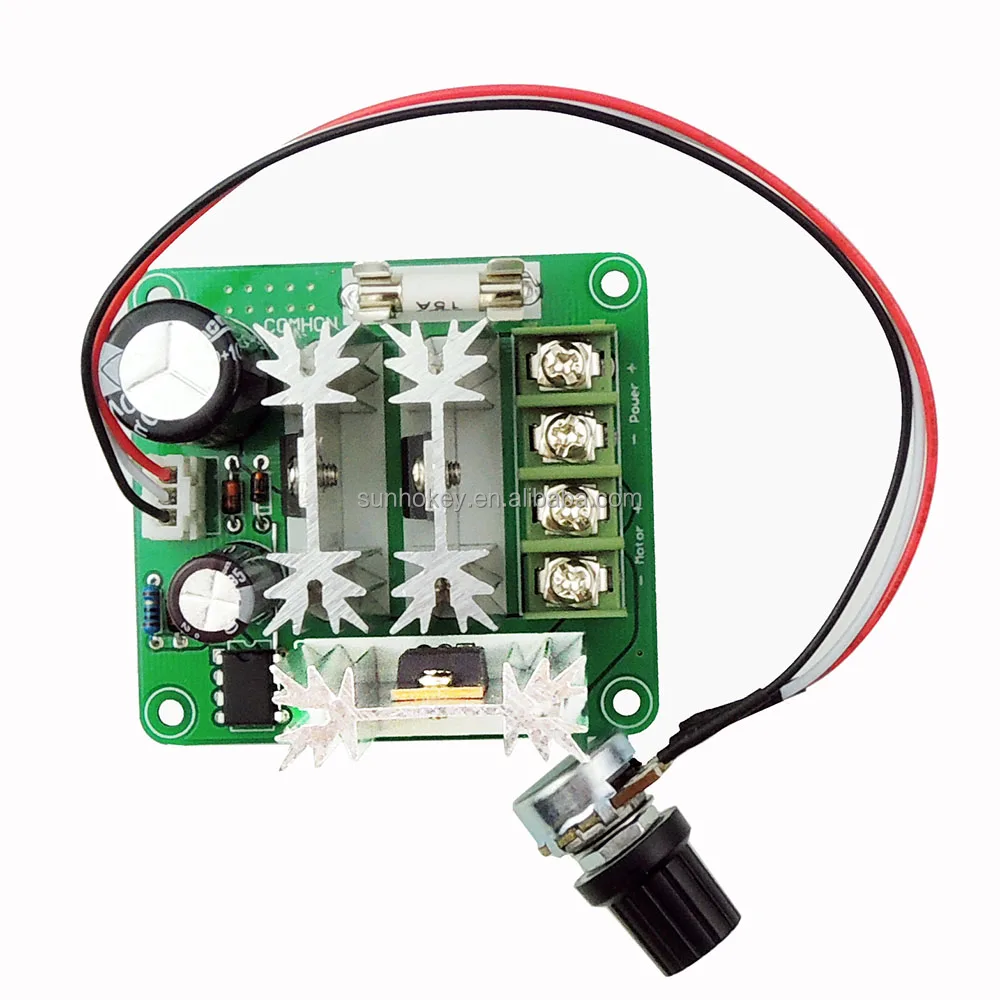

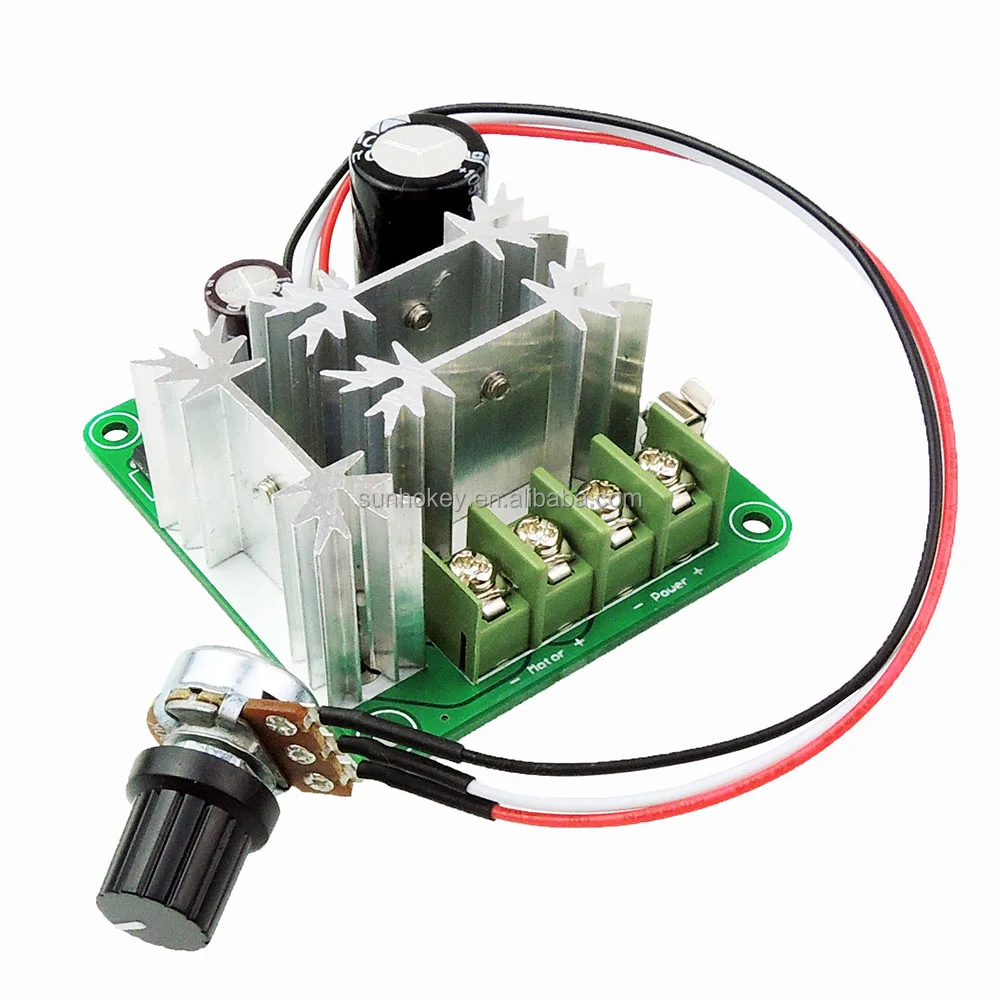

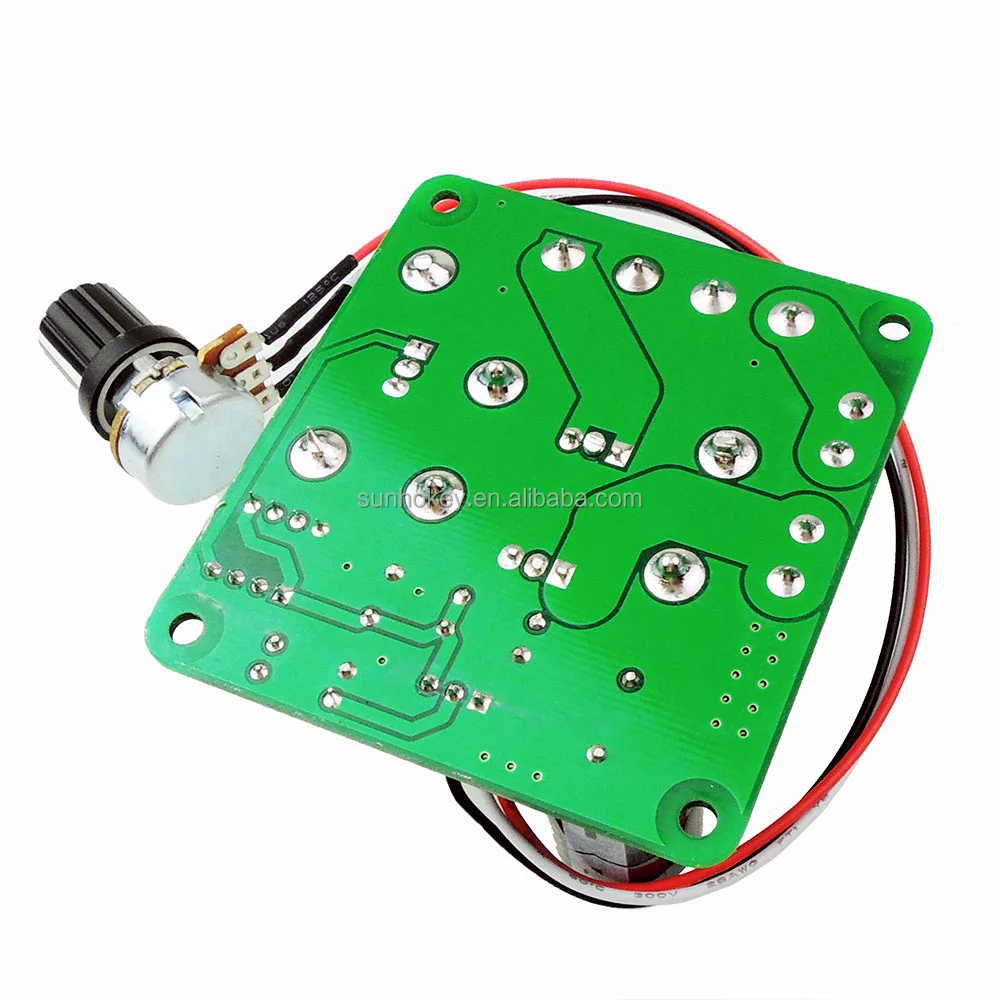

CCMHCN  DC Motor Speed Controller

(PWM)

                 Features:

• CCMHCN DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).
• PWM frequency: 16kHz; Duty Cycle adjustable: 0%-100%

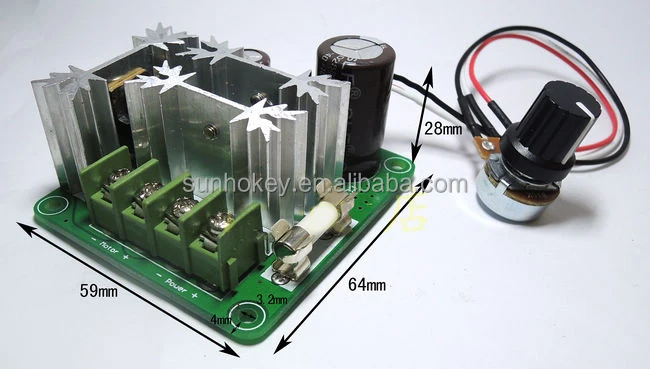

• Item size: 2.5*2.3*1.1 inches; Net weight: 2.8 ounce
• The maximum continuous output current :8A ; The overload and short circuit protecting current is 15A
• Input supply voltage: 6-90V
• It can use 0-5V external voltage to control the DC motor speed.
• Incorporate a 15A fuse, and with the protection function of reverse connect power supply.
• Used of Advanced and low power MCU and high quality componen


• Package Including:

• 1 x DC Motor Speed Controller

• Operating instruction:



  Before you attempting to wire the controller, make sure power is off.
