Характеристики
150KW off grid three phase inverter solar dc to ac
Product Description
Off-Grid Pure Sine Wave Inverter
Our SDP series Off Grid Pure sine wave inverter is one of the most advanced DC to AC conversion products in the world, it is suitable use for areas without electricity, vehicles, ships, solar energy, wind turbine and other renewable energy systems and etc, can supply power and provide guarantee effectively for the areas with traffic inconveniences, in the mountains, pastoral, border, island and other areas without electricity. It has the main advantages of high quality sine wave AC output, microcomputer control, humanness design, and it ishigh efficiency and low no-load loss, and no pollution. The inverter can also supply AC power to all kinds of electric equipment, air conditioners, electric motors, refrigerators, fluorescent lights, televisions, electric fans and other industrial power supply.
Technical Features:
Using the fifth generation efficient IPM intelligent module from Japanese Mitsubishi, high efficiency and stable performance. It with powerful protection function, the protection for short circuit, over load, over temperature is more safe and reliable. It’s service life can up to 15 years or more.
Intelligentized, modularized, simple structure design with powerful function.
Two kinds of start mode: Reduction Voltage Start and Variable Frequency Start. Customers can set start mode according to the type of their load. This function is very convenient for users and also reduce frequency converter’s usage, which reduced the cost of equipment investment, easy to connect wires and control.
The output frequency can be setting via LCD panel, it’s very convenient for customer.
The output voltage can be set between -40 % to +20 % of rated voltage.And the output voltage is very accuracy ±1%.
The DC input voltage range can be set. Over-voltage point, under-voltage point, over-voltage recovery point, under-voltage recovery point all can be setting via the LCD panel.
Pure sine wave output. With good dynamic response less than 50MS, waveform distortion rate smaller, higher conversion efficiency and stable output voltage.

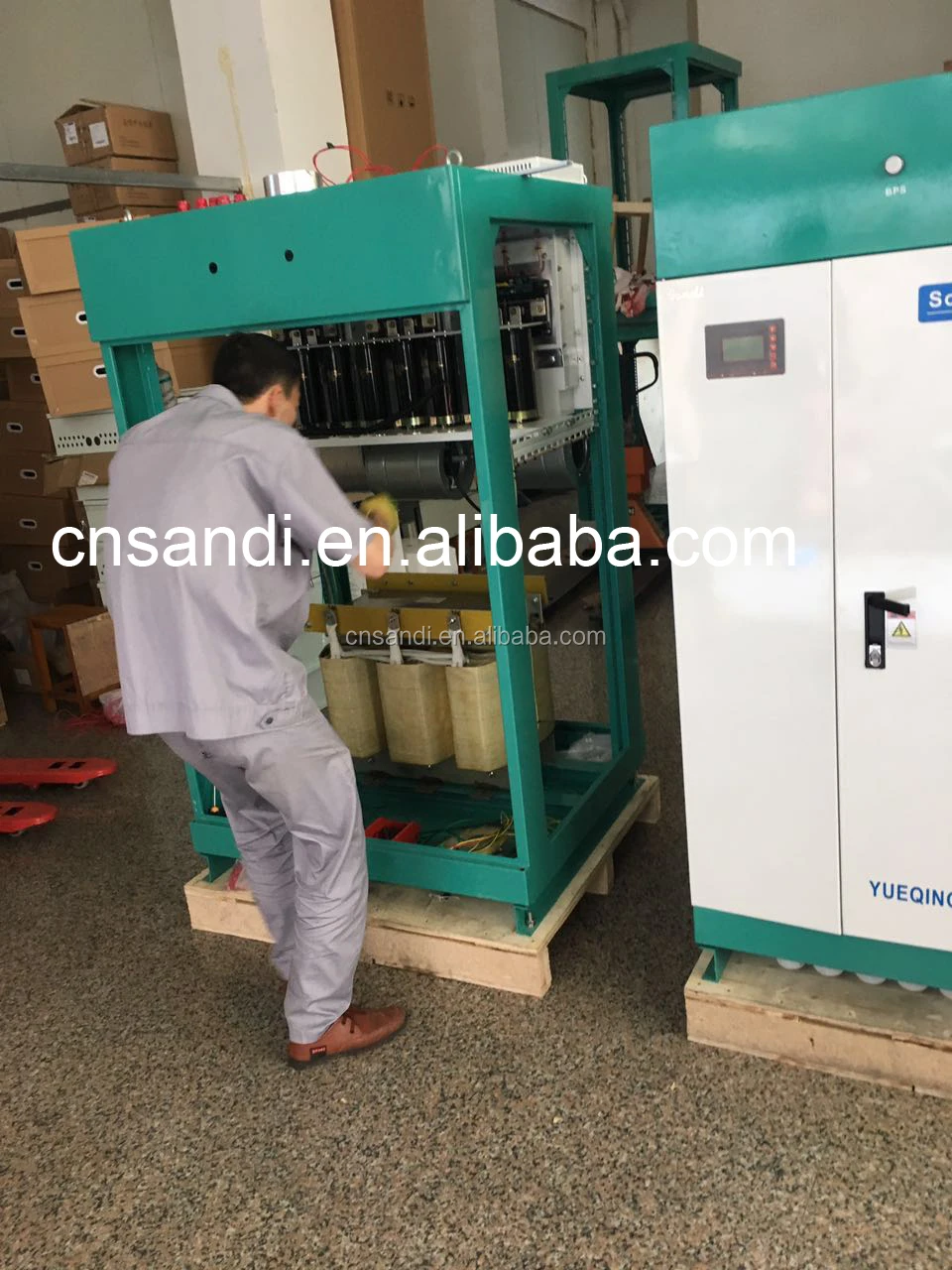

Low Frequency Transformer, which ensures that inverter has high efficiency.
High conversion efficiency, Max. Efficiency≥96%
Adopts black pure aluminum radiator, which confirms the best radiating performance.
Powerful data display function. LCD can display the DC input voltage, output frequency, phase voltage, phase current, AC bypass input voltage, output power KWH, time and date, temperature, fault code display.
Wide input voltage can be set according to customer’s requirement. Input voltage range can be selected from 100-400V, 200-500V, 300-600V or 400-850V.
European CE (EMC, LVD) certificate, accredited by Australian CEC, ERAC energy network.
[Optional]
RS485 remote monitoring;
Can add AC bypass complementary function;
n PV Off-grid Solar Power System
PV Off-grid solar power generation system including solar panel array, solar charge controller, storage battery, Off-grid inverter, etc. In the sunshine, the solar panel convert the solar energy to DC power and charge the battery group by the charge controller. Then the off grid inverter convert the DC power into AC power for power supply the AC load.
Technical Parameters (Normal model)

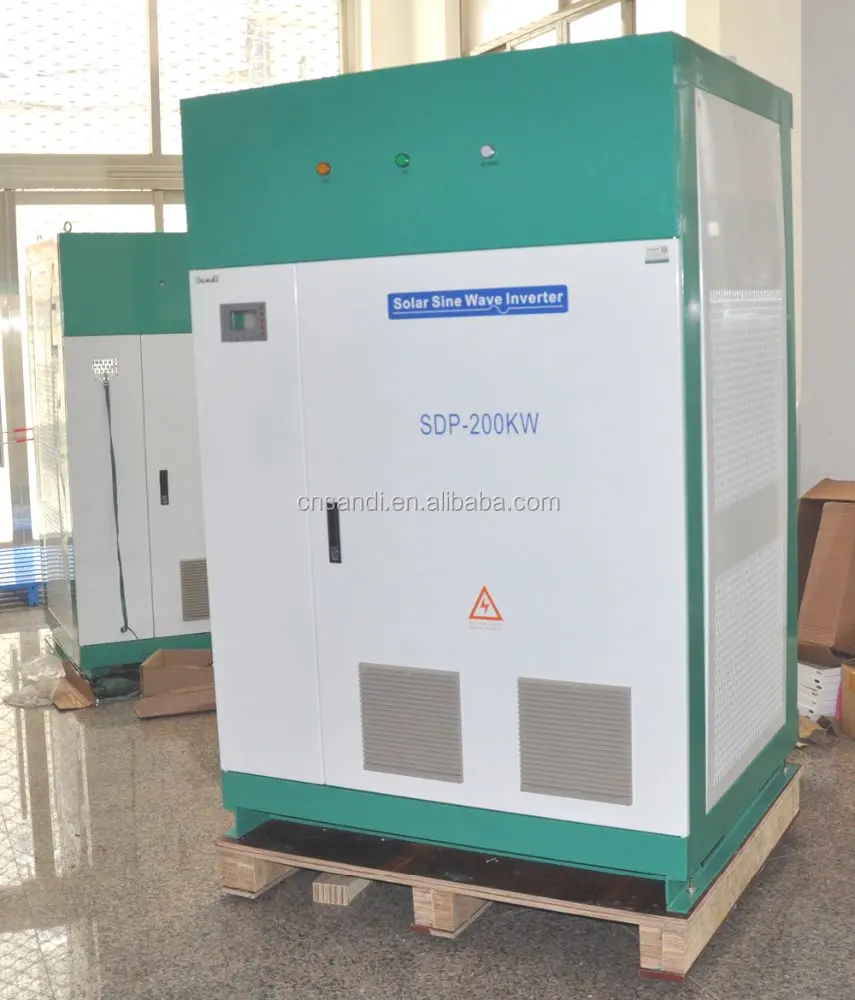

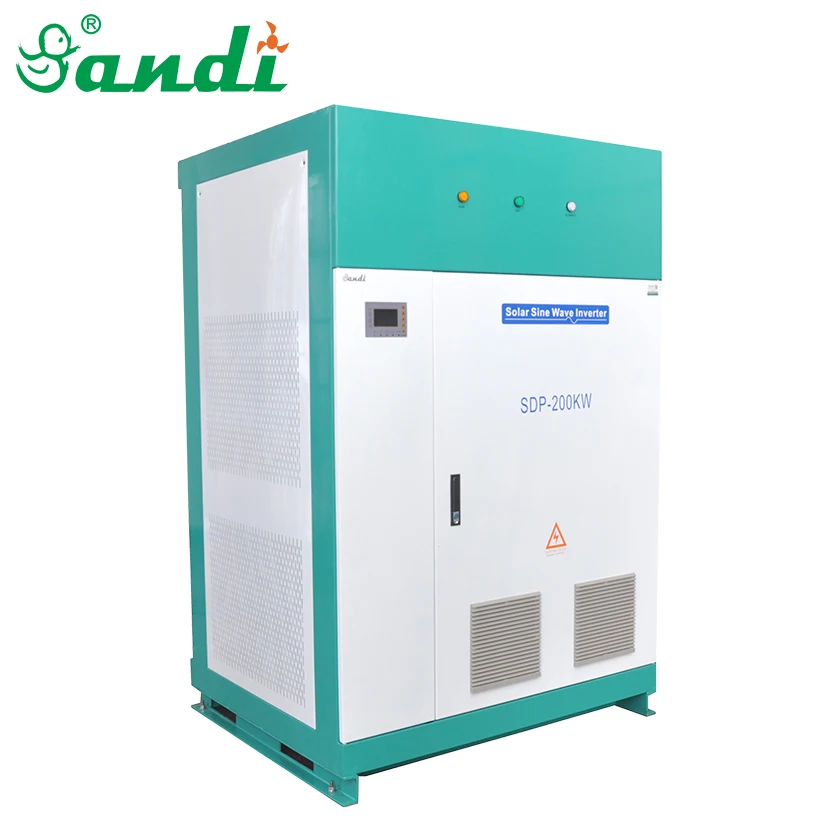

Model | SDP-150KW | SDP-200KW | ||
Isolation mode | Low Frequency Transformer | |||
DC Input | Rated voltage (Vdc) | 480V / 600V | ||
Rated current(A) | 312.5A / 250A | 417A / 333A | ||
AC Output | Rated output power | 150KW | 200KW | |
Output waveform | Pure Sine Wave | |||
Rated Voltage | 380VAC±3% | 380VAC±3% | ||
Phases | 3 phase 4 wire | 3 phase 4 wire | ||
Rated current(A) | 227A (phase current) | 303A (phase current) | ||
Frequency | 50Hz or 60Hz | |||
Rated output voltage range (V) | 380/400/415VAC optional | |||
Power Factor(PF) | 0.99 | |||
Overload Ability | 150%, 5 seconds | |||
Efficiency | >93% | |||
Waveform distortion rate (THD) | <3%(Linear load) | |||
Dynamic Response (0 to 100% load) | 5%,≤50ms | |||
Display | LCD | |||
Running mode | Working continuously | |||
Electrical insulation properties | 2000Vac, 1 Minute | |||
Protection Function | Protection | Input reverse polarity, under voltage, overvoltage, output over-current, short circuit, overheating etc. | ||
Cooling method | Fan-cooled | |||
Short-circuit protection | No automatic recovery, need to restart the machine | |||
Working environment | Noise ( 1 meter) | ≤50dB | ||
Degree of protection | IP20(indoor) | |||
Working Altitude(m) | ≤2000 | |||
Working temperature | -15~+55℃ | |||
relative humidity | 0~90%,non-condensing | |||
Mechanical dimension | Depth* Width * Height | 1200x1500x1800mm | ||
Weight (Kg) | 1000Kg | 1200Kg | ||
Certifications

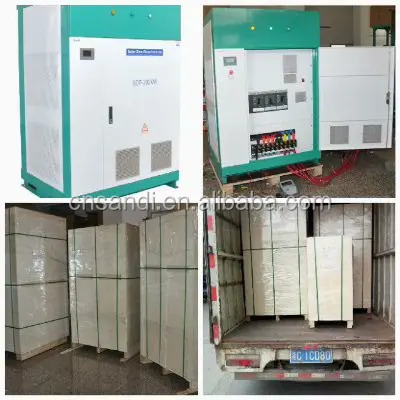

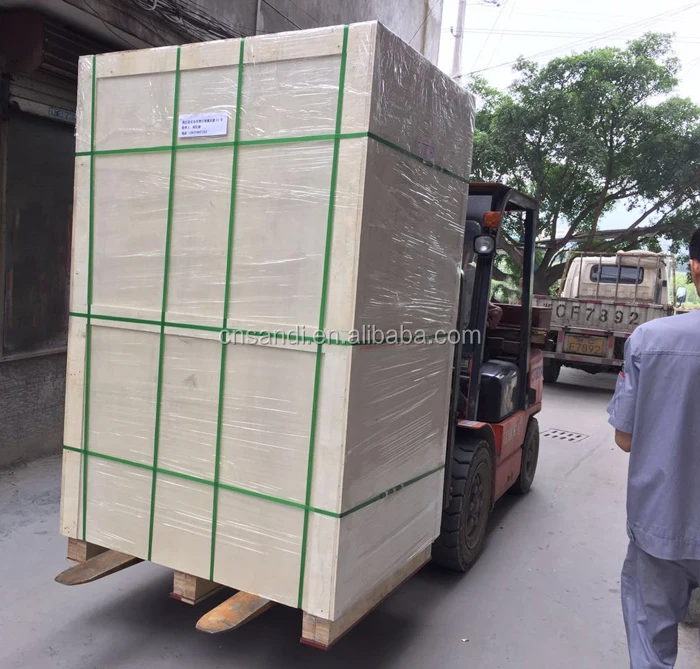

Packaging & Shipping
Our Services
About us
1. Our products have approved by CE (EMC&LVD), SAA (AS4777, AS3100), G83/1 and G59/1 certificate and we have top engineers to provide technical support and the products using the most advanced technology all the time.
2. We provide project consulting , system design and system solutions for customers.
3. We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with 5 hours.
