Паровая сушилка серии QG и FG с воздушным потоком сушильная машина

Principle of aor steam dryer:

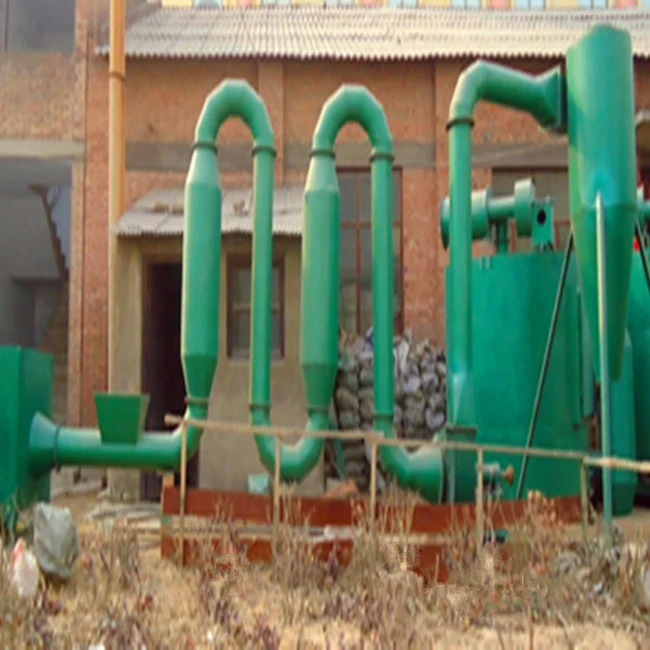

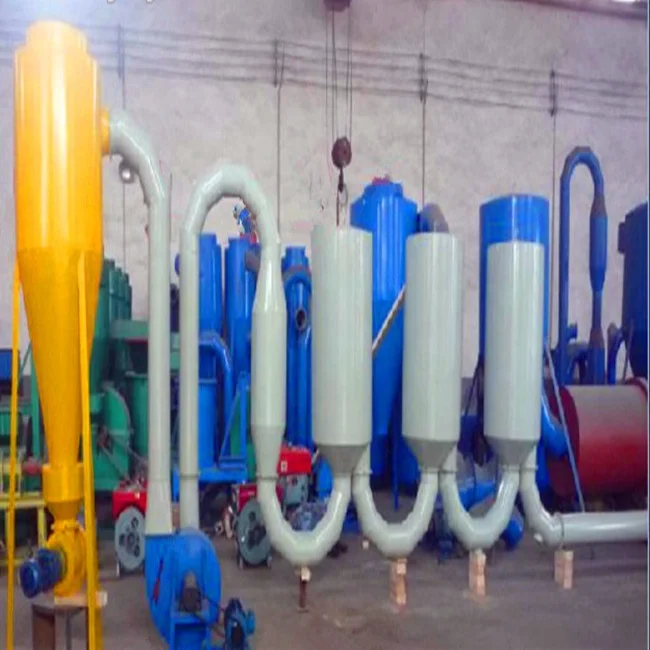

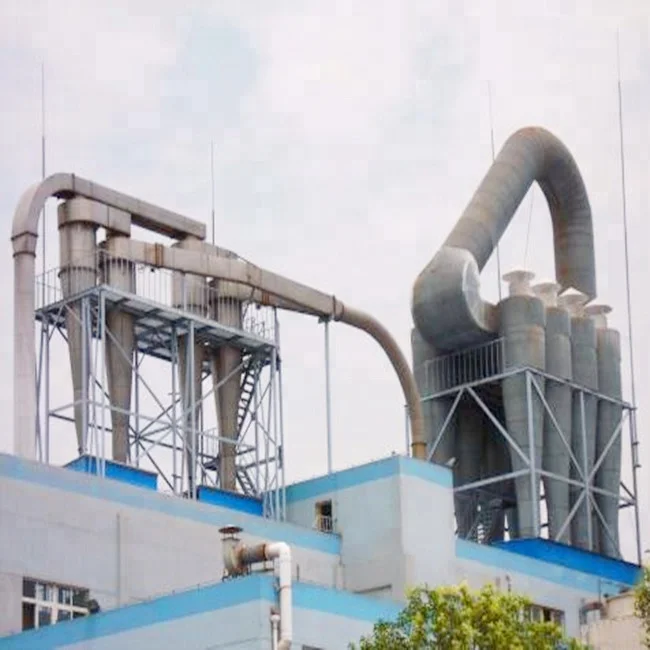

QG series air steam dryer is a large quantity production drier, it adopt instant drying principle, utilize hot air’s quick move to drive damp raw material and make it floats in the hot air, this can strengthen the whole drying process, improve the speed of hot exchange. If raw material is dried by this equipment, non-combined moisture can be removed completely, dried material never metamorphosed, compared with general drier, output is remarkably raised.

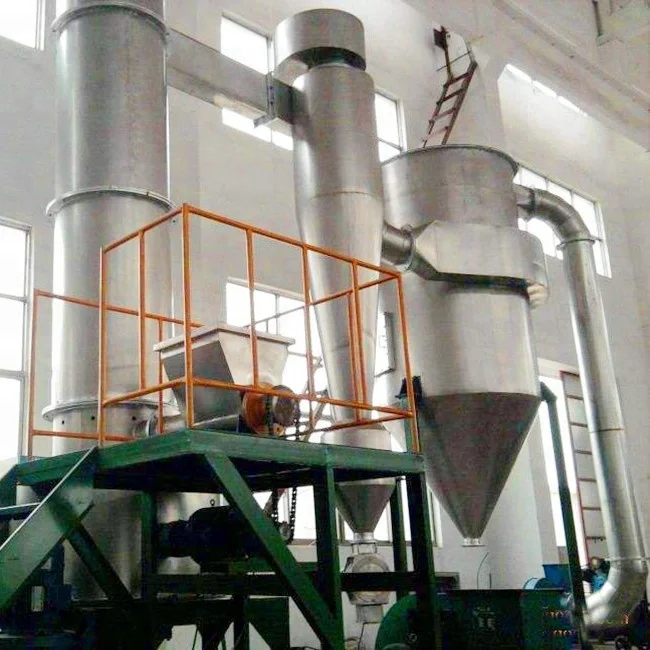

The bottom of FG series air steam dryer has the unique enhanced design, stirring rack is diamond shaped, its linear flow design can reduce wind resistance into a minimum degree, also the grinding knifes are equipped at the bottom, the results of grinding are obvious, the falling the materials can be rapidly crushed into powders which are suitable for air flow drying, another function of stirring is dispersing materials, thus can enlarge the contacting area with high speed hot air coming from the bottom, and most of moisture is dried during this stage, and then the dried material becomes lighter and lighter, and flow up with hot air, finally comes out from the top of dryer and goes into material colleting system.

Suitable Material of QG air series steam dryer:

The kinds of QG series air steam dryer can be suitable for more raw materials. Besides the raw materials mentioned in basic type drier, the following raw materials can also be dried. They are hymnals, ABC intermediate, ABS resin, ASC, white carbon black, phthalimidine, catalyst for oxalic acid, accelerant m. d. m , catalyst, deposited carbon powder, p-acetamidobenzene sulfonyl chloride, sodium para-aminosalicylate, terephthalic acid, diethyl aniline, titanium dioxide, active carbon, sodium flu silicate, fluoric ore, ammonium sulphate, silica gel powder, synthesis resin, calcium hydrogen phosphate, PP, aureomycin, sodium dislocate, oral glucose, sodium sulfate, supplied ore. Phosphorus ore powder, blue BB, PVC, phosphate fertilizer, acheomycin, ferric oxide, calcium carbonate, limonite, copper ore, potato, tail coal, stearate, maize protein, medicine, does, ferric oxide, calcium sulphate retarder and so on.

Suitable materials of FG series air steam dryer:

This QG series air steam dryer is suitable for the raw materials that contains high moisture and appear paste and other raw materials that can not be dried with other drying methods, also apply to the cake, paste. With a certain viscosity, require finished products for the powder.

Technical prarmeters of air steam dryer:

Note:

1. The evaporated amount of moisture is calculated when the temperature of inlet is 180℃ and the temperature of outlet is 80℃.

2. Besides the models above mentioned, special specification can also be made as request.

3. The equipped capacity above mentioned is standard. The power can also be decreased in accordance with practical conditions.

Sale service:
1. Ensure product with high quality and pre-commissioning before delivery.
2. Delivery on time.
3. Provide full set of documents as customer’s requirements.

After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.

Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.

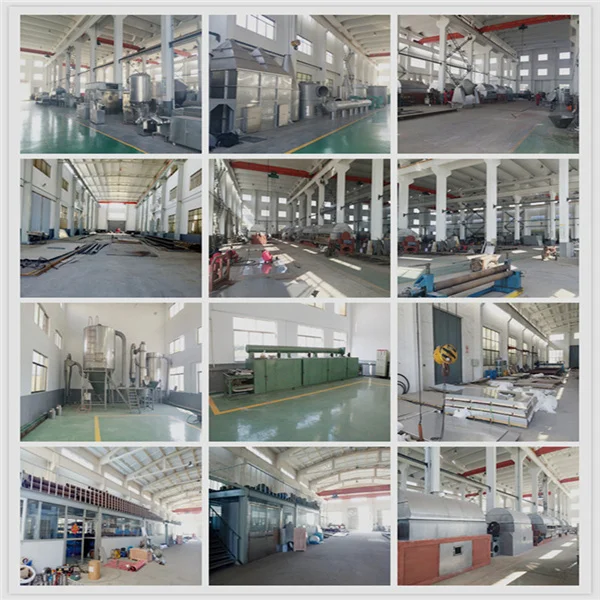

             Q: How can I visit your factory?
             A: Yes. my company is near Shanghai.It only takes you about 1 hour to get Changzhou.Or we can visit you in Shanghai.

             Q: What’s the quality of your products?
             A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world. You can rest assured with the quality absolutely.

             Q: What to do if the machine has a problem?
             A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.

             Q: How long is the warranty of your equipment?
             A: Our warranty period is one year generally.

             Q: What is your payment term?
             A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.

             Q: Does your price include freight?
             A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF price.

In order to quote you the right drying machine equipment with best price, we would like to get the following information include in your inquiry:

•


  -What is the raw material?  Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.





•


  -What is the capacity per hour you need (kg/h)?





•


  -What is the initial moisture and final moisture of finished products you require to get?





•


  -What about the maximum heat temperature of raw material?





•


  -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?





•


  -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?





•


  -Provide us your country’s electricity information, such as phases, voltage, HZ.





•


  -How about dust collect requirements?





•


  -Other special requirements.
