Вращающаяся вспышка для белого углеродного черного диоксида кремния карбоната бентонита хлорид натрия от лучшего китайского

Описание и отзывы

Трекер стоимости

Характеристики

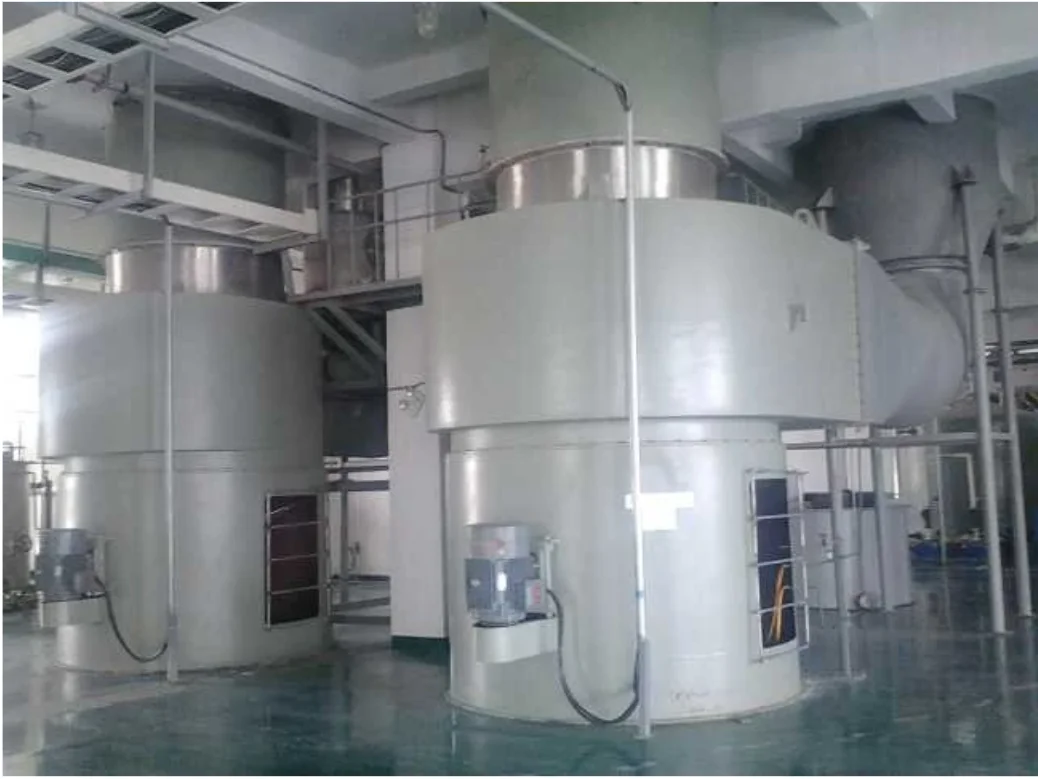

XSG Spin Flash dryer

Description



XSG flash dryer with agitation is new style drying equipment that is improved, researched and manufactured by us on the basis of absorbing advanced aboard technology, it is used for drying raw material such as paste state, filtering cake, , thermal sensitive powder and particle. We have superior laboratory where can take test with different materials for customer providing test data and help customer to choose suitable model.



Principle of work



The hot air enters in to the bottom of the dryer in tangent direction, Under the driving of the stirrer, a powerful rotating wind area is formed. The paste state materials enter into the dryer through the screw charger. Under the powerful effect of stirring at high -speed rotation , the materials are distributed under function of strike, friction and shearing force. The block state materials will soon be smashed and contact with hot air fully and the materials are heated and dried. The dried materials after dewatering will go up with the hot air flow. The grading wings will stop and keep the big particles. Small particles will be discharged out of the dryer from the ring center and will be collected in the cyclone separator and dust collector. The not fully dried or big pieces materials





Feature



1. The collection rate of finished product is very high, the collection rate can be above 98%.

2. No material stick on the wall.

3. This machine combines the whirl technology with fluidity, ejection and smashing step technologies.

4. The machine size is compact and small, producing efficiency is high, it can continuous in the production, it has realized that small equipment can perform large production.

5. The machine drying capacity is big but energy consumption is low, heat efficiency is high.

6. The material stay time is very short, the quality of the final product is very good, the machine can used for drying heat sensitive materials.

7.  For the negative pressure or the micro-negative pressure operation, good sealing and high efficiency can eliminate the environment pollution.



Flowchart







Technical parameters

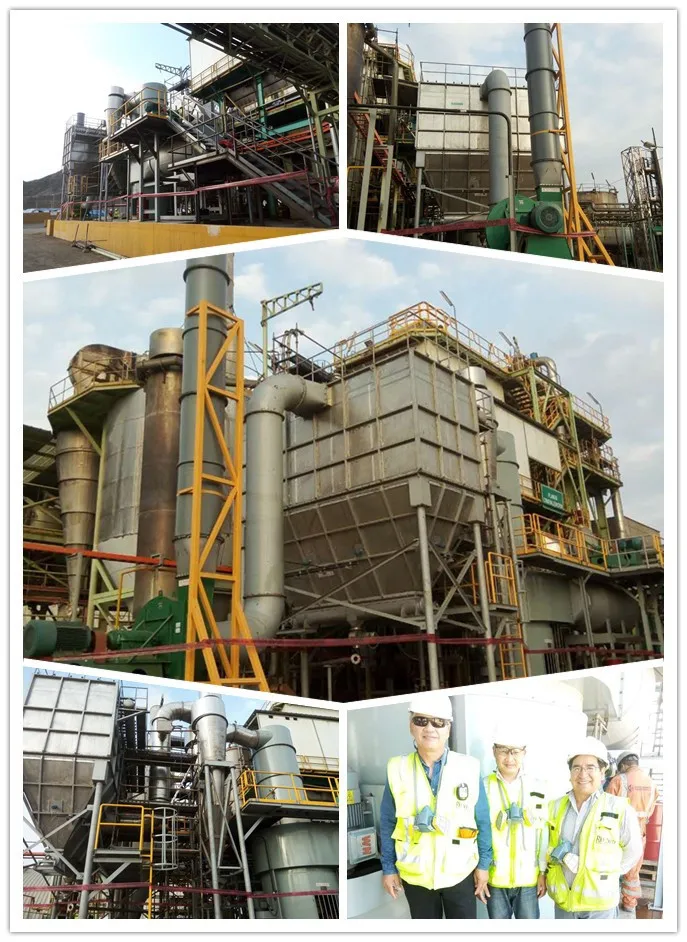

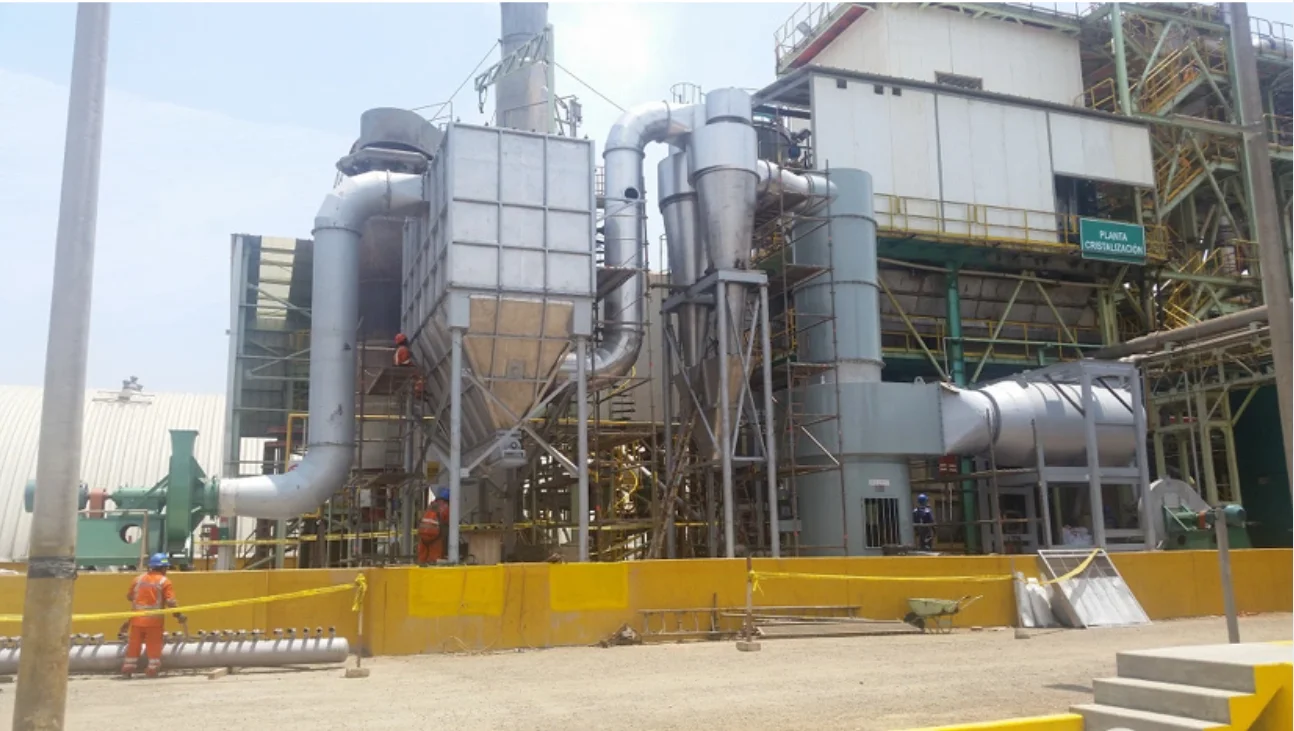

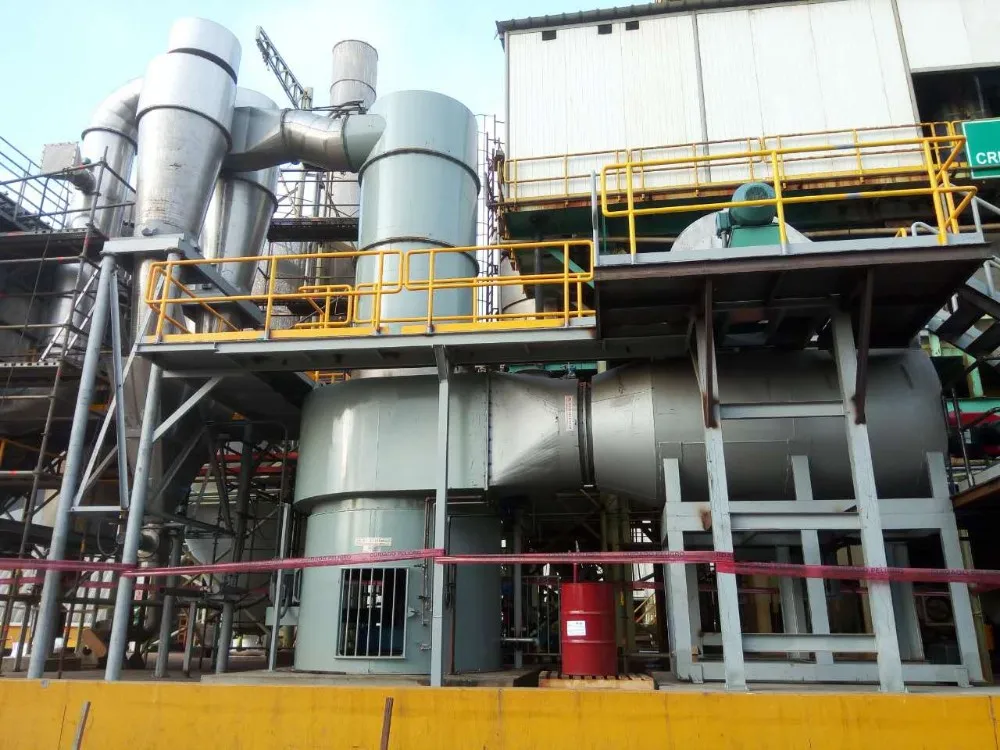

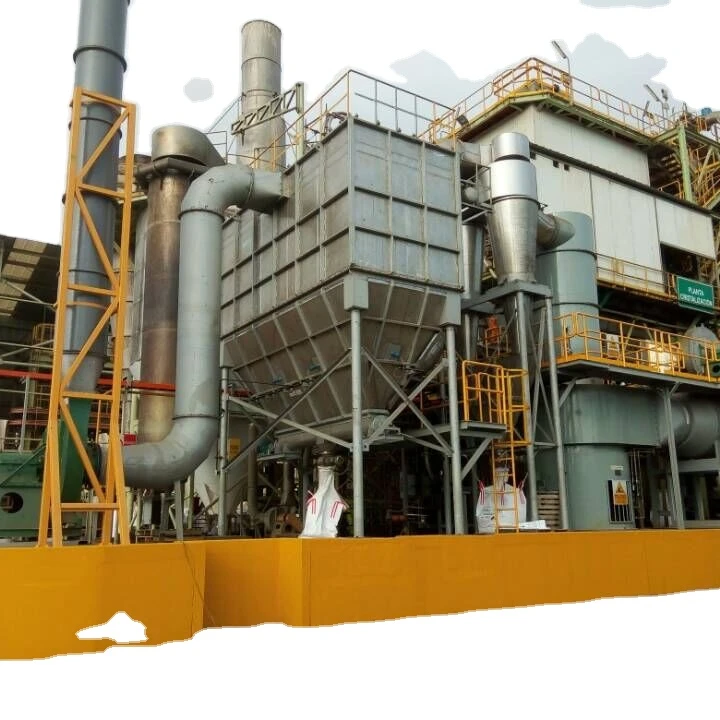

Cooperated project



About us



Changzhou Mascot is a professional manufacturer and supplier of drying, mixing, granulating and roasting equipment in China. We have more than 28 years leading experiences in design and manufacture drying, mixing, granulating and roasting equipment. We are top 3 in China drying equipment fields.

The company main products include spray dryer, fluid bed dryer, fluidized granulator, flash dryer, airstream dryer, vacuum dryer, drying oven, mixer, coater and etc. the products are extensively used in food, chemical ,pharmaceutical and other industries. Factory covered area of 62000m², 15 production lines and over 300 qualified working staffs.

Our products already exported to America, Germany, Canada, Russia, Mexica, Poland, Japan, Korea, Thailand, Indonesia, Philippine, etc over 60 countries.

The company has passed ISO9001quality management system , ISO14001 environmental management system, the Occupational health and Safety Management System Confirms to the standard GB/T28001-2011/OHSAS18001:2007, products already got CE, SGS, TUV , UL certification and etc.

Corporate mission: Provide high quality products and super services to our customers

Manufacturing center

Lean production process



Strictly quality control



Our advantages

Our service





 Our partners



FAQ:

Q1: Are you a factory or trading company?

A1: We are the manufacturer and have been in industry more than 28 years.

Q2: What is your payment term?

A2:T/T payment to our company bank directly, or by Alibaba’s trade assurance service or by the west union. Our other payment terms also can be accepted after negotiation by both parties.

Q3: How long is your delivery time?

A3:Normally our delivery time is 45 days after we received deposit, if order is big, we need extend the delivery time

Q4: What is your after sales service policy?

A4: We provide 1 year un-conditional warranty, online support, response on time and onsite service.

Q5: What kind of certification and regulation are you follow?

A5: We are certified supplier with CE, UL, TUV, SGS, ISO9001 quality management system, ISO14001 environment management system, etc.

Q6: Do you provide technical training and documentation

A6: Yes we provide, we will training your operators step by step and provide complete of validation.
