660nm CW 130 МВт пуш-ап 350 мВт 5 6 мм TO18 красный лазерный диод

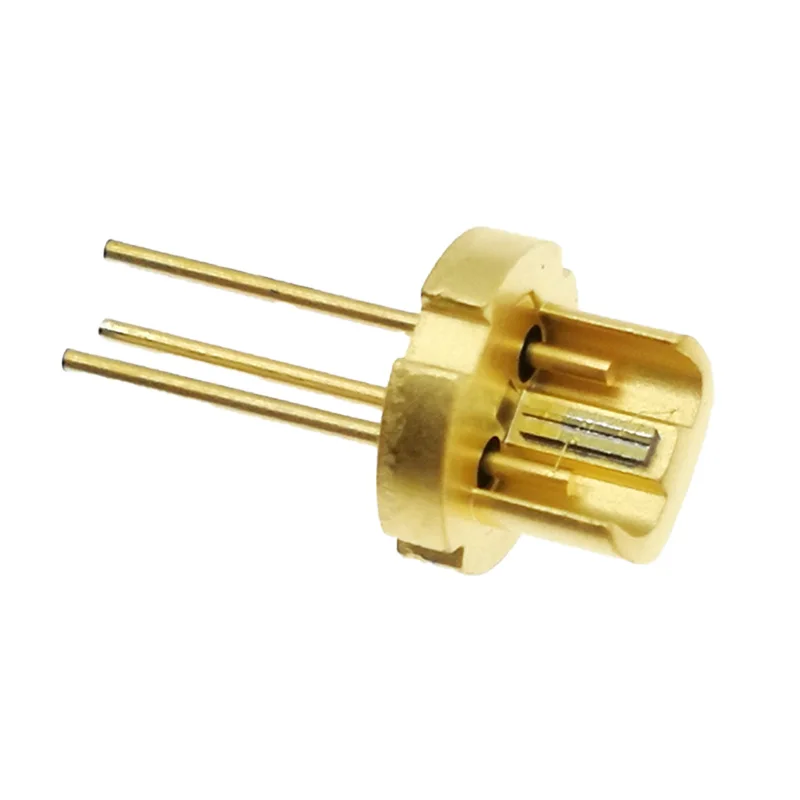

ML101J27 660nm CW 130mW PUSH 350mW 5.6mm TO18 Red Laser Diode

ML1XX27 is a high-power, high-efficient AlGaInP
semiconductor laser which provides a stable, single
transverse mode oscillation with emission wavelength of
658nm and standard pulse light output of 350mW.
ML1XX27 has a real-index-waveguide which improves the
slope efficiency (reduction of the operating current) and the
astigmatic distance.
Also, ML1XX27 has a window-mirror-facet which improves
the maximum output power. That leads to highly reliable and
high-power operation at 75 °C.
FEATURES
APPLICATION
•High Output Power: 350mW (Pulse)
• High Efficiency: 0.95W/A (typ.)
• Visible Light: 660nm (typ.)
• Low Aspect Ratio (q^ / q//): 1.7 (typ.)
• Low Astigmatic Distance: 1mm (typ.)
Portable High-Density Optical Disc Drives
Re-Writable DVD Drives

Brand: Mitsubishi

Diameter: φ 5.6 mm to18

Life-Span: > 6000 hours

Wavelength: 660nm / + 5nm

Output: 130mW CW ; 350mW Pulse

Voltage:  3V DC

Current: < 350mA

Working Temperature: - 10  ~ + 50 centi-degree

Storage Temperature: - 40  ~ + 80 centi-degree

Datasheet Download:

http://www.laserlands.net/datasheet/11061171.pdf

Note:

1. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray.

2.  Be sure the operator has experience in optics DIY or testing.

3.  Don't operate when the power is connected.

2. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray.

3. Be sure the operator has experience in optics DIY or testing.
