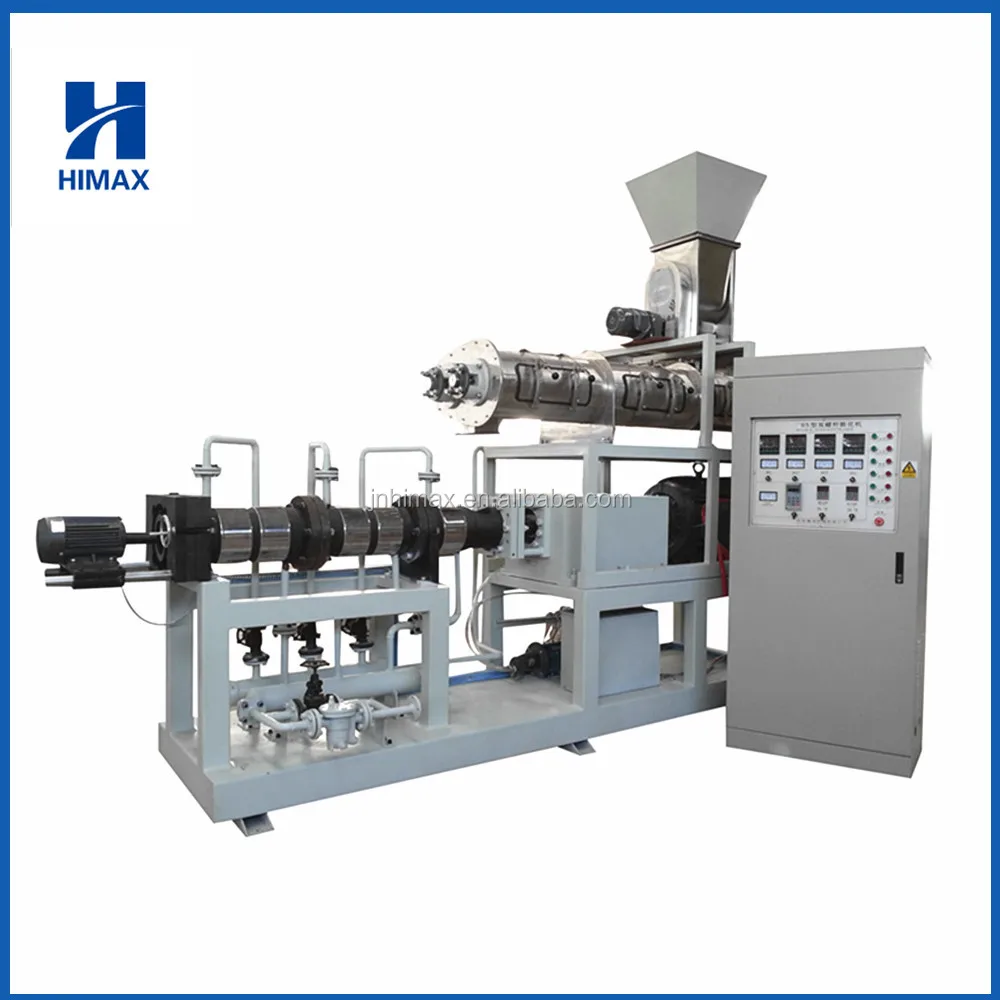

Automatic mini floating tilapia fish feed pellet machine

Newest Aquarium fish feed machine  is used for processing for dogs and cats (pet food), birds, piglets, frogs, sinking and floating aquatic feeds for fish. Which is high and new technical program as to catch the developing pet food market. Pet food line mainly use maize, fish powder, meat powder and some food additive as main raw material, through mixing, extruding, roasting, flavoring to get the final puffed pet food.





This line is fully automatic, high capacity and with different of shapes. It can produce such as cat food, dog food, fish food, bird food and so on.
1 Raw Materials: adopts corn flour, fish meal as raw materials
2 Products: different shapes are made by adjusting the dies from extruder
3 Capacity: 140 - 160kg/h, 240 - 260 kg/h, 500 - 600 kg/h, 1ton---3ton/h
4 Flow chart:

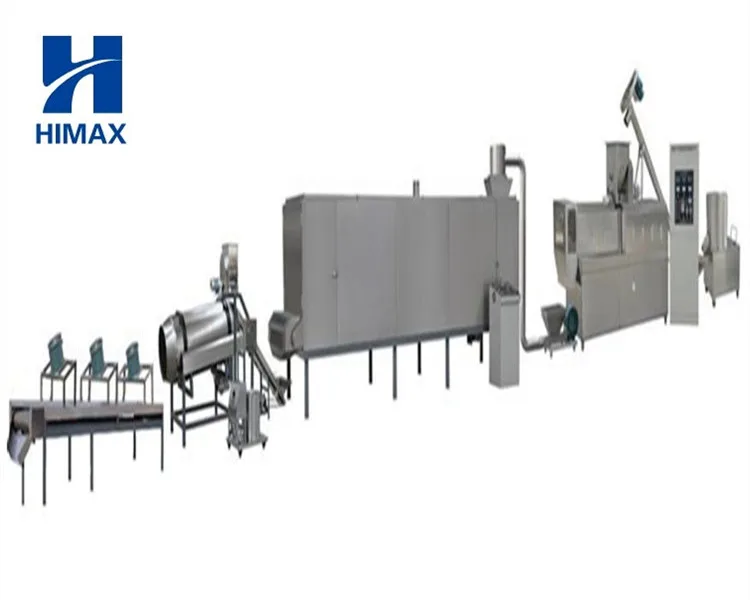

Mixing system---Extrusion system---Drying system---Flavoring system---Packing system



Technical Items	Parameters
Motor power	22kw
Heating power	17kw
Feeding Moto	0.75kw
Cutting Motor	0.75kw
Power Installed	30kw
Production capacity	100-150kg/h
Weight	1500kg
Dimension	2600x900x1700mm

5 Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
6 Machines Materials: All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function

Features

1. Gear directly-connecting driving is adopted for high efficiency;
2. Full stainless steel feeder; Variable pitch and anti bridging structure; Electromagneticconverter control;
3. Stainless steel conditioner; axial steam spraying extends the conditioning time and cooking effect;
4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving, low noise and long service life;
5. Gearbox and driving holes’ accuracy are guaranteed by specialized casting supplier and NCC.



Advantages:



1. Two shafts of conditioners

Two shafts of conditioners are different in diameter and rotational speed showing a different movement with opposite rotation direction,which makes the materials, steam and liquid be fully mixed,sheared and intersected by paddles of two shafts.



2.stainless steel conditioner

All parts in the conditioner are made of stainless steel.



3.Good Stability

The full-width opening structure of the conditioner facilities the operation and maintenance.The angle of the paddles can be adjusted freely.





Conditioners of HM fish feed extruder machine

The optimum conditioning of feed ensures you to get the highest performance out of a floating fish feed pellet machine. The gain of good conditioning:

* higher production throughput

* better pellet durability

* improved digestibility

* reduced pellet mill power consumption.



Kindly note:

All the Himax conditioners are made from stainless steel, have a very stable design and allow an easy installation on top of the pellet mill. We can customize different kinds of conditioners to meet your request.

Sample:











1. Technical support online service provided.


2. Technical files service provided.


3. On-site training service provided.


4. Spare parts replacement and repair service provided.
