Характеристики
Products Show
We focus on water pumps for 25 years
solar powered water pump irrigation high pressure solar water pump
Material of Parts
Outlet: Stainless SteelPump body: Stainless Steell
Impeller: Stainless Steell
Motor Body: Die-cast Aluminum
Bearing: NSK
Motor: Brushless DC motor
Controller shell: Die-cast Aluminum (IP67)
Product Parameters

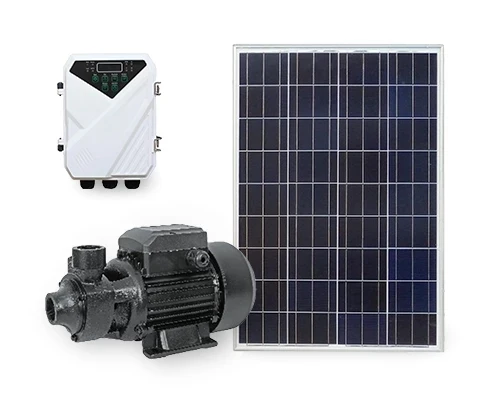

portable solar water pump solar dc surface water pump
Model | Power | Voltage | Max flow (m3/h) | Max head (m) | Outlet (inch) |
DQB2-25-24-210 | 210 | 24 | 2 | 25 | 1" |
DQB2-30-24-280 | 280 | 24 | 2 | 30 | 1" |
DQB3-50-48-550 | 550 | 48 | 3 | 50 | 1" |
DQB3-65-72-750 | 750 | 72 | 3 | 65 | 1" |
Installation Instructions
How to connect the solar pumps:
Solar panels connect P+ P-.
Pump connect U V W
Very simple connection.Tips1: Do not reverse the positive and negative of power, otherwise it will not work.
Tips2: Before you start wiring the controller box, switch must be in the off position
Pump connect U V W
Very simple connection.Tips1: Do not reverse the positive and negative of power, otherwise it will not work.
Tips2: Before you start wiring the controller box, switch must be in the off position

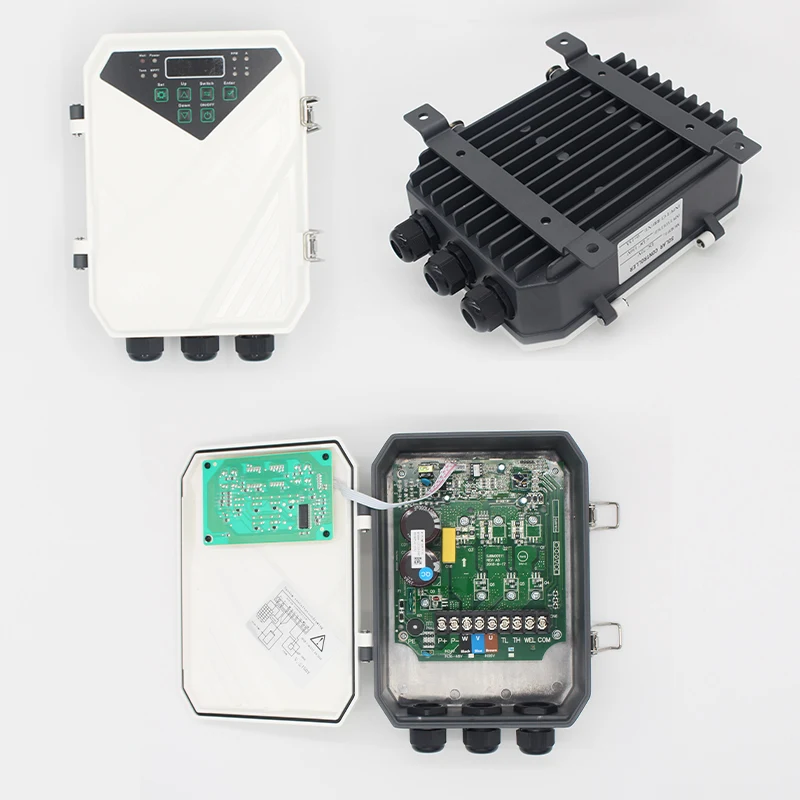

Controller Featurers:
Automatically run when power enough or tank is not full. Automatically off when tank is full. High waterproof grade: IP65, double seal effect in waterproof and leak-proof . Soft start technology: No impulse current, longer life for the pump motor.High voltage/Low voltage/Over current/Hightemperature protection
HOW TO CHOOSE THE SOLAR PANELS:
PUMP VOLTAGE (V) | SOLAT PANEL (W) | PEAK VOLTAGE VMP(V) | OPEN CIRCUIT VOLTAGE VOC(V) |
24V | ≥1.3PUMP POWER | ≥18 | 18V-50V |
48V | ≥1.3PUMP POWER | ≥30 | 30V-96V |
72V | ≥1.3PUMP POWER | ≥50 | 50V-150V |
Why Choose Us
According to the other customers feedback of our return rate is 2% lower than other factory
①304 S/S pump shaft. ② Brass outlet/connector/ oil cylinder. ③tybc bearing, the working life will be 3 to 5 times prolonged.④ Double bearing motor base can work under more axial pressure
⑤Alloy mechanical seal: Longer working life and high reliability.
⑥Motor coil is made by automatic winding machine
⑤Alloy mechanical seal: Longer working life and high reliability.
⑥Motor coil is made by automatic winding machine
①Application of deep well pump to irrigation
②Village and town water supply
③Clean drinking water
②Village and town water supply
③Clean drinking water
④Garden watering
⑤Enviroment friendly
⑥Pumping and drip irrigation
⑤Enviroment friendly
⑥Pumping and drip irrigation

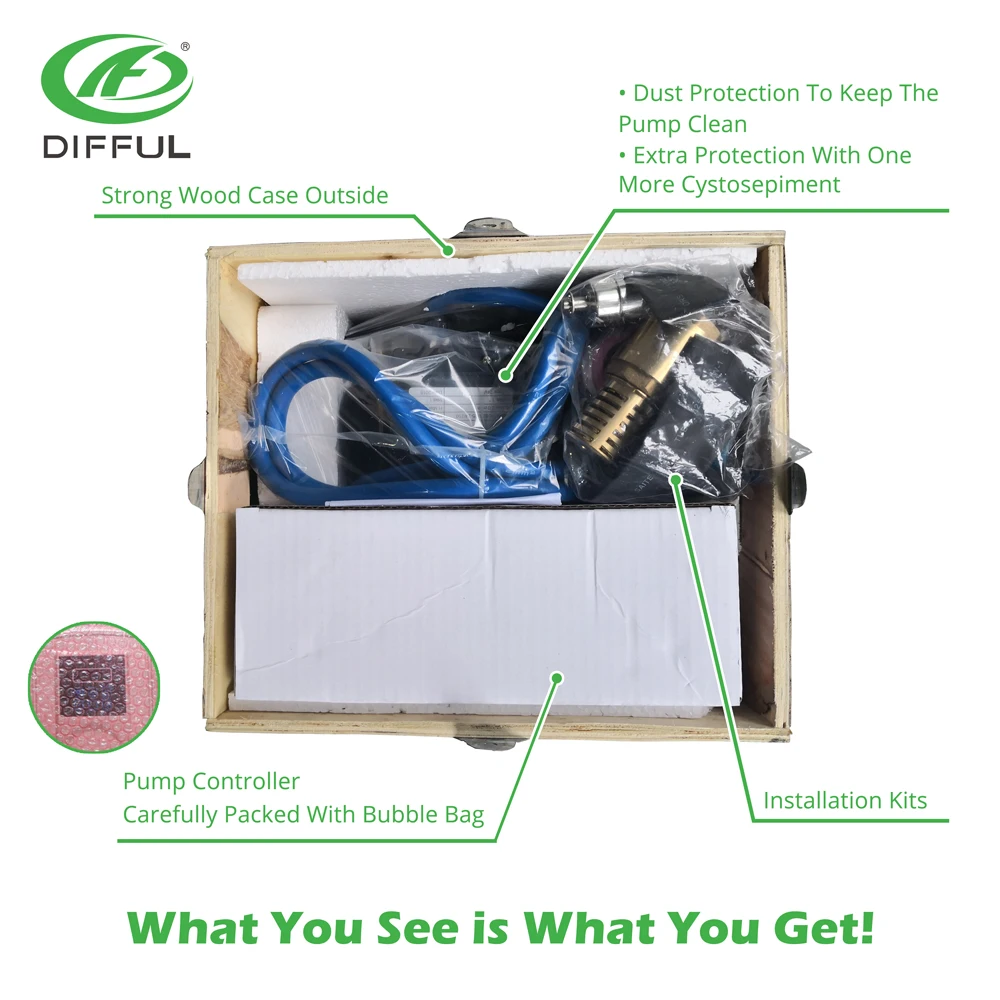

Packaging

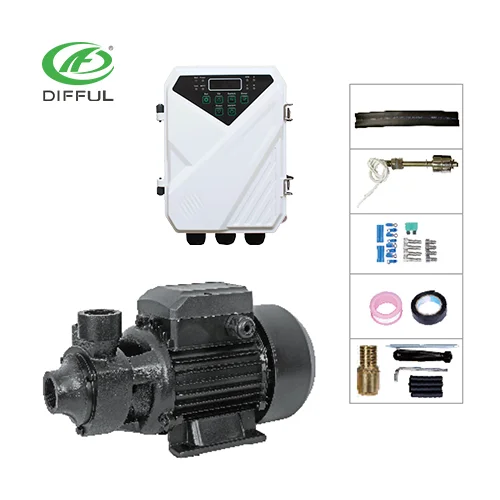

What We Get For You (Package Include): - 1 x 3" DC solar Pump with 2m cable
- 1 x Pump controller with MPPT function
- 1 x Stainless steel float switch (sensor for the tank)
- 1 x Pump outlet joint connector
- 1 x Splice kit for cable join
- 1 x Splice kit for waterproof
- 1 x Pump controller with MPPT function
- 1 x Stainless steel float switch (sensor for the tank)
- 1 x Pump outlet joint connector
- 1 x Splice kit for cable join
- 1 x Splice kit for waterproof
portable solar water pump solar dc surface water pump
About us
portable solar water pump solar dc surface water pump
As one of the earliest water pump manufacturers engaged in producing water pump for over 25 years in china , we believe one day Dingfeng pump will exist in every corner of the world by means of its reliable quality and good reputBy the way,Dingfeng sincerely welcomes all the friend to visit our company and hopes to have a good communication and double-win partnership with all of you cause dingfeng pump is always on the way to be better! Your views are the driving forces of Dingfeng! I hereby on behalf of all the members of Dingfeng, thank all of you for the long-term supporting and concerning of our growth.
Related Products
dc solar pump with mppt controller
dc solar pump with plastic impeller
dc solar swimming pool pumps
FAQ
1. Q:What’s your MOQ?
A:Trial sample order is OK.
2. What’s your payment terms?
A: T/T,L/C,D/A,D/P
3. Q: What is the delivery time?
A: 25-30 days after receiving your advanced deposit.
4. Q:Can you we do OEM brand?
A:Yes,welcome your OEM.
5. Q: How to buy our pumps ?
A: Firstly we should know from you :
What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry ?
What is the flow and head ? And the power?
What is the voltage and frequency of three phase electrcity ?
Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you
