SKILT Автоматическая клейкая наклейка бумажная яичная картонная коробка лоток этикеточная


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.63 $* 0.89 $*
Aug-16-2025 0.42 $* 0.23 $*
Jul-16-2025 0.50 $* 0.92 $*
Jun-16-2025 0.96 $* 0.14 $*
May-16-2025 0.60 $* 0.16 $*
Apr-16-2025 0.75 $* 0.5 $*
Mar-16-2025 0.15 $* 0.74 $*
Feb-16-2025 0.1 $* 0.85 $*
Jan-16-2025 0.49 $* 0.98 $*

Характеристики


SKILT PARTNER
Product Description

1. The Scope of Application

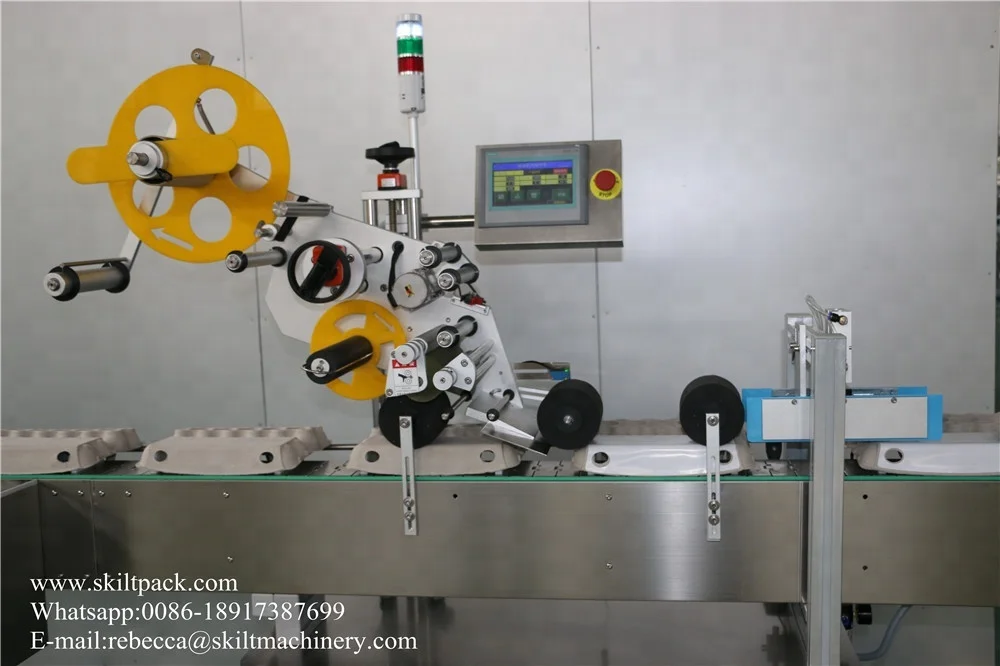

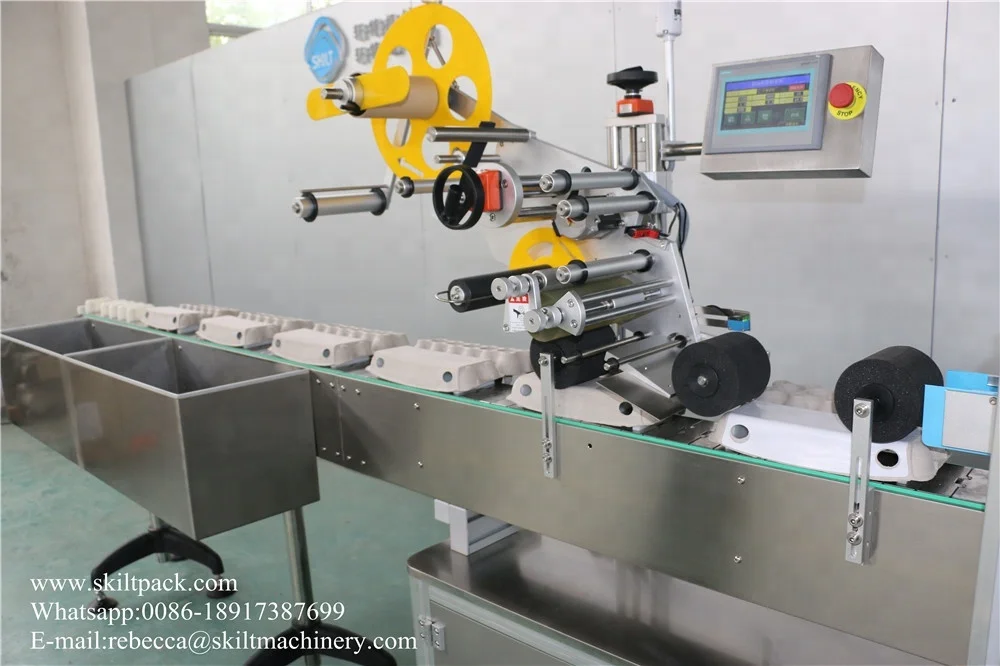

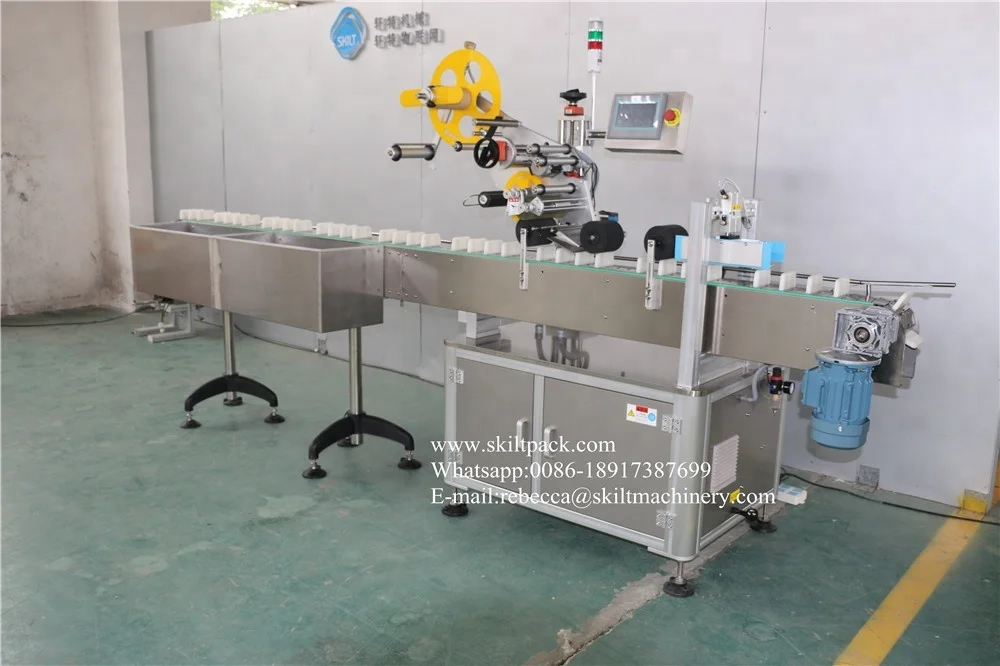

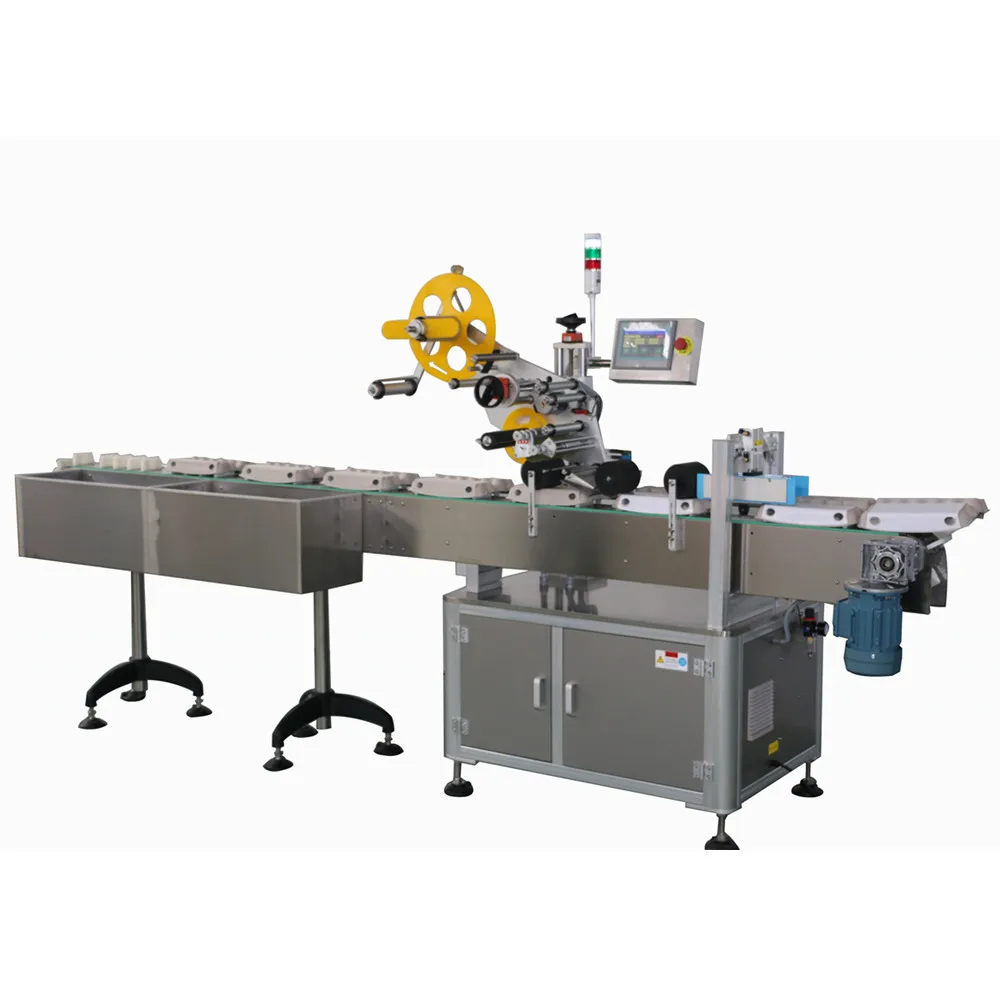

The model ELM-S egg box carton tray labeling machine is SKILT customized specially for egg box, labeling on the egg box top surface two sides .

2. Device Characteristic

Adopt mature technology PLC control system, stable and high-speed operation


Touch-screen Man-machine interface operating system, simple and efficient


Screw adjustment to press label object move accurately


Synchronization chain mechanism ensure label smooth and precise


Advanced technology of pneumatic coding system, print the batch number and expiry date clearly

Technical Parameter
\t
Production(pcs/min)
\t
30-80
\t
Driving Mode
\t
Servo motor
\t
Label position
\t
top and two sides surface
\t
Conveyor speed
\t
≤40 (m/min)
\t
Label Specifications
\t
adhesive sticker
\t
The application of box
\t
customized
\t
The application of label
\t
Width 15-300 mm length 15-300 mm
\t
inner diameter of label roll
\t
76mm
\t
outer diameter of label roll
\t
350mm(max)
\t
Voltage
\t
110V/220V/380V
\t
No
\t
Name
\t
Model
\t
Unit
\t
Brand
\t
1
\t
PLC control system
\t
288-1ST20-OAAO
\t
1 set
\t
SIEMENS
\t
2
\t
Touch screen
\t
648-OCC11-3AXO
\t
1 set
\t
SIEMENS
\t
3
\t
Photoelectric sensor
(check label object)
\t
FS-N18N
\t
1Set
\t
Japan KEYENCE
\t
4
\t
Photoelectric sensor
(Check opaque label)
\t
GS61/6.2
\t
1 Set
\t
German Leuze
\t
Photoelectric sensor
(Check transparent and opaque label)
\t
GSU 14B/66.3-S12
\t
1 Set
\t
German Leuze
\t
5
\t
Servo motor
\t
1FL6 034-2AF21-1AA1
\t
1 Set
\t
SIEMENS
\t
6
\t
Drive
\t
6SL3 210-5FB10-4UA1
\t
1 Set
\t
SIEMENS
\t
7
\t
Main transport motor
\t
90YS90DV22
\t
1 set
\t
German JSCC
\t
8
\t
Speed Controller
\t
40-90W
\t
1 set
\t
German JSCC
Detailed Images
Machine Processing
SKILT Team
FAQ

1. Q: What label material does your machine use ?
A: Self-adhesive sticker.

2. Q: The machine is automatic or semi-auto?
A: We only produce the automatic machine .

3. Q: Which kinds of machine are suit for our products labeling requirement?
A:Pls supply us your products and label size (the photo of products with label on it is rather helpful), then I will suggest you the suitable machine for reference.

4. Q: The machine can connect with the product line or not ?
A: Machine can connect with production line or put on the production line or operation alon all ok as you need .
