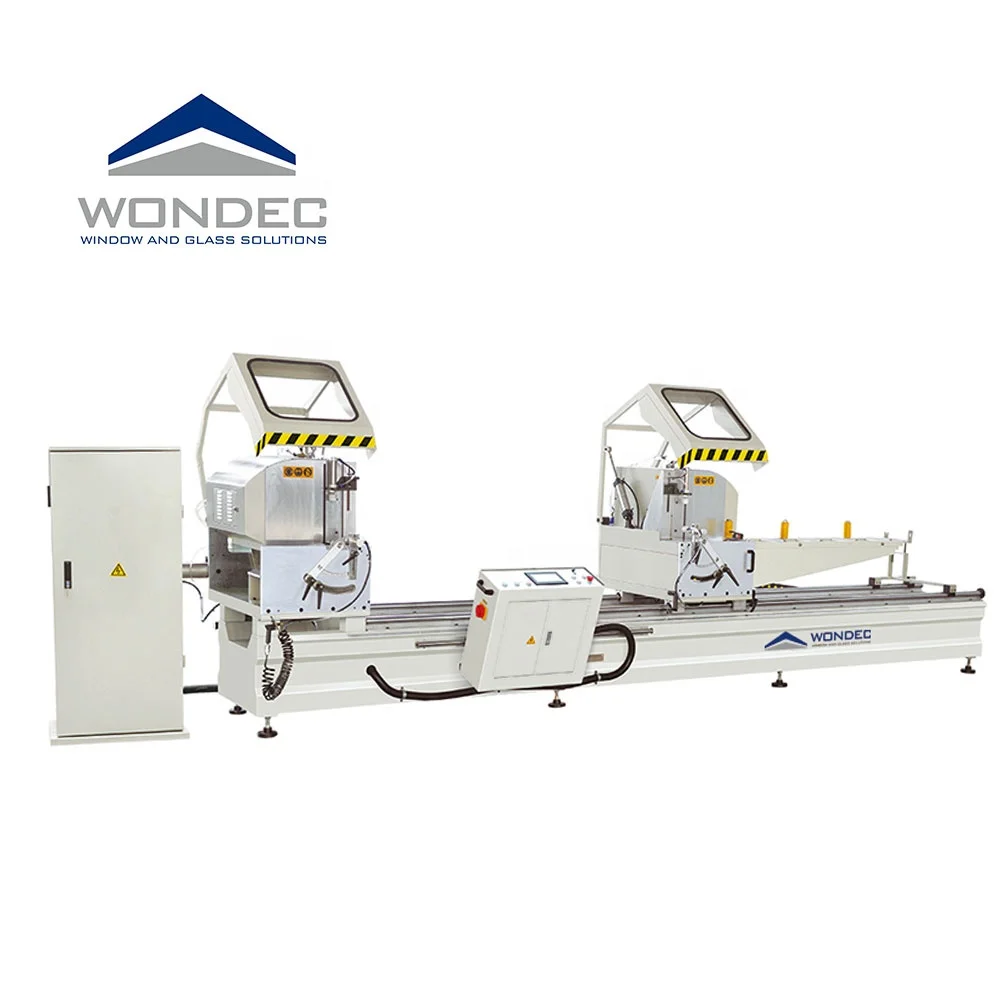

Двухголовочный станок с ЧПУ для резки алюминиевого профиля китайская

Двухголовочный станок с ЧПУ для резки алюминиевого профиля китайская

Категория: Building Material Machinery >>>
Поставщик: Jinan,Wondec,Machinery,Co.,Ltd.

Цена:13 200,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	15708.37 $*	16493.81 $*
Aug-19-2025	15576.63 $*	16355.43 $*
Jul-19-2025	13068.59 $*	13721.48 $*
Jun-19-2025	15312.53 $*	16078.95 $*
May-19-2025	13332.13 $*	13999.55 $*
Apr-19-2025	15048.77 $*	15800.16 $*
Mar-19-2025	14916.39 $*	15662.6 $*
Feb-19-2025	14784.46 $*	15523.47 $*
Jan-19-2025	14652.32 $*	15385.27 $*

Характеристики

Product Description

Product Application

The main material for aluminum alloy curtain wall,window material cutting,and can also be used for plastic profile cutting ,and can also be used for plastic profile cutting.

\t Input power	\t 5.9kw	\t power supply	\t 350v/50Hz
\t air pressure	\t 0.5-0.8Mpa	\t motor rotary speed	\t 2800r/min
\t Saw Blade specification	\t Φ500*Φ30	\t Cutting angle	\t 90º-67.5º-45º
\t cutting length	\t 450-4200mm	\t Overalldimension	\t 526017501990
\t Cutting width *hight	\t 135300-90º 135200-45º	\t	\t

Main Features

1)Used for cutting the profile of aluminum door and windows,curtain wall and corner connector.

2)The feeding system adopts the importanted linear guide pair,with high zccuracy and stability.

3)Right head feeding adopts high helical pitch ball screw-lead motion,with high accurante driving,locating and smooth working

4)Two saw heads are adjustable and cut the profiles in 67.5º(spare),45º,90º reely.

5)Imported carbide saw blade is of accurate processing and high endurance.

6)Saw blade rotates smoothly due to high accurate main spindle.

7)Uniform speed feeding and smooth motion is due to air hydraulic damping cylinder.

8)Auto-opening shield makes the operation more safety.

9)Middle auto -induction profile supporter and folloeing profile supporter made the loading and clamping convenient.

Certifications

Detailed Images

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

\t Packaging
\t Size	\t 5280 (L) * 1770(W) * 2020(D)
\t Weight	\t 220KG
\t Packaging Details	\t The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
