Паяльная паста 3 оси диспенсер робот
- Категория: Electronics Production Machinery >>>
- Поставщик: Guangzhou,Kintai,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 12138.88 $* | 12745.87 $* |
| Aug-17-2025 | 12036.3 $* | 12638.47 $* |
| Jul-17-2025 | 10098.28 $* | 10603.80 $* |
| Jun-17-2025 | 11832.11 $* | 12424.2 $* |
| May-17-2025 | 10302.96 $* | 10817.34 $* |
| Apr-17-2025 | 11628.65 $* | 12209.32 $* |
| Mar-17-2025 | 11526.35 $* | 12102.47 $* |
| Feb-17-2025 | 11424.95 $* | 11995.41 $* |
| Jan-17-2025 | 11322.91 $* | 11888.18 $* |
Характеристики
Products Description

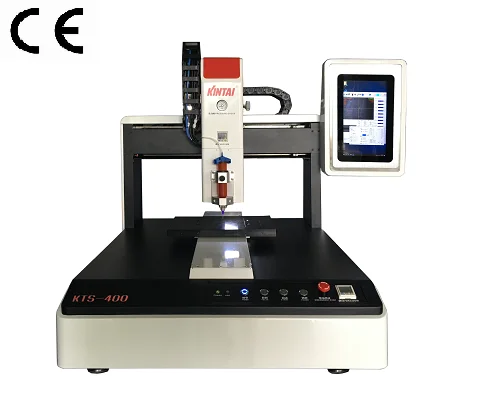

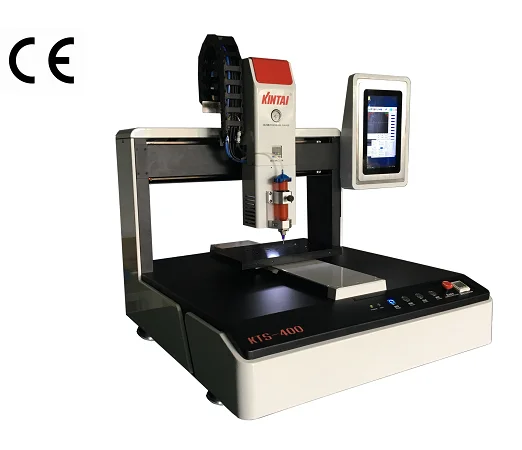

KTS-400 Bench Top Fluid Dispensing Robot
Features:
1.Computer Control, Windos OS;
2.Servo Motor + Ball Screw Driven;
3.X,Y,Z robotic arms repeatability accuracy up to 0.015mm;
4.Hidden PC design, compact external dimension, easy to move;
5.Dispensing bench with Vacuum absorption function;
6.Visual dispensing patterns,easy programming of dots, stripes arcs, compound arcs and patterns;
Products Parameters
MODEL | KTS-400 Glue Dispensing Machine | ||||||
Repeatability Accuracy | ±0.015mm/Axis | ||||||
X/Y/Z Working Range | X400mm * Y400mm * Z100mm | ||||||
XY/Z Speed | Max:800/500 (mm/s) | ||||||
Motion/Drive System | Servo Motor, Ball Screw, Linear Slide | ||||||
Control Method | Industrial Computer + Motion Controller + LCD Display | ||||||
Positioning | 300,000 Resolution CCD Vision Camera | ||||||
Material Supply(customized) | Glue Tank(2600ml optional) 5cc/10cc/30cc/50cc Cartridge(optional) 30cc syringe | ||||||
Laser Height Measurement | Automatic Laser Height (precision:0.001mm) Detection & Z Axis Height Calibration Optional | ||||||
Power Supply | AC 110/220V, 50/60Hz, 1Kw | ||||||
Air Pressure | 0.5-0.7Mpa, 0.2m²/h | ||||||
CAD Impot | DXF Format | ||||||
Low Fluid Sensor/Warning | Optional | ||||||
Memory Capacity | 1000 Programs - Unlimited (Data Storage via USB) | ||||||
Details Images
Company Profile
Certifications
Order and feedback
Exhibition
Product Packaging
FAQ
