Вакуумная формовочная машина для акриловых пластиковых
- Категория: Вакуум-формовочная машина для пластика >>>
- Поставщик: Guangzhou,Looker,Packaging,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 3808.20 $* | 3998.2 $* |
| Aug-15-2025 | 3776.94 $* | 3965.9 $* |
| Jul-15-2025 | 3168.39 $* | 3326.8 $* |
| Jun-15-2025 | 3712.57 $* | 3898.48 $* |
| May-15-2025 | 3232.56 $* | 3394.57 $* |
| Apr-15-2025 | 3648.64 $* | 3830.97 $* |
| Mar-15-2025 | 3616.64 $* | 3797.38 $* |
| Feb-15-2025 | 3584.99 $* | 3763.39 $* |
| Jan-15-2025 | 3552.21 $* | 3730.99 $* |
Характеристики

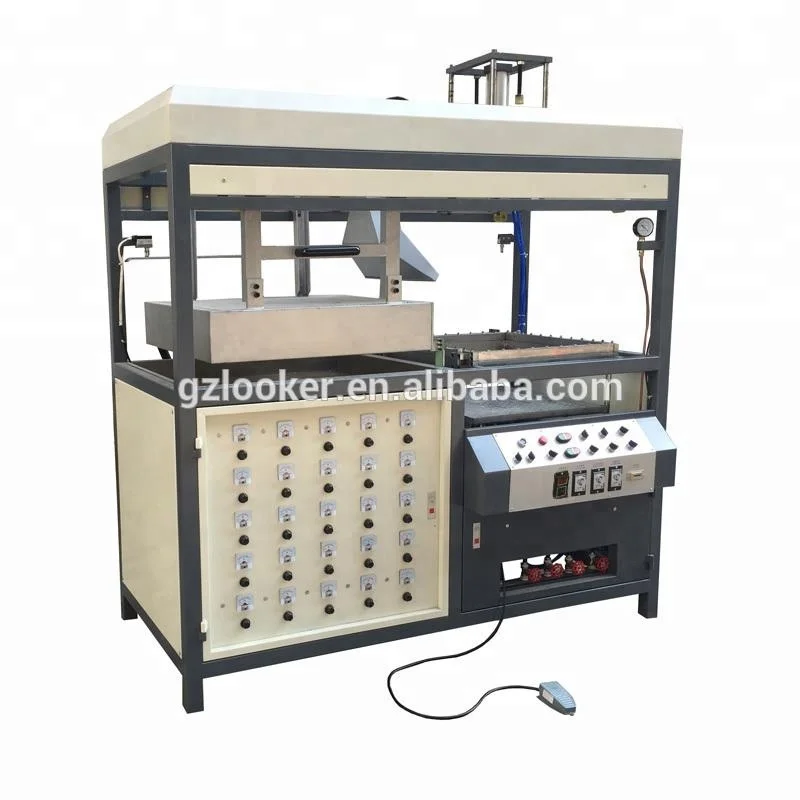

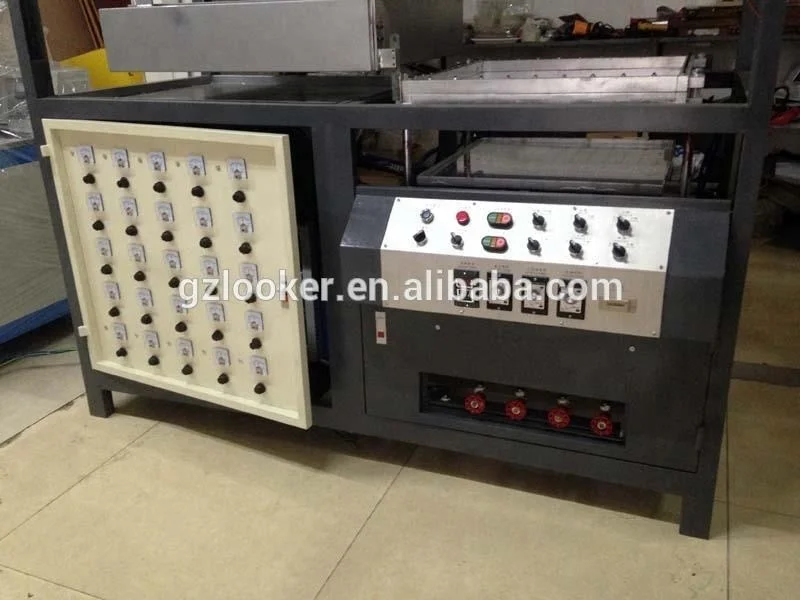

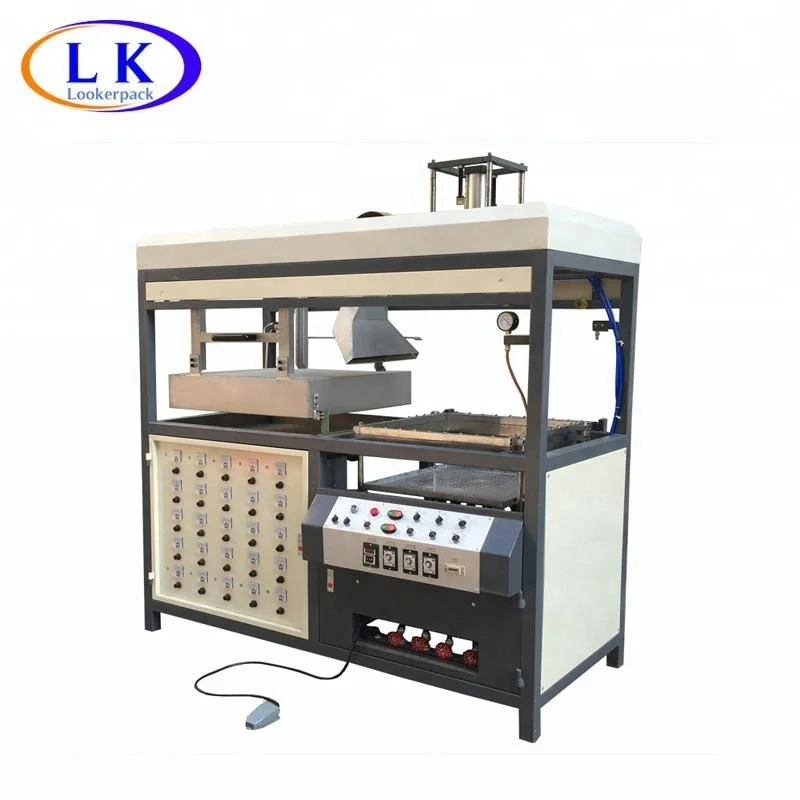

Product Description
Machine Application

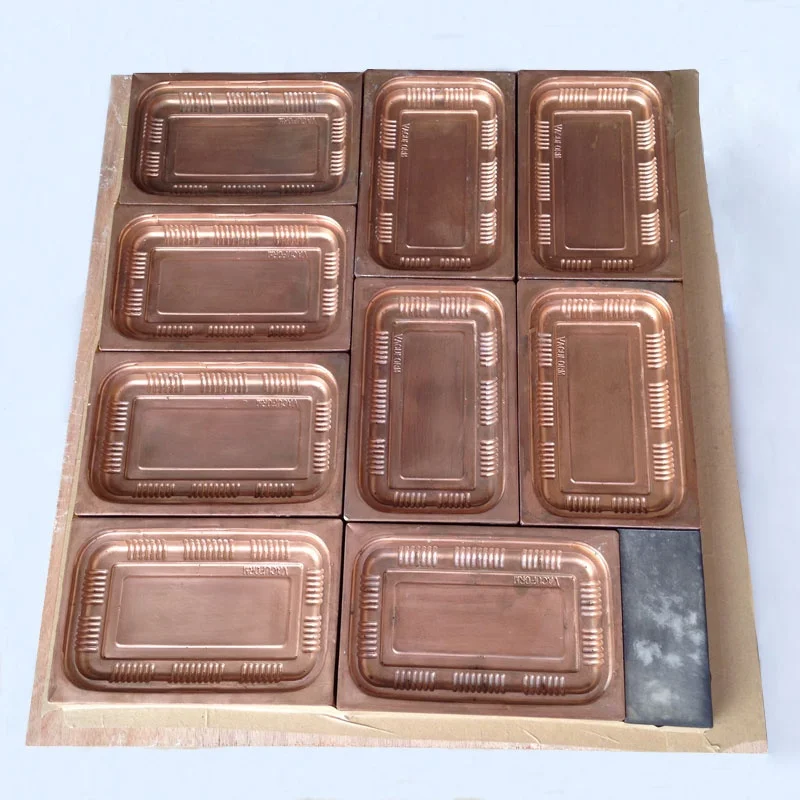

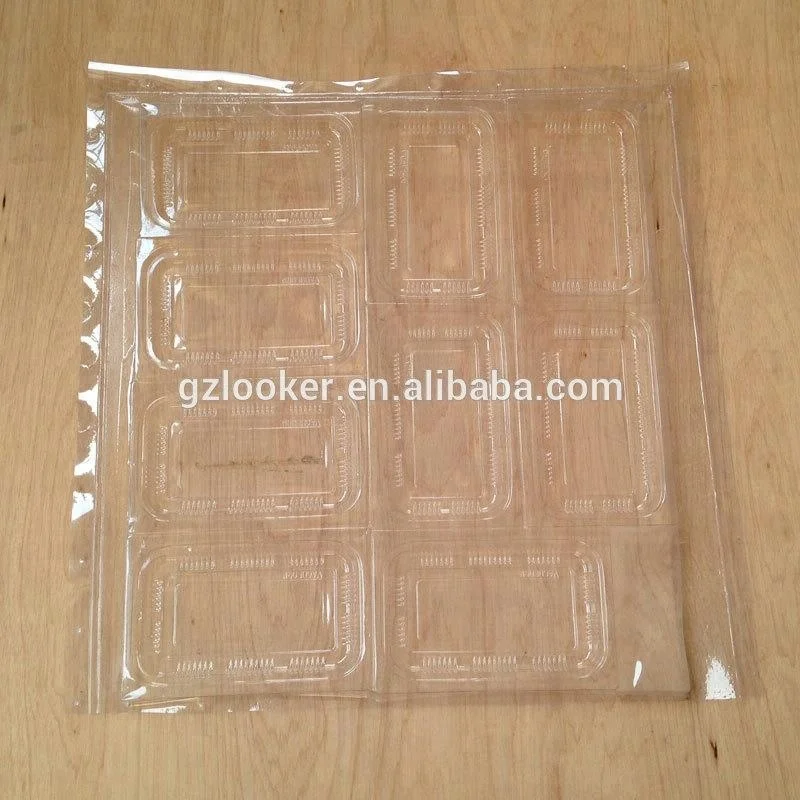

Suitable for PVC, PE, PET, PETG, PP, PC, PS, HIPS, APET etc, the machine furnace produce heat to soften the plastic sheet, then vacuum pump sucks the plastic sheet down to the forming mould area to finish the forming, different forming mould enable to have different forming shape. This machine is ideal for the sample making purpose and small quantity order production.
Main Features
1. 25pcs ceramic infrared heating boards which can be controlled separately, suit for different size or different thickness material.
2. 25pcs Solid state voltage regulators, control heating boards simple and visualized.
3. Large-scale cooling fan which can cool the products quickly.
4. Water-spray cooling system which suit for thick material.(optional)
5. Manual style and Semi-auto style available.
Parameters | ||
Model | LK-61 | |
Power supply | AC380V | |
Power | 16.5KW | |
Max.forming size | 500*610mm | |
Max. forming height | 200mm | |
Speed | 200~300moulds/H | |
Thickness of material | 0.2~1.5mm | |
Machine size | 1800*1200 *2000mm | |
N. weight | 500KG | |
Certifications
Detailed Images
Machine Parts
Name: Temperature controller
25pcs ceramic infrared heating boards which can be controlled separately
Machine Parts

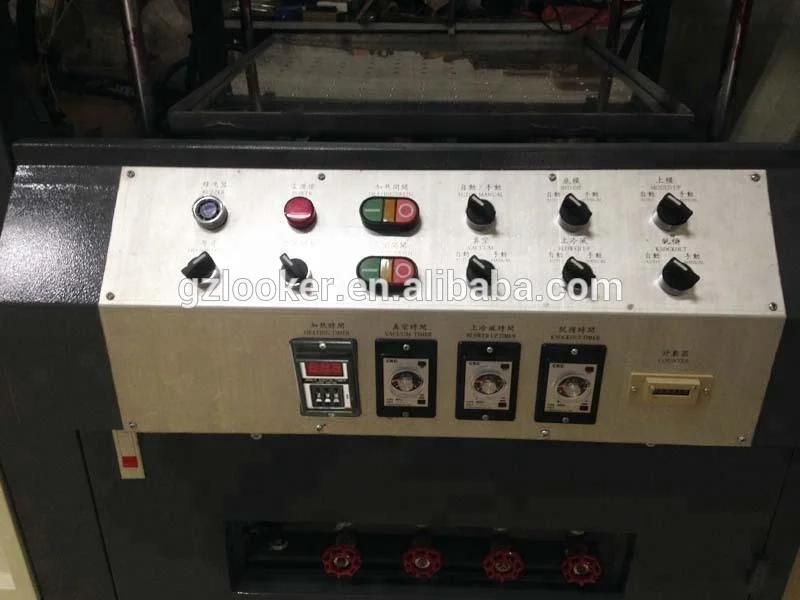

Name: Control board
Easy to set working parameters, Manual style and Semi-auto style available.
Machine Parts
Name: Vacuum pump
20CBM/H
Our Service
Pre-Sales Service
* Operation manual.
* Assemble video, Working video, Setting video.
Normally, customer can assemble and operate the machine correctly with these manuals and videos.
After-Sales Service--Philippines
* Engineers available to service machinery overseas.
* Our engineers are skillful and fluent in English.
* Went to Philippines to train how to instal the machine and how to use the machine.
After-Sales Service--Sri Lanka
* Engineers available to service machinery overseas.
* Our engineers are skillful and fluent in English.
* Went to Sri Lanka to train how to instal the machine and how to use the machine.
After-Sales Service--Tunisia
* Engineers available to service machinery overseas.
* Our engineers are skillful and fluent in English.
* Went to Tunisia to train how to instal the machine and how to use the machine.
Packing & Delivery
Packaging | ||
Size | 1900 (L) * 1160 (W) * 2000(D) mm | |
Weight | 550KG | |
Packaging Details | The normal package is wooden box(Size: L1900*W1160*H2000 mm). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 1900 (L) * 1160 (W) * 2000(D) mm | |
Weight | 650KG | |
Packaging Details | The normal package is wooden box(Size: L1900*W1160*H2000 mm). | |
