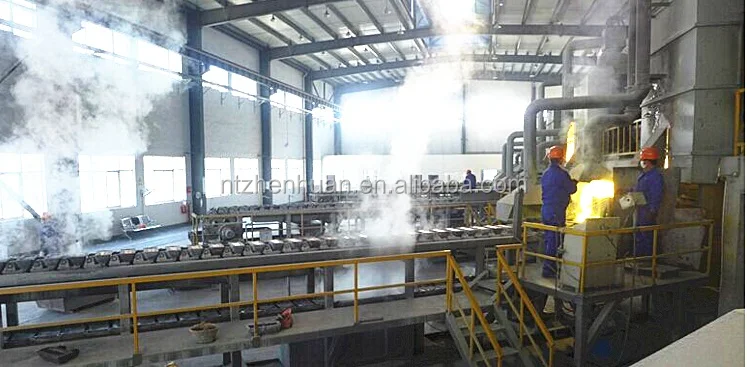

Aluminum Melting Furnace For Aluminum Ingot

I Usage

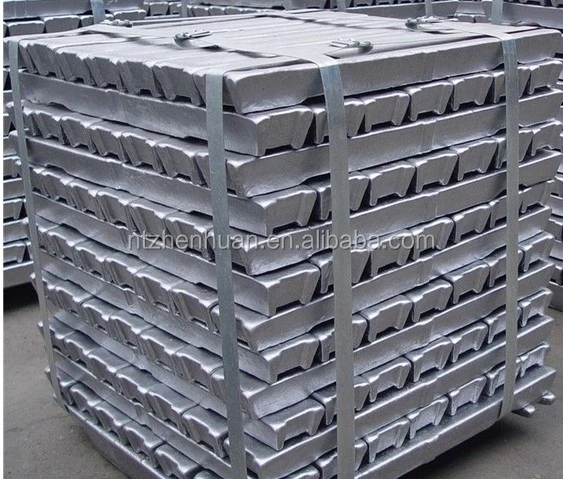

This production line is used for producing aluminum alloy ingots.

One production line is 40 tons per day, 12000tons per year (300days).

If capacity is 50000 tons per year, it needs 4 sets of production line.

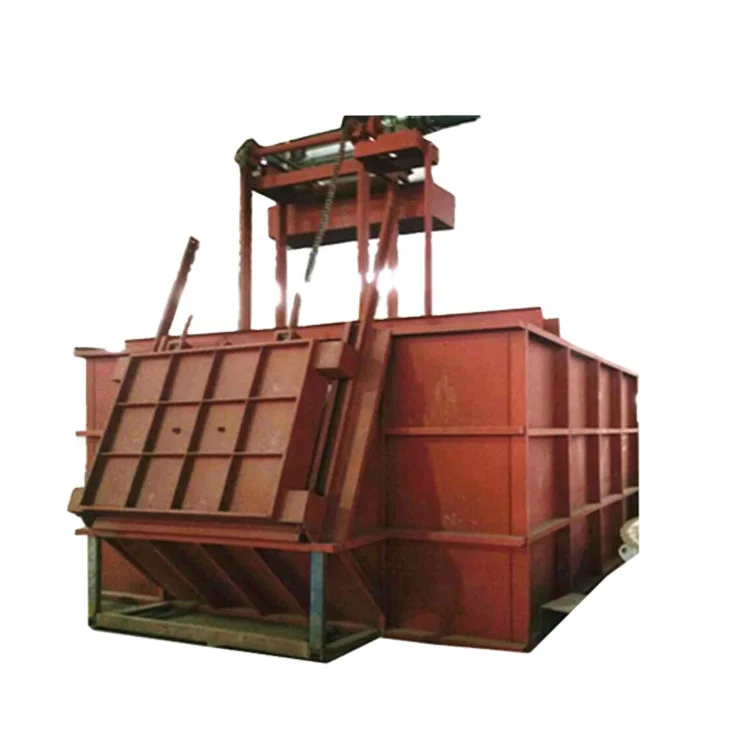

II 20 TONS rectangular aluminum melting furnace

Usage

This machine is used for melting nonferrous metals (aluminum).

Main technical parameters

Name	Data
Furnace type	Rectangular stationary type
Capacity	More than 20 tons
Max. depth of aluminum water	About 650mm
Number of furnace door	1
Door operation	Power driven
Max. temperature	900℃
Normal operation temperature	720-800℃
Al water discharge type	Manual
Discharge hole diameter	About 500mm

4 Fireproofing

Name	Material type	Thickness
Furnace wall (furnace tank which touch liquid)	High-alumina brick, Grade I	230mm
	Impermeable and insulating layer	330mm
	Steel plate (A3)	8mm
	Total thickness of furnace wall	568mm
Furnace wall (out of touch liquid)	High-alumina brick, Grade III	230mm
	Impermeable and insulating layer	330mm
	Steel plate (A3)	8mm
	Total thickness of furnace wall	568mm
Furnace bottom	High-alumina brick, Grade I	230mm
	Impermeable and insulating layer	280mm
	Steel plate (A3)	10mm
	Total thickness of furnace bottom	520mm
Furnace top	Fire brick	230mm
	Insulating castable	150mm
	Aluminum silicate fiberboard	50mm
	Body frame channel steel	12# channel steel
	Total thickness of furnace top	550mm

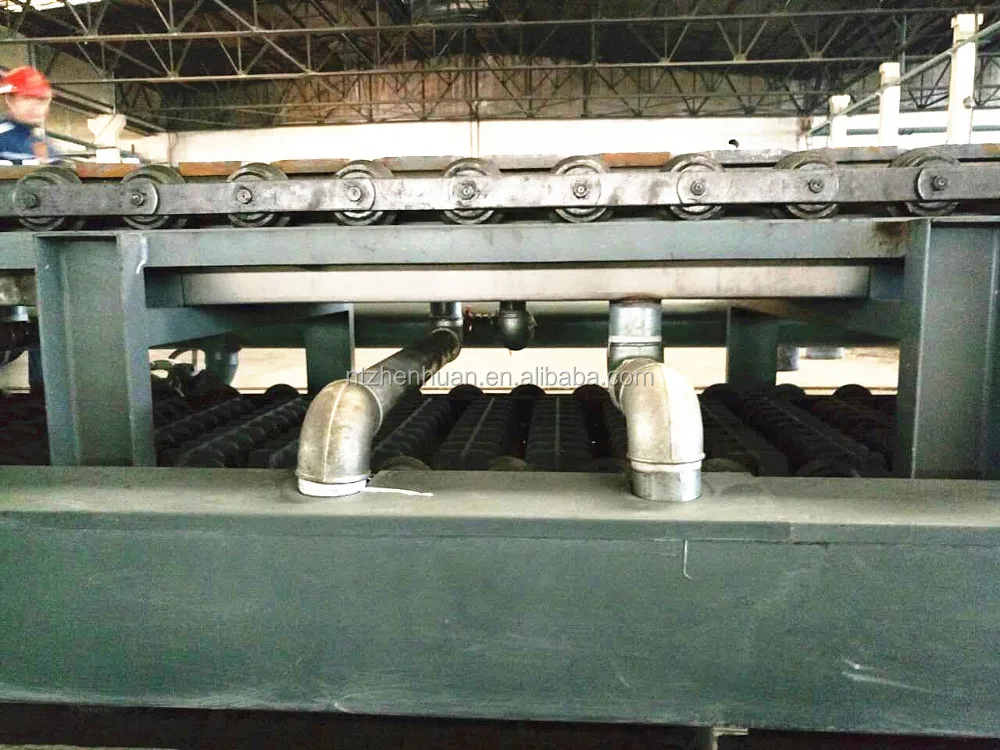

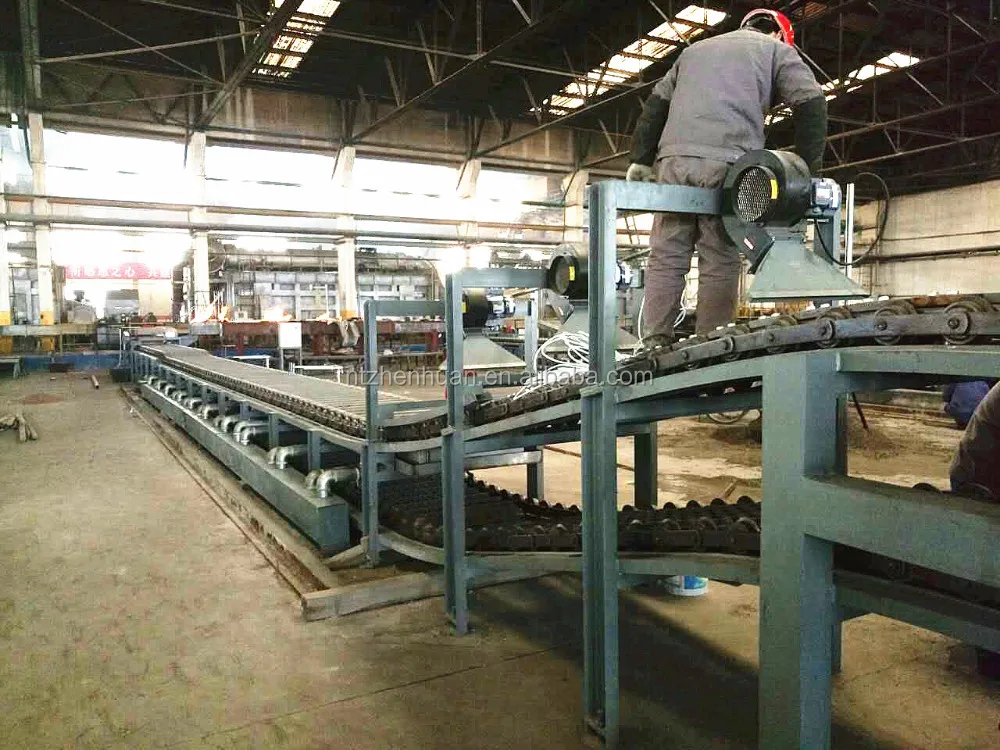

III Chain type aluminum alloy ingot casting machine

1 Usage

This machine is used for casting aluminum alloy ingot with continuous.

2 Main technical parameters

Name	Data
Machine dimension	20 x 1 x 2m (L,W, H)
Ingot take off type	Single pneumatic hammer
Power	7.5kW, frequency motor
Scraping belt pitch	152.4mm
Number of ingot die	262pcs, High-Mn heat resisting iron
Distribution parts	High-Mn heat resisting iron, 8 pcs nozzles
Output	4-6 seconds per ingot
Cooling type	Water and air cooling
Weight of each ingot	About 6kg
Air supply pressure	0.63Mpa

IV STacker Unit
