Высококачественный Quectel EC25-E модем 4G модуль wifi
- Категория: Wireless Routers >>>
- Поставщик: Shenzhen,Zhibotong,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 5572.18 $* | 5851.35 $* |
| Aug-20-2025 | 5525.70 $* | 5801.47 $* |
| Jul-20-2025 | 4635.13 $* | 4867.31 $* |
| Jun-20-2025 | 5431.14 $* | 5703.6 $* |
| May-20-2025 | 4729.50 $* | 4965.2 $* |
| Apr-20-2025 | 5337.77 $* | 5604.59 $* |
| Mar-20-2025 | 5291.79 $* | 5556.6 $* |
| Feb-20-2025 | 5244.31 $* | 5506.52 $* |
| Jan-20-2025 | 5197.21 $* | 5457.56 $* |
Характеристики
Product Description

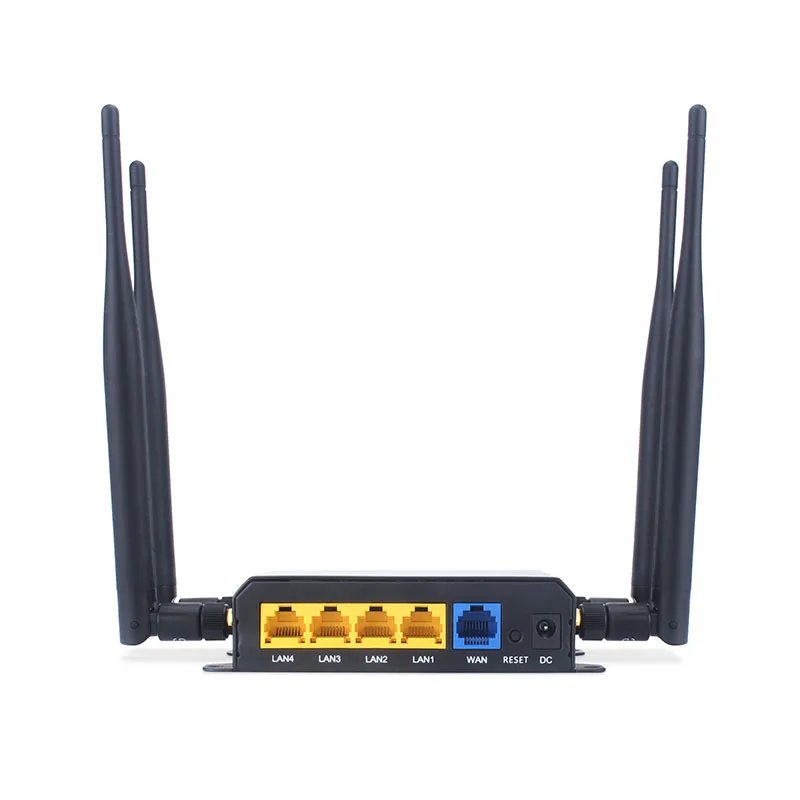

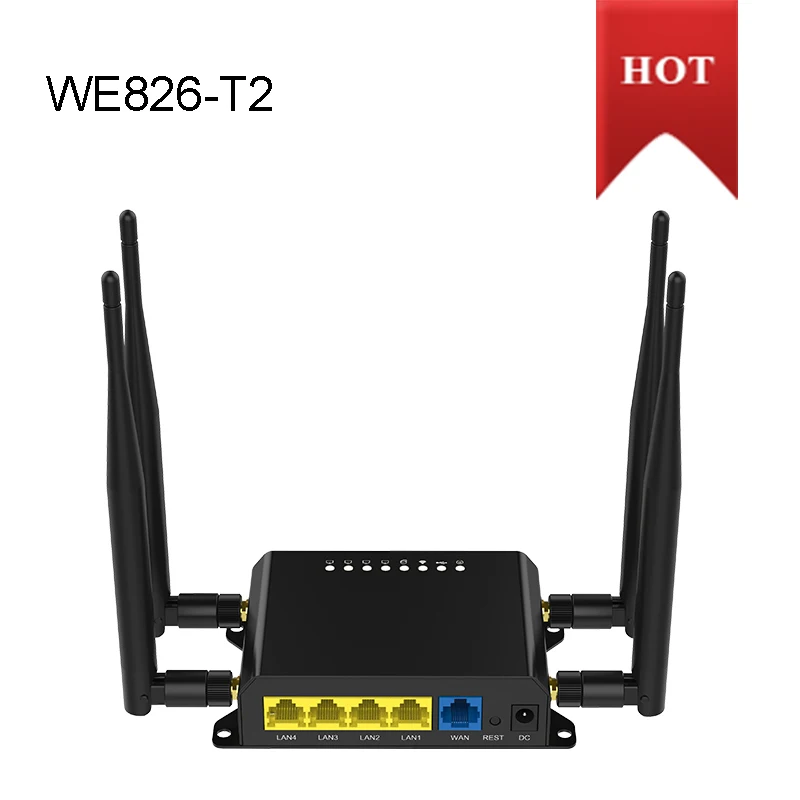

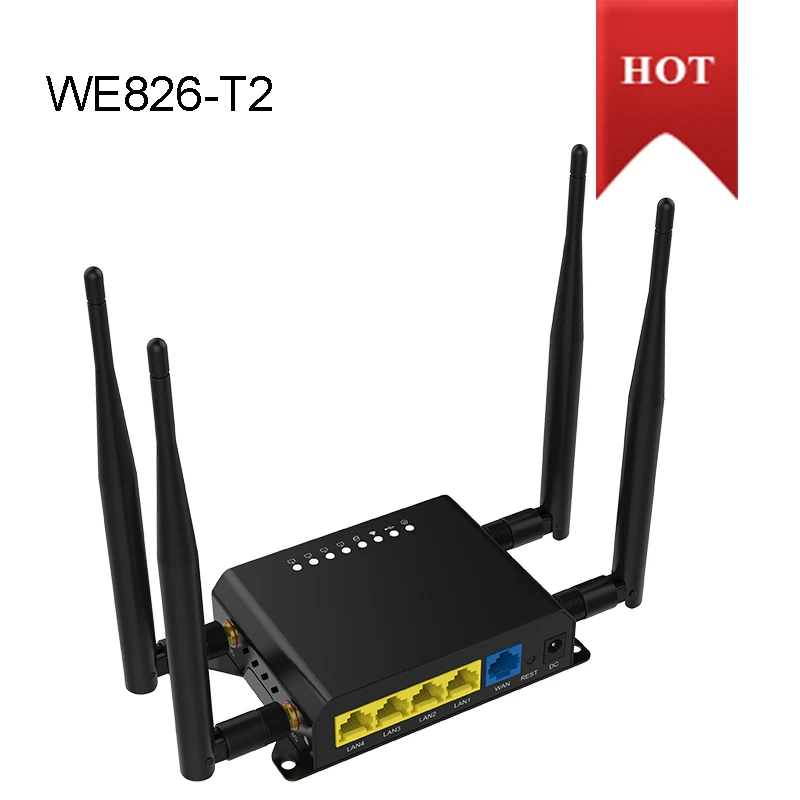

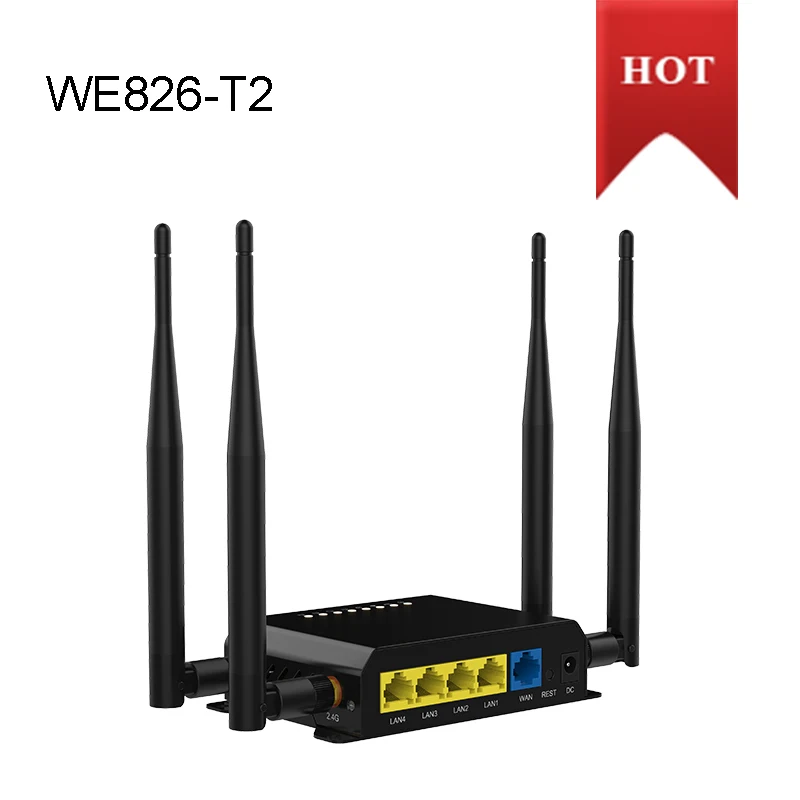

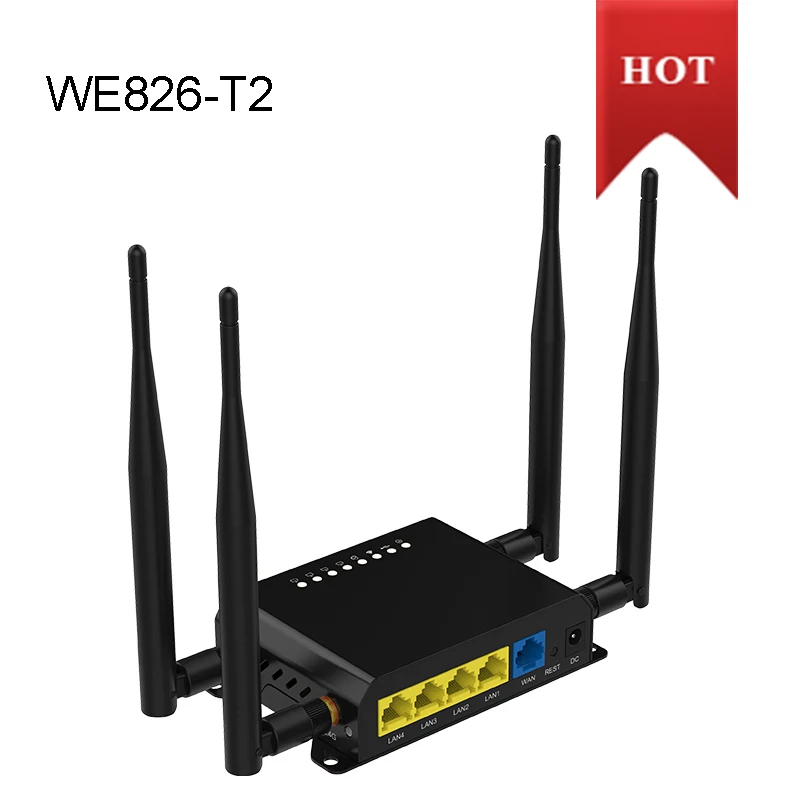

high quality Quectel EC25-E modem 4G module wifi router
1.Simply Description:
The W826 is used new wireless solution, performs better and more functions. Stable
wireless performance, stronger scalability , the Max transmission rate could be
1200Mbps(the 11ac PCIE mode is necessary) . 2.4G 300Mbps, 5G will be
867M(Max).Also support 3G/4G (3G/4G PCIE module is necessary), it could also dial-up
via the USB port(should mount the 3G/4G network card). Provide 1 USB2.0 interface, 1
Micro slot
2.Product Feature:
Support 80.11ac / 802.11a / 802.11n / 802.11g / 802.11b network protocol, the max
transmission rate could be 1200Mbps(2.4G 300Mbps+ 5G 867Mbps)
1. Support 802.113 / 802.11u protocol, 5* 10/100Mbps Auto MDI/MDIX
2.1 USB 2.0 date interface
3. 1 Micro SD Card Slot
4. Support 3G/4G(an option, need install with MINI-PCIE 3G/4G module)
5. Many kinds of way to protect your data transmission;
6. Support 11AC,dual band (an option, need install with MINI-PCIE 11AC module)
3.Specification
|
Hardware |
||
|
Main Chipset |
MT7620A |
|
|
RAM |
DDR2 128MB (MAX DDR2 256MB) |
|
|
SPI FLASH |
16MB (MAX 32MB) |
|
|
Protocol |
IEEE 802.11n,IEEE 802.11g,IEEE 802.11b,IEEE802.11ac ,IEEE802.11a |
|
|
RT Power |
802.11b 18dBm±2dBm; 802.11g 15dBm±2dBm; 802.11n 15dBm±2dBm; 802.11ac depends on the 11AC mode; |
|
|
Reception Sensitivity |
802.11b: -83dBm@10% PER 802.11g: -74dBm@10% PER 802.11n: -68dBm@10% PER 802.11ac: depends on the 11AC mode; |
|
|
Work Channel |
2.4GHz choose :1-13 5GHz choose :149,153,157,161,165 |
|
|
Wireless Rate |
Max 300Mbps |
|
|
Work Frequency |
2.4GHz |
|
|
Antenna |
2*undetachable 5dBi antenna |
|
|
Interface |
1*PCI-E slot 1*SIM card slot 1*USB 2.0 port 1*Micro SD card slot 1*10/100/100M WAN port(Auto MDI/MDIX) |
|
|
LED |
Power,PCIE mode ,2.4G,WAN,LAN1,LAN2,LAN3,LAN4 |
|
|
Button |
Reset/WPS |
|
|
Max Power consumption |
< 12W |
|
|
Dimension(L*W*H) |
141*85*26MM |
|
|
Software |
||
|
WAN Type |
PPPoE,Dynamic IP, Static IP |
|
|
Work Mode |
AP; Router; |
|
|
DHCP |
Server, Client, DHCP Client List, Address Reservation |
|
|
Port Forwareding |
Virtual Server, Port Triggering, UPnP, DMZ |
|
|
Firewall Security |
Dos, SPI Firewall IP Address Filter/MAC Address Filter/ Domain Filter IP and MAC Address Binding |
|
|
DDNS |
Support |
|
|
VPN Pass-Through |
PPTP, L2TP, IPSec (ESP Head) |
|
|
Band Ctrl |
Support |
|
|
Static Router |
Support |
|
|
System Log |
Support |
|
|
Other Function |
Mac clone |
|
|
Others |
||
|
Work Environments |
Operating Temperature:0℃ ~ 40℃; Operating Humidity:10%~90% non-condensing |
|
|
Adapter |
12V 1A |
|
|
Authentication |
CE, FCC, RoHs |
|
|
Other accessories |
Power adapter
|
|
4.Product details
Buyer Feedback
Production capacity
high quality Quectel EC25-E modem 4G module wifi router
Packaging & Shipping
high quality Quectel EC25-E modem 4G module wifi router
Certifications
high quality Quectel EC25-E modem 4G module wifi router
Company Information
high quality Quectel EC25-E modem 4G module wifi router
SHENZHEN ZHIBOTONG (ZBT) Electronics Co., LTD established in 2010, located at Shenzhen, China.
ZBT is a manufacturer professional in R&D and producing network equipments, products are included POE switch, Access Point, openWRT wifi router, Vehicle router, outdoor CPE, 3G/4G wifi router. ZBT also is a wifi coverage sloutions provider, provides the solution for hotel, school,hospital,enterprise,vehicle field etc.
ZBT with 30 people R&D team and around 500 people in factory, 10,000 Square meters production scale, is very skilled at processing OEM/ODM design, also builds the long term cooperation with Mediatek, Broadcom, capably offering good quality product and fast after-sale service.Till now, ZBT's products have exported to over 30 countries and regions.
Adhere to the conception of 'High Quality, High Performance & High Satisfaction' , Each year ZBT would taken out more than 35% of the annual turnover as R&D funds to develop new products so as to satisfy clients' new coming requests.
Customers' high satisfaction is ZTB's continuously pursue,high-quality&best service is ZBT's sincere promise to all clients. ZBT warmly welcome everybody joining in and build a win-win cooperation.
FAQ
high quality Quectel EC25-E modem 4G module wifi router
1.Do you provide customer LOGO?
Yes, we can provide customer LOGO on firmware and hardware.
2.Do you accept PCBA orders only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
3.Do you provide firmware support?
Sure thing, unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%.
