China top supplier high speed Saw Tooth Making

Категория: Surface Grinding Machines >>>
Поставщик: Zhangjiagang,City,Universal,Machinery,Manufacturer,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	0.11 $*	0.87 $*
Aug-20-2025	0.38 $*	0.44 $*
Jul-20-2025	0.67 $*	0.50 $*
Jun-20-2025	0.66 $*	0.83 $*
May-20-2025	0.14 $*	0.52 $*
Apr-20-2025	0.15 $*	0.94 $*
Mar-20-2025	0.40 $*	0.75 $*
Feb-20-2025	0.52 $*	0.0 $*
Jan-20-2025	0.61 $*	0.24 $*

Характеристики

Technical Parameter

Specification/Model	UM-450
Diameter of blade	Φ50mm-Φ550mm
Max distance of the tooth	25mm
Max depth of the tooth	8mm
Degree	-5 - 30
Feeding speed	45-180 teeth/minute
Max thickness of the blade	8mm
Diameter of the grinding wheel	Φ75mm-Φ150mm
Speed of the grinding wheel	4200RPM(60HZ)
Driving motor	1/2HP
Grinding motor	3/4HP
Size	800mm x 800mm x 1410mm
Weight	130kg

Product Description
This machine is easy to operate, the cutting angle, tooth shape and tooth depth on the saw are easy to adjust, with a high precision, sharp and durable.
2. Quick adjustments can be made according to the various thicknesses of the coping saw bits.
3. The head section can be adjusted or swinged upward or forward willingly, coping and beveling can be made without exchanging the abrasive disk.

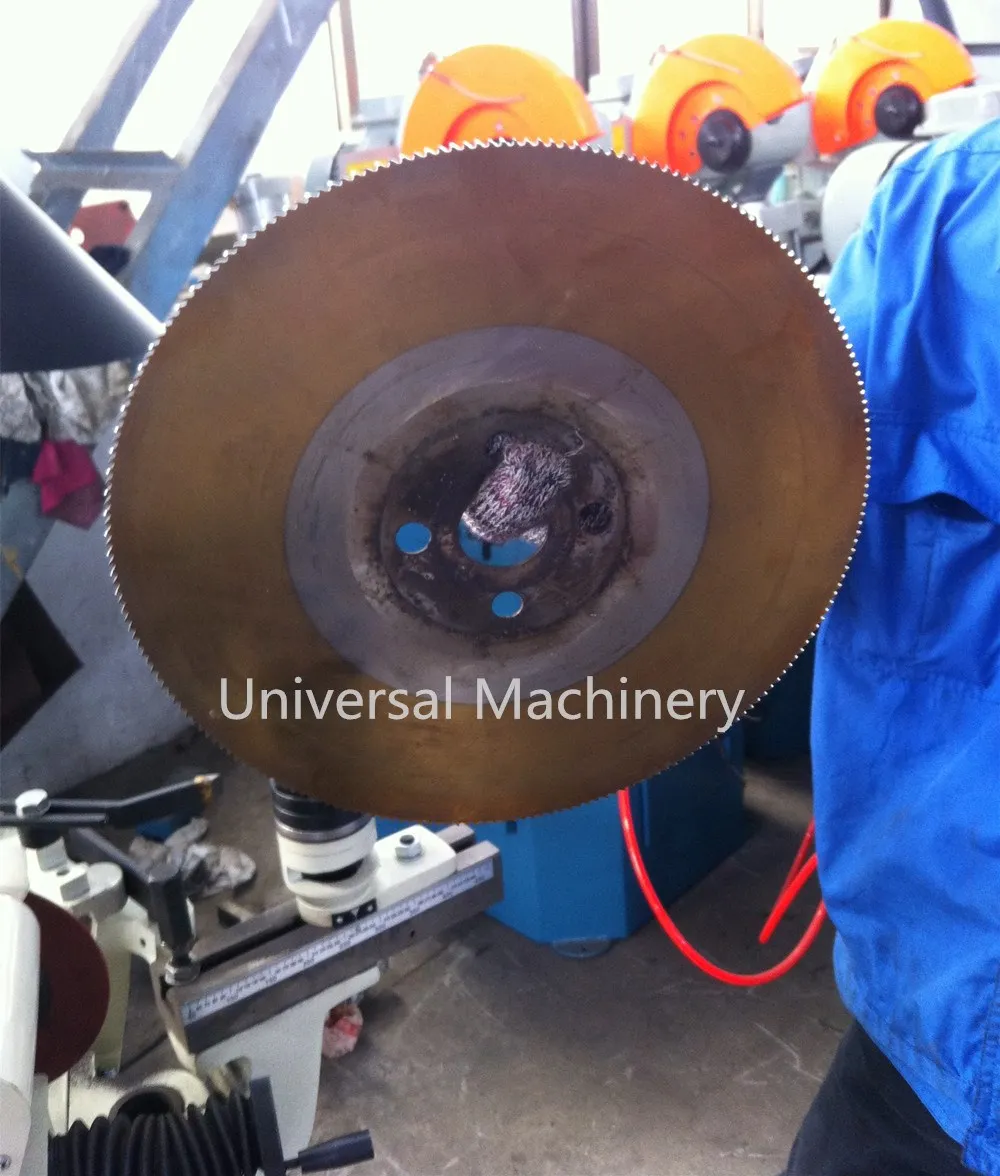

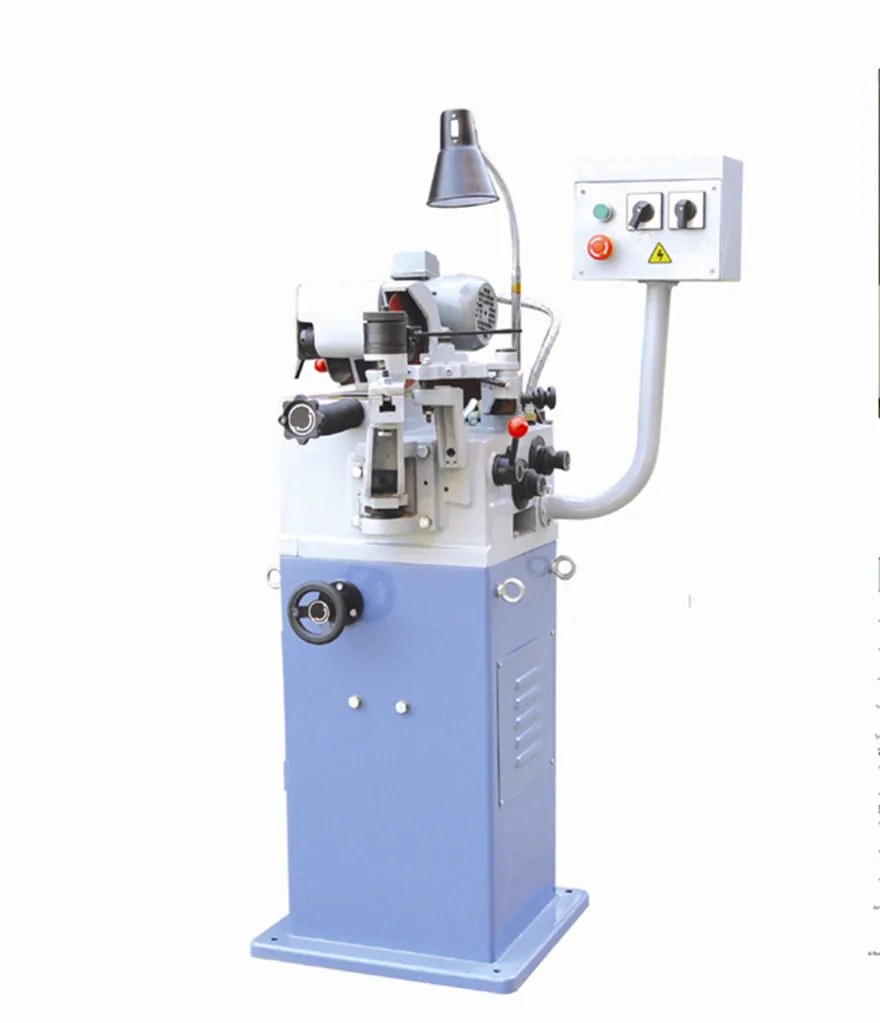

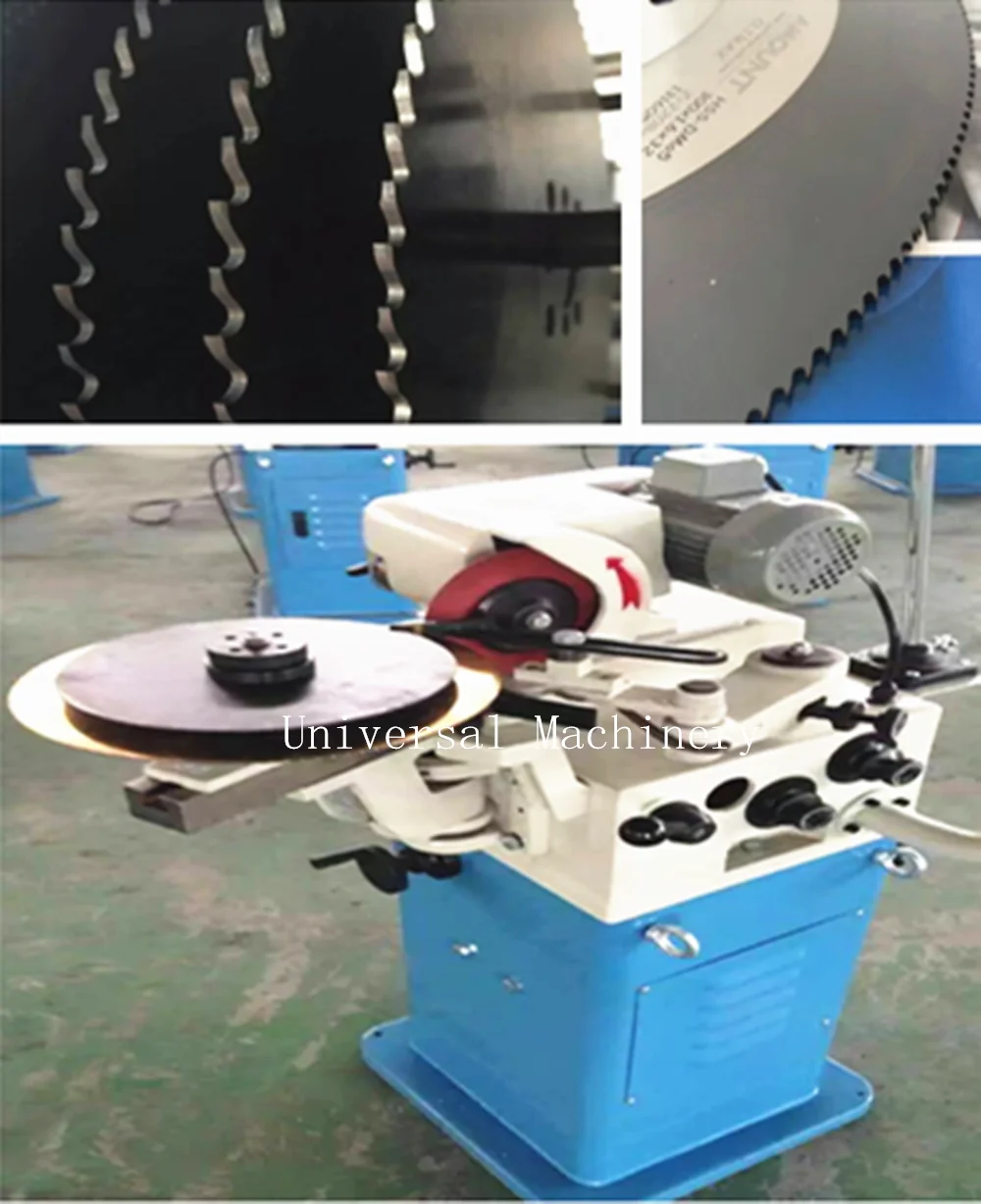

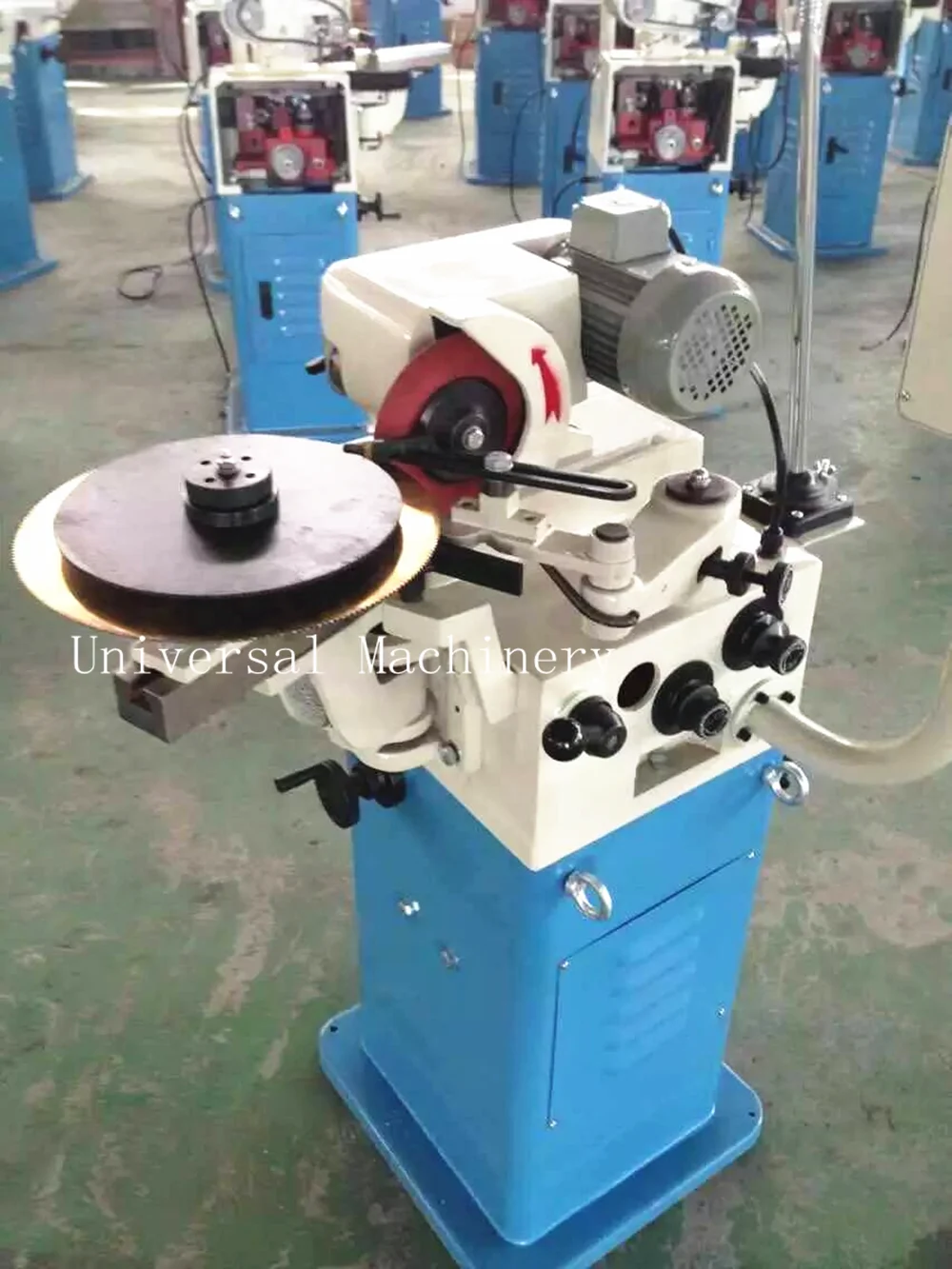

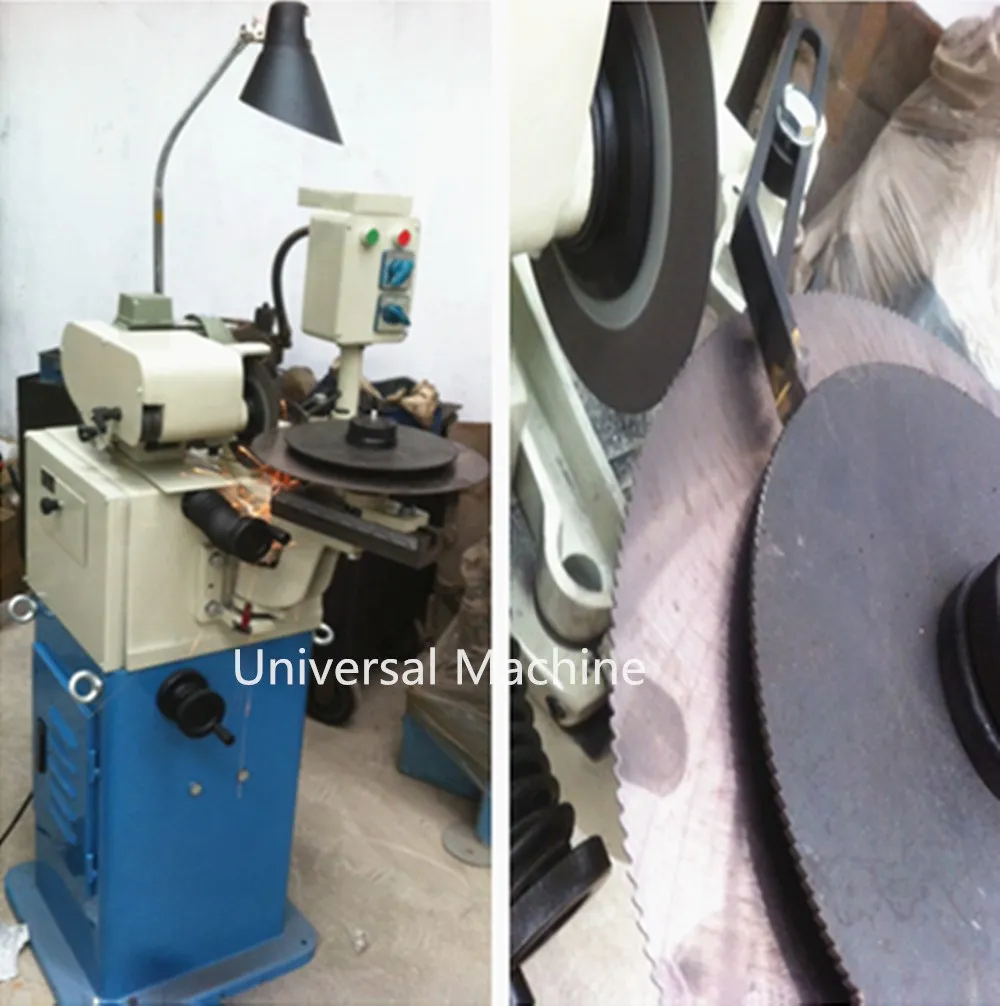

China top supplier high speed Saw Tooth Making Machine

Pictures
