Характеристики
Quotation is depending on the trade term, machine model, optional accessories. Please contact us to get your quotation.
Product Overview

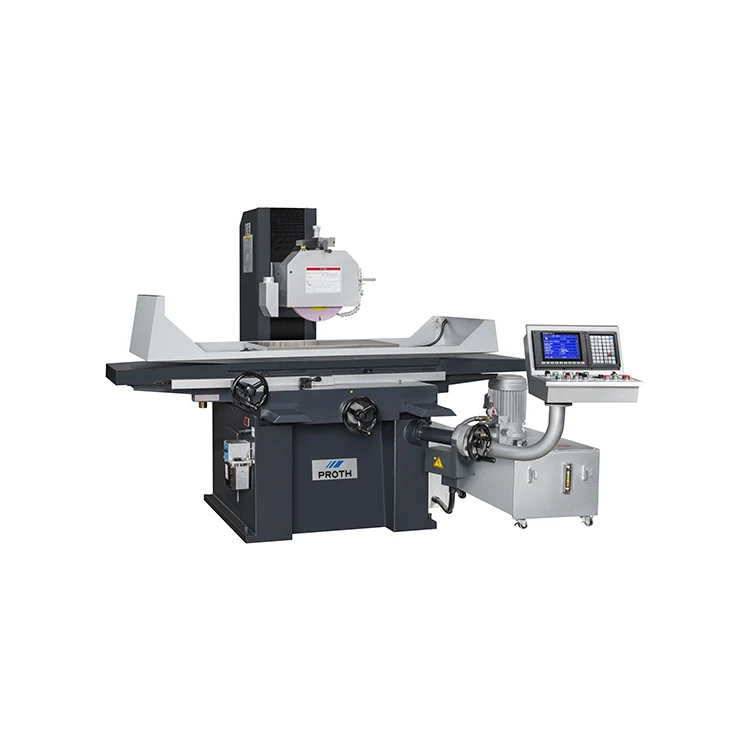

Precision Surface Grinder
Brand: Proth
Model: PSGS-4080AHR
Model: PSGS-4080AHR
Introduction
The surfaces of longitudinal table ways are all hand scraped to getting perfect contact pattern and to ensure very high accuracy.
Longitudinal table ways are designed to have slide surfaces longer than that of the working surface and equal to the table length
to keep the table free from torsion and deflection (except PSGS series).
Longitudinal table ways are designed to have slide surfaces longer than that of the working surface and equal to the table length
to keep the table free from torsion and deflection (except PSGS series).
PRODUCT SPECIFICATIONS
General Capacity | Max. travel (cross x longitudinal) | 460x900mm | |
Spindle center height from table | 600mm | ||
Grinding surface of table | 400x800mm | ||
Longitudinal Movement | 1-25(0.3-25) | ||
Cross Movement | Intermittent cross feed-approx. (Electro-mechanical) | 0.1-10mm/feed | |
Continuous cross feed-approx. (Electro-mechanical) | 1,000mm/min | ||
Hand feed per revolution | 4mm | ||
Hand feed per division | 0.02mm | ||
Vertical Down Feed | Rapid traverse approx.(option) | 200mm/min | |
Hand feed per revolution | 1mm | ||
Hand feed per division | 0.005mm | ||
Grinding Wheel | Dimension (O.D x W x I.D) | 355x38x127mm | |
Spindle speed(50/60Hz) | 1500/1800rpm | ||
Motor | Spindle motor | 3.7(5.6)kW/5(7.5)HP | |
Hydraulic motor | 2.2KW/3HP | ||
Weight | Net weight | 2,800kgs | |
Gross weight | 3,400kgs | ||
Machine Size | Dimension (L x W x H) | 2.28x2.03x2.16m | |
