Паровой бойлер для горячей воды с защитой окружающей среды
US $4000-$5000
Паровой котел 400 кВт горелка для отработанного
- Категория: Boilers >>>
- Поставщик: Qingdao,Kingwei,Energy,Saving,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.19 $* | 0.28 $* |
| Aug-15-2025 | 0.47 $* | 0.69 $* |
| Jul-15-2025 | 0.45 $* | 0.34 $* |
| Jun-15-2025 | 0.82 $* | 0.77 $* |
| May-15-2025 | 0.94 $* | 0.78 $* |
| Apr-15-2025 | 0.31 $* | 0.80 $* |
| Mar-15-2025 | 0.86 $* | 0.44 $* |
| Feb-15-2025 | 0.53 $* | 0.20 $* |
| Jan-15-2025 | 0.75 $* | 0.62 $* |
Характеристики
Products Description

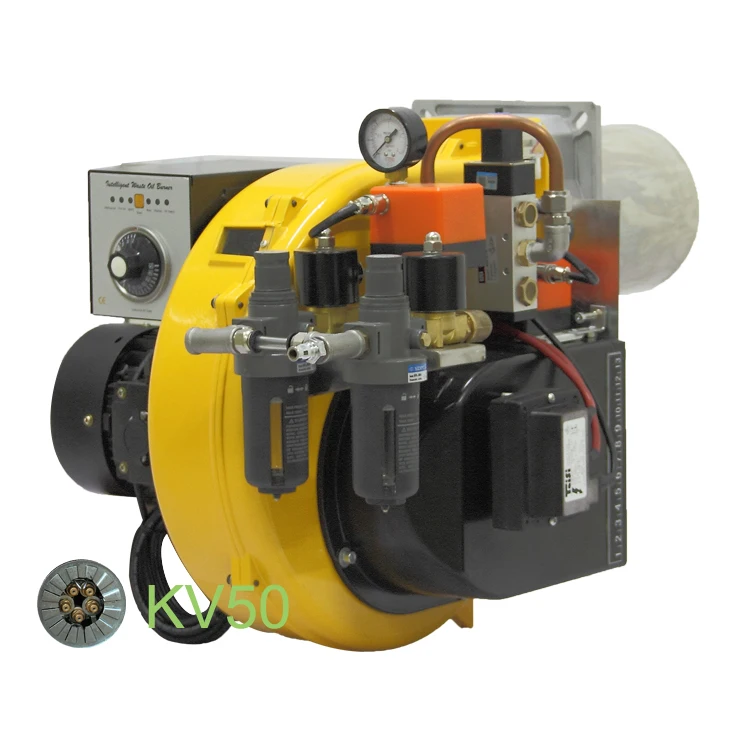

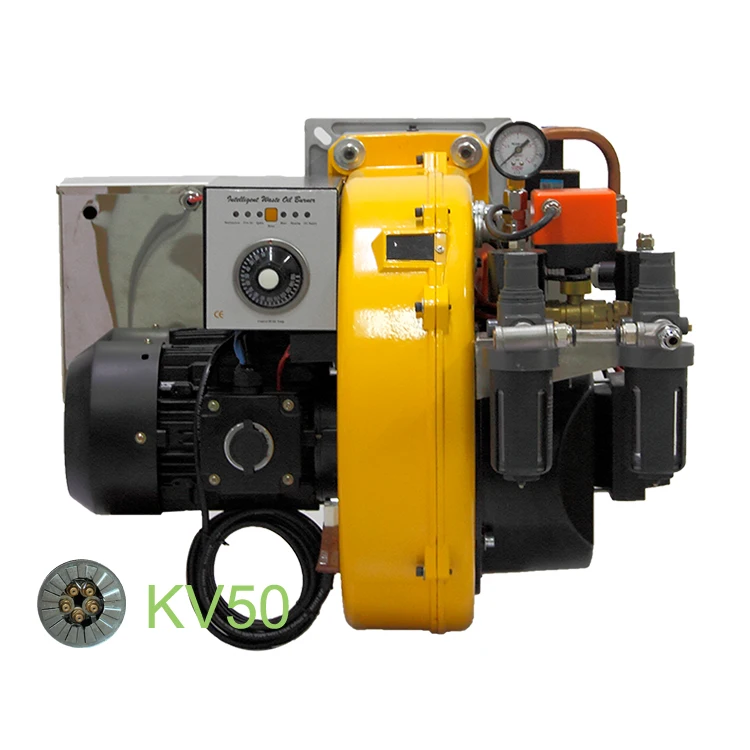

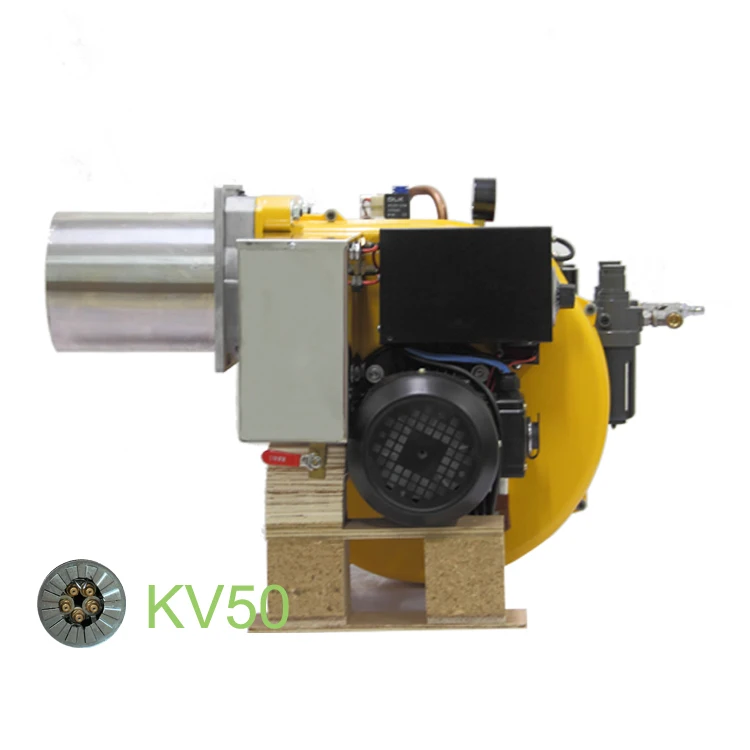

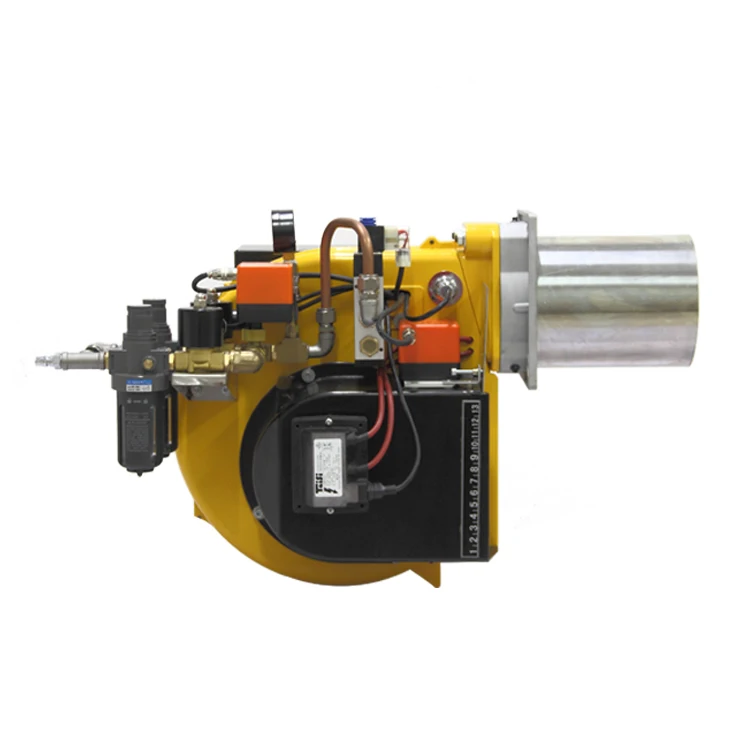

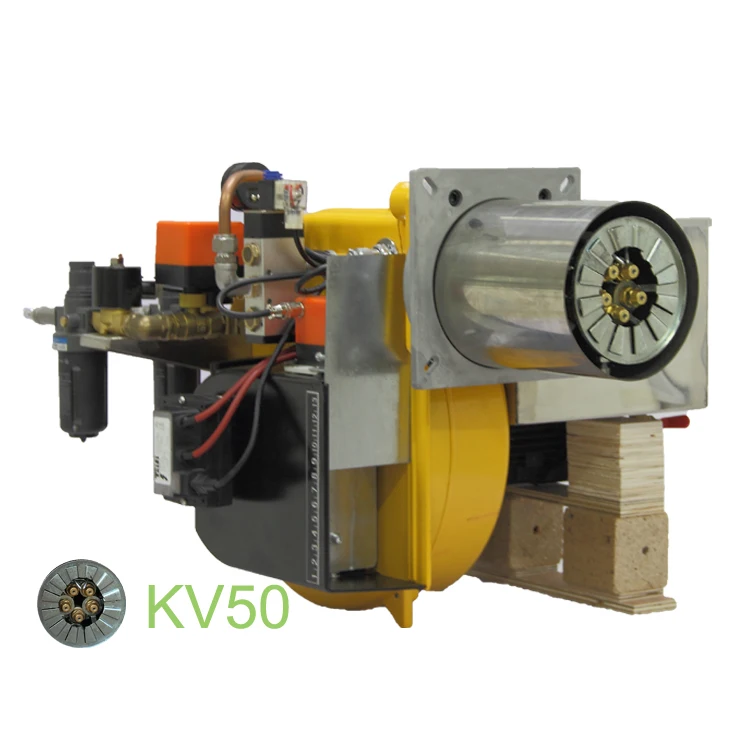

model | Kv50 |
oil consumption | 35-45L/h |
output power | 230-460kw |
max.output heat | 500,000Kcal/h(20,00,000Btu/h) |
nozzle | brass siphon 5x2.0mm |
tube diamter | 160mm |
tube length | 188mm |
heating pipe | 1.1kw |
motor power | 750w |
burner size | 640x550x660mm |
N.W | 34kg |
working pressure | 0.5bar(7psi) Must work with external air compressor |
power supply | 220v 50hz or 110v 60hz |
fuel | all kinds of waste oil,diesel oil |
application | 0.8t boiler,air heater,grain dryer etc |
Product Feature
1. use all kinds of waste oil,burn completely
2. double flame stage
3. pc board control,works fully automatically
4. high sensitive photo cell,no vulnerable parts
5. multi safety protection
available fuel list
1.waste engine/motor oil from car,truck,garage 2.fuel oil,pyrolysis oil,waste oil from tire&plastic;
available fuel list
3.vegetable oils,like soybean oil,used cooking oil 4.mixed oil,diesel oil,light oil etc
Pc board controll,works fully automatically
Details Images
★after connects with extra oil storage tank,power on,burner will start to work fully automatically.Five indictor lights in below sequence
oil supply,heating,blast,ignite,fire jet
★oil's heating usually takes 4 minutes.You can rotate the temperature panel for heating different kinds of waste oil
★Flame can be observed via the front window
★manual adjustable air flap.Enlarge it accordingly,black smoke will disappear or relieve
★multi safety devices for air line's protection,high sensitive photo cell inside
★one air gauge,all nozzle work together for both stage,save fuel,more efficiency
★must work with external air compressor

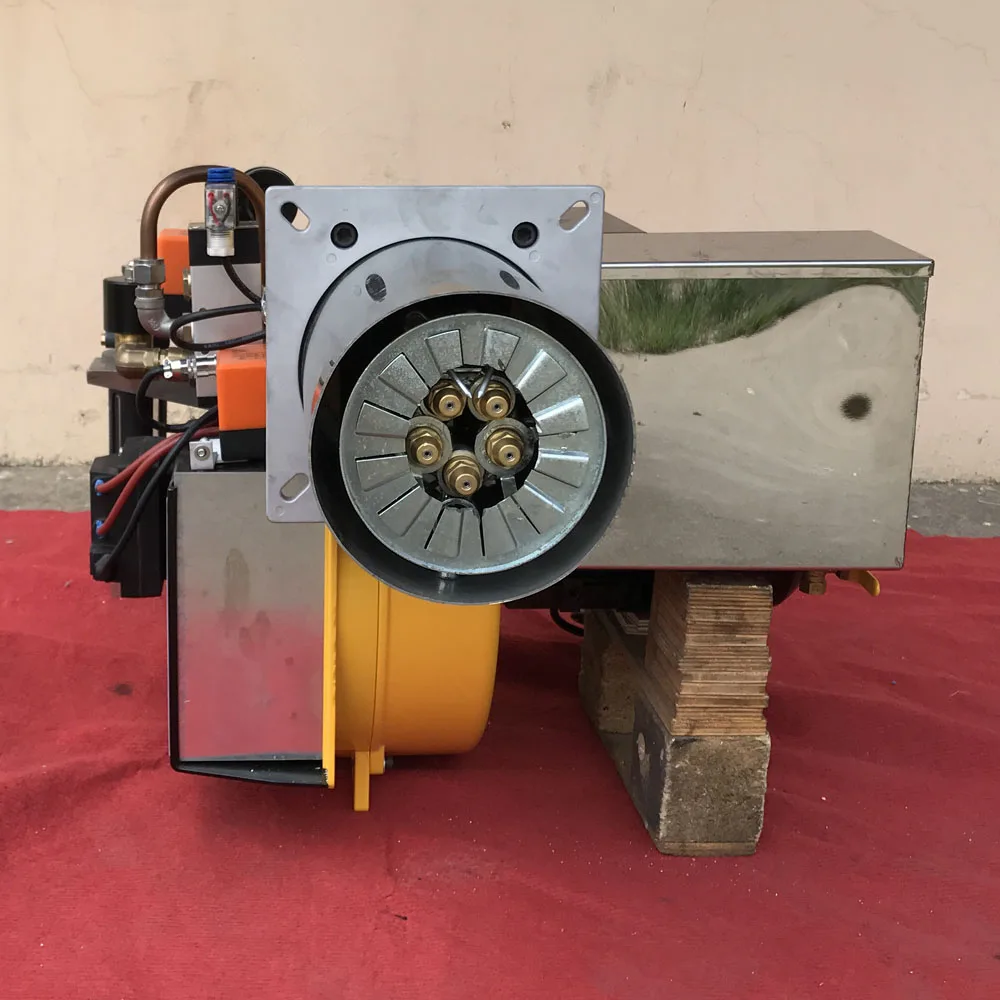

★ Customized five siphon brass nozzles,casted flame ring,form strong stable flame column
★heating pipe is installed on bottom of small oil tank
★whole oil pump&filter system,extra spare parts,simple tool kit etc come with burner
★strong,durable fan motor
★beautiful owned molded aluminum casing
★assemble by hand,wire well connected,test well before delivery
No Smoke
Reference Air Compressor
Item | KV40-KV60 Oil Burner Reference Air Compressor |
Feature | 1) Piston air compressor with belt 2) Large displacement 3) Long stroke 4) High efficiency |
Rotating speed | 960rpm/min |
Displacement | 900L/min |
Power | 7.5Kw |
Pressure | 0.8Mpa |
Gas Tank Capacity | 155L |
Size (L*W*H) | 1320*490*980mm |
N.W | 140Kg |
Voltage | 380volt, 50hz, 3phase |
Installation Example
One Package Service
Machine Tool Workshop
Foundry Workshop
Finished Casing Frame
Assembled by Handwork
Burner's Fire Test,Troubleshoot
Heater's Programme Test
Transport
●By express,such as dhl
●By air
●By sea
●By land
●By air
●By sea
●By land
After-sale service
●check carefully when you receive the parcel
●check the manual before operation.
●If there is any trouble when using,please take a video for
us.We will tell you how to manage.
Refund Guarantee
●Transcation via alibaba trade assurance order.if we fail to product quality and delivery time,alibaba will pay your loss.
●You can put an trade assurance order directly or ask your sales to draft it for you.
Contact&Social Page
Contact name: Helen Jiang
ID:cn1513245264
Phone/whatsapp/wechat: 86-130 1251 3355
Fax: 0532-68876247
Skype: live:15110a39c97c5b18
email:helenjiang_sales1@ kingweienergy.com(no blank after @)
linkedin: https://cn.linkedin.com/in/waste-oil-burner-supplier-bb4770ba
facebook: https://www.facebook.com/wasteoilburnersupplier
youtube: https://www.youtube.com/channel/UCrIv63Y1ri9tFY_g8DzKO4Q
https://www.youtube.com/channel/UCd2DtCB7ma4BzUwCRPVs4ow
shop on alibaba:Http://jinweijieneng.en.alibaba.com/
Office&factory address:No997 Wangsha Road Chengyang District Qingdao Shandong China
Burner Catalogue
Kingwei Waste Oil Burner Catalogue | ||||||||
Model | Oil Consumption (L/h) | Output Power (Kw) | Max.output Heat (Kcal/h) | Application | ||||
2-3 | 14-55 | 30 000 | 0.1t boiler,dryer etc | |||||
3-5 | 30-60 | 50 000 | 0.1-0.2t boiler,heater etc | |||||
6-8 | 80-120 | 100 000 | 0.3t boiler,heater etc | |||||
12-15 | 150-200 | 200 000 | 0.4t boiler,grain dryer etc | |||||
15-21 | 210-270 | 300 000 | 0.5t boiler,sand dryer etc | |||||
30-40 | 230-360 | 400 000 | 0.6t boiler,grain dryer etc | |||||
40-50 | 230-460 | 500 000 | 0.8t boiler,rotate furence etc | |||||
50-60 | 450-560 | 600 000 | 1.0t boiler,reaction furnace etc | |||||
70-80 | 850-1000 | 900 000 | 1.5t boiler,furnace etc | |||||
100-120 | 1000-1300 | 12 00 000 | 2.0t boiler,furnace etc | |||||
Kv180 | 180-300 | 1500-1800 | 18 00 000 | 3.0t boiler,furnace etc | ||||
Kv240 | 290-350 | 2000-2500 | 24 00 000 | 4.0t boiler,furnace etc | ||||
Kv360 | 540-600 | 3000-4000 | 36 00 000 | 6.0t boiler,furnace etc | ||||
