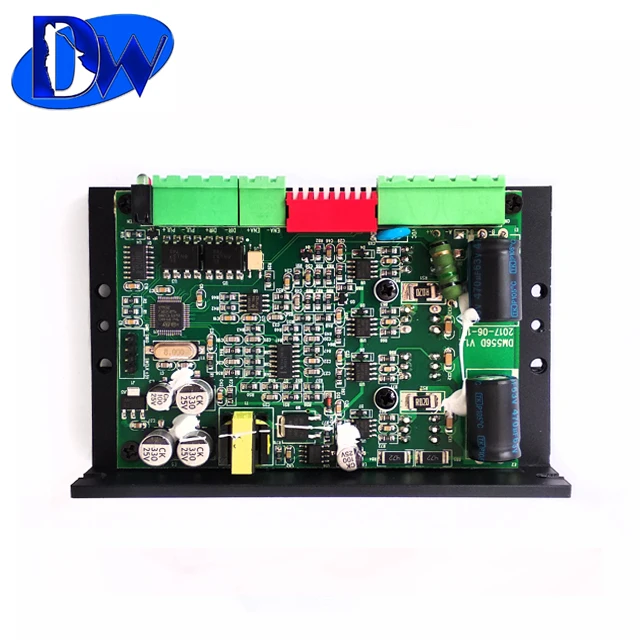

1.adoption of 32-bit DSP, pure sine wave subdivision technology.
2. Low-noise, low-vibration and low temperature rising
3. Voltage 24-50VDC
4. With 8 stalls output current setting, peak current 5.6A
5. With 16 stalls microstep subdivision setting
6. Automatic Half current, self-test, over voltage, under voltage, over current protection
7. Internal optical isolation, highest frequency response 200KHZ
8. Suitable for nema 23, nema 34 2 or 4 phase stepper motor current in the range of 2.1-5.6A
Current selection
Peak
RMS
SW1
SW2
SW3
Default
OFF
OFF
OFF
2.1A
1.5A
ON
OFF
OFF
2.7A
1.9A
OFF
ON
OFF
3.2A
2.3A
ON
ON
OFF
3.8A
2.7A
OFF
OFF
ON
4.3A
31.A
ON
OFF
ON
4.9A
3.5A
OFF
ON
ON
5.6A
4.0A
ON
ON
ON
Microstep selection
Pulse/Rev
SW5
SW6
SW7
SW8
Default
ON
ON
ON
ON
800
OFF
ON
ON
ON
1600
ON
OFF
ON
ON
3200
OFF
OFF
ON
ON
6400
ON
ON
OFF
ON
12800
OFF
ON
OFF
ON
25600
ON
OFF
OFF
ON
51200
OFF
OFF
OFF
ON
1000
ON
ON
ON
OFF
2000
OFF
ON
ON
OFF
4000
ON
OFF
ON
OFF
5000
OFF
OFF
ON
OFF
8000
ON
ON
OFF
OFF
10000
OF
ON
OFF
OFF
20000
ON
OFF
OFF
OFF
40000
OFF
OFF
OFF
OFF
Default: The pulse can be customized according to customers’ requirements.
Common indicator
Phenomenon
Reason
Solution
The red indicator is on.
1. A short circuit of motor wires.
Inspect or change wires
2. The external voltage is over or low than the driver’s working voltage.
Adjust the voltage to a reasonable rang
3. Unknown reason
Return the goods
Driver functions descriptions
Driver function
Operating instructions
Output
current
setting
Users can set the driver output current by SW1-SW3 three switches.

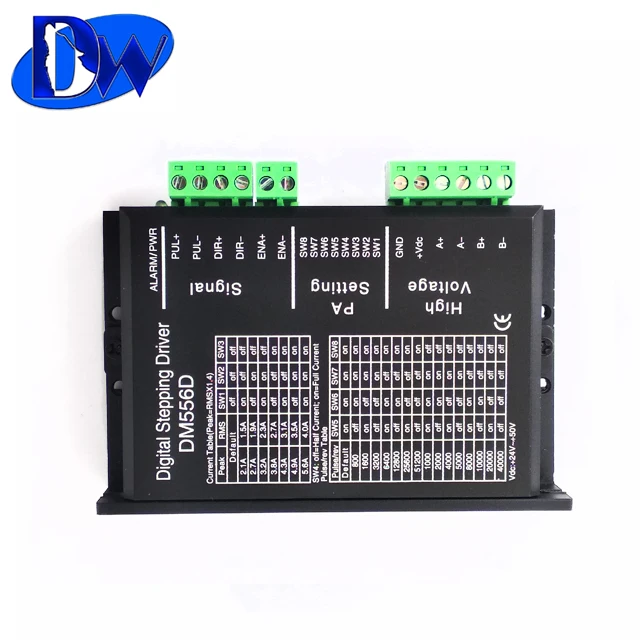

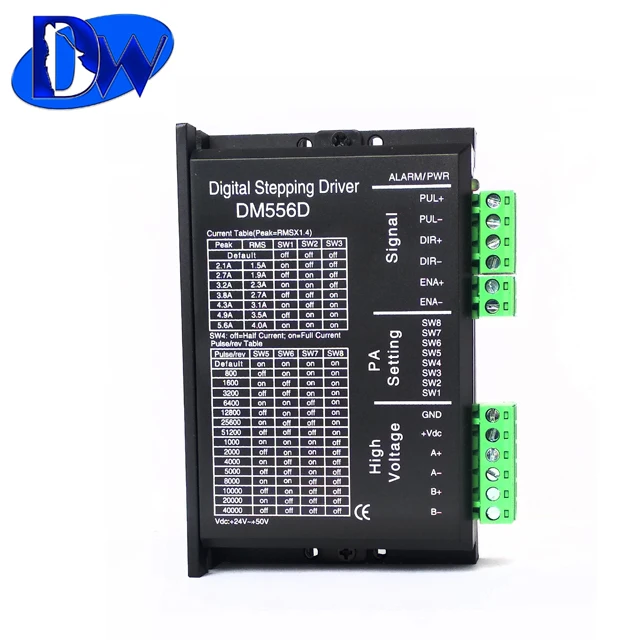

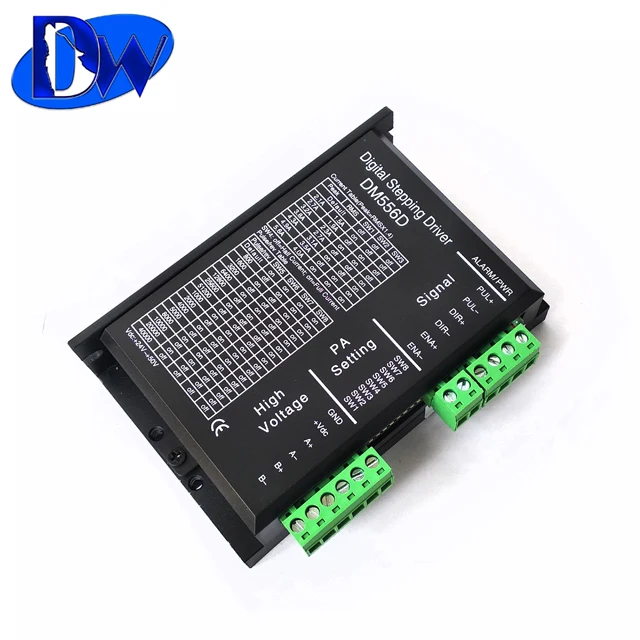

The setting of the specific output current, please refer to the instructions of the driver panel figure.
Microstep setting
Users can set the driver Microstep by the SW5-SW8 four switches. The setting of the specific Microstep subdivision, please refer to the instructions of the driver panel figure.
Automatic half
current function
Users can set the driver half flow function by SW4. "OFF" indicates the quiescent current is set to half of the dynamic current, that is to say, 0.5 seconds after the cessation of the pulse, current reduce to about half automatically. "ON" indicates the quiescent current and the dynamic current are the same. User can set SW4 to "OFF", in order to reduce motor and driver heating and improve reliability.
Signal interfaces
PUL+ and PUL- are the positive and negative side of control pulse signal; DIR+ and DIR- are the positive and negative side of direction signal; ENA+ and ENA- are the positive and negative side of enable signal.
Motor interfaces
A+ and A- are connected to a phase winding of motor; B+ and B- are connected to another phase winding of motor. If you need to backward, one of the phase windings can be reversed.
Power interfaces
It uses DC power supply. Recommended operating voltage is 24VDC-50VDC, and power consumption should be greater than 100W.
Indicator lights
There are two indicator lights. Power indicator is green. When the driver power on, the green light will always be lit. Fault indicator is red, when there is over-voltage or over-current fault, the red light will always be lit; after the driver fault is cleared, if re-power the red light will be off.
Installation
instructions

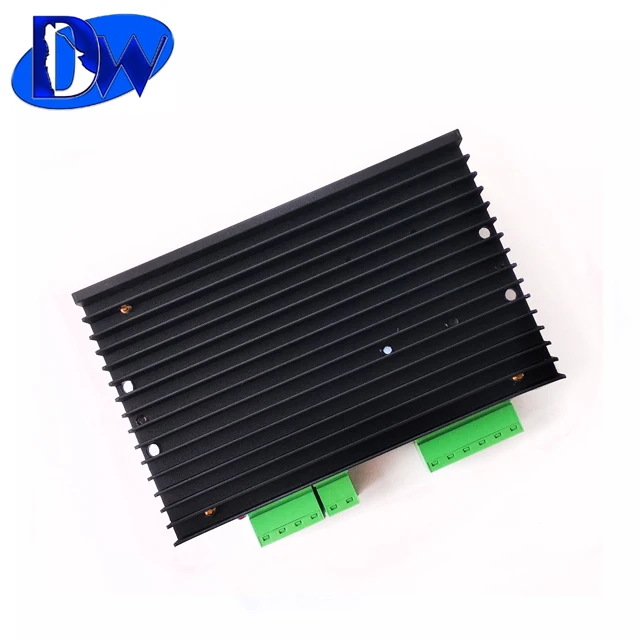

Driver dimensions:118×75×32mm, please refer to dimensions diagram. Please leave 10CM space for heat dissipation. During installation, it should be close to the metal cabinet for heat dissipation.
Control signal and external interface:
Signal amplitudes
External current limiting resistor R
5V
Without R
12V
680Ω
24V
1.8KΩ
Signal interface details:
The internal interface circuits of the driver are isolated by the opt coupler signals, R in the figure is an external current limiting resistor. The connection is differential. And it has a good anti-jamming performance.
