Аппараты для сварки пластика

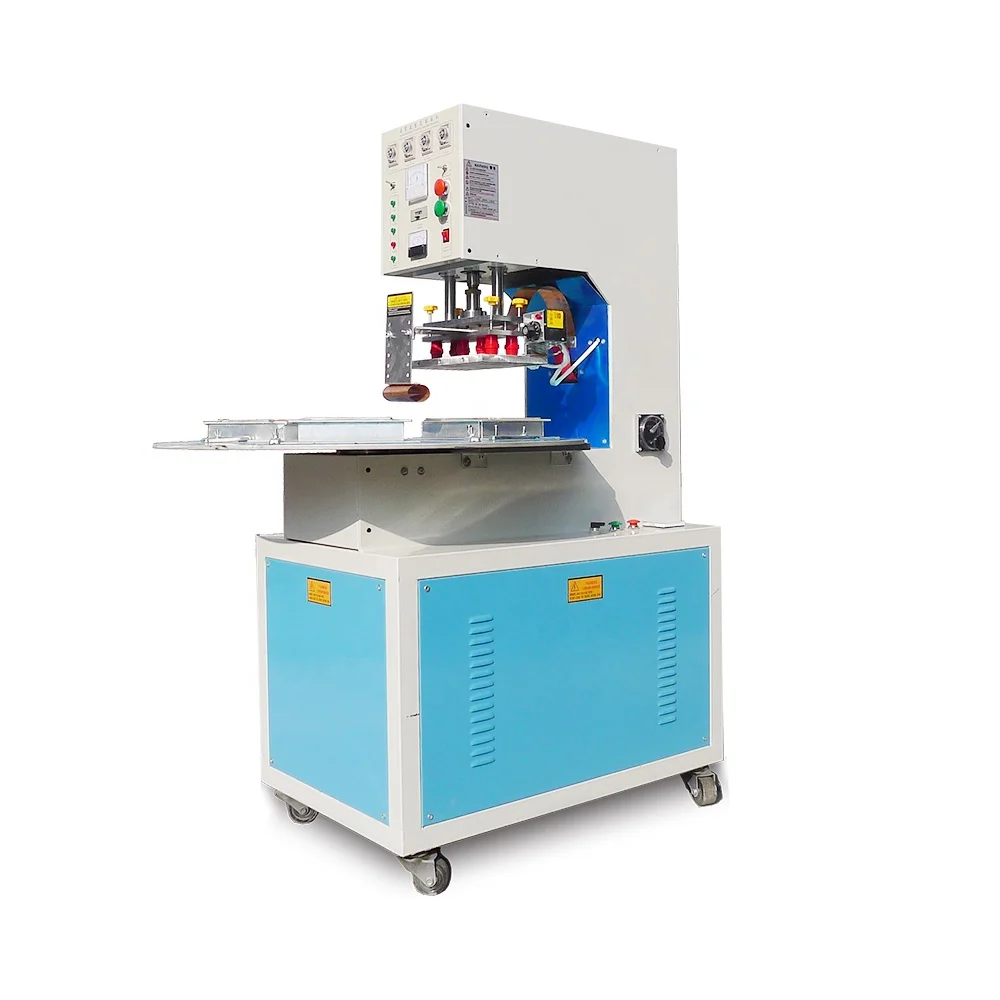

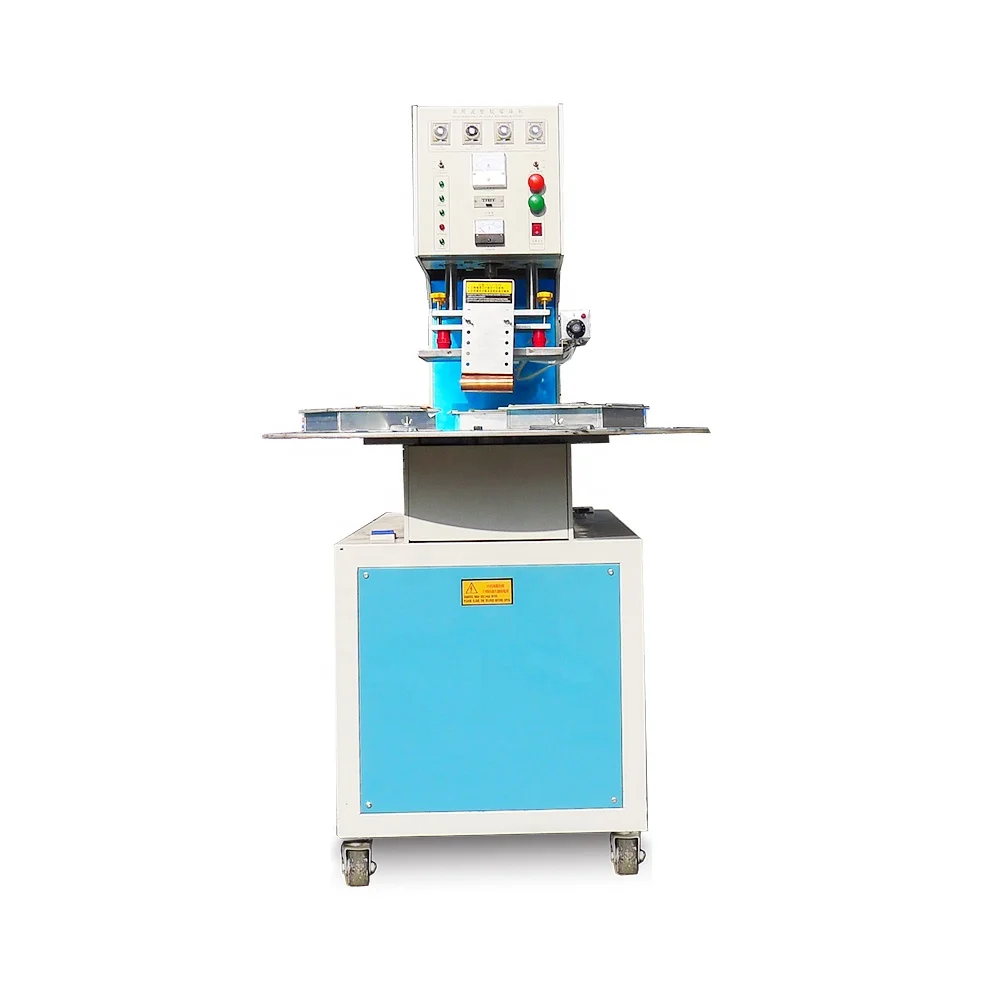

Пластиковый сварочный аппарат высокочастотный для компьютерной

Пластиковый сварочный аппарат высокочастотный для компьютерной

Категория: Аппараты для сварки пластика >>>
Поставщик: Shenzhen,Longgang,Huaxiang,Machine,Factory

Цена:2 800,00 $ - 3 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	3332.32 $*	3499.42 $*
Aug-16-2025	3304.79 $*	3469.50 $*
Jul-16-2025	2772.90 $*	2911.59 $*
Jun-16-2025	3248.43 $*	3410.92 $*
May-16-2025	2828.37 $*	2969.53 $*
Apr-16-2025	3192.18 $*	3352.61 $*
Mar-16-2025	3164.82 $*	3322.8 $*
Feb-16-2025	3136.8 $*	3293.90 $*
Jan-16-2025	3108.65 $*	3263.65 $*

Характеристики

Product Description

Specifications

1.Using vacuum tubes, output power is stable and reliable
2.Sensitive spark over-current protection circuit
3.CE certificate

Application

Leather: wallet, passport, bags, belts, leather gifts, leather suits, leather goods;
Bags, briefcases, briefcase, travel bag, handbag, laptop bag, etc.;
Primer: notebooks, universal handbooks, industrial and commercial logs, contacts, efficiency, manual, manager, etc.;

Leather cover: tablet leather case (dell, apple, acer, dell, HTC, asus and samsung, hanwang, blackberry, etc.), mobile phone holster (iPhone, samsung, nokia, HTC, MOTOROLA, etc.), leather carrying case, imitation leather skin cover, product (leather box), digital products carrying case, electronic products, communication products, such as carrying case, medical equipment products.

\t Model	\t HX-5KE	\t HX-8KE	\t HX-10KE	\t HX-12KE	\t HX-15KE
\t Output Power(KW)	\t 5	\t 8	\t 10	\t 12	\t 15
\t Input Power(KVA)	\t 8	\t 15	\t 18	\t 20	\t 25
\t Oscillation Tube	\t 7T85RB	\t 7T69RB	\t E3069RB	\t 3130RB	\t 8T85RB
\t Sealing Force(T)	\t 5	\t 10	\t 10	\t 15	\t 15
\t Stroke Adjustment(mm)	\t 100	\t 100	\t 100	\t 100	\t 150
\t The size of upper electrode(mm)	\t 200*350	\t 300*500	\t 300*500	\t 400*500	\t 400*600
\t The size of lower electrode(mm)	\t 300*500	\t 300*500	\t 300*500	\t 400*500	\t Rectifier
\t Rectifier	\t Silicon Diode
\t Gap of electrodes(mm)	\t 200
\t Voltage	\t 50/60HZ AC380V 3P
\t Speed(second)	\t 1-10
\t Capacity(per/h)	\t <360
\t Frequency(MHZ)	\t 27.12MHZ
\t PS: We could customize other specifications for you according to your need!

Features

When electric current exceed the limit, the overload current relays automatic protect the Oscillation tube and Rectifier . When Inadequate cooling, it can automatically cut off the power, and to avoid the frequent drift and unnecessary parts wastage caused by inappropriate handling.

Packaging Type

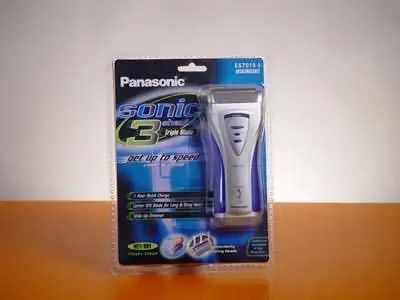

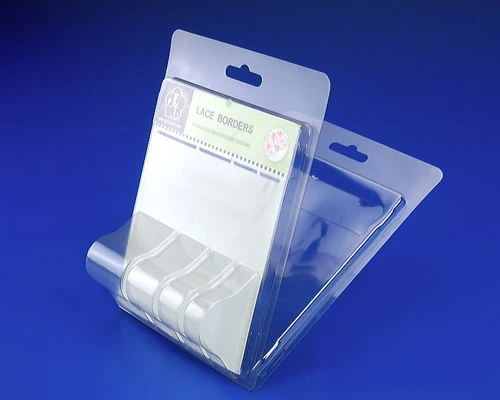

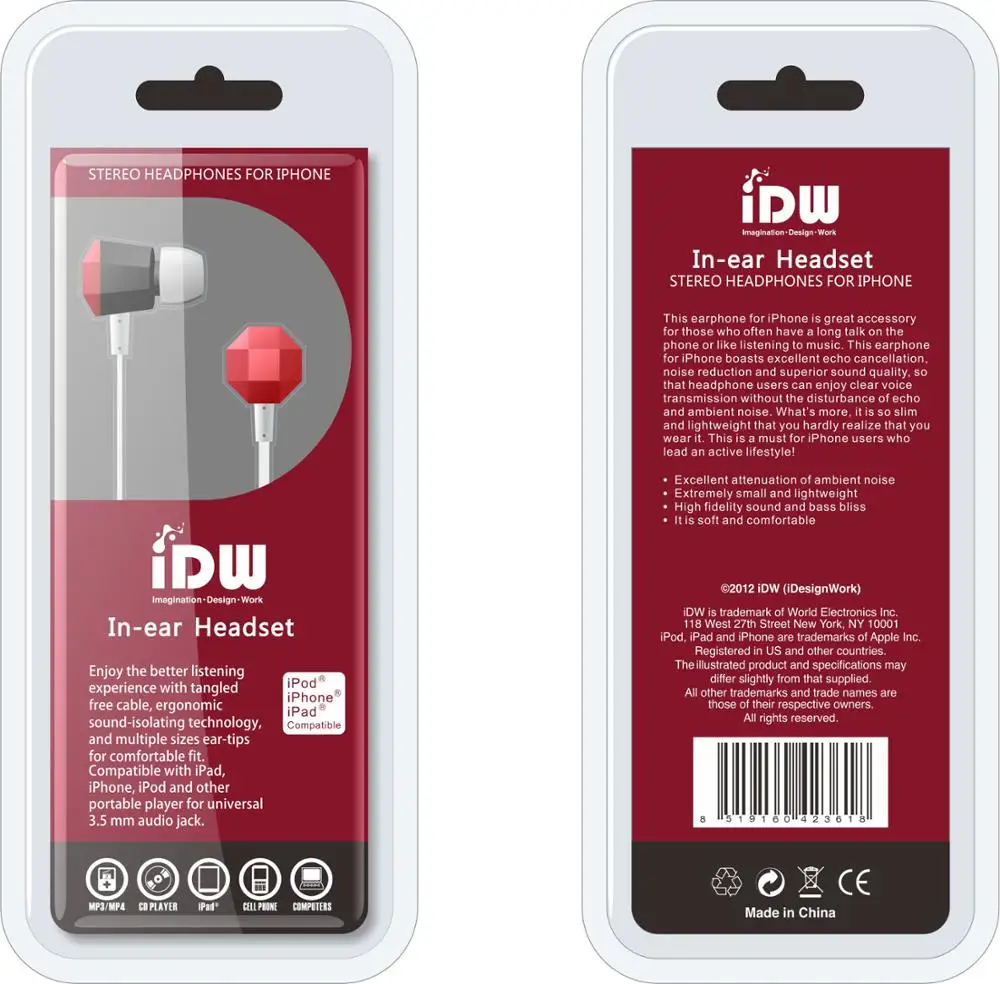

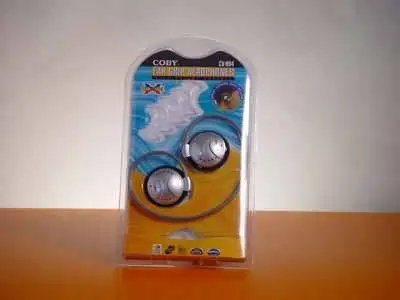

No matter what you wish to package. You receive the appropriate packaging solution, based on your specifications.With the HUAXIANG, you can choose between three blister types:

Card - Blister

Blister - Blister

Blister - card - Blister

click picture view more

Mould

click picture view more

Machine Size

Packaging & Delivery

\t Packaging
\t Size	\t L2W1H2.2 m
\t Weight	\t 400kg
\t PackagingDetails	\t 1.The normal package is wooden box. 2. If export to european countries,the 3.wooden box will be fumigated. 4.If container is too tighen,we will use pe- film for packing or pack it according to customers special request. Machines will be Split to facilitate placment

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

Factory Info

About us

Shenzhen HuaXiang Factory Co. , Ltd is a diversified export-oriented enterprise integrated with technology, industry and trade. established in 2005, is the largest enterprise specializing in the production of Forming Machine. Our machine are used a lot in plastic forming,plastic packaging.

Contact

In order to help you choose the best suitable machine, please try to reply my questions below, thanks for your cooperation.
Q1: What about your material ?
Q2: The size of your sample: length, width and thickness?
