Паровой бойлер для горячей воды с защитой окружающей среды
US $4000-$5000
Водяная трубка масляный парогенератор 500
- Категория: Котлы >>>
- Поставщик: Henan,Province,Sitong,Boiler,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.98 $* | 0.43 $* |
| Aug-15-2025 | 0.26 $* | 0.87 $* |
| Jul-15-2025 | 0.48 $* | 0.68 $* |
| Jun-15-2025 | 0.45 $* | 0.97 $* |
| May-15-2025 | 0.59 $* | 0.49 $* |
| Apr-15-2025 | 0.61 $* | 0.12 $* |
| Mar-15-2025 | 0.71 $* | 0.31 $* |
| Feb-15-2025 | 0.82 $* | 0.16 $* |
| Jan-15-2025 | 0.47 $* | 0.71 $* |
Характеристики

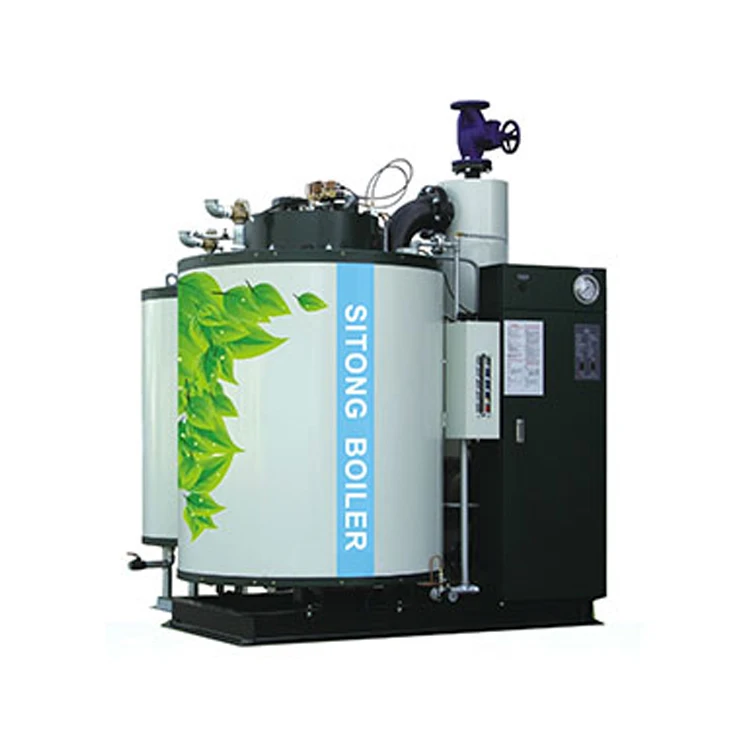

water tube 500kg oil steam generator
| Model | LSS Once Through Boiler |
| Structure | Crossflow Structure |
| Rated Steam Capacity | 0.1-2t/h (100kg-2000kg/hour) |
| Max. Pressure | 1.0Mpa(10Kgf/cm2) |
| Heat Output | 53900-1080000Kcal/h |
| Application | Medicine,Chemical,Light Industry,Textile Mill,Slaughter Plant,Paper Making, Washing etc. |
Model Item | ZH-100G | ZH-200G | ZH-300G | ZH-400G | ZH-500G | ZH-600G | ZH-750G | ZH-1000G | ZH-1500G | ZH-2000G | ||
| Capacity (kg/h) | 100 | 200 | 300 | 400 | 500 | 600 | 750 | 1000 | 1500 | 2000 | ||
| Heat Output (kcal/h) | 53900 | 108000 | 162000 | 216000 | 269000 | 323000 | 404300 | 539000 | 808000 | 1080000 | ||
| Heating Surface Area(M2) | 2.8 | 3.8 | 5.2 | 5.7 | 7 | 7.6 | 8 | 9.9 | 9.9 | 9.9 | ||
| Max.Pressure (kgf/cm2) | 10 | |||||||||||
| Water Content (L) | 33 | 48 | 75 | 80 | 95 | 102 | 106 | 176 | 176 | 163 | ||
| Boiler Efficiency (%) | 92 | 92 | 93 | 96 | 96 | 96 | 96 | 97 | 97 | 97 | ||
| Combustion Type | ON-OFF | TWO-STAGE | ||||||||||
Fuel comsumption | Natural Gas (Nm3/h) | 6.2 | 12.4 | 18.6 | 24.8 | 30.9 | 37.1 | 46.4 | 61.9 | 90.7 | 121.2 | |
| Lpg (Kg/h) | propane | 5.3 | 10.7 | 16.1 | 21.4 | 26.7 | 32 | 40.1 | 53.4 | 78.3 | 102.4 | |
| ethane | 5.6 | 11.3 | 16.9 | 22.5 | 28 | 33.7 | 42.1 | 56.2 | 82.4 | 110.1 | ||
| Weight(kg) | 366 | 470 | 620 | 640 | 910 | 950 | 1040 | 1430 | 1800 | 2000 | ||
| Boiler Dimensions (mm) | Length | 1020 | 1154 | 1279 | 1279 | 1481 | 1481 | 1581 | 1597 | 1972 | 1958 | |
| Width | 711 | 788 | 915 | 915 | 1098 | 1098 | 1118 | 1456 | 1915 | 1908 | ||
| Heigth | 1550 | 1615 | 1804 | 1904 | 2115 | 2215 | 2230 | 2222 | 2330 | 2307 | ||
