Z3050X16 1 Универсальный Радиальный ручной автоматический буровой станок для
- Категория: Сверлильные станки >>>
- Поставщик: Shandong,Weida,Heavy,Industries,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 777343.50 $* | 792890.74 $* |
| Jul-17-2025 | 630443.21 $* | 643052.40 $* |
| Jun-17-2025 | 765101.51 $* | 780403.41 $* |
| May-17-2025 | 758980.89 $* | 774160.53 $* |
| Apr-17-2025 | 605960.83 $* | 618079.41 $* |
| Mar-17-2025 | 746739.17 $* | 761674.45 $* |
| Feb-17-2025 | 740618.76 $* | 755430.53 $* |
| Jan-17-2025 | 734497.92 $* | 749187.70 $* |
Характеристики

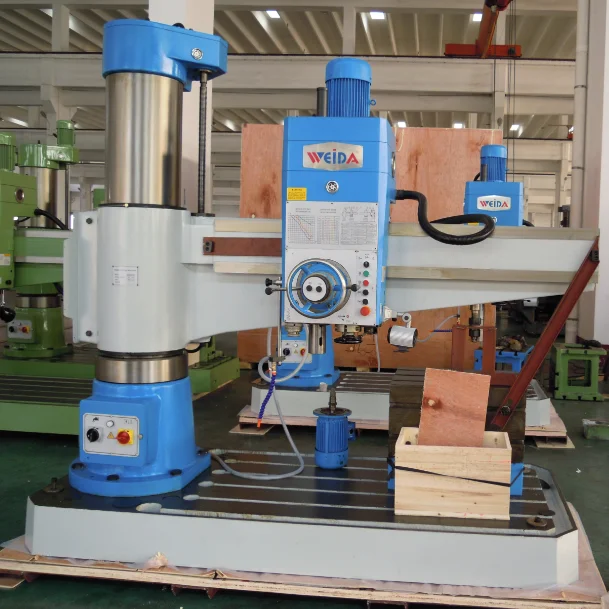

Z3050X16 1 universal radial arm auto feed drilling machine
Product Description
1.The machine is with hydraulic clamping system
2.The spindle is automatical feed as well as micro feed
3.Arm can swivel +/-180 degrees
4.The machine is mainly used to machining holes,such as drilling, reaming and chambering etc.
| unit | Z3050x16/1 | |
| worktable : | ||
| Dimensions of Box Table | mm | 630x500x500 |
| T slot of box table | no | 5/22/150 |
| Dimensions of Base | mm | 2400x1000x200 |
| Working Surface of Base Plate | mm | 830X1560 |
| T slot of base | 4/28/180 | |
| machining range : | ||
| spindle axis to column | mm | 350-1600 |
| spindle nose to table surface | mm | 320-1220 |
| spindle head travel(horizontal) | mm | 1250 |
| spindle : | ||
| Spindle taper | MT5 | |
| quill travel | mm | 315 |
| Max.drilling diameter | mm | 50(steel) |
| spindle Speed Range /steps | rpm | 25-2000/16setps |
| Max.spindle torque | Nm | 500 |
| spindle feed/steps | 0.04-3.2/16steps | |
| motor | ||
| spindle motor power | kw | 4 |
| elevating motor for Arm | kw | 1.5 |
| coolant pump | KW | 0.09 |
| others | ||
| clamping type | Hydraulic clamping for longitudinal | |
| ,vertical and radial movement | ||
| overall dimension (L*W*H) | mm | 2500x1070x2840 |
| package dimension (L*W*H) | mm | 2580x1110x2550 |
| N/W | KG | 3500 |
Detailed Images

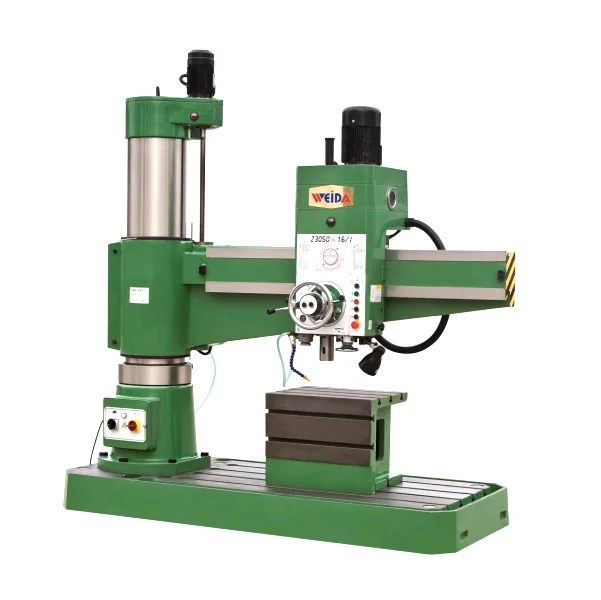

Structure of the machine
The machine consists of base, column, table, main drive mechanism, coolant, lubrication, electrical equipments and so on.
z3050x16/1 auto feed drilling machine is mainly used to drill, ream,spot facing,tap etc. on large and medium-sized casting, steel parts.
Features: (1) the use of hydraulic pre-selected speed, can save auxiliary time.
(2) the spindle is positive, reverse, brake, speed, neutral five movements, with a hand
Handle control, control focus, light and smart.
(3) machine tool spindle box, column, rocker clamping are hydraulic clamping mechanism.
(4) the main rail surface are quenching treatment, can extend the machine life.
(5) a perfect safety protection device.
(6) electrical system safe and reliable, in line with national standards and international standards
Standard accessories
Quality inspection![inspection.jpg]()
We owns more than 632sets of production equipments, some world famous brand like Germany DMG horizontal machining center, Germany Trumpf laser cutting machine and bending machine, America floor tye boring machine, Shanghai C N C gantry guide rail grinding machine, Beijing C N C gantry type boring milling machine and automatic powder coating line .Besides, C N C machine tool project laboratory with advanced testing equipments is built for quality control.We will test every machines carefully in different status by our professional engineers to make sure our machines quality.
Packaging & Shipping
Machine type: z3050x16/1 auto feed drilling machine
Package :Plywood case
Packing dimension:258x111x255cm (one set in one case)
N.W./G.W.: 3500/3800KGS
Suitable Container and quantity:
40High Container: 7sets
Production process
From the moment we recieve your confirmed order,we will begin to arrange the production. First, we will prepare the castings. We have our own castinng factories,we can make sure its quality.Casting will decide your machine quality. When the castings are ready, we will process it on large equipments, during the period of processing, our purchasing deparment will buy other machines that will be used on the machine, such as spinlde, tool magazine,cnc controller,and maybe some other optional equipments you need.
When all the parts are ready, we begin to assemble it. During assembling, we will test every step to control machine's quality. Large parts and protections will be assembled first, then next is painting. After painting, electrical will be installed, finally, the machine will be assembled well and tested. We will control each step, so finally, there should be no problem for assembled machine. We will deliver an qualified machine to you.
Processing equipment
We owns more than 632sets of production equipments, some world famous brand like Germany DMG horizontal machining center, Germany Trumpf laser cutting machine and bending machine, America floor tye boring machine, Shanghai cnc gantry guide rail grinding machine, Beijing cnc gantry type boring milling machine and automatic powder coating line .
Besides, Cnc machine tool project laboratory with with advanced testing equipments is built for quality control.
Company Introduction
Shandong Weida Heavy Industries co., ltd. is a large scale joint enterprise with the right of import&export.It covers an area 500,000square meters,the building zone is about 350,000square meters,and the total assets is more than
RMB500million,there are 365 engineers and 632sets of production equipment&measuring test instrument in the
company.
We are the biggest manufacturer of machine tools in the south of Shandong Province. Our main products have
developed to 8 series:cnc gantry type machining center, 50MM radial drilling machine z3050x16/1 price,horizontal boring machine,radial drilling machine,vertical machining center,vertical milling machine,
milling drilling machine,altogether more than 90 specifications.
We also have passed through ISO9001:2008 certification of CQC,and got CE certificate in 2006.
We have different workshops to produce different machines,it mainly includes cnc workshop,milling machine workshop, radial drilling machine workshop,processing department etc.
For cnc workshop as above, we will produce vertical machining center,gantry type machining center,horizontal machining center etc.. Every year we will produce hundreds of machining centers for abroad customers. Our brand is well-known in many markets.
For milling machine workshop, we produce conventional milling machine, cnc milling machine. We have more than 15 years experience on conventional milling machines. We have great experience and professional engineers, the quality for them is good, you can trust.We supply the machines to many famous companies, such as Germany KNUTH company, Germany OPTIMUM company, Russia JET company, American companies etc.

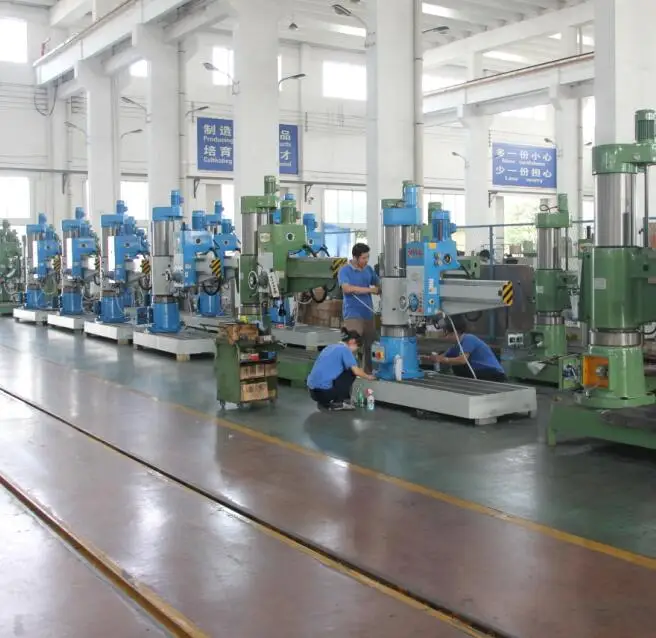

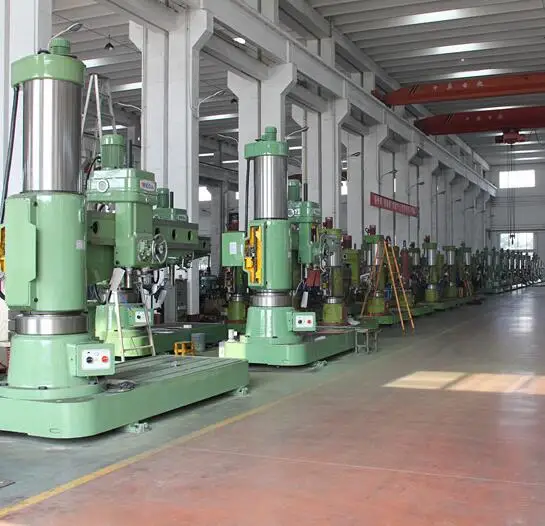

For radial drilling machine workshop, we mainly produce five models Z3032,Z3040,Z3050,Z3063,Z3080.We also have more than 15 years experience on such machines. We can make sure our machines' quality and supply our best service. From the castings to machines, we will control every step. We have our own casting factories, we have also special processing departmemt. Choose our machine, choose our company, we will be your good supplier.
Certifications
All our machines have been passed CE certification,such as radial drilling machine ,vertical machining center,drilling machines etc.. Besides, we also have ISO9001 certificate. Our company complys with European standard. We always export our machines to European market,such as Poland, Russia, Italy, Germany,America etc
Trade Shows
Every year, we will attend many exhitions at home and abroad. At home, we will attend CIMES,CCMT, CANTON fair etc..At abroad, we will attend EMO held in Hannover or Milano, Metalloobrabotka in Moscow, and other exhibitions,such as Mexico,Turkey,Colombia, Brazil,Indonesia,Thailand, Iran exhibitions etc.
Our machines are sold well and known by many famous customers.
We are always trying our best to exhibit best machine to you. We warm welcome to make business with you if you are willing. We will be your good supplier. Because we have good quality machine and good service.
Every year, there will be many customers from different countries to visit us. Some of them are our regular customers. We meet with each other as good friends and talk about our cooperation for next year. Some customers are our potentional customers, they visit us to see our factory for future cooperation. Everyone will satisfy with our factory after visiting. Because we are a large manufacturer with good reputation. We have the alibity to supply best machines . So we warm welcome for everyone's coming. After visiting, you will trust us.
FAQ
| Are you a trading company or a manufacturer? | 1.Professional manufacturer with factory for more than 15 years 2.We have the right of export and import |
| What's your delivery term? | FOB,CIF,CFR |
| What's your payment term? | Normally, TT 30% before production, balance before delivery |
| LC at sight is acceptable | |
| Do you accept OEM service? | YES. |
| What's your delivery time? | Normally, it will be about two months. Different machine, the time may be different. |
Why choose us?
1.We are a professional manufacturer for more than 12 years experience in machinery.
2.We are a trade assurance supplier chosen by alibaba.
3.We have got CE certification and ISO9001 quality certificate
4. We have a strong and professional team.
5. Our machines are sold all over the world, such as Russia,Poland,Spain,France,Italy,Portugal,India,Brazil etc.
6.We will supply high quality machines with good service.
