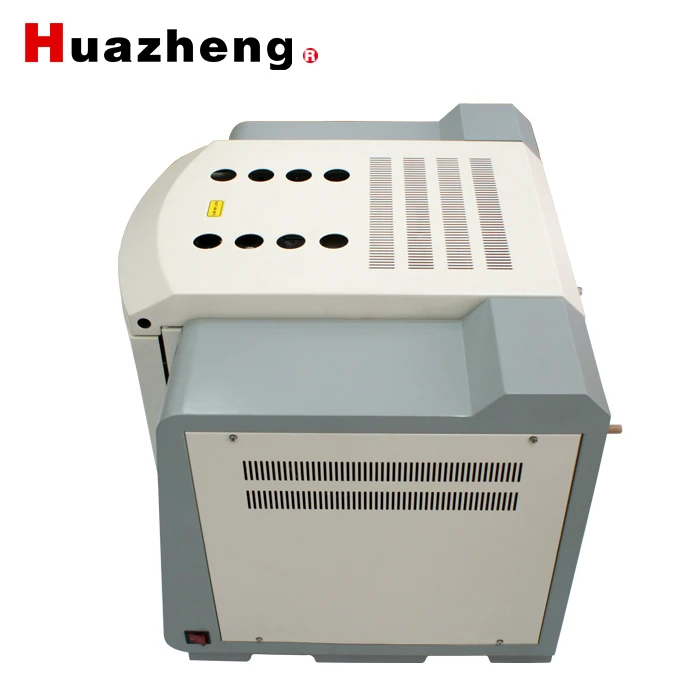

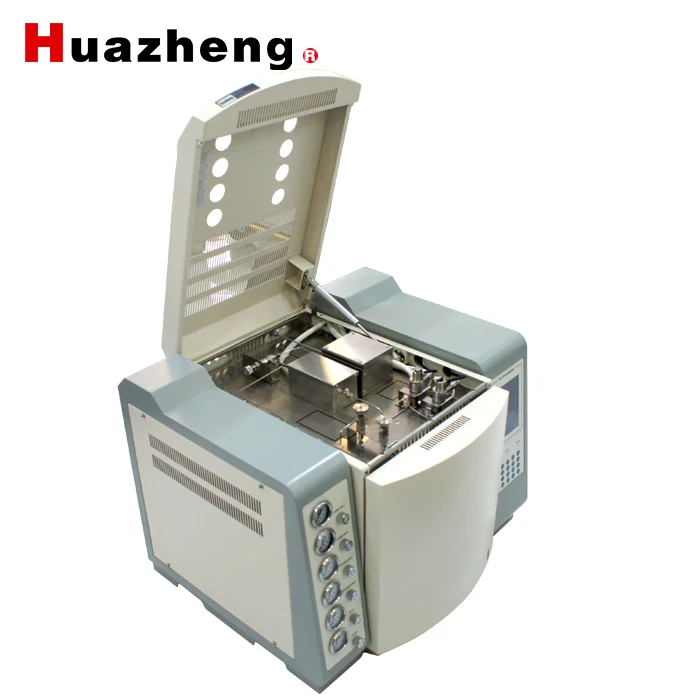

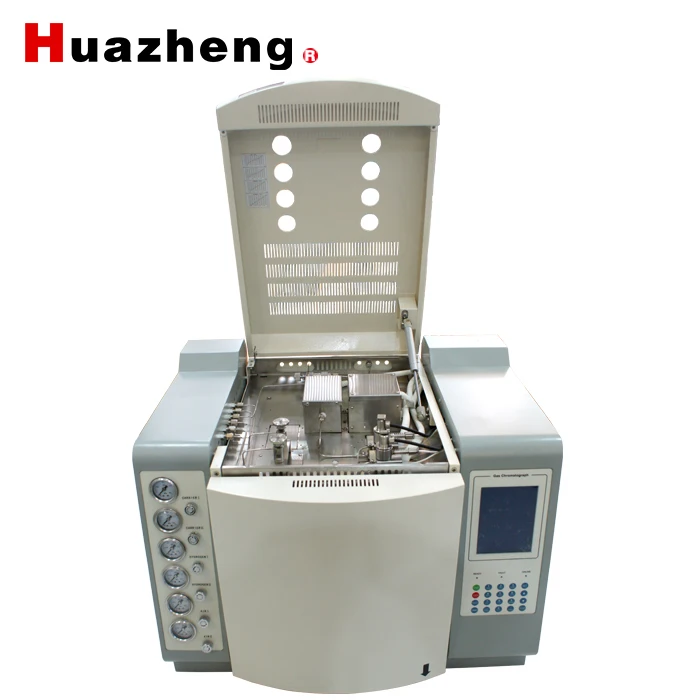

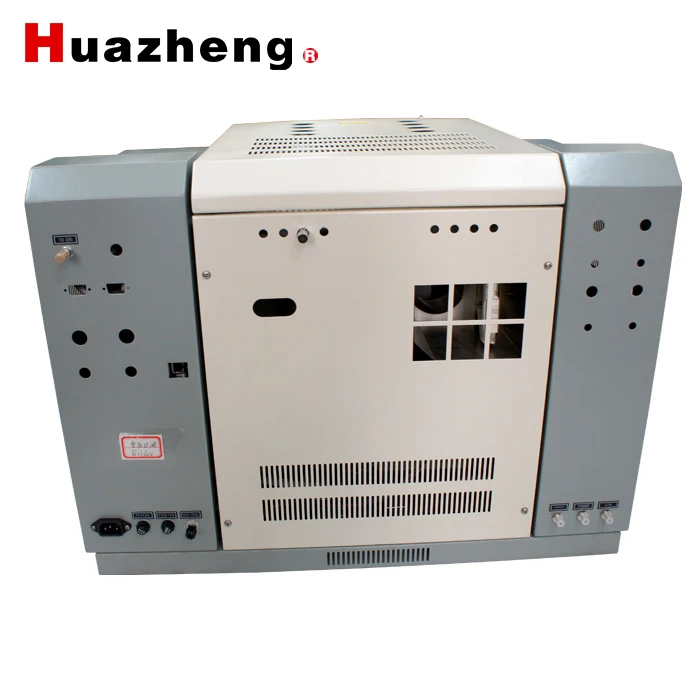

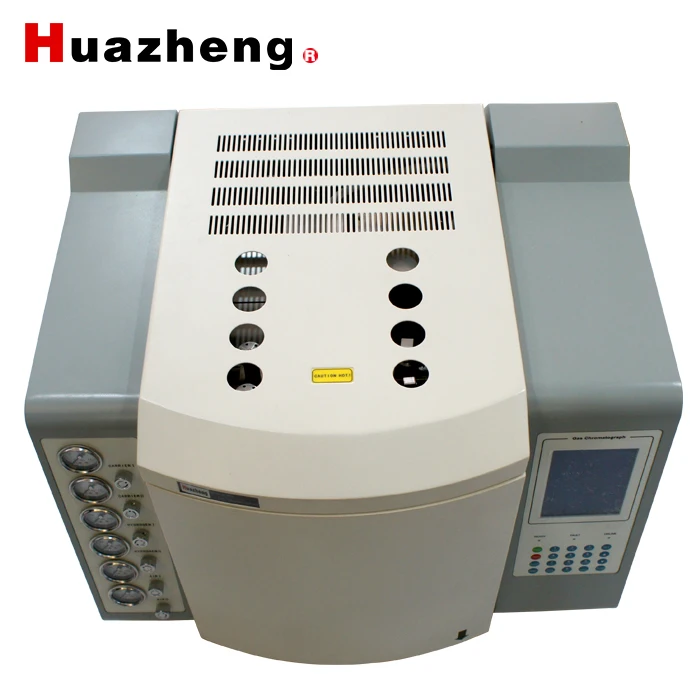

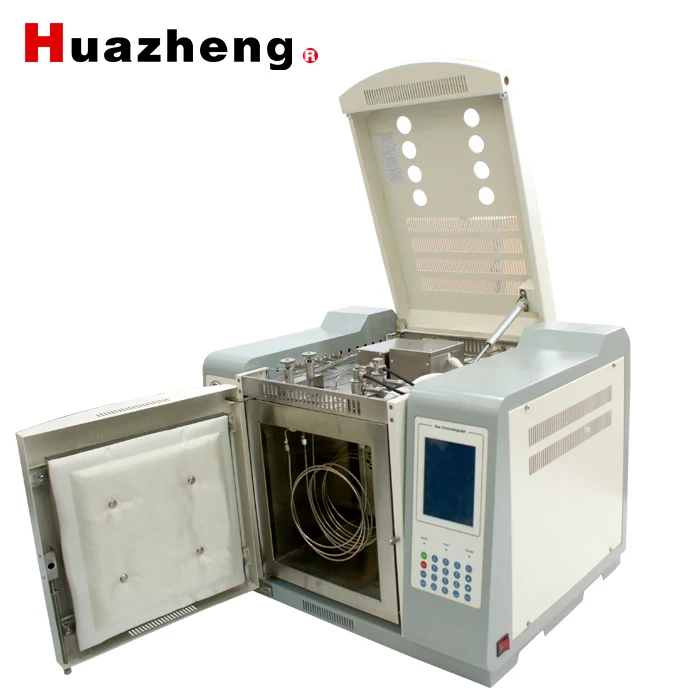

HZGC-1212 портативный трансформаторного масла газовая

Application:

Products have been widely used in electric power, petroleum, chemical industry, agricultural chemicals, public safety, liquor, environmental monitoring, health and epidemic prevention, institutions, scientific research and other departments.

Technical index:

(1)Operation display:5.7 inch lattice localization color LCD

(2)Temperature control region:6 Road

(3)Temperature range:Above room temperature 8 ℃ ~ 450 ℃,Incremental: 1 ℃,Accuracy: + / - 0.1 ℃

(4)Temperature programmed order number:16 order

(5)Cheng Sheng rate:0.1~39℃/min

(6)Gas Control:Mechanical valve control mode, electronic flow controller (EFC) and electronic pressure controller (EPC) method

(7)External event:4 way; Auxiliary control output 4 road.

(8)Injector type:Packed column sample or 10 quantitative sampling valves.

(9)Number of detector:3; double FID, TCD

(10)The parameters of the Ni conversion furnace:More than 85% or higher; Working temperature 350 ℃

(11)Boot into the sample: manual, automatic optional

(12)Communication interface: Ethernet: IEEE802.3

Flame ionization detection (GC-FID).

Detection limit: Mt≤3×10-12g/s (Sixteen alkanes)

 Noise:≤5×10-14A;

Drift:≤1×10-13A/30min;

 Linearity range: ≥106

Thermal conductivity detector(TCD)

Sensitivity:S≥3500mV•ml/mg(Sixteen alkanes)(1, 2, 4, 8 x magnification optional)

Noise:≤10μV;

Baseline drift:≤30μv/30min

From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is  founded in 2008,the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.

Our main products : Insulation Oil Tester, Cable Fault Locator, High Voltage Generator,transformer tester, relay protection tester,insulation resistance  tester,Power Quality Analyzer and so on.

Close to Tianjin port, the transportation is convenient. our customers come from More than 50 countries, like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

What's more, gurantee 1 year,life long maintance .Products through the CE, ISO, IEC certification, quality and reliable, factory price.

Warmly welcome all partners to join us for mutual benefits cooperation.
