            Plastic pellet machine/ plastic granules machine



Introduction of Recycled plastic pelletizing machine

Plastic Recycling Machine is designed for recycling used and waste plastic film or bottles into granules,

We have many designs according to different material like HDPE,LDPE,PP,PET,EPE,EPS,ABS,

All models are reasonable in design, easy in operation, convenient in maintenance with high output and low consumption,

It is an ideal choice of various medium and small size enterprises and privately-owned owner

Characteristics of  Recycled plastic pelletizing machine

1)The material of screw and barrel is 38 CrMoAl,Nitrogen treatment,high strength, corrosion resistance

2)Single step and two steps design according to material situation

3)Special gas hole can exhaust moisture so both dry and wet material available

4)Non-stop screen changer for easy operation

5)Production line is perfect design for LDPE,HDPE and PP film

Raw Materials of Recycled plastic pelletizing machine

Pipes,Transparent packaging,Houseware / household products/ household appliances,Fruit box,Beverage bottle,Microwave cooker,Water bottle,Detergent bottle,Personal care packaging

Process line of Recycled plastic pelletizing machine

Raw material+ additive → Mixing → Conveying feeding → Force feeding → Conical twin screw extruder → Blowing hot-cutting mould → Cyclone separator → Vibrating screener → Blowing system → Storage hopper → Finished product packing

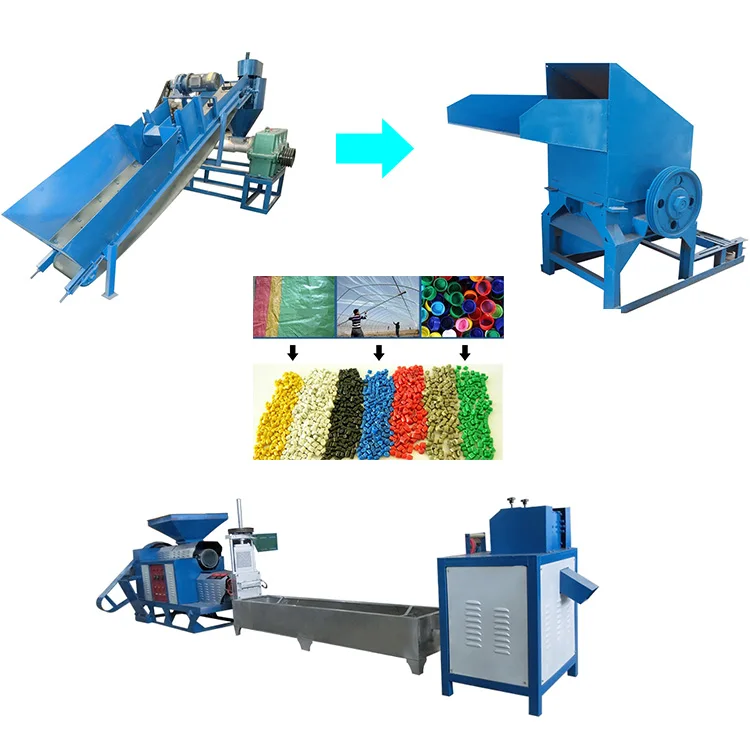

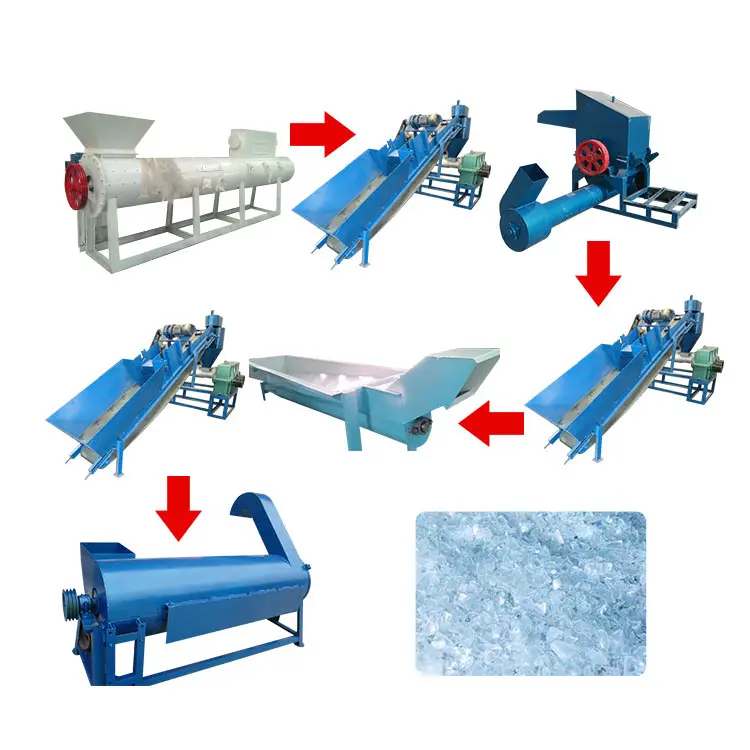

The production line of  Plastic pellet production line

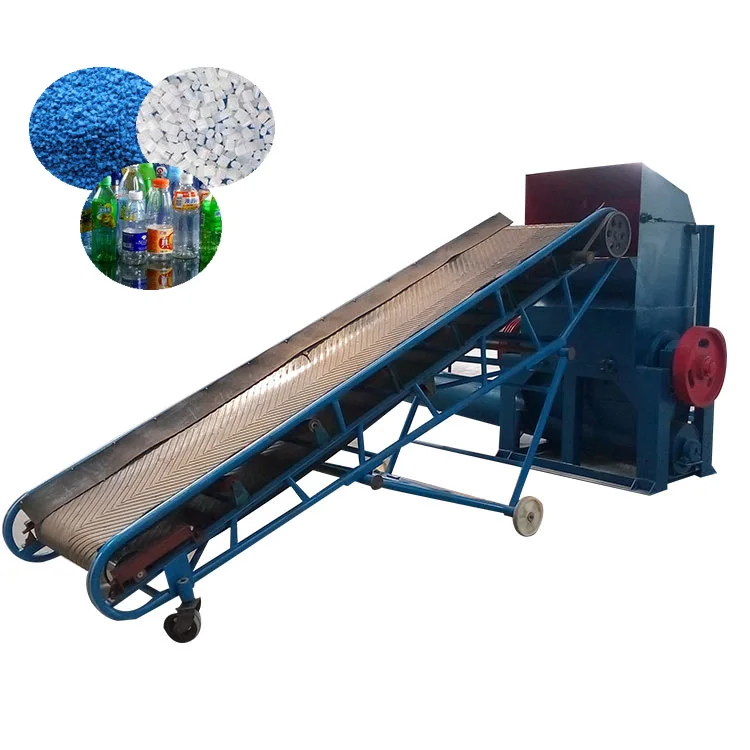

Plastic cleaning and crushing machine

The machine is special used to recycle the plastic material ,one machine to make plastic pellets .The machine can crush many kinds of materials such as weaving bags, agricultural film, hand bag,Rubber, sponge ect . which can also remove and clean the dust and impurity the material so that to get the clean plastic materials.

Model	Main axle rotary speed	Motor power	Capacity
TZ-200	695 r/min	4KW	18~150kg
TZ-300	695 r/min	7.5KW	30~180kg
TZ-500	705 r/min	11KW	80~300kg

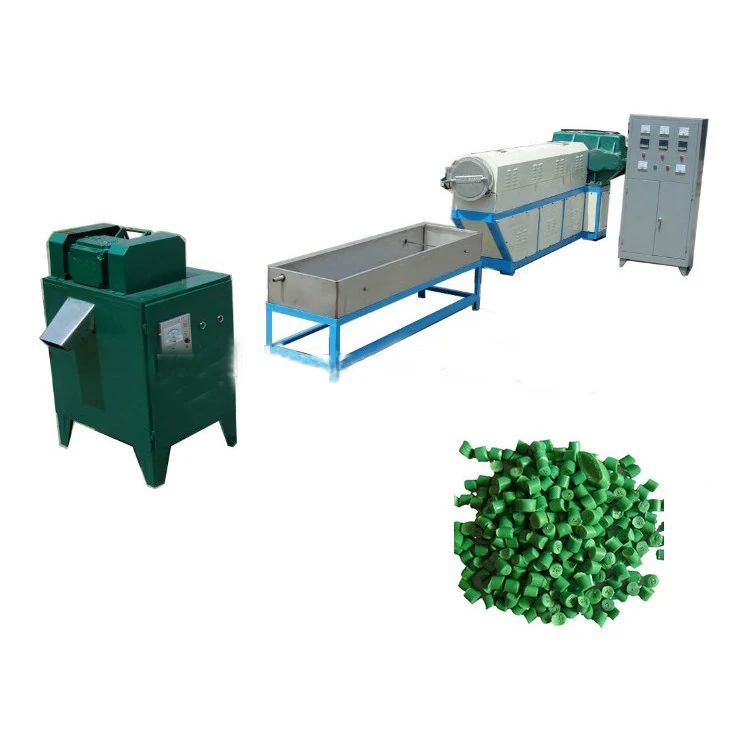

Plastic pelletizing machine

The machine is used to make salvage Polypropylene, polystyrene materials into pellets. The machine can press and pull the material into to strip with the high temperature ,the plastic strip can be cut into pellet by the cutting machine.

Model	Diameter of screw	Motor power	Heating power	Capacity
TZ-90	90	5.5KW	6KW	20~80kg
TZ-125	125	11KW	10KW	40~120kg
TZ-150	150	18.5KW	15KW	50~150kg

Plastic cutting machine

This machine is used to cut the plastic strip into small pieces and the motor power for the cutting machine is 1.1kw.



The end products







IF you have any other problems about our products, pls contact us.
