Зажимной патрон с гидравлическим
- Категория: Планшайба >>>
- Поставщик: Kunshan,Omatei,Mechanical,And,Electrical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.0 $* | 0.88 $* |
| Aug-16-2025 | 0.53 $* | 0.12 $* |
| Jul-16-2025 | 0.16 $* | 0.27 $* |
| Jun-16-2025 | 0.81 $* | 0.89 $* |
| May-16-2025 | 0.55 $* | 0.8 $* |
| Apr-16-2025 | 0.59 $* | 0.8 $* |
| Mar-16-2025 | 0.70 $* | 0.77 $* |
| Feb-16-2025 | 0.46 $* | 0.43 $* |
| Jan-16-2025 | 0.24 $* | 0.71 $* |
Характеристики
Product Description
Jaw Style Hydro Power Chuck Series

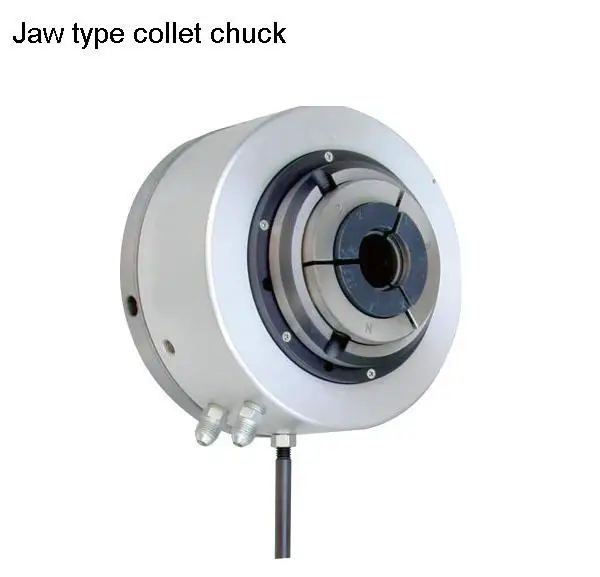

Rotary Power Collet Chuck - Jaw Pad Type
Subject to the different products spec and craft, and different exchange rate, The price here is just for your reference, please get the right price from our sales when you order.
Products Introduction
It used to be complex for users to convert a manual chuck system to a power one, since setting up a hydraulic system not only is expensive, but also is troublesome. OMATEI Rotary Power Chuck is specially designed to help users to set up a power workholding system in a low cost way. With a built-in rotary cylinder, OMATEI's Rotary Power Chuck allows users to easily and quickly set up a power workholding system, and saving cost on purchasing an additional rotary cylinder. OMATEI Rotary Power Chuck also has quick-change jaw/collet design, helping you to cope with parts of various dimensions.
Application Range
It is widely applied to convert manual lathe to semi-auto ones with power workholding system, or is applied to build all kinds of special purpose machines.
Products Advantage
•\tHydro cylinder is built-in. No need for extra rotary cylinder.
•\tRepeatability for jaw type power chuck: 0.040mm-0.080mm.
•\tAluminum alloy chuck body, light-weighted, good heat dispensation.
•\tAllows non-stop operation when loading parts.
•\tWidely applied to convert manual lathe into powered ones.
•\tWidely applied to build special purpose machines.
•\tDo not spray cutting fluid to the chuck directly.
Products Details
For the length unit : mm(inch)
Model | JH5-25 | JH7-40 | JH7-70 | JH9-90 | JH9-120 |
A | 135 (5.31) | 192 (7.56) | 192 (7.56) | 230 (9.06) | 230 (9.06") |
B | 100 (3.94) | 155 (6.10) | 155 (6.10) | 190 (7.48) | 190 (7.48") |
C | 26 (1.02) | 45 (1.77) | 68 (2.68) | 88 (3.52) | 120 (4.72") |
D | 4 (0.16) | 5 (0.20) | 5 (0.20) | 6 (0.24) | 6 (0.24") |
E | 105 (4.13) | 128 (5.04) | 142 (5.60) | 150 (5.91) | 160 (6.30") |
F | 45 (1.77) | 65 (2.56) | 105 (4.13) | 105 (4.13) | 140 (5.51") |
G | 68 (2.68) | 94 (3.70) | 136 (5.35) | 136 (5.35) | 168 (6.61") |
H | 138 (5.43) | 192 (7.56) | 211 (8.31) | 232 (9.13) | 275 (10.83") |
I | 115 (4.53) | 172 (6.77) | 172 (6.77) | 210 (8.27) | 210 (8.27") |
J (Rear Mounting) | 3H - M8 x P1.25 | 3H - M10 x P1.5 | 3H - M10 x P1.5 | 3H - M12 x P1.75 | 3H - M12 x P1.75 |
Working Jaws | C-25 Jaw Pad | C-40 Jaw Pad | C-70 Jaw Pad | C-70 Jaw Pad | C-120 Jaw Pad |
Air/Hydro Actuated | Hydro | Hydro | Hydro | Hydro | Hydro |
Operating Pressure | 10-25kg/cm2 | 10-20kg/cm2 | 10-20kg/cm2 | 10-15kg/cm2 | 10-15kg/cm2 |
Operating Pressure(psi) | (143-357psi) | (143-286psi) | (143-286psi) | (143-214psi) | (143-214psi) |
Max. RPM | 1800 | 1600 | 1400 | 1100 | 900 |
Max. Capacity | 25 (0.98) | 45 (1.77 ) | 68 (2.68) | 88 (3.52) | 118 (4.65") |
Piston Area | 56cm2 (8.68in2) | 90cm2 (13.9in2) | 116cm2 (18.0in2) | 132cm2 (20.5in2) | 183cm2 (28.4in2) |
Clamping Force | 2508kgf@16kg/cm2 | 4032kgf@16kg/cm2 | 5197kgf@16kg/cm2 | 5913kgf@16kg/cm2 | 6148kgf@12kg/cm2 |
Clamping Force(lbf@psi) | (5519lbf@228psi) | (8870lbf@228psi) | (11433lbf@228psi) | (13009lbf@228psi) | (13528lbf@171psi) |
Net Weigh | 6.0kg (13.2lbs) | 13.0kg (28.6lbs) | 18.0kg (39.6lbs) | 24.0kgs (52.8lbs) | 30.0kgs (66.0lbs) |
