Электролитический элемент SPE PEM поток H2 90 мл/мин 300 600 1200

Electrolytic water meeting the requirements  (With electrical resistivity >2MΩ/ cm, and deionized or redistilled water in  electronic and analysis industries can be used for this purpose.) , after being put into the anode chamber of electrolytic cell, when power is switched on ,

will be decomposed at once at the anode :

2H2 O = 4H+ + 2O-2

The decomposed negative oxyanion (O2) will immediately release electron to form oxygen (O2),

which will then be discharged from the anode chamber, with some water, into the water tank.

The water can be used circularly, and oxygen will be discharged from the small hole of the top cover of the water tank into the atmosphere. The hydrogen proton,

in the form of aqua ion(H+XH2 O), and under the action of electric field force ,

through SPE ion membrane, will arrive in the cathode to absorb electron to form hydrogen ,which will then be discharged from the cathode chamber.

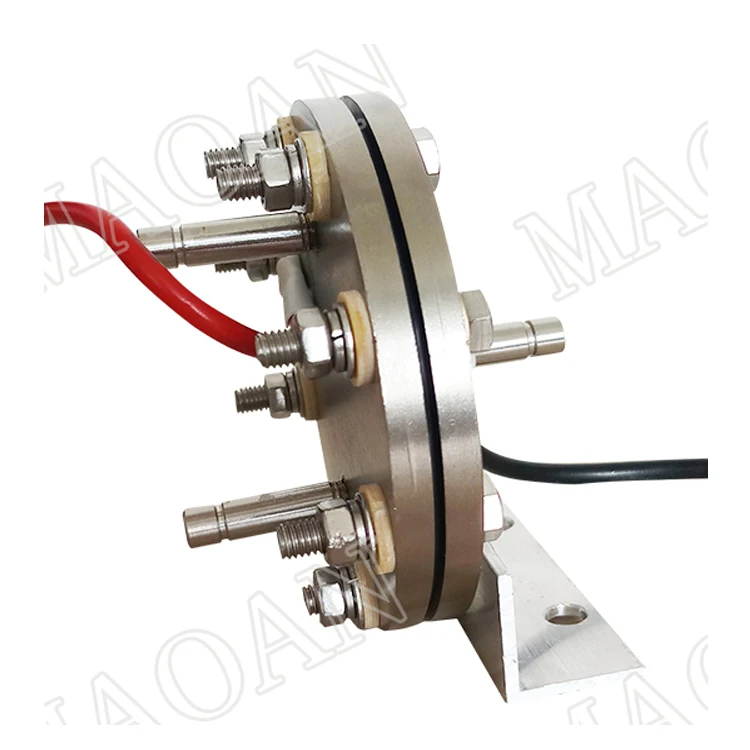

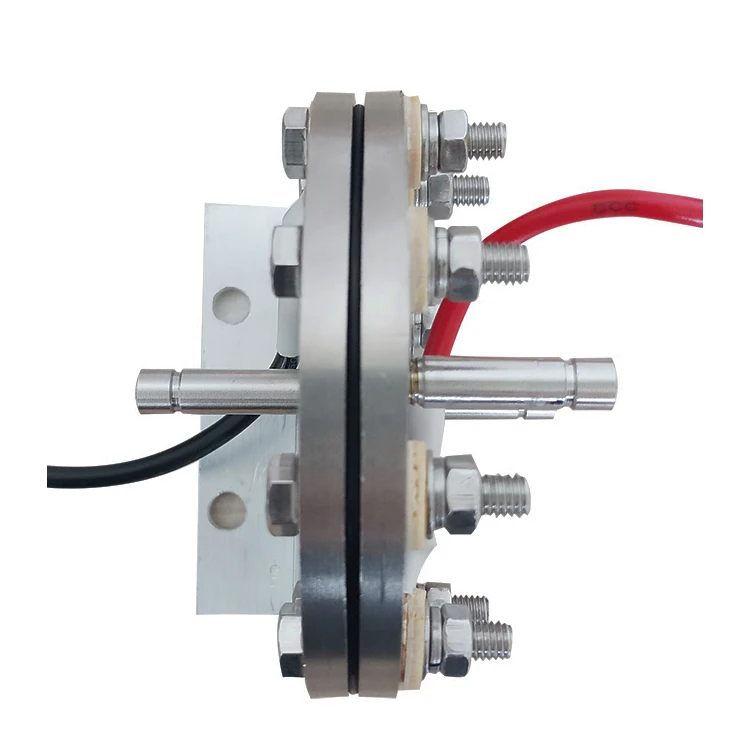

1. Larger diameter: 136mm & 144mm. Much larger than others.

Inside reaction PEM membrane: 100mm diameter.

2. Electrodes and micro pore panel, water diversion plate: all use 100% Titanium 1 Metal.

3. Single membrane cell voltage< DC 2.5V !

4. Membrane catalyst coating technology: Chemical Precipitation Method.

One membrane, two sides both use Pt(Platinum) metal.

One membrane need 2 days for making catalyst inside of membrane slowly by slowly.

To treat such long time, catalyst already osmosis inside of membrane. Very firm, not easy fall off. Even use your fingernail scrape, you will not get catalyst off.

This is the important reason why our cell can be used for 5--10 year

5. Cell lifetime: Lifetime more than 20000 hours, normally can use 5--10 years.
