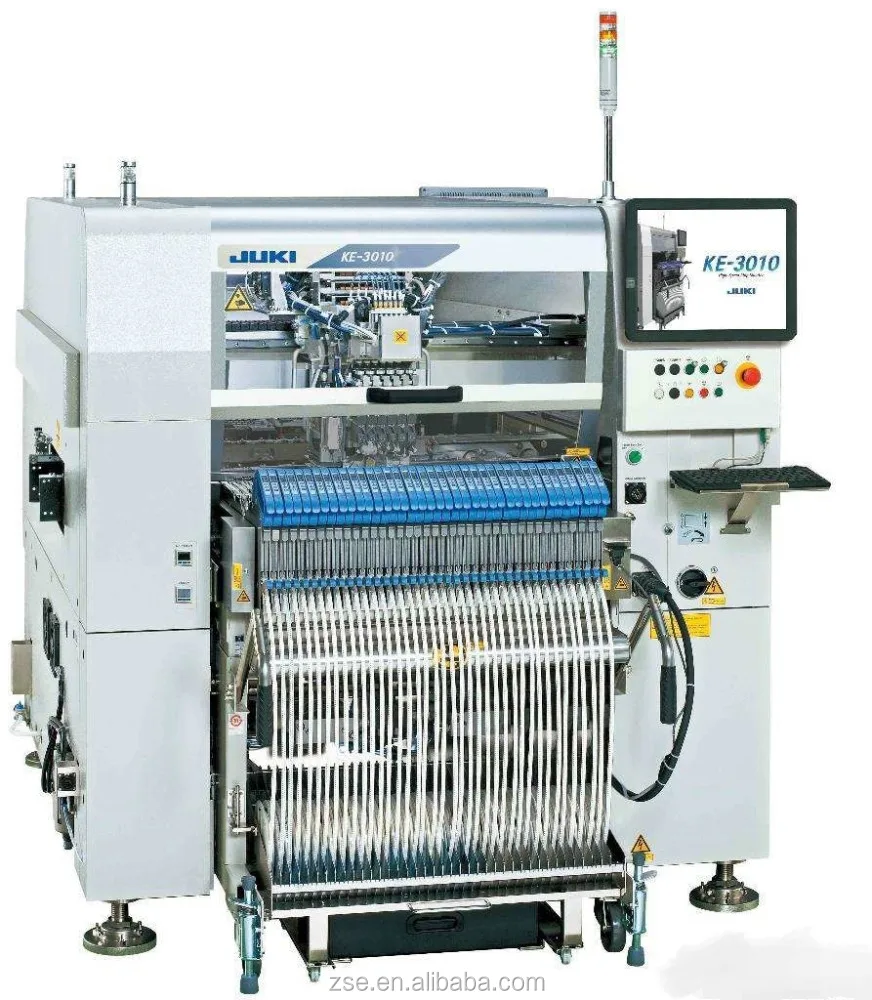

Japan brand pcb Juki- KE-3010 pick and place machine for SMT Assembly System
Product Overviews
Product Description
Substrate size
M-type substrate (330 × 250mm)
L-type substrate (410 × 360mm)
L-Wide type substrate (510 x 360mm) (optional)
XL type substrate (610 × 460mm)
Long size substrate (L type substrate specifications) 800 × 360mm
Long size substrate (L-Wide type substrate specification) 1,010 × 360mm
Long size substrate (XL type substrate specification) 1,210 × 560mm
Mounting element height
6mm / 12mm
Mounting element size
Laser laser recognition
0.4x0.2mm (British 01005) ~ 33.5mm
Image recognition (MNVC option)
Standard camera: 3mm ~ 33.5
Precision camera: 1.0 × 0.5mm ~ 20mm
Placement speed
Condition: 0.153 sec / chip (23,500 CPH)
MNVC IC (condition): 9,000 CPH (optional)
Placement accuracy
Laser laser recognition: ± 0.05mm (± 3σ)
Image recognition: ± 0.04mm (± 3σ)
Filled with element type
160 (converted into 8mm tape, electric double track belt feeder)
Device size (W * D * H)
M substrate: 1,500 x 1,580 x 1,500 mm
L substrate: 1,500 x 1,690 x 1,500 mm
L-Wide substrate: 1,800 × 1,690 × 1,500mm
E substrate with: 2,131 × 1,890 × 1,500mm
Device weight:
M-type substrate about 1,850 Kg
L-type substrate about 1,950 Kg
XL type substrate about 2,250Kg
Packaging & Shipping
Packing method
1)Standard box package for light and small item; 2)Strong wood package for heavy and large equipment;
Shipping way
1)By air ,for sample and small package ,worldwide expresses like DHL,UPS,FedFX,EMS.... 2)By sea, for large package and quantity; 3)By car,by train or other ways according to customers' requirements.
Payment
We accept T/T and Credit Insurance Order.30% Depoist and 70% Balance before shipping.
Also,other payment methods can be negotiated.
Company Information
Shenzhen ZENS Electronic Co., Ltd. is a company who is aiming to be a leading manufacturer of SMT line manufacturing.It is specializes in :
1,Pick and place machines of Fuji,Juki,Panasonic,Samsung,Yamaha, some Chinese brands, etc;
2,Solder Paste Printers of Yamaha,Dek,GKG,our own brand, etc.
3,AOIs of Saki,our own brand,etc.
4,Reflow ovens of ETC,Heller,some Chinese brand,etc.
5,Other SMT machines and accessories,such as laser marking machine,PCB washing machine,wave soldering machine,SPI,gule dispenser,solder paste mixer,PCB conveyor,PCB magazine loader and unloader,nozzles,feeders,etc.We focus on both production and sales.
Also,we provide technical supportsand lifetime online supportsafter sales.
Overall,choosing us will save your time of searching and improve the efficiency of your production line.
contact info
FAQ
1. How can you guarantee your products’ quality?
⇒A: We guarantee that every set of our products is under rigorous test before delivered to you and ensure excellent performance of all products.
2.What kind of payment method your company accept?
⇒A: We accept most of the payment methods,but mainly accept T/T.
3. I would like to ask you is it possible to have my logo on the product?
⇒A: Our company support customized logo service perfectly and it's totally free.So just tell your requirements to us.
4. MOQ ?
⇒A: 1 set machine or mixed order is also welcome.
5. How can I buy this machine from you? ( Very easy and flexible !)
⇒A. You can consult us about the product on line or by e-mail. B. Negotiate and confirm the final price , type of transportation , payment method and other terms. C. Send you the proforma invoice and confirm your order. D. Pay the bill according to the method put on proforma invoice. E. We'll prepare your order according to the proforma invoice after we receive your total payment.And we'll give throughout inspection of the product before shipping. F. Send your order by air or by sea by your requirements.
Our Services
1. We’ll have a good check and test before shipping out.
2. We provide you professional user's manual in English or operating videos for free; 3. 24 hours technical support by email ,Skype ,Trade Manager, telephone,etc. 4. Machine parts under one day warranty changed for free without malicious damage 5. Engineer is available to service machinery overseas.Welcome your engineers come to our factory for professional training.
