Вождение автоматическая краска дорожная маркировка цена хромированная маркировочная машина для холодной
- Категория: Road Marking Machines >>>
- Поставщик: Tatu,Highway,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 32130.84 $* | 33737.83 $* |
| Aug-19-2025 | 31860.79 $* | 33453.20 $* |
| Jul-19-2025 | 26730.54 $* | 28067.53 $* |
| Jun-19-2025 | 31320.98 $* | 32886.69 $* |
| May-19-2025 | 27270.81 $* | 28634.65 $* |
| Apr-19-2025 | 30780.64 $* | 32319.6 $* |
| Mar-19-2025 | 30510.10 $* | 32036.59 $* |
| Feb-19-2025 | 30240.63 $* | 31752.93 $* |
| Jan-19-2025 | 29970.35 $* | 31469.53 $* |
Характеристики

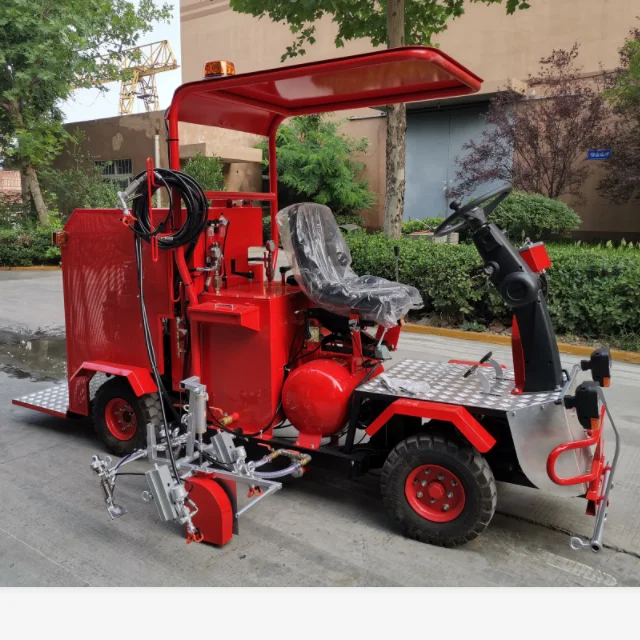

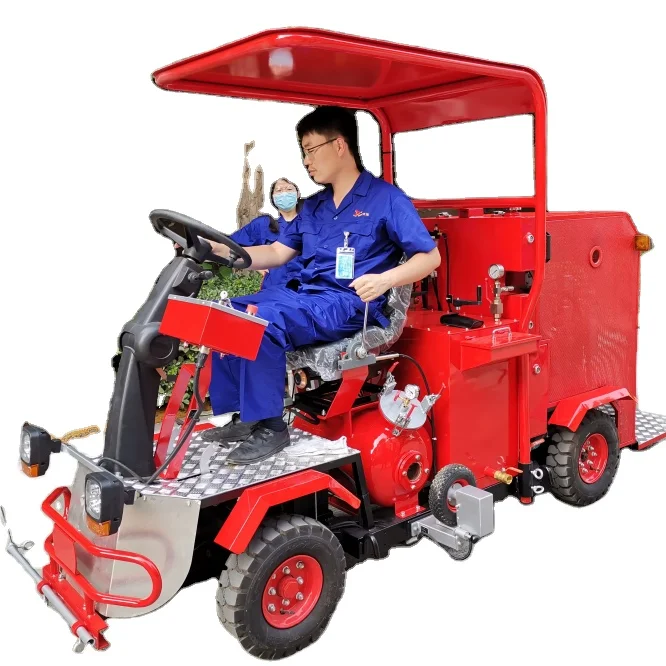

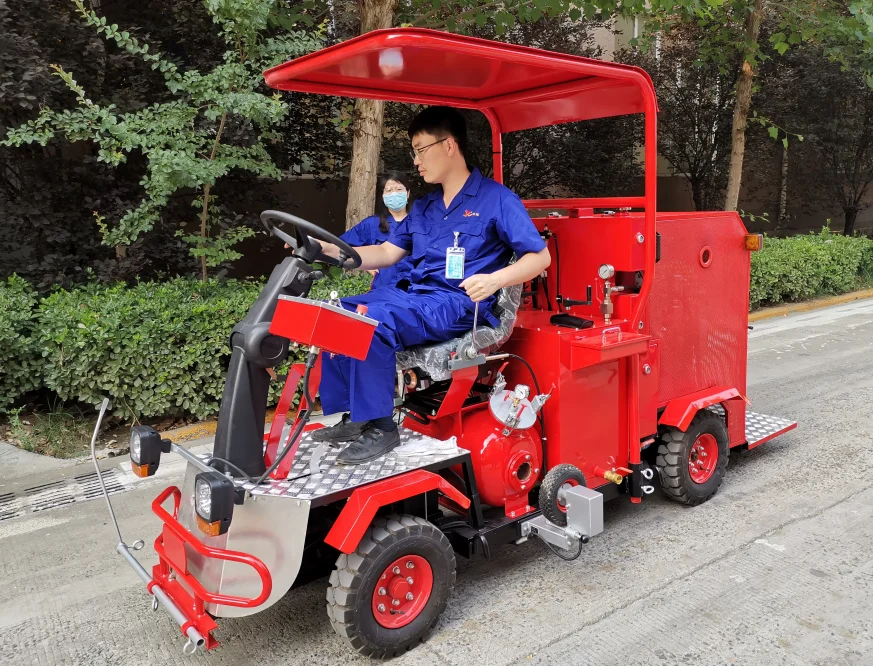

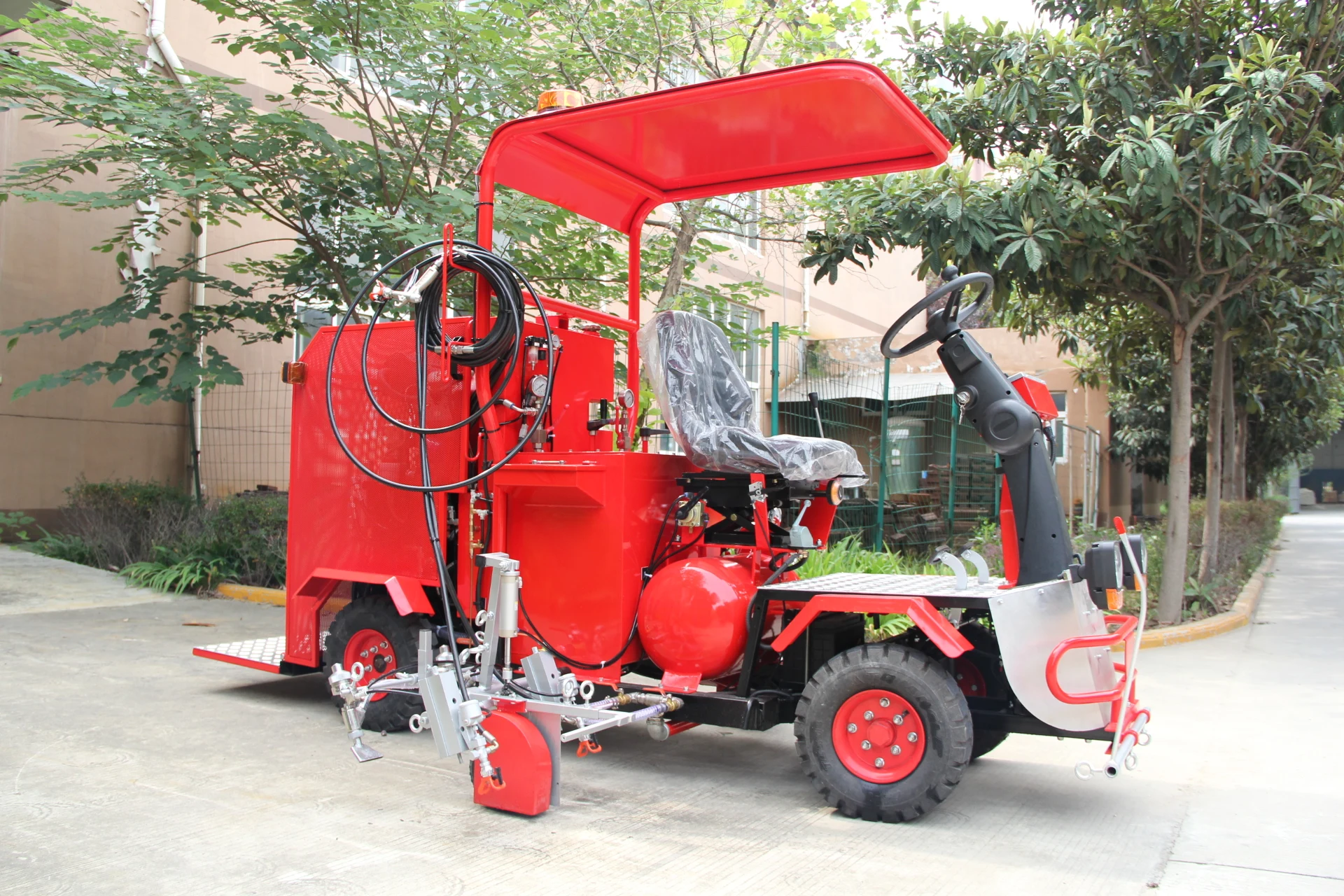

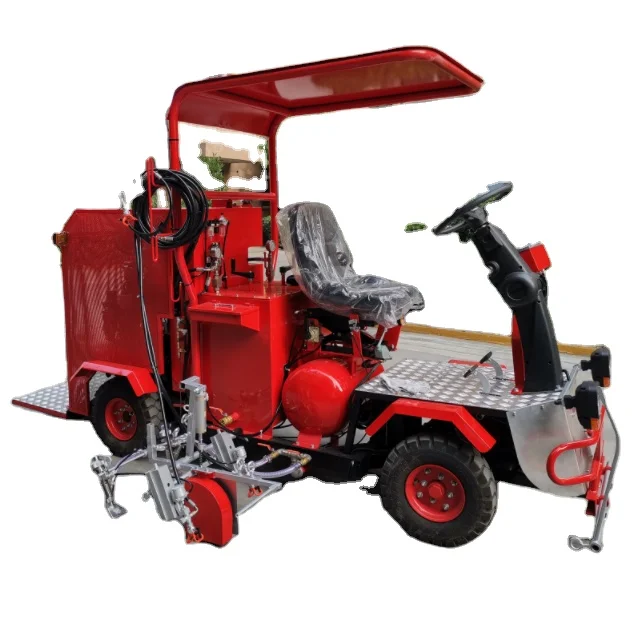

1:Small sitting type airless road marking machine
1. Engine: Original imported Honda or Robin 20Hp air-cooled gasoline engine.
2. Driving system: The original imported variable speed transmission system with automatic brake device, which can be freely operated to forward, back off or stop(HTS);The left and right wheels with differential driving device make the curve driving and turning flexible and convenient. The manual brake system makes the running safer.
3. Driving speed: Forward: 0-22km/m; back off: 0-3km/h.
4. Max climbing capability: 15°.
5. Micro-electronic control system: This system has four-type marking ways (also can makes personality design according to the standard of customer). Spray gun controller can freely change the guns between the single and double spray guns.
6. Chassis: Firm welding frame, and surface has been chrome-plated, galvanizated or sprayed coating with corrosion resistance, equip with high speed type imported bearing to ensure the whole machine lighter and more convenient.
7. Rubber wheel: The left, right, front and back wheels are gas-filled pressure resistance vacuum ones, the diameter is 400mm.
8. Guide rod: The guide rod is easy to operate, which can be freely adjusted to up, down, left and right.
9. Illumination and alarming function: Install with high intensity illumination lamp, which makes the work at night convenient. The alarming lamp with adjustable flicker frequency greatly improves the safety of work at night.

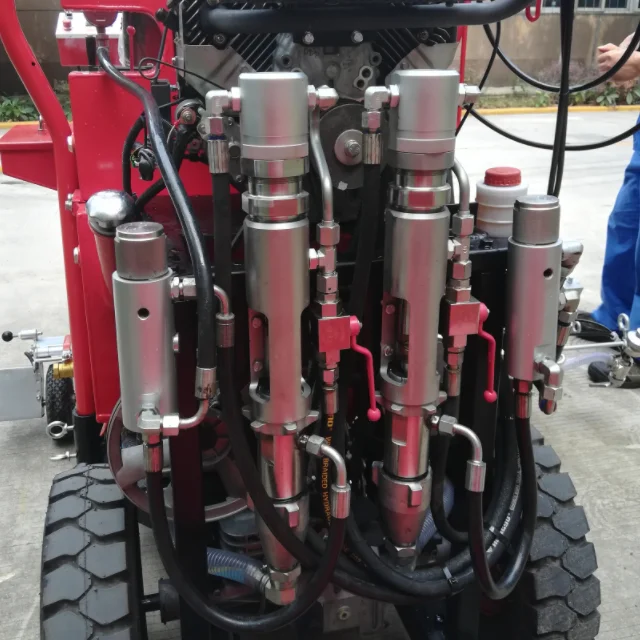

10. Paint pump: Equip with single hydraulic piston high pressure airless pump, which makes sure the big flow and stable pressure. Max pressure 20Mpa (Working pressure 10-15Mpa). Max flow: 20L/min.
11. Paint tank: The capacity is 65L.There is sieve in the tank.
12. Spray gun: Equip with three new type pneumatic spray guns and one hand spray gun with lengthening pipe for spraying special sign like arrow and letter. Hard side columnar reverse wastewater nozzle (30/20) makes the on-spot discharging easy and convenient .The non-arc nozzle ensures the base line collimated.
13. Available paint: for the spraying of cold solvent, water based road marking paint.
14. Spraying width: 100-450mm.
15. Glass beads SPRAYER: Single pressureized glass beads bin with a window.the single or double glass beads spraying guns which can adjust pressure,flow rate and spray witdth ensure the sprayed galss beadsevener,more deep-set and more economical.
16. Glass beads bin: Bin with windows can check the quantity of the glass beads in time. The capacity is 25kg.
17. It can finish the pre-marking synchronous with marking line, which improve efficiency double times.
18. Size. Weight: 2550mm(length)* 740mm (width)*1650mm (height).682kg.
2. Driving system: The original imported variable speed transmission system with automatic brake device, which can be freely operated to forward, back off or stop(HTS);The left and right wheels with differential driving device make the curve driving and turning flexible and convenient. The manual brake system makes the running safer.
3. Driving speed: Forward: 0-22km/m; back off: 0-3km/h.
4. Max climbing capability: 15°.
5. Micro-electronic control system: This system has four-type marking ways (also can makes personality design according to the standard of customer). Spray gun controller can freely change the guns between the single and double spray guns.
6. Chassis: Firm welding frame, and surface has been chrome-plated, galvanizated or sprayed coating with corrosion resistance, equip with high speed type imported bearing to ensure the whole machine lighter and more convenient.
7. Rubber wheel: The left, right, front and back wheels are gas-filled pressure resistance vacuum ones, the diameter is 400mm.
8. Guide rod: The guide rod is easy to operate, which can be freely adjusted to up, down, left and right.
9. Illumination and alarming function: Install with high intensity illumination lamp, which makes the work at night convenient. The alarming lamp with adjustable flicker frequency greatly improves the safety of work at night.
10. Paint pump: Equip with single hydraulic piston high pressure airless pump, which makes sure the big flow and stable pressure. Max pressure 20Mpa (Working pressure 10-15Mpa). Max flow: 20L/min.
11. Paint tank: The capacity is 65L.There is sieve in the tank.
12. Spray gun: Equip with three new type pneumatic spray guns and one hand spray gun with lengthening pipe for spraying special sign like arrow and letter. Hard side columnar reverse wastewater nozzle (30/20) makes the on-spot discharging easy and convenient .The non-arc nozzle ensures the base line collimated.
13. Available paint: for the spraying of cold solvent, water based road marking paint.
14. Spraying width: 100-450mm.
15. Glass beads SPRAYER: Single pressureized glass beads bin with a window.the single or double glass beads spraying guns which can adjust pressure,flow rate and spray witdth ensure the sprayed galss beadsevener,more deep-set and more economical.
16. Glass beads bin: Bin with windows can check the quantity of the glass beads in time. The capacity is 25kg.
17. It can finish the pre-marking synchronous with marking line, which improve efficiency double times.
18. Size. Weight: 2550mm(length)* 740mm (width)*1650mm (height).682kg.
2:Road Marking Paint used by TT-CP125-I Small Sitting Type Airless Road Marking Machine
TATU Driving Thermoplastic Screeding Road Marking Machine TT-C03-RZG500 is a professional road marking machine with high efficiency, and suitable for marking highway, urban road and local road with large construction square.
1.Q:Are you a factory or trading company?
A:We are factory which is dedicated in developing road traffic field more than 20 years.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Nantong City, Cangzhou City and Zhengzhou City. All our clients are warmly welcome to visit us!
3.Q:What’s the marking area for one ton of thermoplastic paint?
A: 200-250 square meters for flat lines, about 150 square meters for convex lines, it depends on two factors: line thickness and road surface flatness.
4.Q:How many glass beads drop on type for one ton of thermopalstic paint?
A: About 100KG for one ton thermoplastic paint.
6.Q:How many worker is necessary for one marking team?
A: 6-8 worker
A:We are factory which is dedicated in developing road traffic field more than 20 years.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Nantong City, Cangzhou City and Zhengzhou City. All our clients are warmly welcome to visit us!
3.Q:What’s the marking area for one ton of thermoplastic paint?
A: 200-250 square meters for flat lines, about 150 square meters for convex lines, it depends on two factors: line thickness and road surface flatness.
4.Q:How many glass beads drop on type for one ton of thermopalstic paint?
A: About 100KG for one ton thermoplastic paint.
6.Q:How many worker is necessary for one marking team?
A: 6-8 worker
