ATNJ двухдиапазонный 3G 4G мобильный ретранслятор сигнала 800/2100 МГц Усилитель сотового
- Категория: Ретранслятор >>>
- Поставщик: Shenzhen,Atnj,Communication,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 126.2 $* | 129.78 $* |
| Jul-20-2025 | 102.6 $* | 104.71 $* |
| Jun-20-2025 | 124.71 $* | 126.80 $* |
| May-20-2025 | 123.47 $* | 125.26 $* |
| Apr-20-2025 | 98.88 $* | 100.82 $* |
| Mar-20-2025 | 121.91 $* | 123.94 $* |
| Feb-20-2025 | 120.77 $* | 122.18 $* |
| Jan-20-2025 | 119.7 $* | 121.23 $* |
Характеристики
Product Description

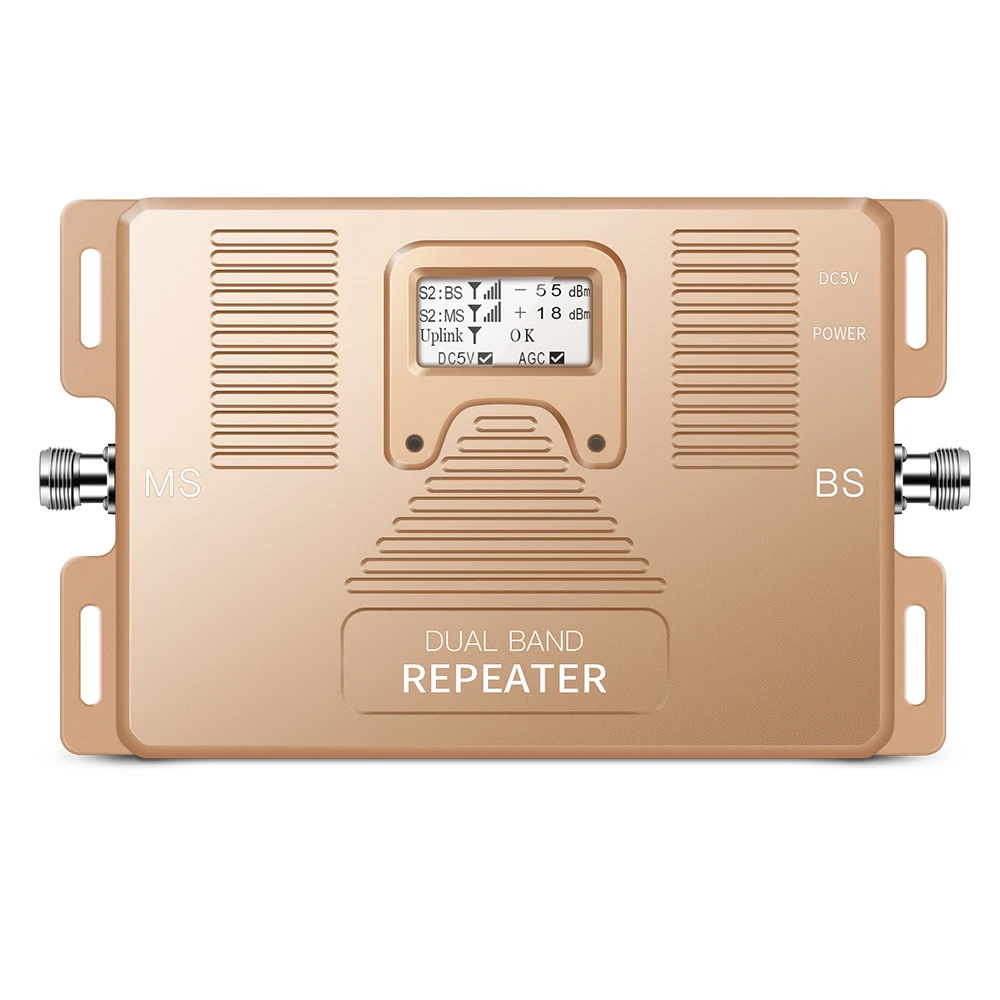

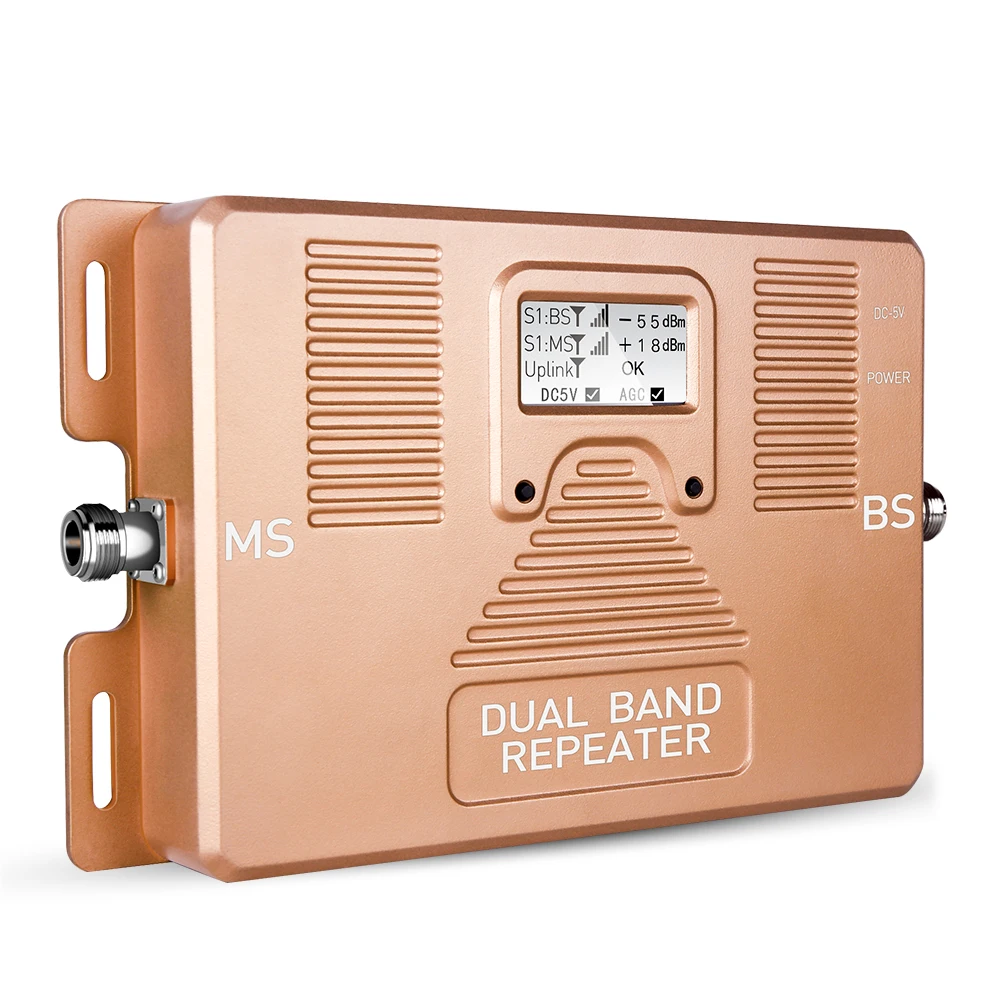

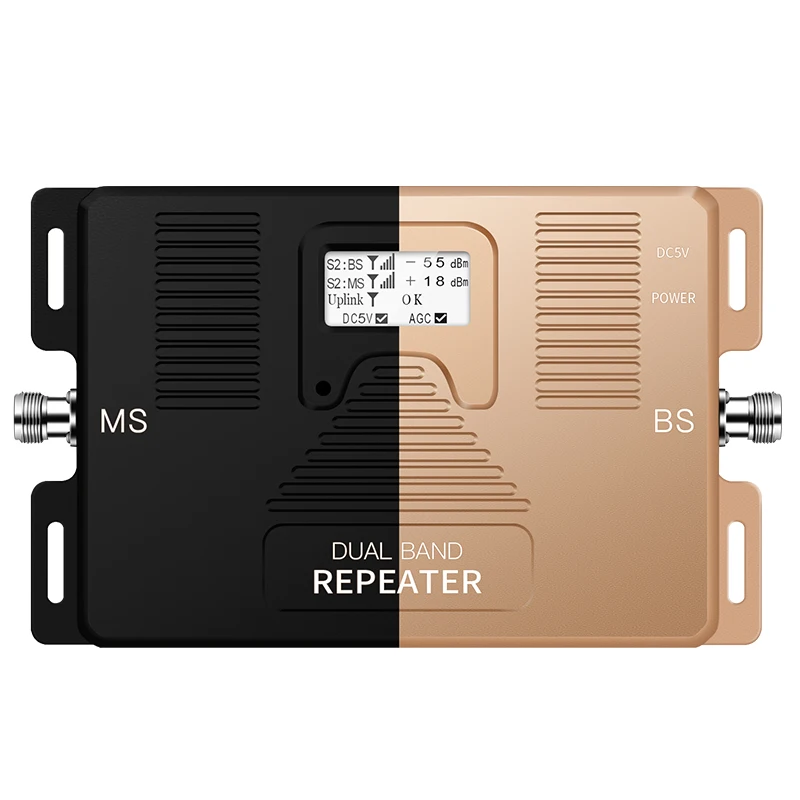

Global application ATNJ factory DUAL BAND 800&2100MHZ 3G/4G signal repeater
DUAL BAND Pico repeater is applied specifically in small area indoor DAS system. The base station signal is coupled and amplified by Pico repeater into in building system. The amplified signals is transmitted by indoor antenna. Meanwhile the indoor antenna receives the cell phone signal, and send the signal to the base station as uplink. This method can eliminate the signal dead spot, reject the interference, provide the stable signal communication for cell phone users. This Pico repeater mainly solves the problem spot problem in building. The coverage area is as large as 3000 square meters in open space, and 1000 square meters in partial obstacle area, 500 square meters in complete obstacle area. The edge power level for coverage area is above 85dBm. The repeater output power level is less than 20dBm.
Pico Repeater is a bi-directional amplifier that allows for the reception of signals, amplifies the signal and re-transmits into areas where there is no or very low signal level coverage enabling a mobile user to establish a call connection.
Pico Repeater can be deployed in indoor coverage and dead area. It is especially advantageous to use in 100M2-1000M2,which is a very economical solution. The output power is up to 20dBm per carrier.
Meanwhile, it can also boost the speed of GPRS.

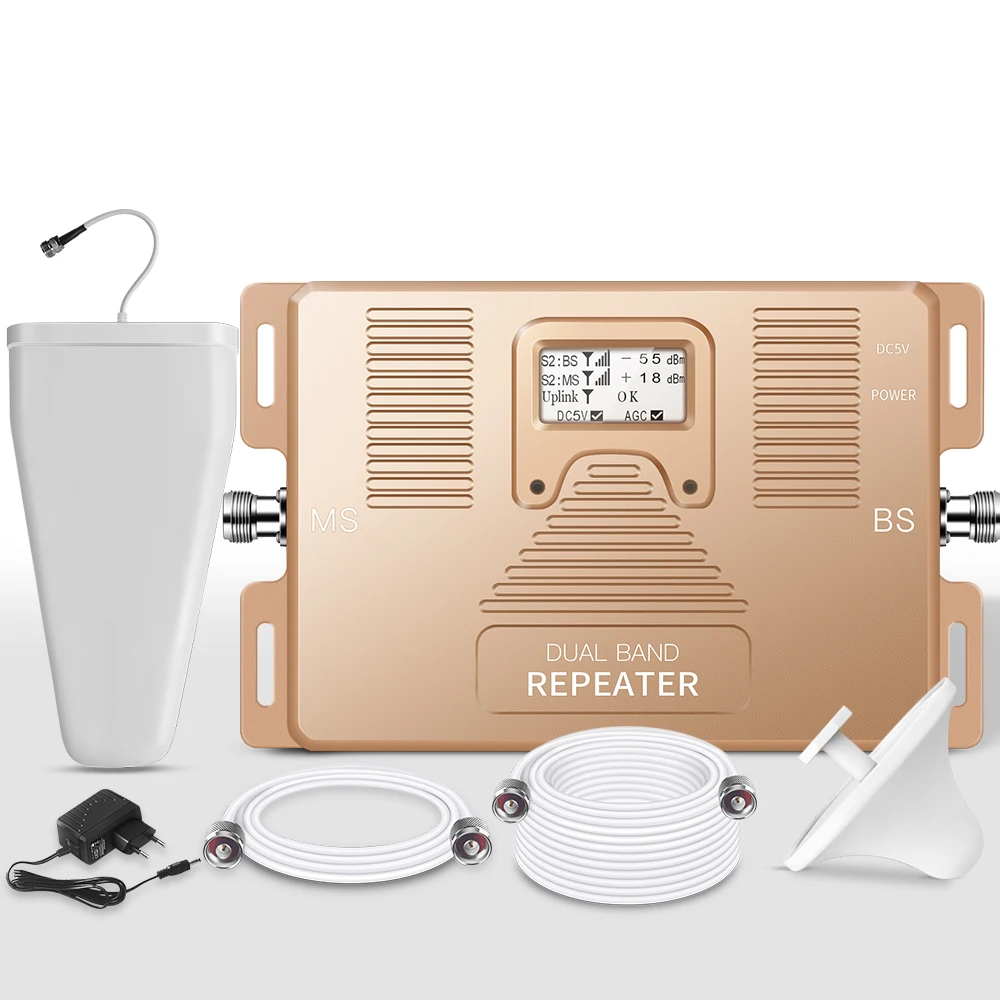

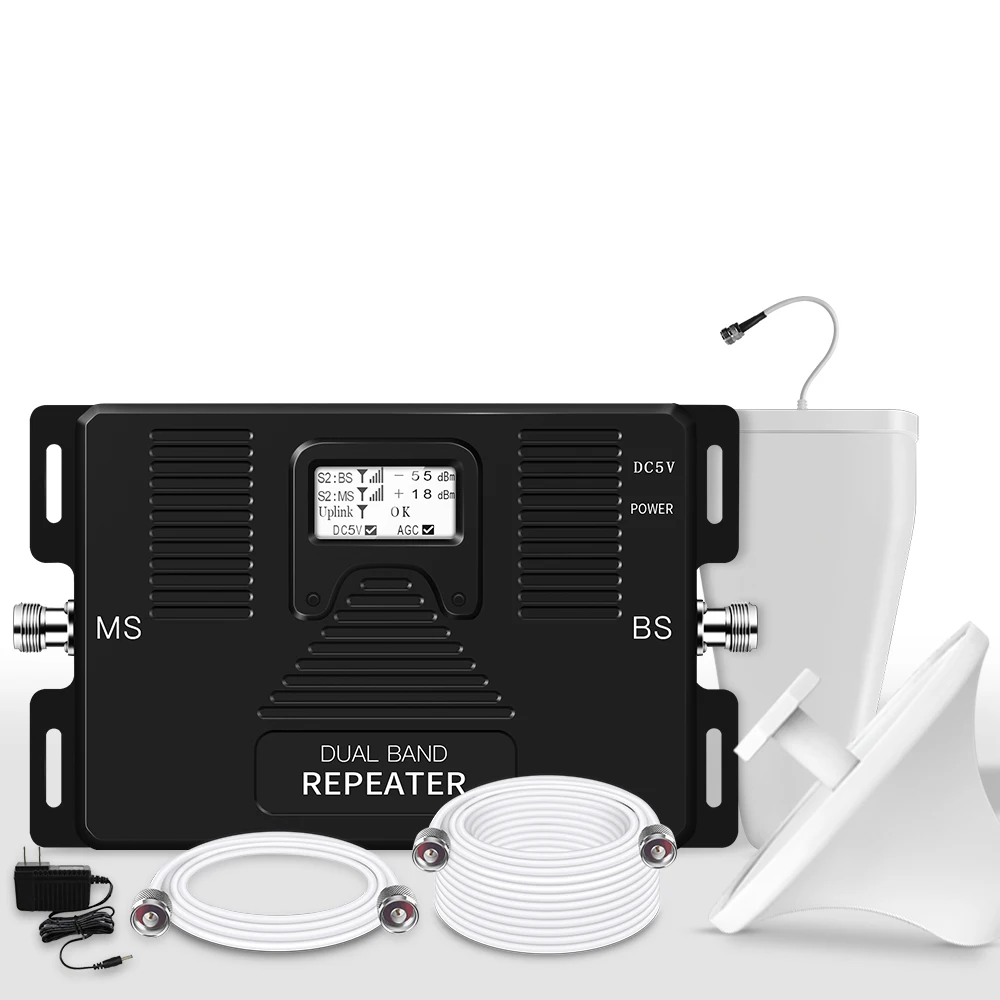

Packaging & Shipping
1,GSM900&3G 2100MHZ BOOSTER ×1
2,POWER ADAPTER×1
3,LOG-PERRIODIC ANTENNA×1
4,CEILING ANTENNA×1
5,16M CABLE×1
6,MOUNTING ACCESSORIES
Technical spec.
SPECIFICATIONS | Specification | |
Frequency Range (Customers to Choose) | Uplink | 791-821MHz&890-915MHz |
Downlink | 832-862MHz&935-960MHz | |
Frequency Bandwidth (3dB Bandwidth) | 25MHz&75MHz | |
Gain | ≥ 65dB | |
Automatic gain control (Step Attenuation) | 31dB @ 1dB/ Step | |
Auto Gain Control | 20dB Min. | |
Output Power(Customers to Choose) | 17-23dbm | |
Spurious Emission | ≤ -15dBm/30kHz | |
9kHz~1GHz: ≤ -36dBm/30kHz | ||
1GHz~12.75GHz: ≤ -30dBm/30kHz | ||
Inter-Modulation Attenuation ACPR | ≤ -38dBc / 30kHz (measured under rated output power) | |
In-band Ripple | ≤ 5dB | |
Voltage Standing Wave Ratio | <=2 | |
I/O Impedance | 50 Ω | |
Noise Figure | ≤ 5dB | |
System Delay | ≤ 5μs | |
RF Connector(Customers to Choose) | N-Type (Female) | |
Operating Temperature | Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C | |
Power Supply | AC 220V±20%, 50/60Hz(AC 220V/ DC9V/9A power adapter) | |
Dimensions | 195*140*29 (mm) | |
Weight | 1 kg | |
Alarm Monitoring System | Alarm for uplink self-oscillation | |
Indication LED | Power supply, Run,Alarm | |
Functions
1,Intelligent to guide the installation with LCD
2,Real time display the signal strength.
3,Automatic dormancy when no user make the calling
4,initiative reminding when device damaged
5,Automatic detect the installation mistake and provide the corresponding solution with LCD
