Waste tire curing tank with CE ISO

1, Function Description



a.Whole curing process are controlled automatically,saving labor ,also has manual operation system.



b.Suitable for double-envelope curing, rim&tube curing and envelope-sealing ring curing



c.Monitor the pressure,differential pressure ,temperature and curing time automatically



d.Display the curing parameters and the working state of kay components



e.Alarm when fault happens also has fault analysis



f.Adopt isolation transformer to keep PLC work smoothly



g.Heating tube heat alternately when start curing,maintain temperature balance

.

2, specifications(all the specifications customized available)



Technical parameter



Model	FLG-D1.5X7.0-QII
Capacity	22tires/tank
Wall Thickness	10mm
Max. Work Temperature	150°C
Inner Diameter	1500mm
Inner Length	7000mm
Max. Work Pressure	0.8Mpa
Max. Tire Diameter	1300mm
Air Supply	Minimum 0.85Mpa, air supply pipe diameter not less than 3/4 inch
Control System	SIEMENS
Low Voltage Appliance	SCHNEIDER
Pneumatic Components	FESTO ( China factory)

2,Fundamental performance:

 1>Manual control in temperature,pressure and time

 2>Well-distributed heat in tank

 3>Adapt to different product.

 4> Equip with Double safety interlock of open type pressure vessel

 5> Opening door method : manual operation for safety interlock, pressure rise after fasten,     open door after decompression.



3 Quality guarantee

1> Warranty period : Two years

2>Electrical equipment has CCC certificate

3> Temperature deviation in tank : ±1-2°C

4 > Advanced automatic welding, world famous brands component



4> Security following National Standard

      GB150-98  :Pressure Vessel Manufacture Standards





5 Certificates issued by

National Boiler Pressure Vessel Safety Supervision Organization.

1> Pressure vessel product safety supervision inspection certificate

2>Pressure vessel product quality certificate

3>The factory inspection tag name plate

4>Product qualification certificate

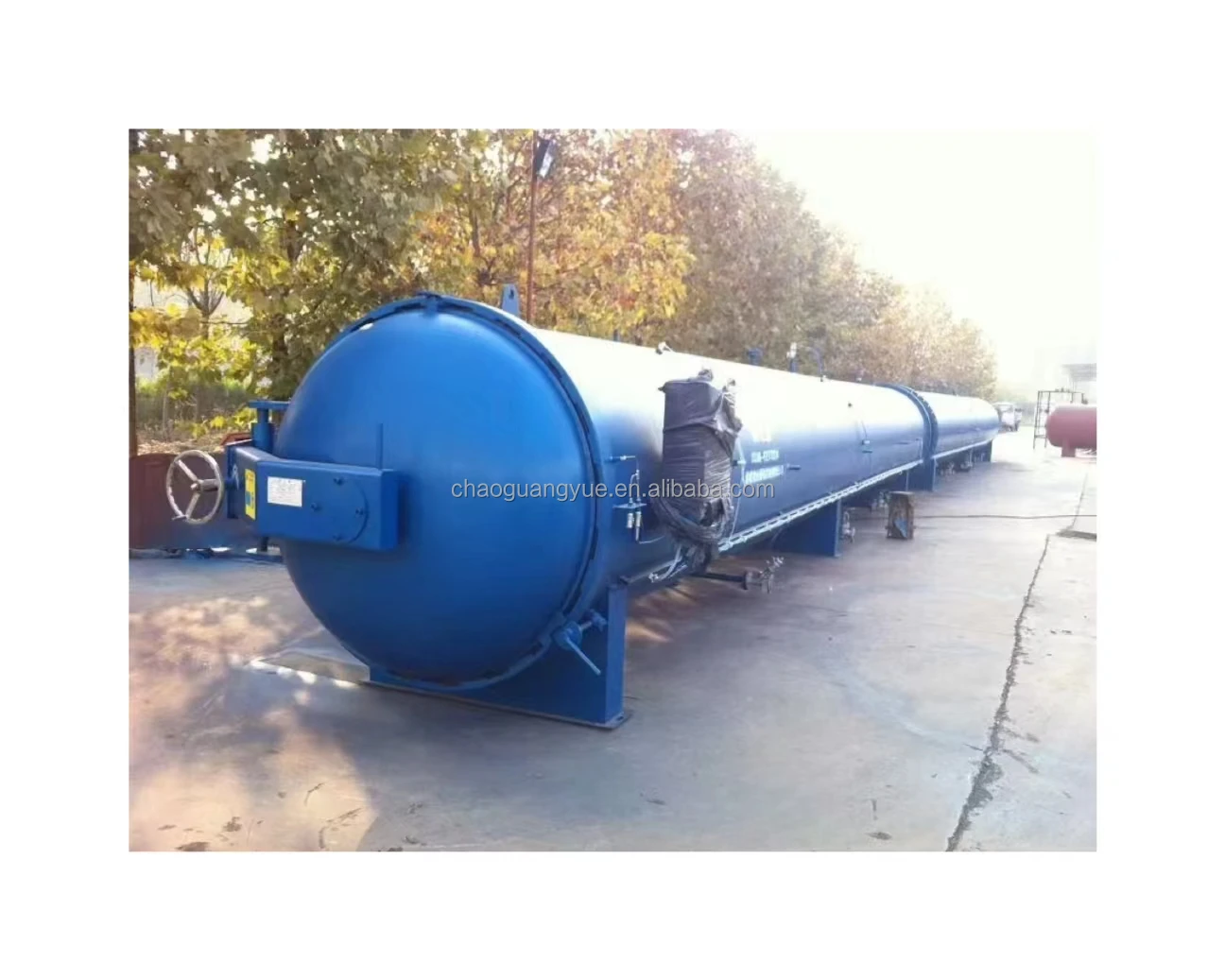

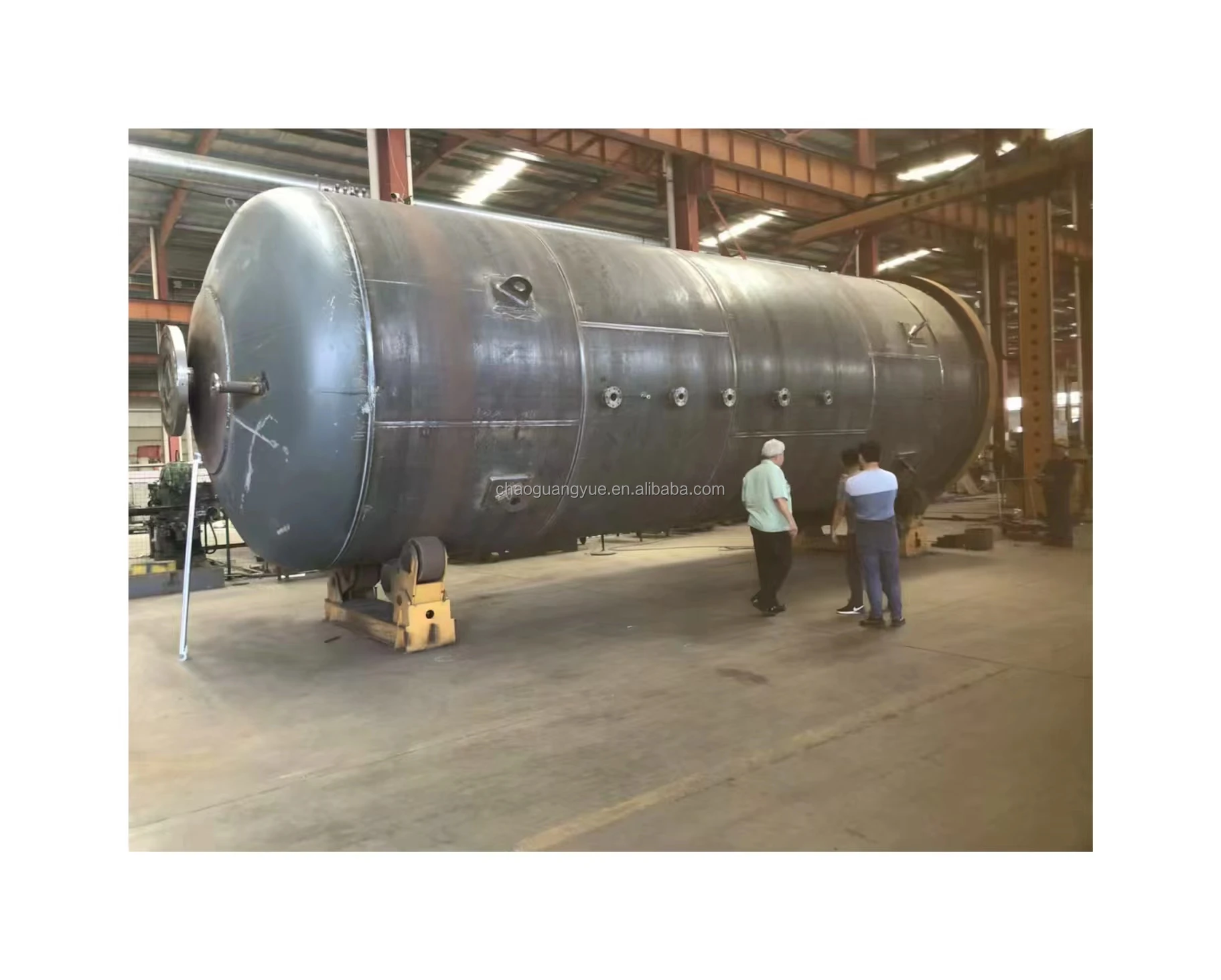

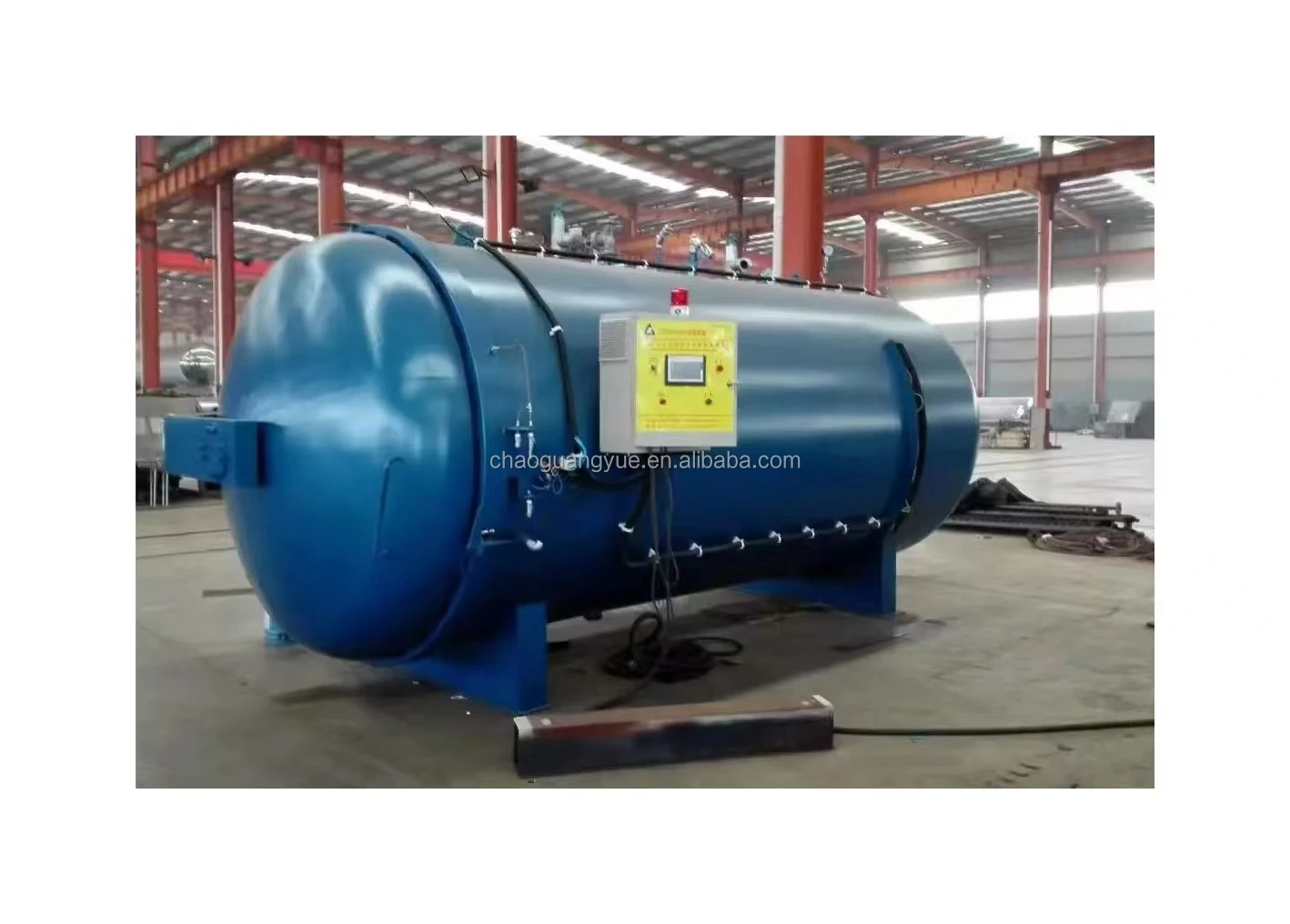

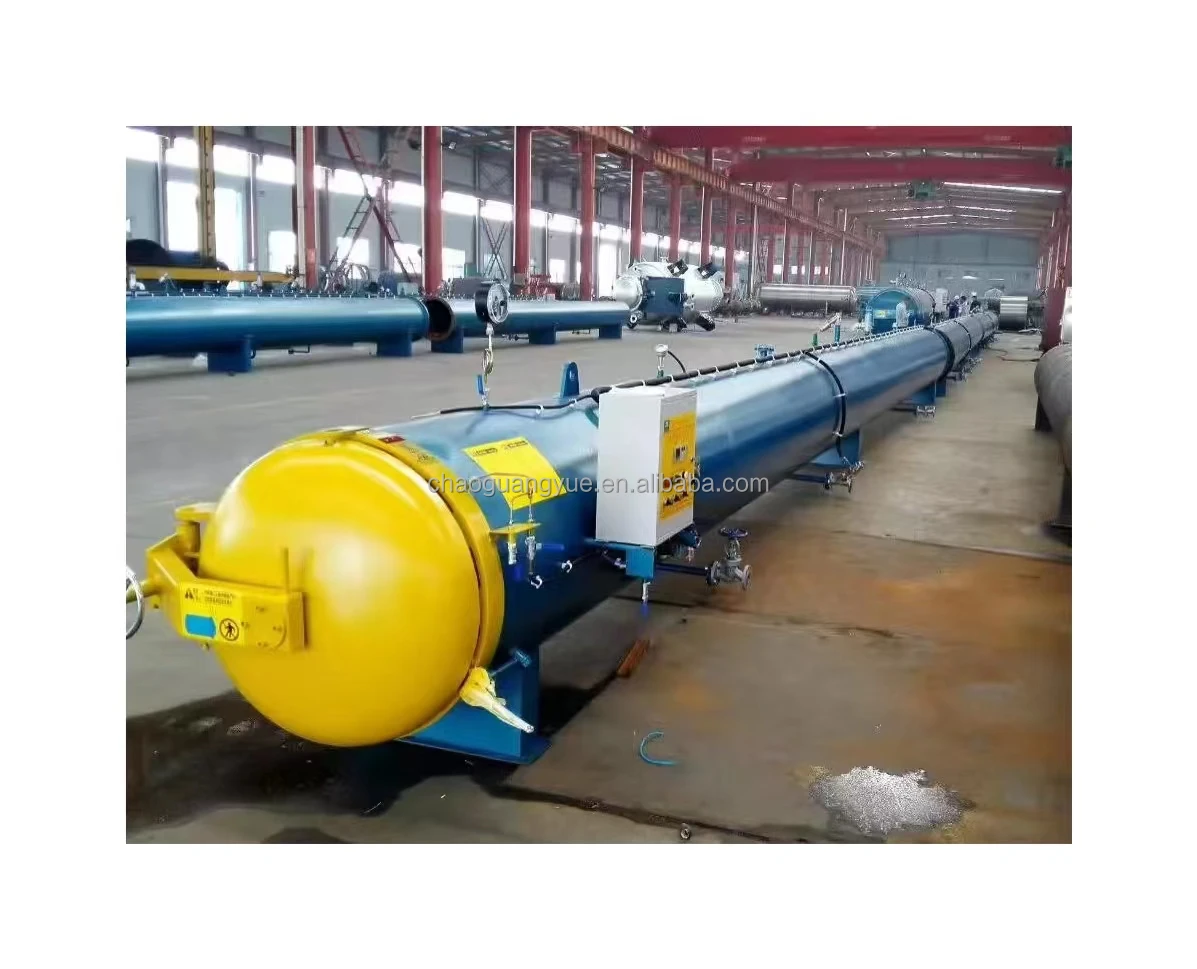

 pictures for reference



















Main Market and export history:  America, India, Brazil, Russia,Egypt etc





Europe customers visiting:
