11 дюймовый вентилятор охлаждения переменного тока 220 В для промышленного взрывозащищенного вентилятора
- Категория: Cross Flow Fans >>>
- Поставщик: Shenzhen,Topfan,Technology,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.48 $* | 0.53 $* |
| Aug-17-2025 | 0.54 $* | 0.89 $* |
| Jul-17-2025 | 0.9 $* | 0.33 $* |
| Jun-17-2025 | 0.53 $* | 0.7 $* |
| May-17-2025 | 0.45 $* | 0.5 $* |
| Apr-17-2025 | 0.81 $* | 0.62 $* |
| Mar-17-2025 | 0.86 $* | 0.9 $* |
| Feb-17-2025 | 0.7 $* | 0.83 $* |
| Jan-17-2025 | 0.21 $* | 0.64 $* |
Характеристики

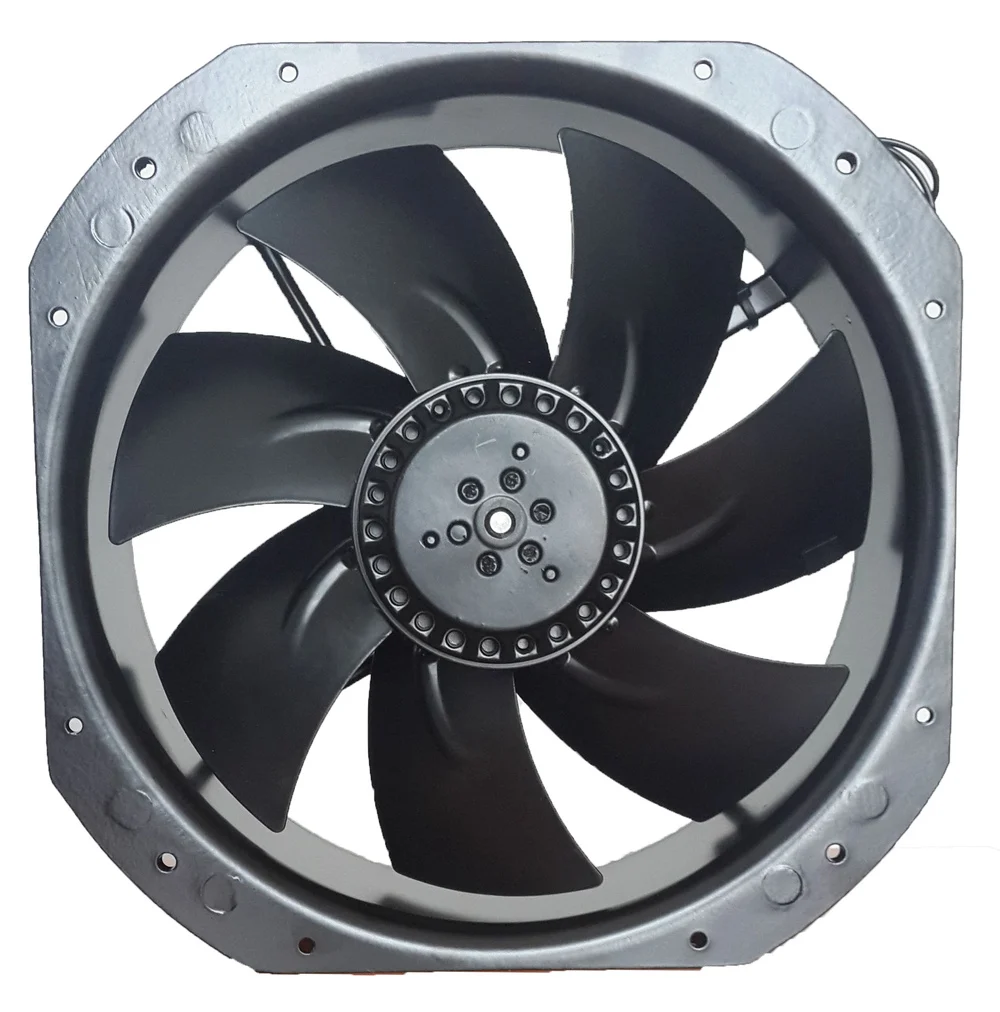

11Inch ac 220V cooling fan for industry explosion proof fan 280x280x80
Material:
- Frame: Aluminum ADC-12,Painted Black
- Blade: metal
- Stator& Rotor: Silicon steel
- Magnet Wires: Copper 1 PEW
- Bobbin: PA-66 94 V-0
Feature:
- Protection: Impedance Protected
- Waterproof, explosion-proof, dustproof, moistureproof, high temperature, anti-corrosion, all can be met.
- Function: PWM (speed control), FG (speed signal output) , RD (alarm signal output).
Expected life:
- Ball Bearing 50,000 hours(40°C)
- Sleeve Bearing 30,000 hours(40°C)
Purpose:
- Indusry equipment
- Machinery and equipment
- Medical equipment
- Electric equipment
- Cooling system
Product deteil:
| Model | Bearing Type | Rated Voltage | Freq. | Current Amp | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise Level | Weight | |
| Part No. | S B Y | VDC | Hz | Amp | Watt | RPM | CFM | m3/min | Inch-H2O | dB-A | g |
| MX28080ABL11 | B | 110/120 | 50/60 | 1.2 | 120 | 2400/2500 | 1341/1512 | 37.9/42.8 | 136.7/154.1 | 65/70 | 2800 |
| MX28080ABL22 | B | 220/240 | 50/60 | 0.55 | 120 | 2400/2650 | 1341/1512 | 37.9/42.8 | 136.7/154.1 | 65/70 | 2800 |
| MX28080ABL38 | B | 380/420 | 50/60 | 0.36 | 120 | 2400/2650 | 1341/1512 | 37.9/42.8 | 136.7/154.1 | 65/70 | 2800 |
