Профессиональный редукторный шаговый двигатель pg35l-048 Лидер
- Категория: Stepper Motor >>>
- Поставщик: Changzhou,Goot,Motor-Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.74 $* | 0.78 $* |
| Aug-16-2025 | 0.86 $* | 0.17 $* |
| Jul-16-2025 | 0.33 $* | 0.34 $* |
| Jun-16-2025 | 0.86 $* | 0.41 $* |
| May-16-2025 | 0.74 $* | 0.52 $* |
| Apr-16-2025 | 0.10 $* | 0.27 $* |
| Mar-16-2025 | 0.87 $* | 0.62 $* |
| Feb-16-2025 | 0.17 $* | 0.34 $* |
| Jan-16-2025 | 0.99 $* | 0.85 $* |
Характеристики
Professional geared stepper motor pg35l-048 hot selling
Application:
HVAC/R
Valve Actuation
Office Automation
Printers, Copiers, Data storage
Medical Applications
Pill dispensing
Analysers
Telecommunication
Antennae positioning
Switching lines
Other Industries & Applications
Robotics
General Specification:
| Item | Specification |
| Step Angle Accuracy | ±8%(full step, no load) |
| Resistance Tolerance | ±10% |
| Inductance Tolerance | ±20% |
| Temperature Rise | 80.C Max.(rated current,2 phase on) |
| Ambient Temperature | -20.C~+50.C |
| Insulation Resistance | 100MΩMin. ,500VDC |
| Dielectric Strength | 600VAC , 1s , 3mA |
Specification:
| Model | Step Angle (Deg.) | No. of Phase | Rated Voltage (VDC) | Current/Phase (A) | Resistance /Phase(Ω) | Holding Torque (Kgf.cm) | Detent Torque (gf.cm) | Pull-in Torque (gf.cm) | Wire Diagram |
| PG25S-048-01/10 | 7.5/10 | 4 | 5 | 0.25 | 20 | 1.5 | 150 | 320(a 100pps) | B |
| PG25S-048-01/30 | 7.5/30 | 4 | 13.3 | 0.22 | 60 | 4.0 | 450 | 750(at 300pps) | B |
| PG25S-048-01/60 | 7.5/60 | 4 | 12 | 0.12 | 100 | 8.0 | 900 | 1200(at 400pps) | B |
| PG25S-048-01/75 | 7.5/75 | 4 | 12 | 0.083 | 145 | 10.0 | 1200 | 1100(at 400pps) | B |
| PG25S-048-01/100 | 7.5/100 | 4 | 12 | 0.24 | 50 | 10.0 | 1500 | 2000(at 300pps) | B |
| PG25S-025-01/10 | 15/10 | 2 | 6 | 0.3 | 20 | 1.0 | 300 | 250(at 200pps) | A |
Wire diagram:
Customization On Call:
Coil Modifications - Resistance and Inductance.
Magnets - to yield higher linear force or reduced detent levels.
Higher Strength Plastics for higher impact forces.
Reduced or increased Detent Force to suit the application.
Screw - metric or imperial tips, length.
Special Flanges, Connectors.
Wire Harness - connectors, pins, lead length, shrink tubing.
Dimension:

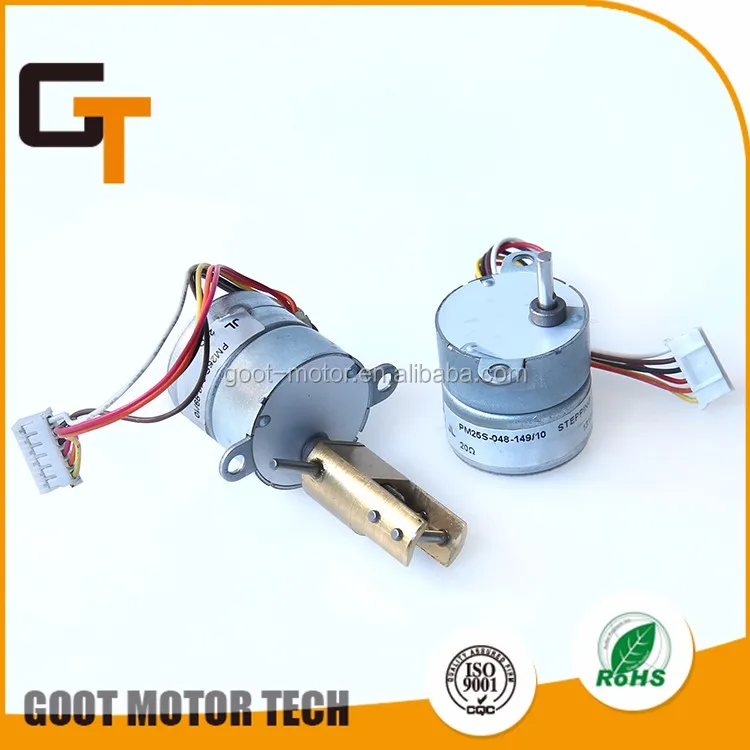

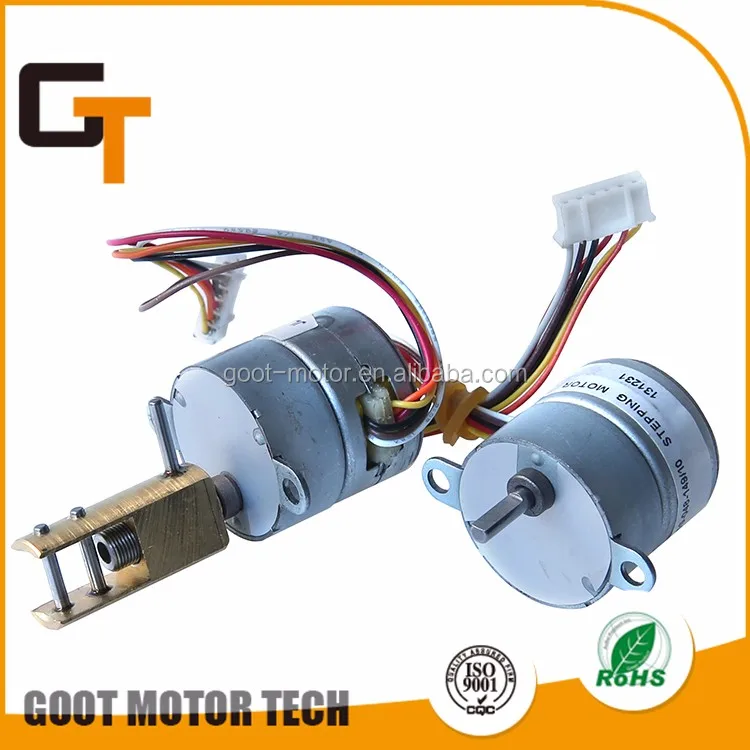

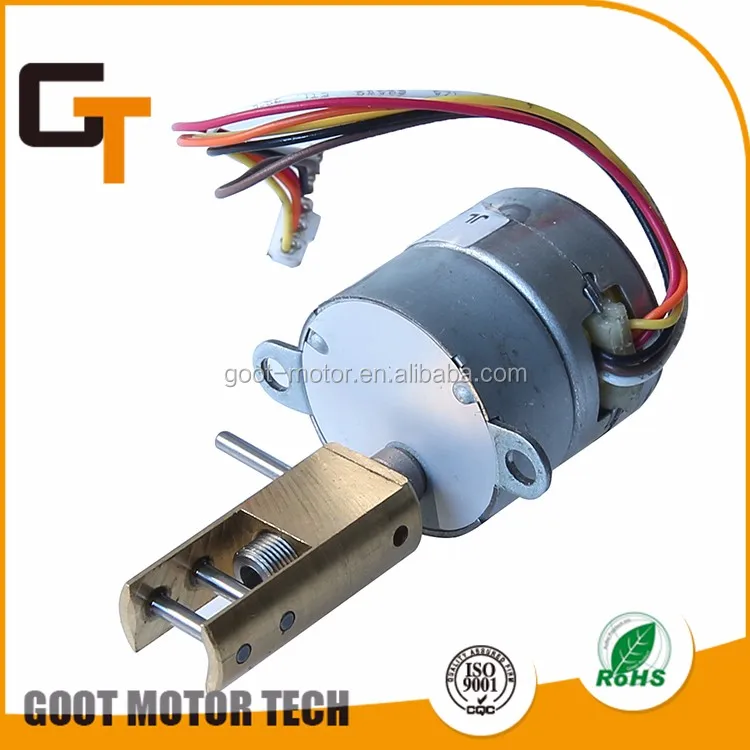

Picture of geared stepper motor pg35l-048:
