Контроллер щеточного двигателя 24 В 250 Вт Матовый контроллер постоянного тока для электровелосипеда и электрического

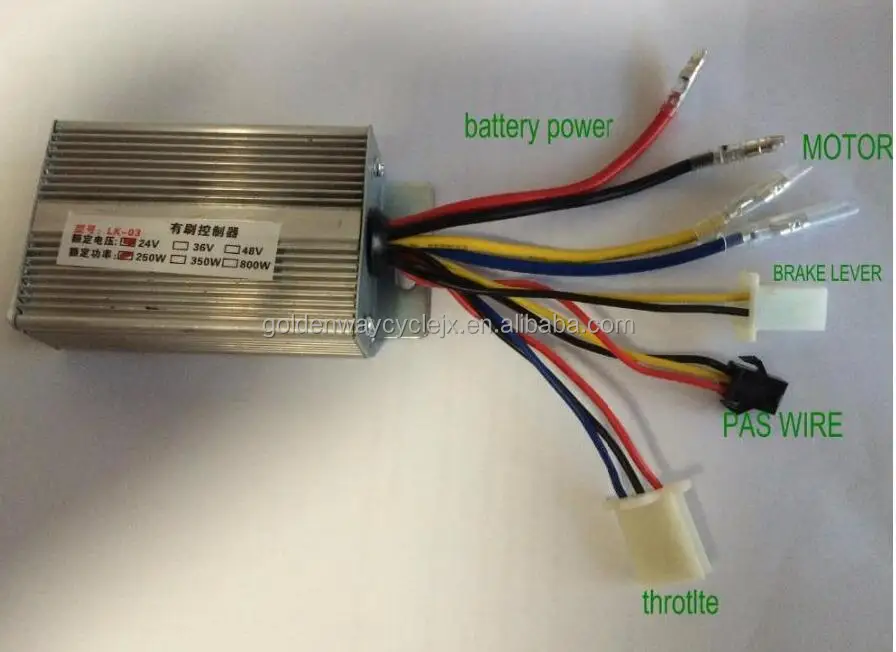

 24V 250W brush motor controller brushed DC controller for e bike and electric scooter

24V 250W brush motor controller brushed DC controller for e bike and electric scooter

Functions and features:

1. Use imitated torque control mode to achieve a smooth start-up of the power-assist vehicle, so that the power-assist driving will be smooth and natural;

2. The electric power-assist has fast response, and it is always consistent with the rider’s pedal action, which is to achieve the effect of torque boosting;

3. With a multi-protection functions such as the stall, over-current, over-temperature, under-voltage, speed driving, phase shortage, output short circuit etc., so as to protect the vehicle electronic control systems and traffic safety;

4. Hall or no hall motor drive, adapting to various kinds of high and low speed motor;

5. Controller power range is 500-1500W (18-25A);

6. It can be customized for all types of controllers for users.

best selling high quality electric brushless hub motor speed controller for electric bicycle and scooter

Main technical parameters:

1. Rated voltage:DC24-72V;

2. Rated current:9-12A;

3. Maximum current:18-25A;

4. Rated power:250-750W;

5. Maximum power:500-1500W;

6. Static power consumption:<50mA;

7. Under-voltage protection:it can be set according to customer requirements;

8. Driving mode:square wave;

9. Waterproof:basic protection of water washout IP64;

10. Electromagnetic compatibility (EMC):outgoing lines can be added with the jacketed ring for interference protection;

11. Lights drive:Optional headlight control and instrument headlight indicator;

12. Housing holder:single-ended or both ends are with the ears;

13. Housing color:aluminum natural or black;

14. Product certification:CE certification;

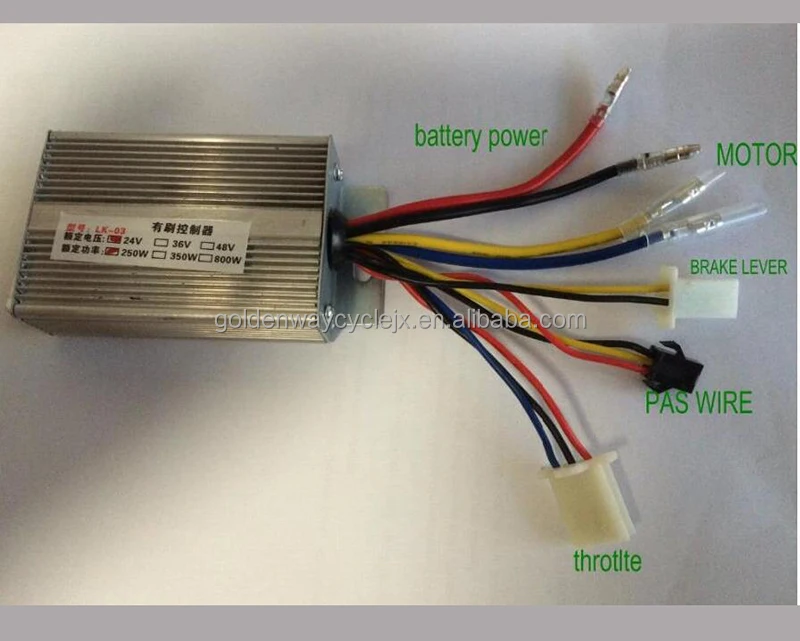

24V 250W brush motor controller brushed DC controller for e bike and electric scooter

gsd

We not only sell the e bike conversion kit, also provide professional service.

We would give advice according to customer's requirements and need.

We are not only selling one part or one products, we provide whole soultion.

We provide long time warranty:

    e bike frame: 3 years

    motor:  3 years

    battery:  1.5 year

    battery charger: 1 year

    controller:  1 year

    other electric bike parts:  1 year

Q: How to make the order:

A: You have 4 ways to contact us to make the order:  by email, by Skype, by phone and by Trademanager. We would reply you within 6 hours.

Q: How long it takes from the order to delivery:

A: After the order confirmed and the buyer pay the deposit, we would count the delivery time. Usually the parts delivery time is less than 15 days, and the whole kits delivery time is less than 25 days. Of course, if you need the products ugently, please let us know, we would confirm the delivery time is ok or not before the order.

For more FAQ, please check FAQ
