Электронный корпус прототип экструдированный алюминиевый электронный корпус/алюминиевый экструзионный печатной платы 63*38
- Категория: Футляры для электронных приборов >>>
- Поставщик: Ningbo,Sunyoung,Enclosure,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 4.25 $* | 4.22 $* |
| Jul-15-2025 | 3.17 $* | 3.69 $* |
| Jun-15-2025 | 4.35 $* | 4.8 $* |
| May-15-2025 | 4.98 $* | 4.87 $* |
| Apr-15-2025 | 3.79 $* | 3.88 $* |
| Mar-15-2025 | 4.54 $* | 4.64 $* |
| Feb-15-2025 | 4.43 $* | 4.91 $* |
| Jan-15-2025 | 4.40 $* | 4.46 $* |
Характеристики
Product Description
Electronic Shell Prototype Extruded Aluminum Electronic Enclosure/ Aluminum Extrusion Enclosure pcb Housing Box 63*38mm
Size:104*28mmmm ,the length can be customized,MOQ is 200pcs.
Cusomization:color ,cutout,silkscreen,label ,Acrylic sheet
High moisture resistance and excellent mechanical protection
Color can be customized.
Modifications can be done for most of products, such as drilling holes, adding or changing PCB pillars (not free in charge).
All the products are designned under the regulations of certain protections, but we don't provide the certificates.
For some special requirements, please contact us in advance, and describe this in you PO.
Product Name | Electronic Shell Prototype Extruded Aluminum Electronic Enclosure/ Aluminum Extrusion Enclosure PCB Housing Box 104*28mm |
Material | Aluminum Alloy 6063 / 5052 alloy etc , optional by customer |

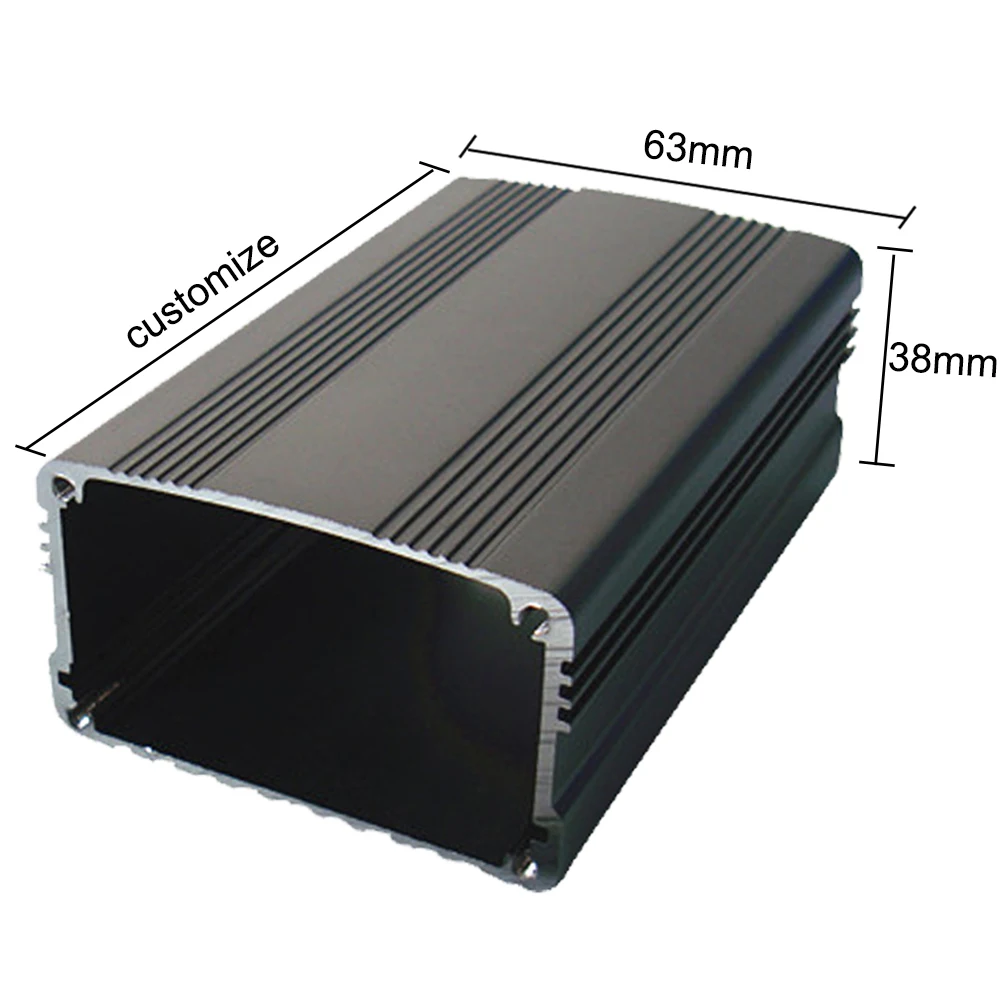

Model No. & Size | Size:63*38mm ,the length can be customized |

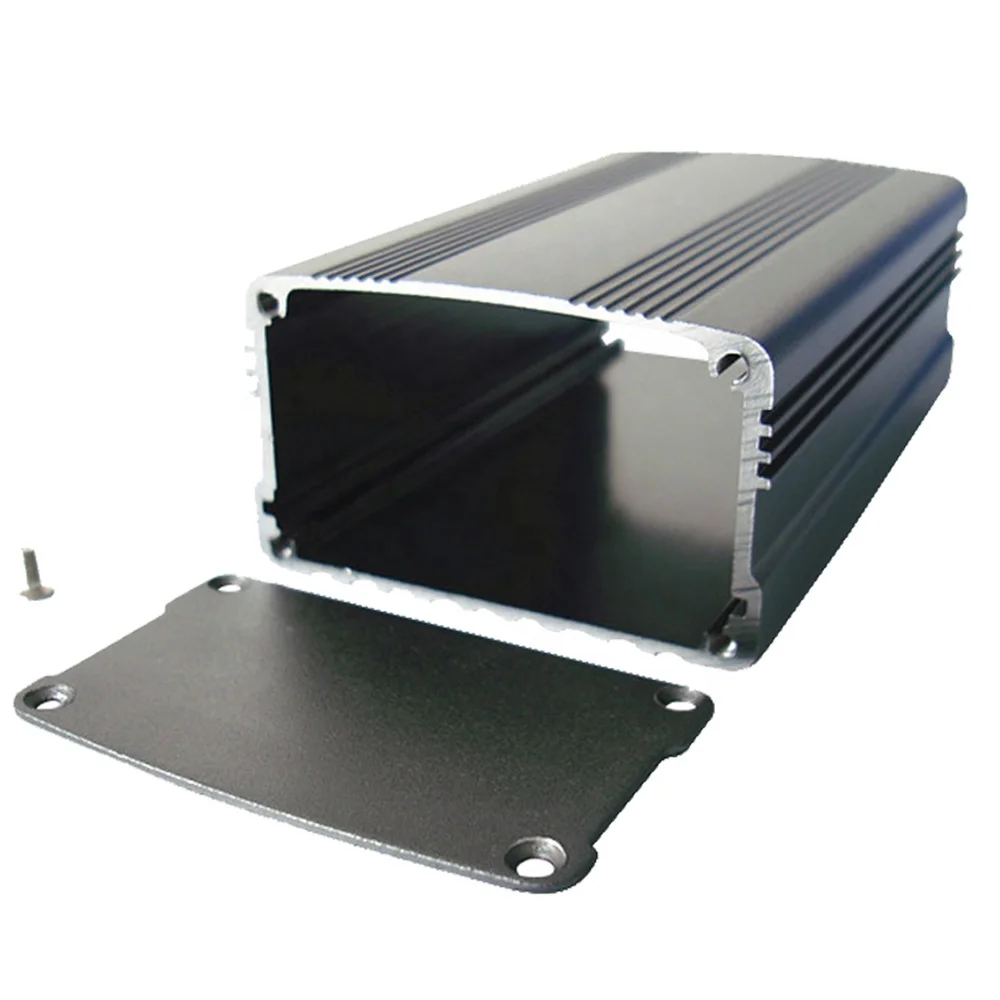

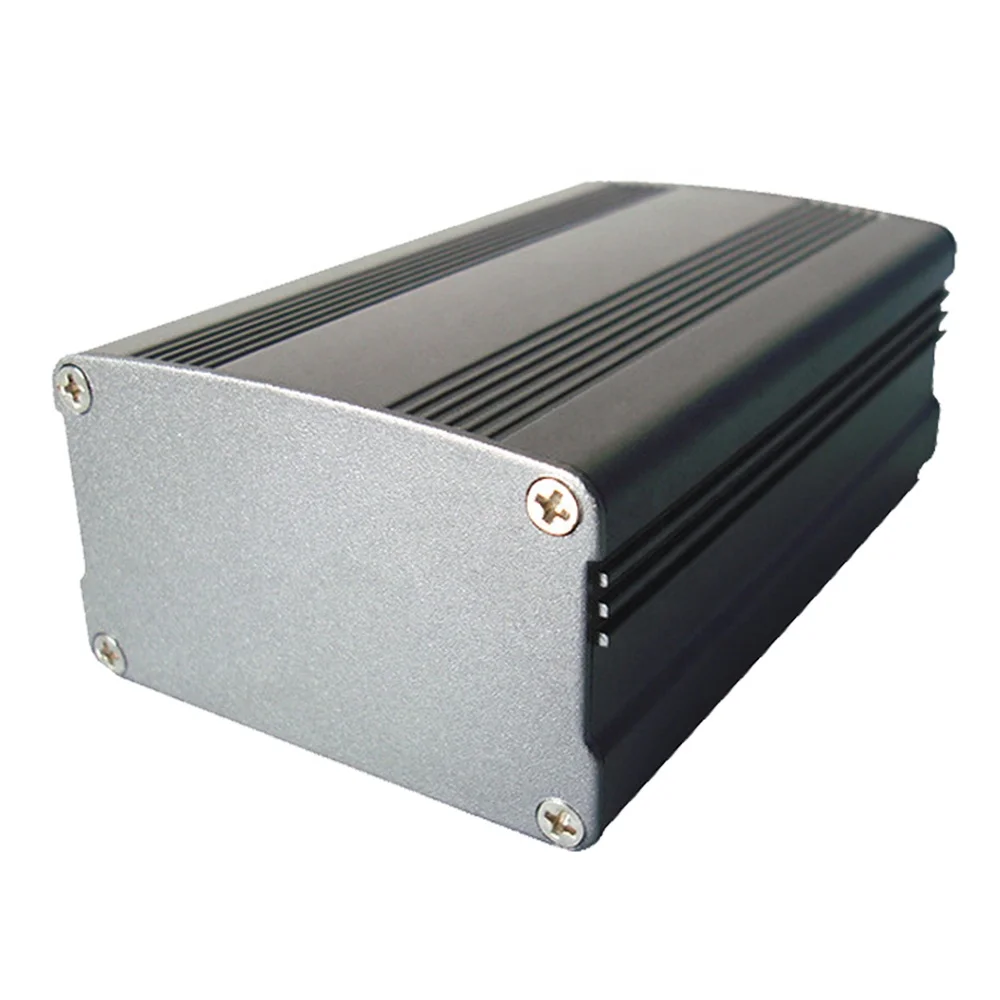

Assembly | 2 Parts Split Enclosure + 2 End Plates (1.5mm thickness) +8 PCS Screw (M3X6D) |
Color | Black, Silver and Grey (other RAL colors accepted, but MOQ exists) |
Finishing | Mill Finished , Anodized , Sandblasted , Silkscreen . Engraved , Drilled holes |
Silkscreen Printing | Customized Logo silkscreen accepted, but have MOQ |
Shape | Rectangle, round, square, triangle, etc, and customized shapes are welcome. |

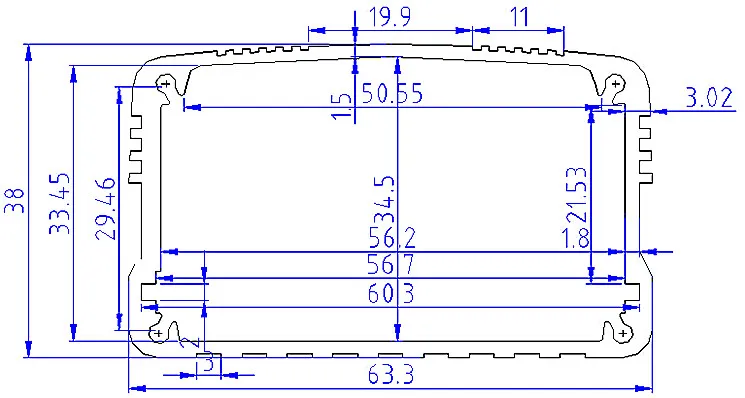

Products Drawing
What we can do

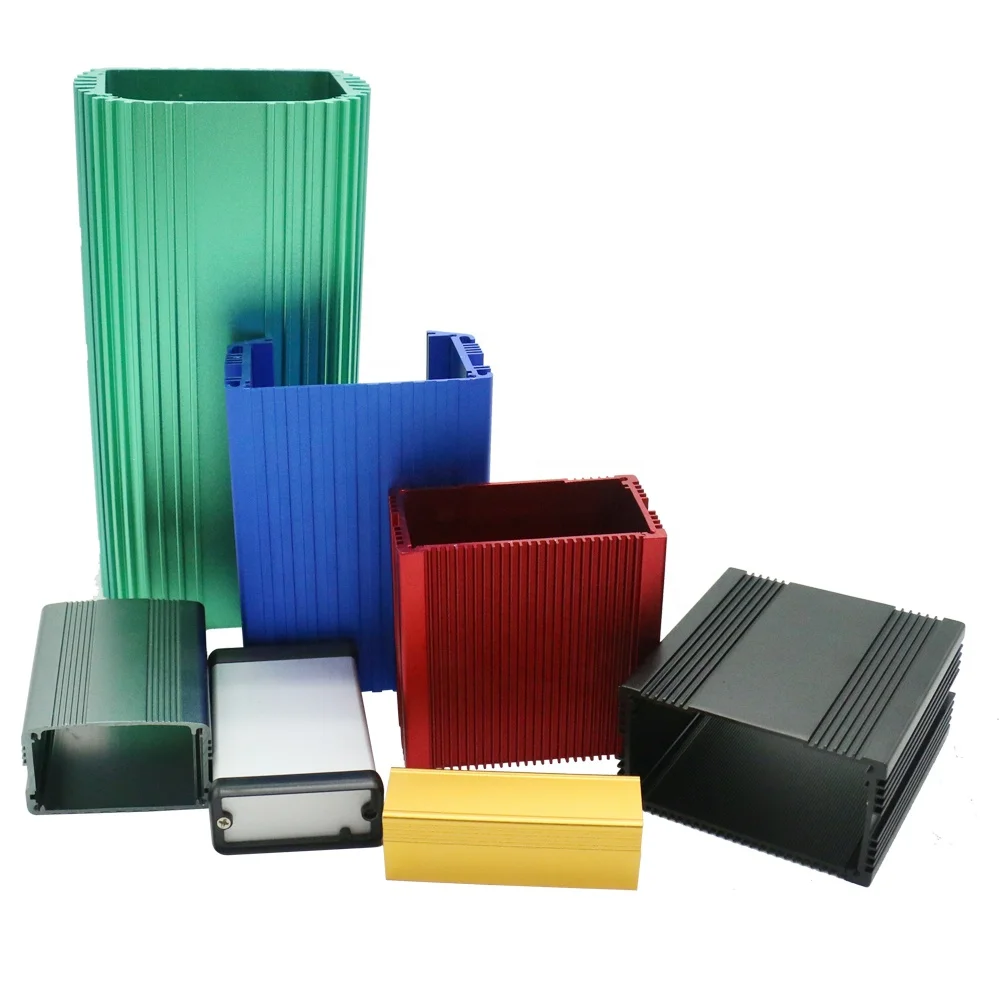

Different Colors
We can anodizing the extrusion enclosure to different colors ,but RAL or Pantone color code should be provided .Normal MOQ :200PCS
Hole Drilling
Structure

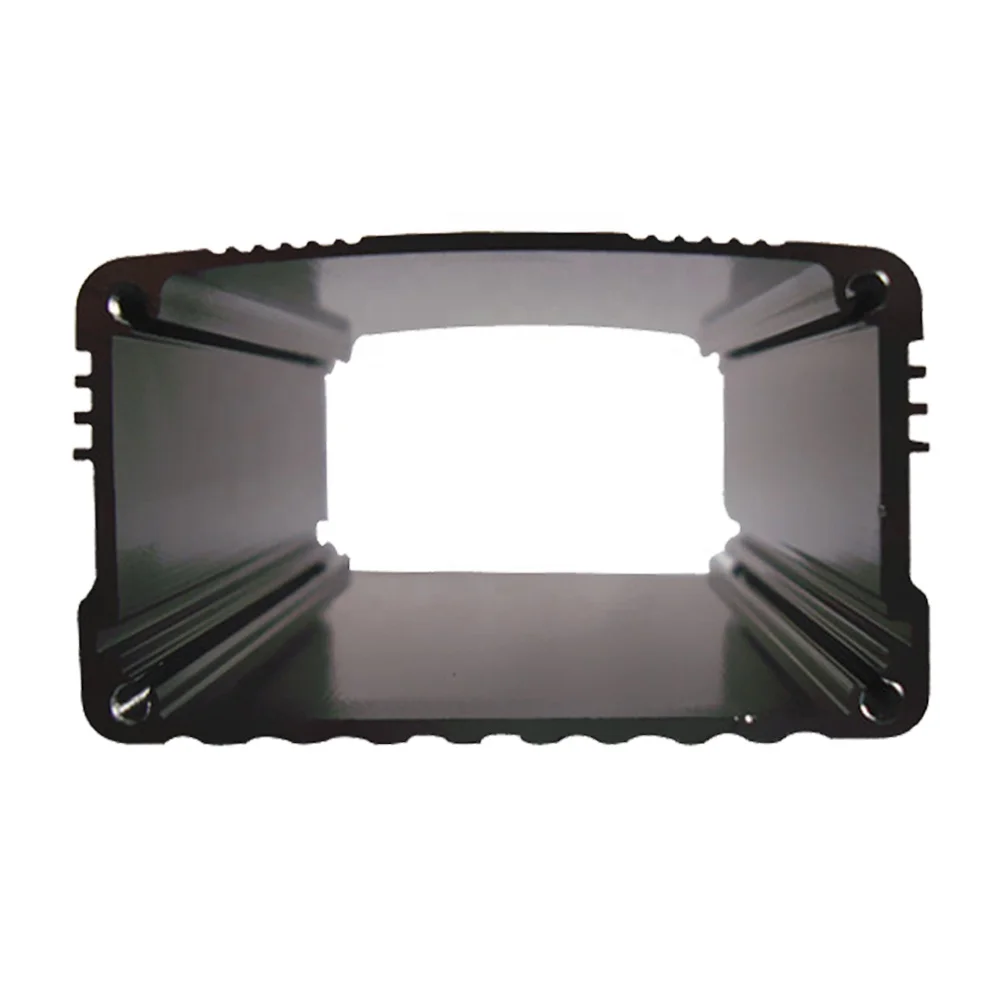

Tubular enclosure
Assembly with 3parts .tubular aluminum alloy extrusion profile , front and rear panel .
Split Body Enclosure
Assembly with 4 parts . U-shaped aluminum alloy extrusion profile , front and rear panel
Assembly with 4 parts . U-shaped aluminum alloy extrusion profile , front and rear panel
Product Application
Why Choose us
Our Factory
10 years Manufacturing and Sales experience.
We have own factory to do CNC cutting .
One Stop solution as per your requirment.
Our team
We have a group of professional team
Good Service
Feel Free to contact us if any further questions
Packing Shipping FAQ
Shipping :for small order ,it takes 3-7workingdays by express like TNT or DHL .....
For bulk order , normally we do EXW FOB CFR CIF DDU DDP,if you have your own agent ,you can use your fowarder ,if no we can quote you shipping with cometitive price
Air Way : 7-10 WORKING DAY
Sea Freight normally 20-30workingdays
Foam paper and carton box package, kraft paper package.
plastic film and the plastic wrap package are optional, or as requested. Customized packing
Accessories | End plates, silicone gasket, mounting brackets, cable gland, screws, etc. |
1. Tooling: 100% prepaid by wire transfer 2. Parts: 30% upon order confirmation and balance should be paid before delivery 3. Other payment terms can be discussed | |
Service | Drilling, silkscreen printing, laser marking, painting, design, OEM/ODM Service, etc. |
Delivery time | sample time with custom requirment about 7workingdays ,lead time for bulk order 25workingdays |
