Лучшая цена чипы TW 860нм 870нм 880нм 890нм 980нм 1020нм 1050нм Круглый ИК-светодиод 5 мм для
- Категория: Лампа LED >>>
- Поставщик: Shenzhen,Fedy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.84 $* | 0.76 $* |
| Aug-16-2025 | 0.55 $* | 0.23 $* |
| Jul-16-2025 | 0.84 $* | 0.90 $* |
| Jun-16-2025 | 0.63 $* | 0.55 $* |
| May-16-2025 | 0.12 $* | 0.97 $* |
| Apr-16-2025 | 0.63 $* | 0.63 $* |
| Mar-16-2025 | 0.57 $* | 0.96 $* |
| Feb-16-2025 | 0.68 $* | 0.7 $* |
| Jan-16-2025 | 0.23 $* | 0.43 $* |
Характеристики
Best price for LED with 940nm 850nm 860nm 870nm 880nm 890nm 980nm round 5mm IR LED
Product Description
Item: Best price for LED with 940nm 850nm 860nm 870nm 880nm 890nm 980nm round 5mm IR LED
Warranty: 3 years
Lifespan > 80 000hours
Super low decay version
Packing: 1000pcs/ESD bag
Certificate: CE/RoHS /REACH
Emitting angle can be done with: 15-20degree 30-35degree 45degree 60degree 90degree
Intensity available from 1000mcd up to 25000mcd
| 5mm Round Red LED | ||||
| Part No. | Intensity at 20mA in 15-20degree | Emitting angle Available | Wavelength ( nm ) | Lens available |
| FD-5TR-1 | 4000-6000 | 15-20degree 30-35degree 45degree 60degree 90degree | 620-630 | Water clear lens White diffused lens Red diffused lens |
| FD-5TR-2 | 6000-8000 | 620-630 | ||
| FD-5TR-3 | 8000-12000 | 620-630 | ||
| FD-5TR-4 | 12000-18000 | 620-630 | ||
| FD-5TR-5 | 18000-20000 | 620-630 | ||
| FD-5TR-6 | 20000-23000 | 620-630 | ||
| FD-5TR-7 | 23000-25000 | 620-630 | ||
| 5mm red led Special wavelength | ||||
| FD-52TR-1 | / | 15-20degree 30-35degree 45degree 60degree 90degree | 630-635 | |
| FD-53TR-1 | / | 660 | ||
| FD-54TR-1 | / | 670 | ||
| FD-542TR-1 | / | 670-680 | ||
| FD-55TR-1 | / | 760-770 | ||
| 5mm Round Yellow LED | ||||
| Part No. | Intensity at 20mA in 15-20degree | Emitting angle Available | Wavelength ( nm ) | Lens available |
| FD-5TY-1 | 5000-7000 | 15-20degree 30-35degree 45degree 60degree 90degree | 588-595 | Water clear lens White diffused lens Yellow diffused lens |
| FD-5TY-2 | 8000-10000 | 588-595 | ||
| FD-5TY-3 | 10000-15000 | 588-595 | ||
| FD-5TY-4 | 18000-22000 | 588-595 | ||
| FD-5TY-5 | 22000-25000 | 588-595 | ||
| 5mm Round Amber LED | ||||
| Part No. | Intensity at 20mA in 15-20degree | Emitting angle Available | Wavelength ( nm ) | Lens available |
| FD-5TA-1 | 5000-7000 | 15-20degree 30-35degree 45degree 60degree 90degree | 600-610 | Water clear lens White diffused lens Amber diffused lens |
| FD-5TA-2 | 8000-10000 | 600-610 | ||
| FD-5TA-3 | 10000-15000 | 600-610 | ||
| FD-5TA-4 | 18000-22000 | 600-610 | ||
| FD-5TA-5 | 22000-25000 | 600-610 | ||
| 5mm round White LED | ||||
| Part No. | Intensity at 20mA in 15-20degree | Emitting angle Available | Wavelength ( nm ) | Lens available |
| FD-5TW-1 | 13000-16000 | 15-20degree 30-35degree 45degree 60degree 90degree | Warm white (2500-5500K) Pure white (5500-6500K) Cool white (6500-10000K) | Water clear lens White diffused lens |
| FD-5TW-2 | 18000-20000 | |||
| FD-5TW-3 | 25000 | |||
| 5mm round Green LED | ||||
| Part No. | Intensity at 20mA in 15-20degree | Emitting angle Available | Wavelength ( nm ) | Lens available |
| FD-5TG-1 | 20000-23000 | 15-20degree 30-35degree 45degree 60degree 90degree | 520-530 | Water clear lens White diffused lens Green diffused lens |
| FD-5TG-2 | 23000-25000 | 520-530 | ||
| FD-5TG-3 | 25000-28000 | 520-530 | ||
| Special wavelength | ||||
| FD-52TG-1 | / | 15-20degree 30-35degree 45degree 60degree 90degree | 500-505 | |
| FD-53TG-1 | / | 490-495 | ||
| FD-54TG-1 | / | 495-500 | ||
| FD-5TYg-1 | 565-575 | |||
| 5mm round Blue led | ||||
| Part No. | Intensity at 20mA in 15-20degree | Emitting angle Available | Wavelength ( nm ) | Lens available |
| FD-5TB-1 | 8000-10000 | 15-20degree 30-35degree 45degree 60degree 90degree | 460-470 | Water clear lens White diffused lens Blue diffused lens |
| FD-5TB-2 | 13000-15000 | 460-470 | ||
| FD-5TB-3 | 18000-20000 | 460-470 | ||
| 5MM Blue Led Special wavelength | ||||
| FD-52TB-1 | / | 15-20degree 30-35degree 45degree 60degree 90degree | 440-450 | |
| FD-53TB-1 | / | 450-455 | ||
| FD-54TB-1 | 480 | |||
| 5mm round Purple color in water clear lens | ||||
| Part No. | Intensity at 20mA in 15-20degree | Emitting angle Available | Wavelength ( nm ) | Lens available |
| FD-5TUV-1 | 1000-2000 | 15-20degree 30-35degree 45degree 60degree 90degree | 400-410 | Water clear lens White diffused lens |
| FD-5TUV-2 | 4000-6000 | 400-410 | ||
| FD-52TUV-1 | 1500 | 390-400 | ||
| FD-53TUV-1 | 800 | 380-385 | ||
| FD-54TUV-1 | 300 | 365 | ||
| FD-5TUV370 | / | 370-375 | ||
| FD-55TUV-1 | 1000 | 410-420 | ||
| FD-356TUV-1 | 800 | 430-440 | ||
| 5mm round Pink led | ||||
| Part No. | Intensity at 20mA in 15-20degree | Emitting angle Available | Wavelength ( nm ) | Lens available |
| FD-5TPI-1 | 3000-4000 | 15-20degree 30-35degree 45degree 60degree 90degree | Water clear lens White diffused lens | |
| FD-5TPI-2 | 4000-8000 | |||
| 5mm round Infrared IR LED | ||||
| Part No. | Wavelength ( nm ) | Output MW /SR | Current mA | Emitting Angle ( Degree ) |
| FD-5TIR-1 | 940 | / | 20-80 | 15-20degree 30-35degree 45degree 60degree 90degree |
| FD-52TIR-1 | 850 | / | 20-80 | |
| FD-5TIR730 | 730 | 10-30mw/sr | 60-80 | |
| FD-5TIR760 | 760 | 10-20mw/sr | 60 | |
| FD-5TIR770 | 770 | 30-55mw/sr | 80 | |
| FD-5TIR780 | 780 | 25-48mw/sr | 80 | |
| FD-5TIR810 | 810 | 30-55mw/sr | 80 | |
| FD-5TIR830 | 830 | 17-35mw/sr | 80 | |
| FD-5TIR840 | 840 | 15-25mw/sr | 60 | |
| FD-5TIR860 | 860 | 15-25mw/sr | 60 | |
| FD-5TIR870 | 870 | 15-25mw/sr | 60 | |
| FD-5TIR880 | 880 | 15-25mw/sr | 80 | |
| FD-5TIR890 | 890 | 20-30mw/sr | 80 | |
| FD-5TIR980 | 980 | 20-30mw/sr | 80 | |

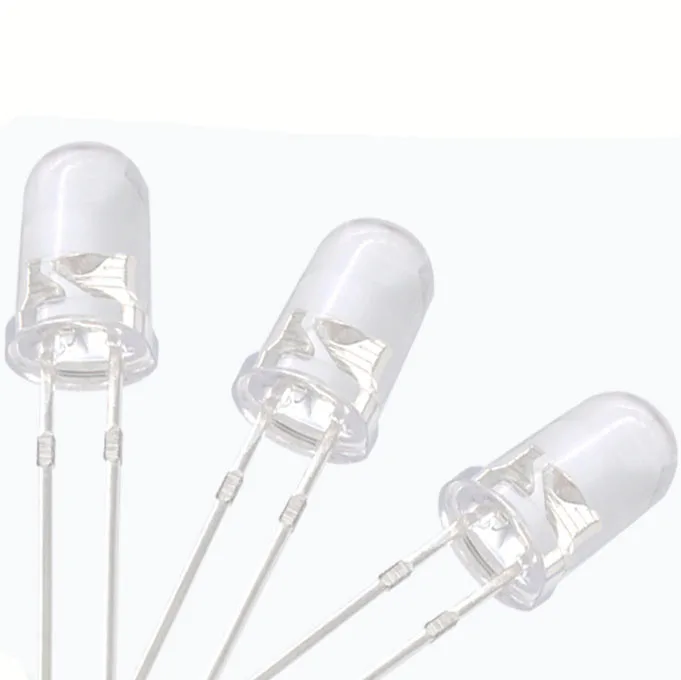

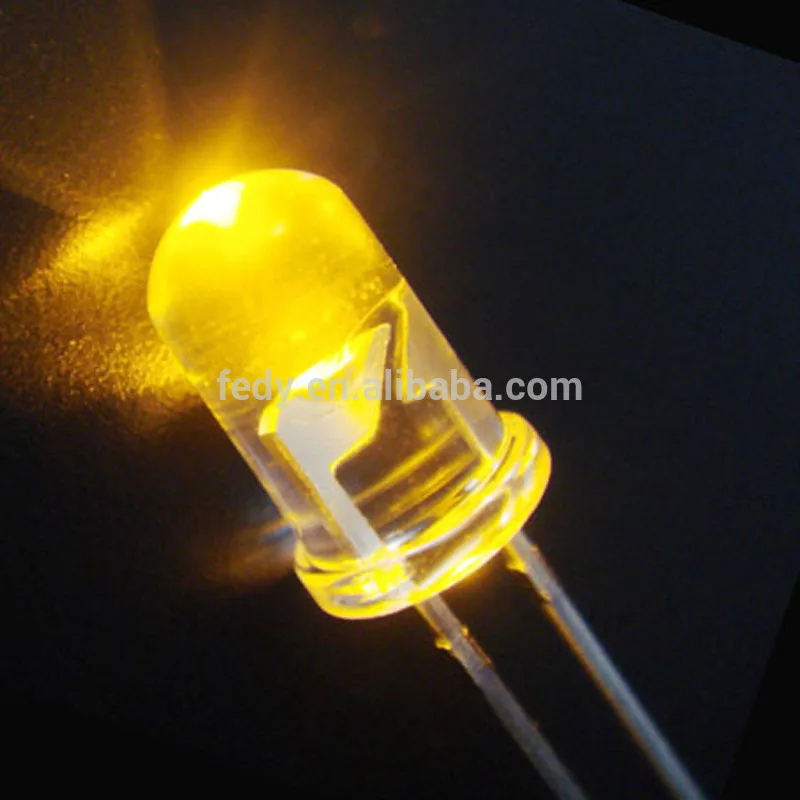

Product Pictures
Pictures
Best price for LED with 940nm 850nm 860nm 870nm 880nm 890nm 980nm round LED 5mm Infrared IR
Best price for LED with 940nm 850nm 860nm 870nm 880nm 890nm 980nm round LED 5mm Infrared IR
Company Information
1. FEDY is a professional manufacturer of high quality led diode since 2000
2. Class A quality with 3 years warrany for all items.
3. Orignal Epistar/Bridgelux chips with 100% Class A grade.
4. All leds 100% QA passed before shipped.
5. Fully automatic production machine and quality checking machines insure great quality of goods , and fast delivery .
FAQ
1) How can I place order?
A: You can contact us by email about your order details.
2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) , Paypal, or Western Union are the most usual ways we are using.
3) What's the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pre-paid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-10days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
Best price for LED with 940nm 850nm 860nm 870nm 880nm 890nm 980nm round LED 5mm Infrared IR
Certificate
Certificate
All the raw materials we used are CE ROHS Applied .
Best price for LED with 940nm 850nm 860nm 870nm 880nm 890nm 980nm round LED 5mm Infrared IR
Factory Show
Factory
Best price for LED with 940nm 850nm 860nm 870nm 880nm 890nm 980nm round LED 5mm Infrared IR
Contact Us
Contact
Contact us freely !
Best price for LED with 940nm 850nm 860nm 870nm 880nm 890nm 980nm round LED 5mm Infrared IR
Packing & Shipment
Packing
Packing details :
Best price for LED with 940nm 850nm 860nm 870nm 880nm 890nm 980nm round LED 5mm Infrared IR
SMD LED : Reels
DIP LED : ESD bag , Taping . Tubes
High power led : ESD box . Taping , Tubes
Shipping : Best price for LED with 940nm 850nm 860nm 870nm 880nm 890nm 980nm round LED 5mm Infrared IR
