Одобренный Rohs ультра яркий светодиодный красный/желтый/синий/зеленый/белый 5 мм

Описание и отзывы

Трекер стоимости

Характеристики

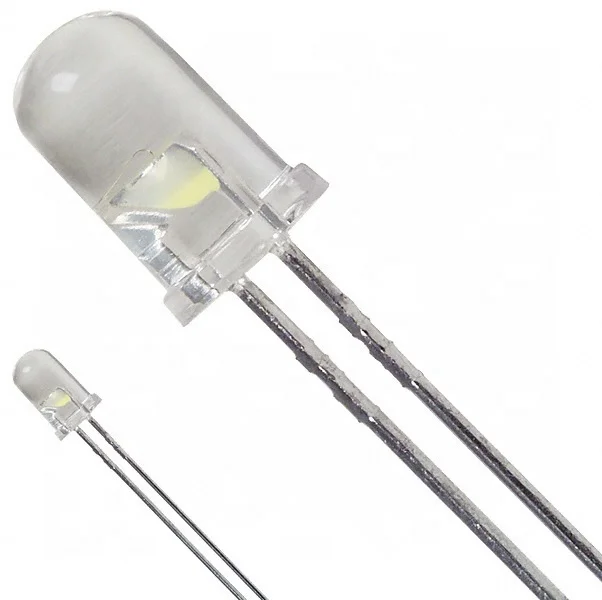

Description of led diode :



*  Avaliable in colors Red 625-630nm,Yellow 585-594nm,Blue460-470nm ,Green 515-525nm,UV 370-420nm ,IR 850&940nm,4-PIN RGB,2-PIN RGB fast flashing,Slow flashing  ,warm white 3000-3500K,pure white 4000-4500K ,and cool white 6000-6500K (Optional) ;



*Wide viewing angle range are optional (15deg,25deg,40deg and 60deg)



*Lens color :Water clear ,White diffsued , coloured diffused and coloured clear are available;



*Free samples and no M.O.Q



*Factory price and fast delivery



*All of our raw materials are accord with Rohs



Features of 5mm led :



*High intensity and low light decline







*Standard T-1 3/4 diameter package,With Flange







*General purpose leads







*Reliable and rugged







*High brightness and long life time







*Famous chips:Epistar of Taiwan







*Rohs Approved





Package Dimension of 5mm led diode:



Notes:

1. All dimensions are in millimeters.
2. Tolerance is ±0.20mm unless otherwise noted.
3. Protruded resin under flange is 1.0mm max.
4. Lead spacing is measured where the leads emerge from the package.
5. Caution in ESD:
Static Electricity and surge damages the LED. It is recommend to use a wrist band or anti-electrostatic glove when handling the LED. All devices, equipment and machinery must be properly grounded.





Packing:

* All of DIP leds are packaged in anti-static bags .1000PCS/bag,Net weight:305g/bag;



* 50K PCS make a standard carton; Gross weight :16.8KG/Carton;







Shipping:



*We can shipping all over the world by DHL,Ups,FedEx and TNT.The packing is very safe and strong,if you have any special needs ,please let me know.

*It will take around 3-5 working days to reach your hands.

*We only guarantee delivery in time but we wouldn't control exprss delivery time.Our related sales person will be responsible to send the AWB(Tracking Number) for the delivered goods in the next workday.You can check the AWB on the website which we send to you.For the AWB you also can call to the local branch of the express company in your country .

*Delivery :7-10 working days for sample order,10-20 working days for bulk order .



Our service
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM, any your customized lightings we can help you to design and put into product.
4.Distributoership are offered for your unique design and some our current models
5.Protection of your sales area, ideas of design and all your private information



Company Description

Shenzhen Tianshengda Optoelectronic Co., Ltd was founded in 2004 and is a SGS certified and registered company which specializes in researching, manufacturing, selling all kinds of finished illumination and decoration LED lights. Currently there are over 100 employees and a 1, 000 square meters fabrication area. Our prime products are DIP LED,SMD LED ,High power ,LED Strip, LED Spotlight, LED Bulb, LED Downlight, LED Flood Light, LED Panel Light, and LED High Bay Light etc.

Our products show extremely long life span and stability in the function. We guarantee over 50, 000 hours for the life. The average light output after 10, 000 hours continuously lighting will be 85% comparing the original brightness.

TSD has had a successful annual turnover accretion of more than 40% over the past 4 years and an expected turnover exceeding 8 million US dollars in 2012.

Our excellent international sales and after-sales team is at your service and will take good care of you, our valued customer.









FAQ:

Q1: Can I have samples to test?

A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available. Please note, free samples within 20pcs of each color. and buyer pay for shipping cost .

Q2: Do you have any MOQ limited?

A: We have not any request to MOQ.

Q3: What’s the lead time?

A: Sample order :3-5days.

   Mass production: 7-10days.(according to the quantity of the order )

Q4:How do you ship the goods and how long does it take?

A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 3-5days to reach your hands

Q5: Do you accept drop shipping

A: Yes, it is available.

Q6: What's the payment method you accept?

A: TSDLED accept below two different payments:

    1. T/T(Bank to bank payment)

    2. WU(Western Union)
