KHYD75 Horizontal Directional Drilling Machine Electric Rock Drill For Sale Introduction

1, The KHYD electric rock drill is suitable in drilling rock or coal mine use and matched with the scaffolding ,it also called scaffolding rock drill ,it can drill in level ,tilt upward ,or vertical upward direction .

2,In order to prolong the service life of the drill and improve working conditions of the operator . we can use wet type drill to remove the powder by water , we can also used spiral leaf pipe dry type drill to remove the powder .

3,when working we can simply manipulate the hand wheel .the drill could promote and rapid return on its own .

4,the drill can matched with 80 diameter spiral drill pipe ,34 diameter round drill pipe ,pyramid drill bit

KHYD75 Horizontal Directional Drilling Machine Electric Rock Drill For Sale Parameter

Model	Drilling dia. for rock	Drilling dia. for mine	Drilling depth for rock	Drilling depth for mine	Spindle speed	Power	weight
KHYD40	42mm	45-60mm	5m	20-60m	2814 r/min	2kw	40kg
KHYD75	42mm	45-80mm	10m	30-80m	1420 r/min	3kw	75kg
KHYD140	42-80mm	80-100mm	20m	30-80m	1440 r/min	5.5kw	140kg
KHYD150	42-80mm	80-120mm	25m	40-100m	1440 r/min	7.5kw	150kg
accessories:35#/42#  round dril rod / Twist drill rod   alloy bit and slide

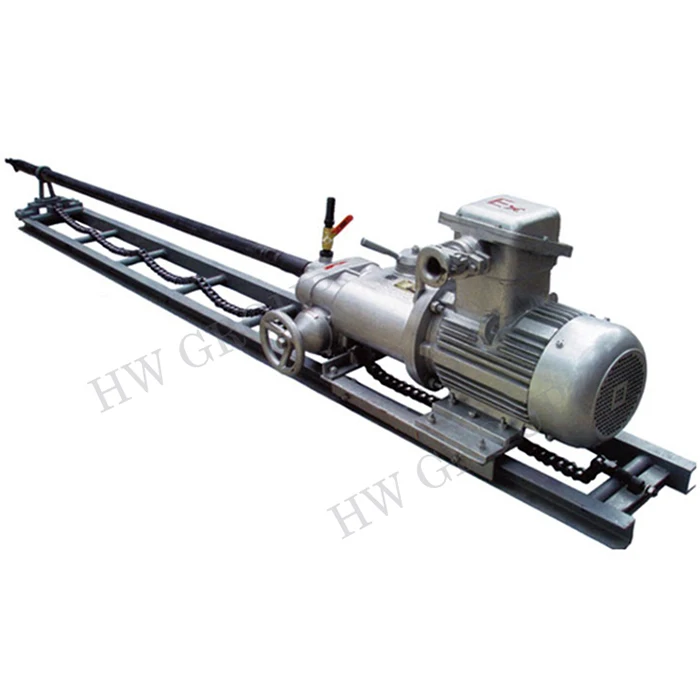

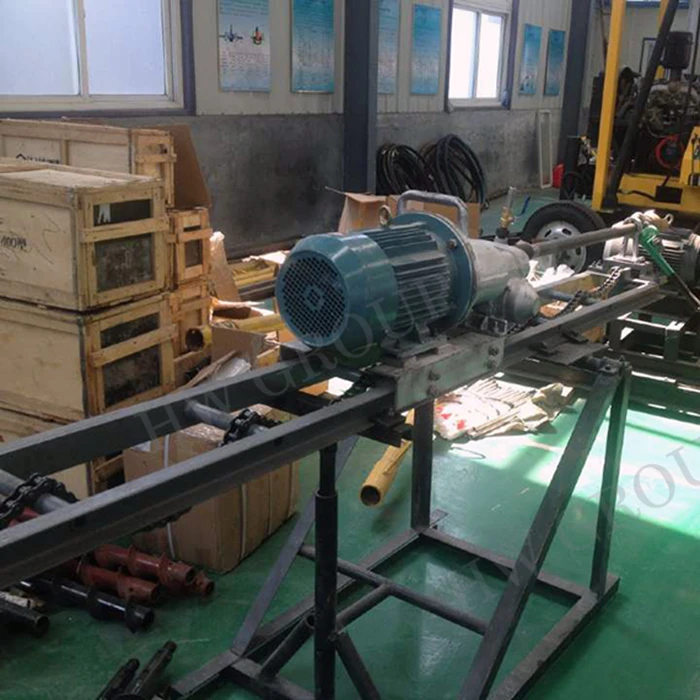

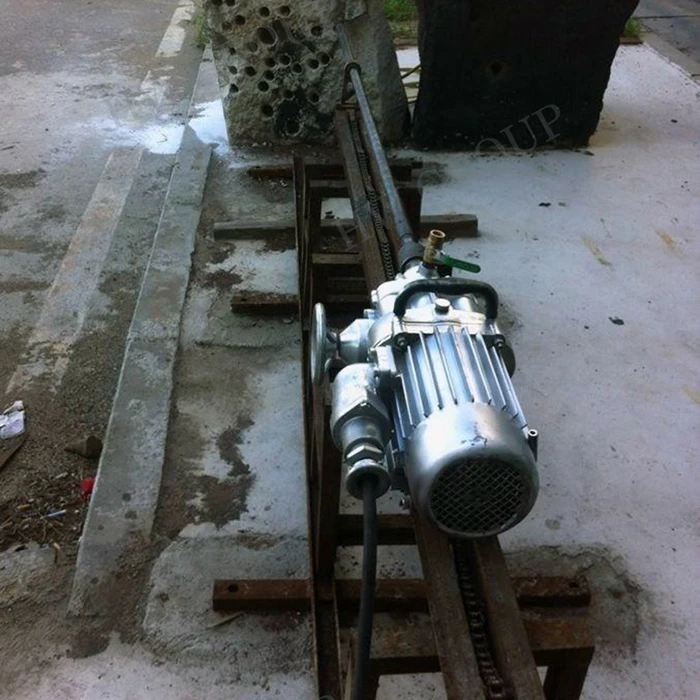

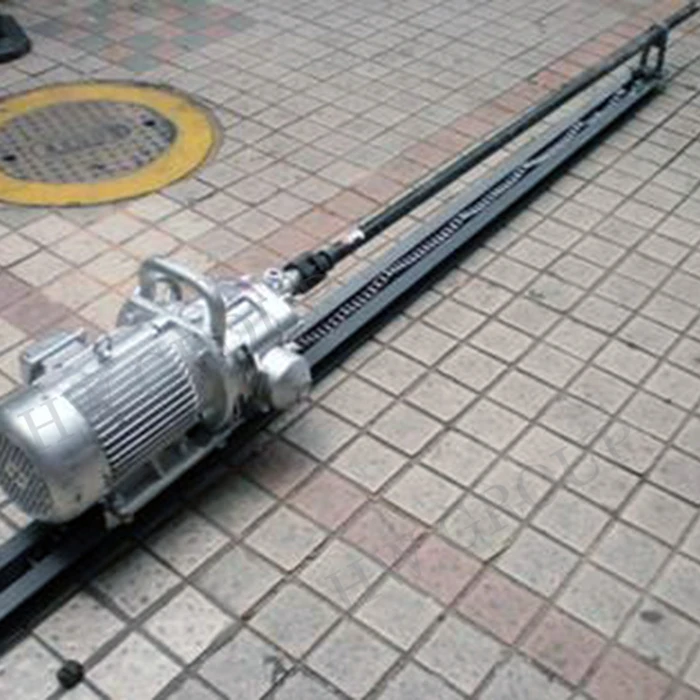

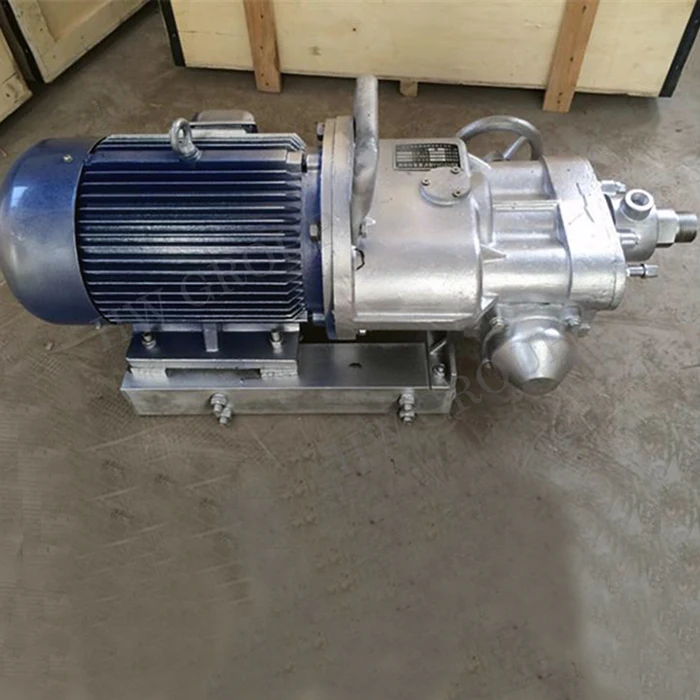

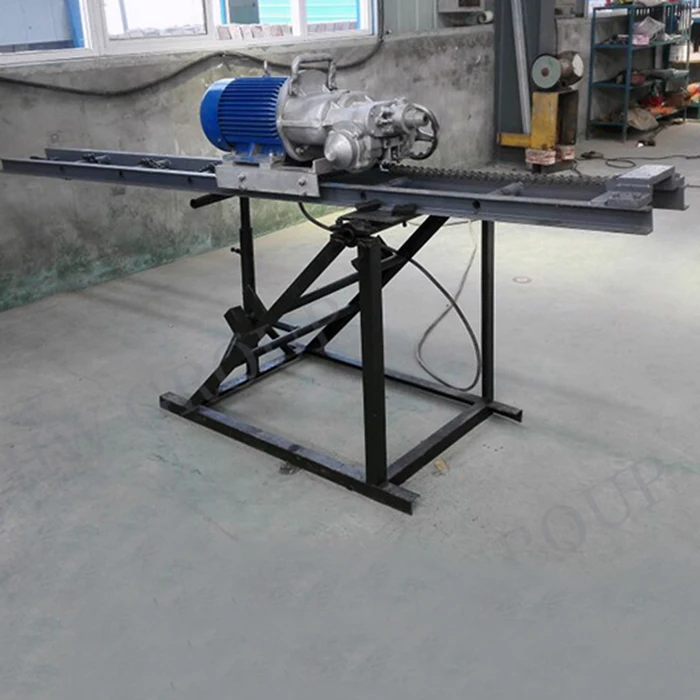

KHYD75 Horizontal Directional Drilling Machine Electric Rock Drill For Sale Photos
