fully automatic pet bottle manufacturing machine price equipment high output

Model: YCQ-2L-6





What is the details of pet bottle manufacturing machine price?



Machine video

https://www.youtube.com/watch?v=uazwWztGj88&list=PLilRRzTwJ94mQcz-QQH__WzPPros1LuDK&index=17

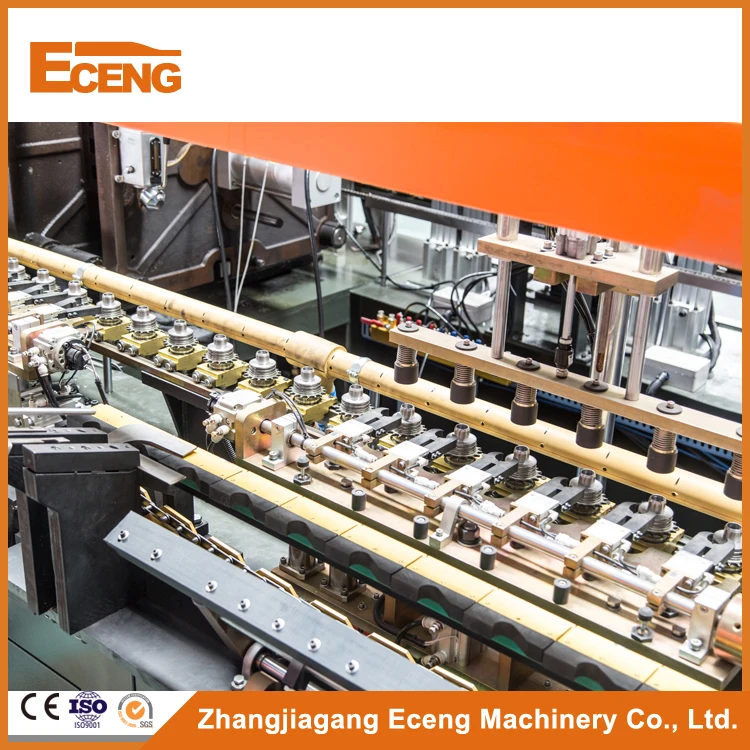

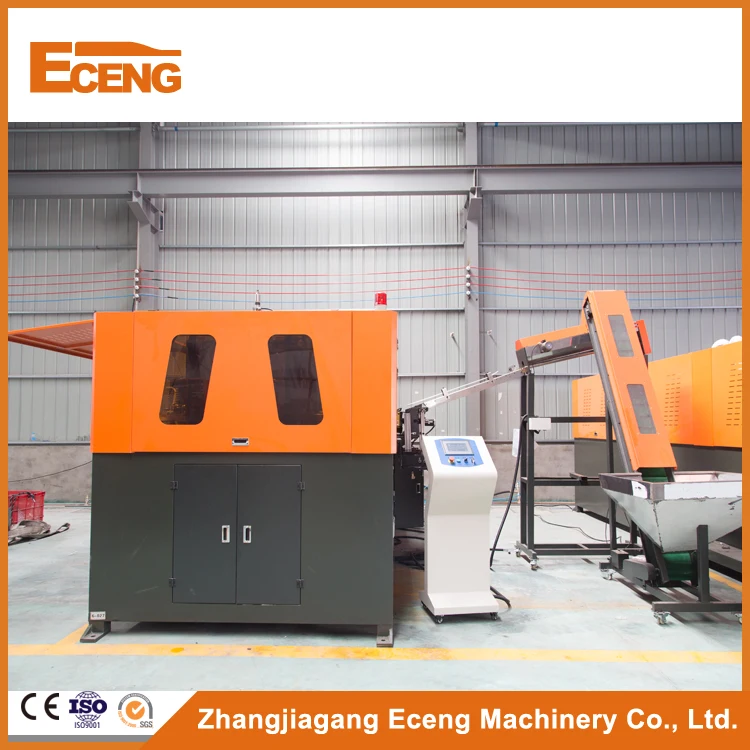

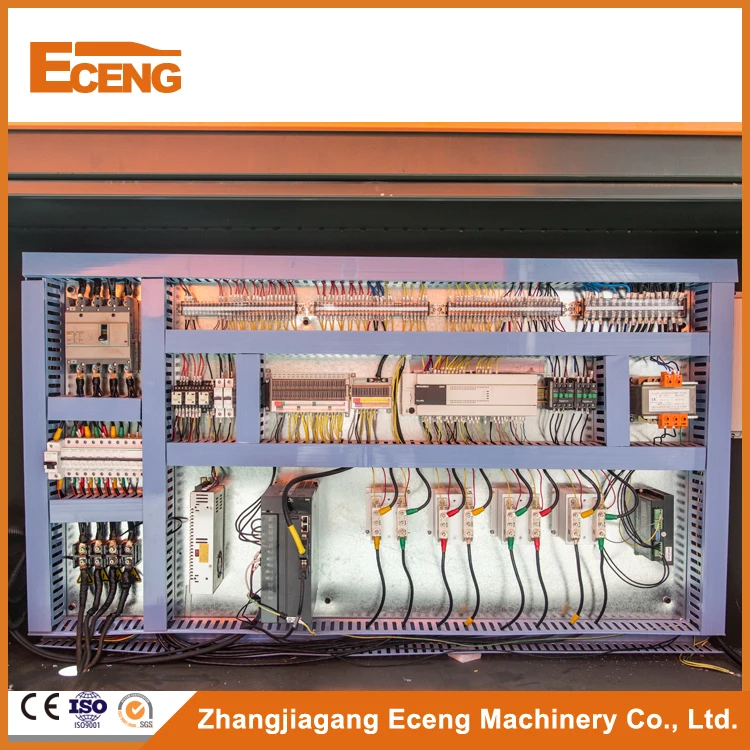

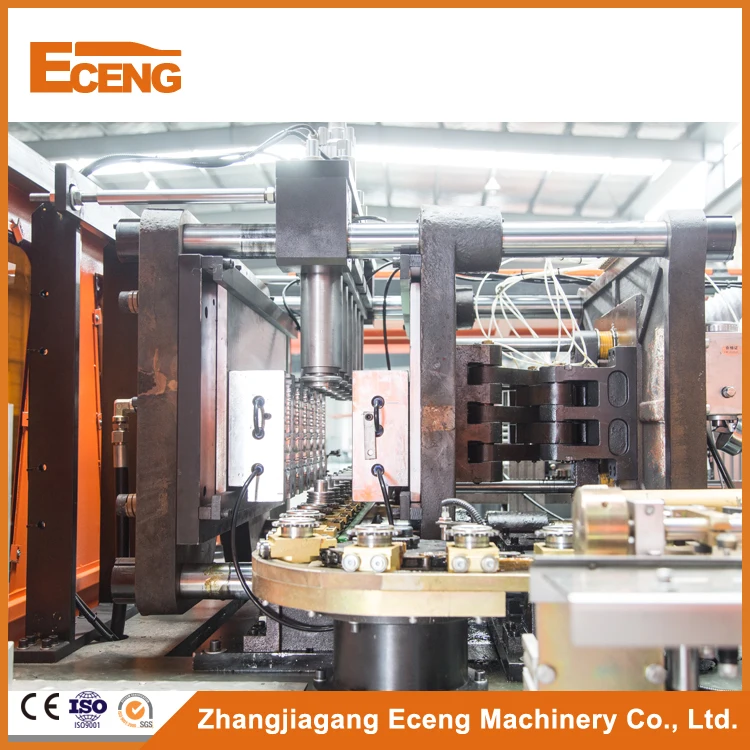

Poduct photos



What is technical parameter of our pet bottle manufacturing machine price?





	item	YCQ-2L-6
Bottle type specification	cavity	6
	theory output (PCS/HR)	5000-6000
	Max. volume (L)	2L
	Bottle mouth maximum overall diameter (mm)	28-38mm
	Bottle biggest diameter	100mm
	Bottle maximum height	330mm
Power specifications	Light tube quantity	32pcs
	Light tube power	1.25kw
	Maximum heating power	40kw
	All electric machine installation	43kw
Air pressure specification	Work pressure	7-9kg/cm2
	Low-pressure gas consumption	1600Ltr/min
	Blow bottle pressure	25-35kg/cm2
	Higher -pressure gas consumption	4000 Ltr/min
Frozen water specification	Work pressure	5-6 kg/cm2
	Temperature range	10°C
	Consumption	8000kcal/hr
	Frozen water flow	88Ltr/min
Machine specification	Size of the machine	6.5x1.5x1.9 (m)
	Weight of the machine	4ton



What is the feature for our pet bottle manufacturing machine price?



A. Stable performance with advanced PLC.



B. Conveying preforms automatically with conveyor.



C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.



D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.



E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.



F.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.



G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.



H. Strong clamping force with high pressure and double crank links to lock the mold.



I. Two ways of operating: automatic and manual.



J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.



K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.



L. Contamination is avoided for the bottle body.



M. Ideal effect of the chilling with the chilling system.



N. Easy installation and starting



O. Low rejection rate: less than 0.3percent.



What is the parts of our pet bottle manufacturing machine price?



machine parts name	Brand	Original place
Pneumatic components	PARKER AND FESTO	USA AND GERMANY
turning cylinder	FESTO	Germany
high pressure air blowing valve	FESTO	Germany
low pressure work valve	PARKER	USA
PLC controller	MITSUBISHI	JAPAN
full computer screen	WINWIEW506L	TAIWAN
high pressure muffler	HENGLI	CHINA
Photoelectric switch	OMRON	JAPAN
Switching power	OMRON AND ZHENGTAI	JAPAN and CHINA
circuit breaker	ZHENTAI	CHINA
Air switch	OMRON	JAPAN
relay	OMRON	JAPAN
finger cylinder	JINGQI	TAIWAN
