Одноколонная холодная гидравлическая прессовочная машина для

Одноколонная холодная гидравлическая прессовочная машина для

Категория: Punching Machines >>>
Поставщик: Tengzhou,Dingrun,Forging,Machinery,Plant

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.89 $*	0.82 $*
Aug-15-2025	0.83 $*	0.61 $*
Jul-15-2025	0.33 $*	0.10 $*
Jun-15-2025	0.45 $*	0.90 $*
May-15-2025	0.12 $*	0.87 $*
Apr-15-2025	0.30 $*	0.17 $*
Mar-15-2025	0.36 $*	0.81 $*
Feb-15-2025	0.82 $*	0.70 $*
Jan-15-2025	0.67 $*	0.1 $*

Характеристики

Single column

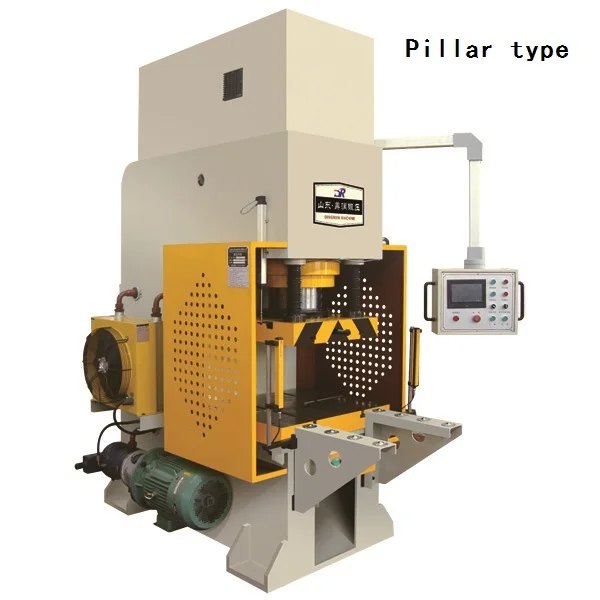

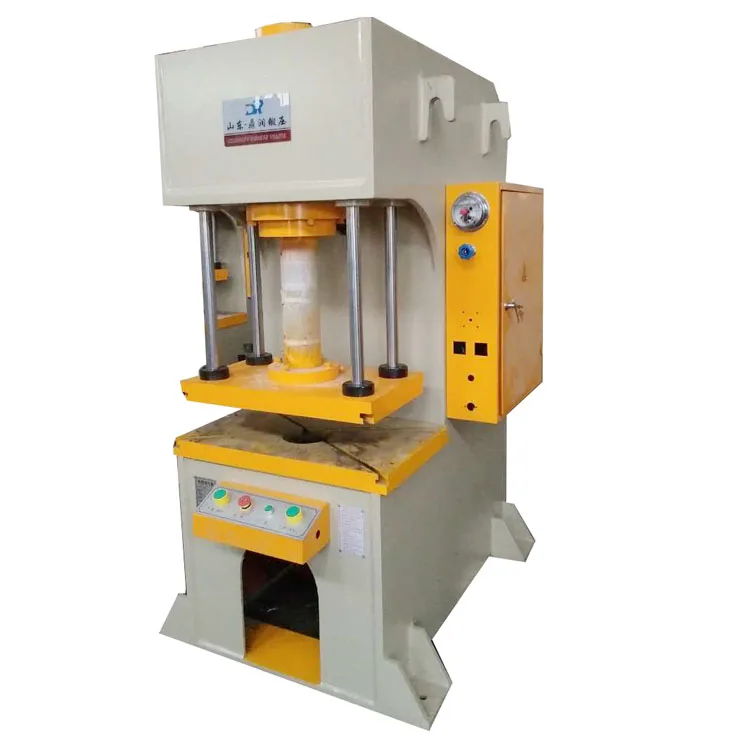

Single column cold tablet hydraulic press machine for deep drawing

Single column hydraulic press description

Project	2.5T	6.3T	20T	40T	63T	100T	200T
Max liquid working pressure(Mpa)	8	12.5	18	23	25	25	25
Slide stroke(mm)	125	200	300	360	360	600	360
Throat depth(mm)	105	170	200	200	260	350	325
Max opening height(mm)	210	320	500	550	600	1000	700
Worktable size(mm)	320*200	360*320	400*500	400*500	450*600	800*670	800*650
Size of the up stroke(mm)	/	200*200	320*320	380*380	380*380	600*600	600*600
Descent speed(mm/s)	45	40	21	34	53	55	48
Return speed(mm/s)	90	80	32	47	42	48	30
Motor power(KW)	1.5	3	4	5.5	5.5	7.5	11
Note:industrial style hydraulic press has upper moveable workable.upper and under worktable has T-slot,making convenient to fix the mould,it has the advantage of high speed ,high efficiency,good guiding,pressure maintaining,settle pressure and travel etc.

Appliance field:

This series hydraulic press mainly applies to the proofread, assemble of axle component and section bar, the bending. impressing of the panel component, The stretch plastic products of simple component ,and the use of other line, line machinery tools , combustion engine ,spinning , axle , bearing , washing machine , automobile motor , air conditiner motor , electrical equiment ,defense industry enterprise and foreign-funded enterprises assemble production line.

Features:

Our company`s single column hydraulic press machine is C type single structres, fusselage is adopted the whole co2 welding of steel plate ,and passed through tempering aging treatment after welding, to make sure that fuselage never warps, Hydraulic press system is located in fuselage. beautiful appearance and easy operation, and it can expand the scope of work .it uses 3 surface space to lengthen the hydraulic cylinder stoke(may choose to set).

750

Packaging & Shipping

Packaging & Delivery

Packaging Details:
plywood box for power press

Delivery Detail:
Shipped in 45 days after payment(Accoording to different types)

Company Information

Our Services

Pre-sale Service

We provide professional consultation about each type of machine,and offer free testing service to help customers purchase suitable machine.Customers are also welcomed to visit and evaluate our factory.

After-sale Service

We have no oversea services.

BUT we welcome engineers from your side to learn the technical design and normal maintenance here, this will help you esay in understanding and helpful if you need to be our dealer.

Anyhow there is another way is through internet video face to face for machine teaching. because of the high development in internent, the world has become smaller and you can easy contact us if necessary.

FAQ

1. What's the price and specification of hydraulic press machine?

Re: Dingrun always provide high quality machine, as we know,oversea market is more important and difficult than domestic market because of communication time costing after sales.So always,our machines has enough quality standard to make sure the machine can work more than the real warranty period. In this way ,we will save a lot and think advance for the clients. Please let me know the utensil diameter and height, the pictures and drawing will be better, so that we can check and recommend suitable machine for you.

2. How about your machine quality?We are worry about the quality.

Re: Dingrun is a mature brand in China. through our several years research in technology , our design including strcture and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or mor strict standard.Our machines distribute worldwide to about 20 countries where there are metal plate industry.And where there are our machines, there are good reputation and terminal user satisfaction.

3. May I send samples to test? Do you have a test fee or not?

Re: Yes, if you could send us samples, it will be better. For testing, we have to customize the moulds according to your products, so the moulds cost will be on your account, of course the moulds belong to you.
