cold tire retreading equipment buffer tyre retreading machine



Note: We can design the different size of machine according to the requests for products.







Cold tyre retreading equipment for tire recapping





 1.Gerneral Specification



Specification	16 pcs Curing Chamber for Truck Tyre
Range of Tyre Size	Within Size of 12.00-24 Truck and Passage Bus Tyre
Operating Worker No	Min. 4Staff(6 staff better)
Workshop Area	Min. 350m2
Curing Time	220Minutes/per shift(Timing at 112°C)
Max Daily Work Shift	4ps/day
Max Daily Output	64  pcs/day for within ruled max size tyre
Min Required Power	380V,50HZ.,80KW
Min Required Air Supply	0.8Mpa
Min Air Compressor	1pcs(Air Displacement:1.5m3/min; Work Prssure:1.20Mpa;Auto Power:11KW
Min Required Air Storage	1pc(Storage Volume:1M3; Work Prssure:1.25Mpa;Temperature:100°C)





2.Function Description



 a.Suitable for double-envelope curing, rim&tube curing and envelope-sealing ring curing

 b.Display the curing parameters and the working state of kay components



 c.Alarm when fault happens also has fault analysis



 d.Adopt isolation transformer to keep PLC work smoothly



 e.Heating tube heat alternately when start curing,maintain temperature balance

 d.Optional Tire size:5"-15",   15"-22.5",   22.5"-25",   25"-33".



Can be designed according to your output.



3.The process as follow

     tyre clean firstly dry tyre → inspecting tyre → buffing tyre → buffing outer wound of tyre → buffing inner wound of tyre → secondly inspecting tyre → repair inner wound → brushing adhesive on roof of tyre → secondly drying tyre → repair outer wound → affix middle rubber piece → tread building →assemble envelop → assemble inner tyre → assemble curing rim → inspecting inner tyre and curing rim → curing→ disassemble curing rim→ disassemble inner tyre → disassemble envelop → inspect end product → embellish tyre→ store tyre.



 4, Equipment List:

the tyre retreading production line contains the following equipment:

* standard (necessery)

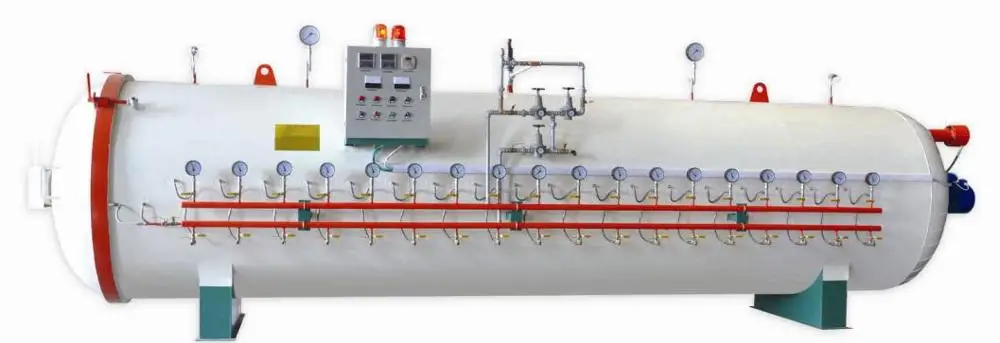

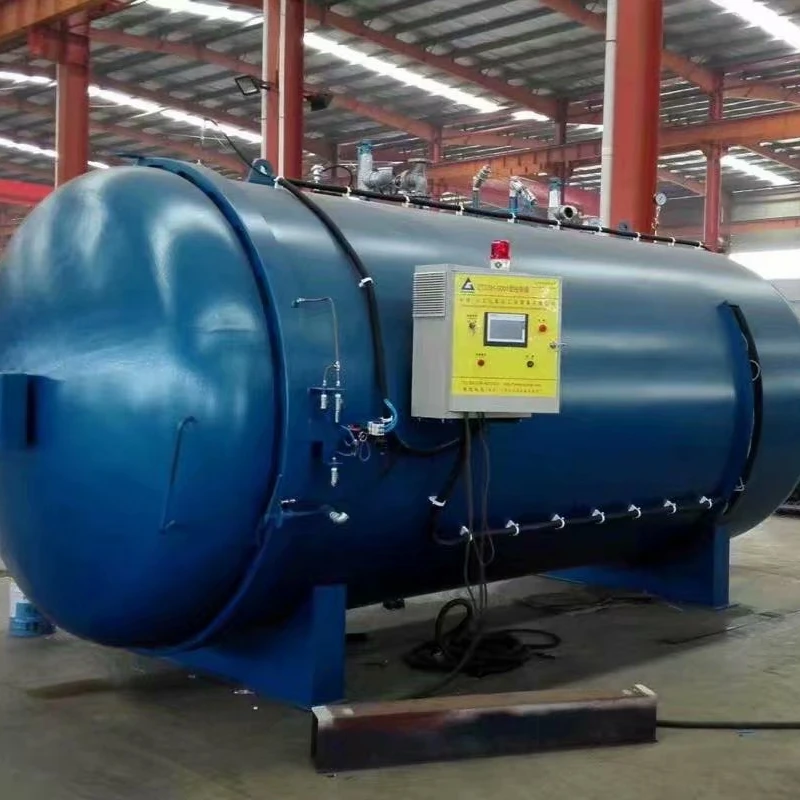

1. vulcanizing tank

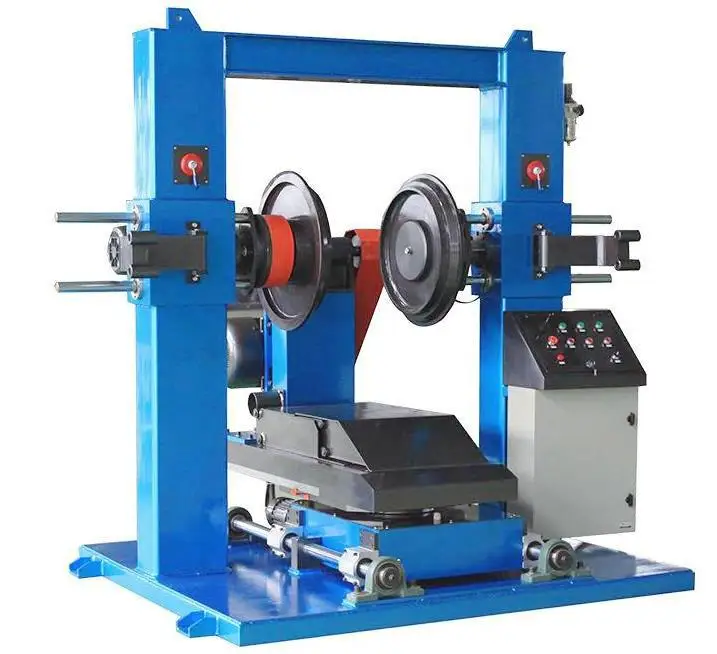

2. inflatable tyre grinding machine

3. rubber powder collecting tank

4. inflatable tread pressing machine

5. rim disassembling machine

6. envolop disassembly machine

7. buffer strip extruder

8. rubber cement mixing tank

9. multifunctional tire repairing machine

10. circular gulding rail frame

11. hanging hook

* Optional Equipment

1. expansion tire for testing machine

2. tyre repair and cutting machine

3. tyre repair frame



Tyre before and after retreading:

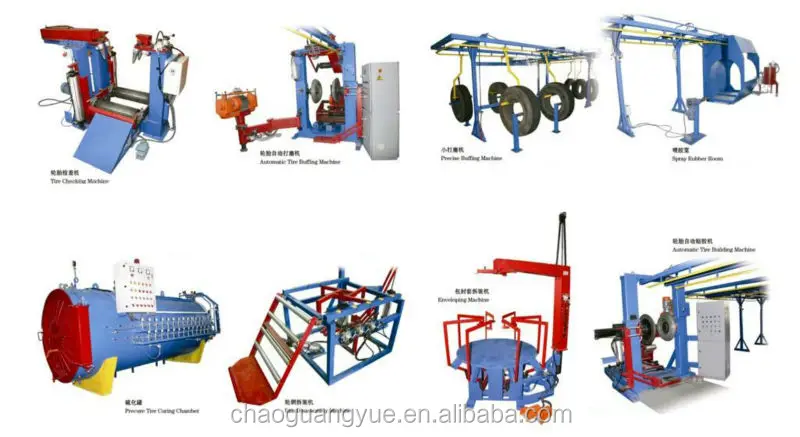

Process show:



Main Market: Europe, South Asia, USA, South America, Middle East etc
