Ручной ПВХ блистерная бывший для ОУР в блистерной упаковке раскладушка

Ручной ПВХ блистерная бывший для ОУР в блистерной упаковке раскладушка

Категория: Packaging Forming Machines >>>
Поставщик: Guangzhou,Looker,Packaging,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.24 $*	0.77 $*
Aug-18-2025	0.73 $*	0.4 $*
Jul-18-2025	0.34 $*	0.38 $*
Jun-18-2025	0.52 $*	0.32 $*
May-18-2025	0.96 $*	0.4 $*
Apr-18-2025	0.6 $*	0.32 $*
Mar-18-2025	0.52 $*	0.24 $*
Feb-18-2025	0.10 $*	0.94 $*
Jan-18-2025	0.93 $*	0.31 $*

Характеристики

Product Description

Product Application

Suitable for PVC, PE, PET, PETG, PP, PC, PS, HIPS, APET etc, the machine furnace produce heat to soften the plastic sheet, then vacuum pump sucks the plastic sheet down to the forming mould area to finish the forming, different forming mould enable to have different forming shape. This machine is ideal for the sample making purpose and small quantity order production.

Main Features

1.\t25pcs ceramic infrared heating boards which can be controlled separately, suit for different size or different thickness material.
2.\t25pcs Solid state voltage regulators, control heating boards simple and visualized.
3.\tLarge-scale cooling fan which can cool the products quickly.
4.\tWater-spray cooling system which suit for thick material.(optional)
5.\tManual style and Semi-auto style available.
6.\tButton or pedal control available, Improve production efficiency.

Model	LK-61
Power supply	AC380V
Power	12.5KW
Max.forming size	560*610mm
Max. forming height	200mm
Speed	200~300moulds/H
Thickness of material	0.2~1.5mm
N. weight	600kgs
Machine size	18001200 2000mm
Material	PVC, PET PP.PS

Detailed Images

Controll Board

Name: Controll Board
Brand: Looker
Original: China
Four function timers for control forming process.

Foot Pedal

Name: Foot Pedal
Brand: Looker
Original: China
Food pedal mode enable furnace auto-running, release hand and increase production efficiency. convenient operation

Vacuum Pump

Name: Vacuum Pump
Brand: Looker
Original: China

High quality brand choose for each machine
.

Roller Carriage

Name: Roller Carriage
Brand: Looker
Original: China

The PVC rolls will put on the back of machine .

one rolls is 50kgs

610mm width for the standard machine

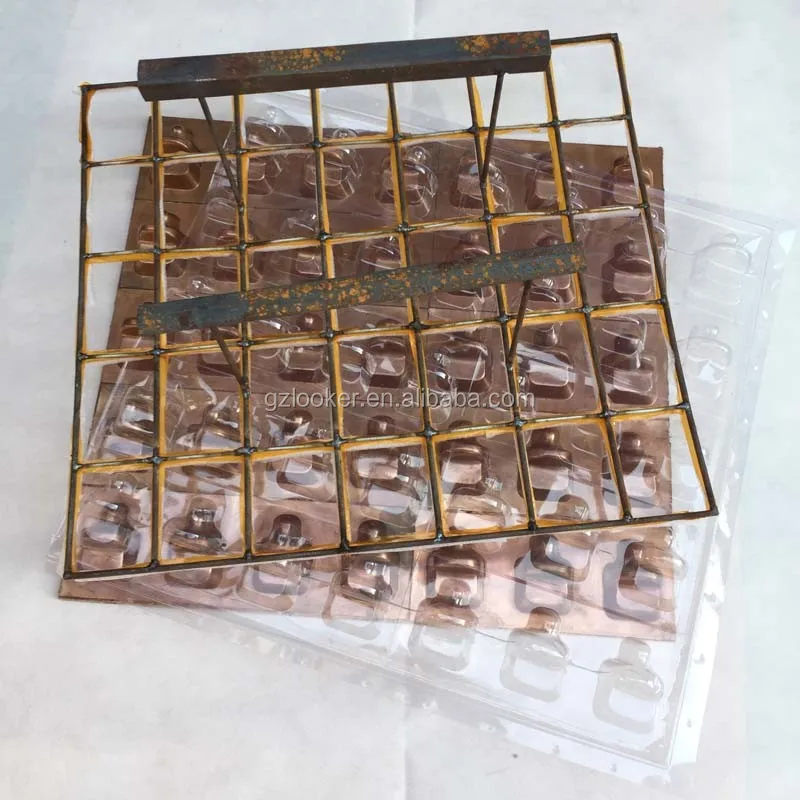

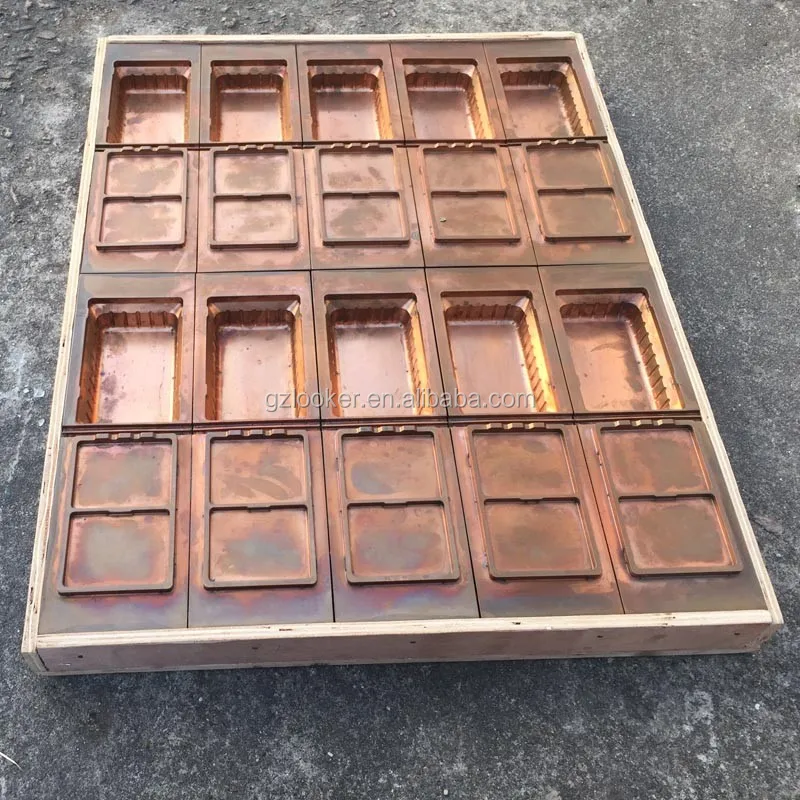

Copper mould

If your product is simple and output is not very high

we will advise to make cooper mould .

The price is cheaper than aluminum mould

Aluminum Mould

If the product is need high requirement and complex structure, and also need mass production . then, we will advise to make Aluminum mould

Plastic raw Material

The PVC rolls will put on the back of machine .
one rolls is 50kgs
Width : 610mm

And the thickness is available to customs made for customer .

any color /size / thickness is available for customer .

welcome to place your order !

Details

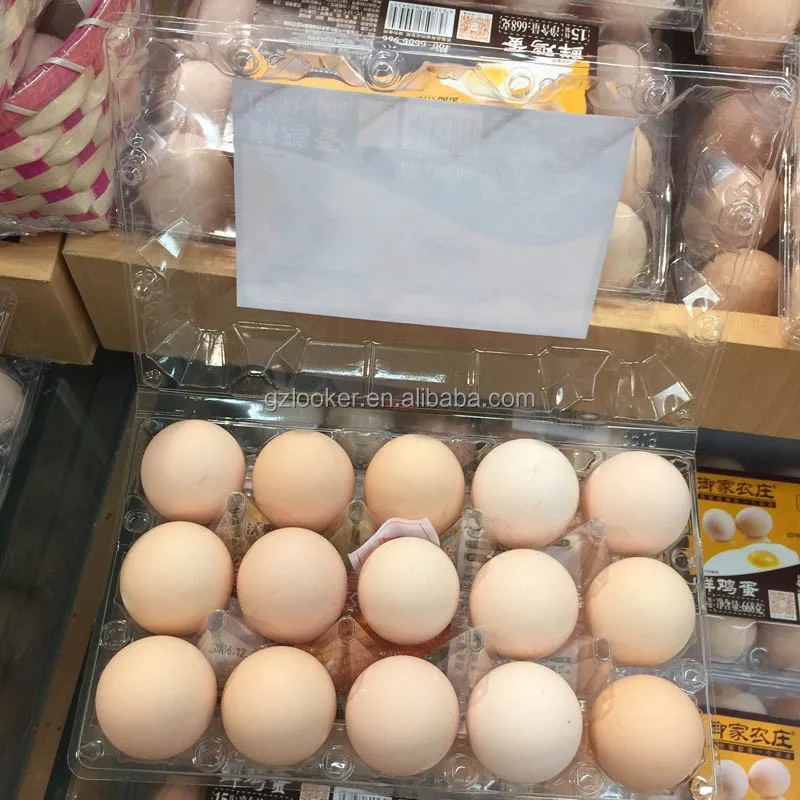

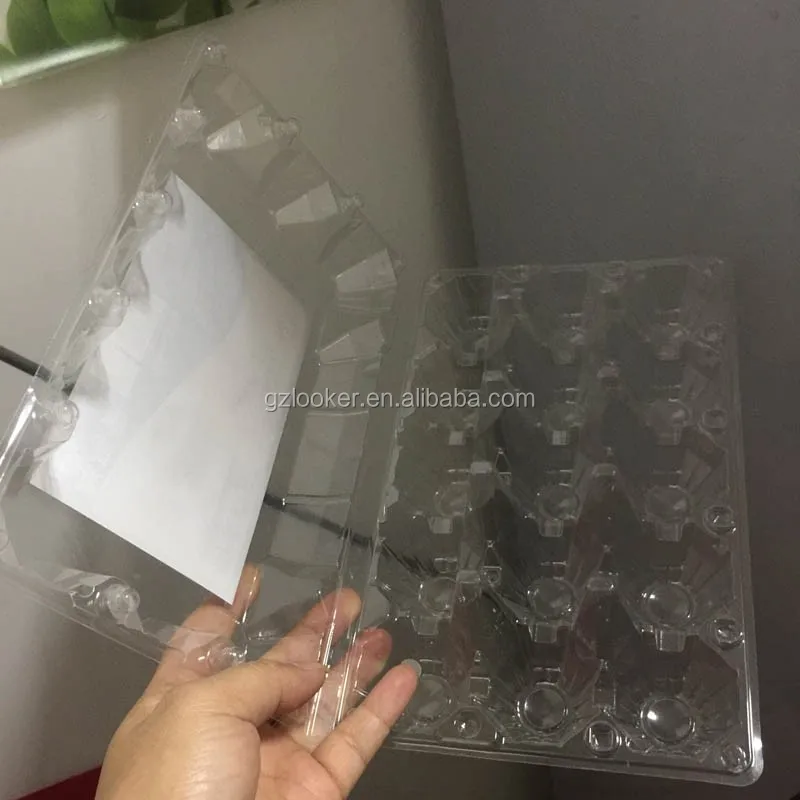

Samples : What our machine do ?

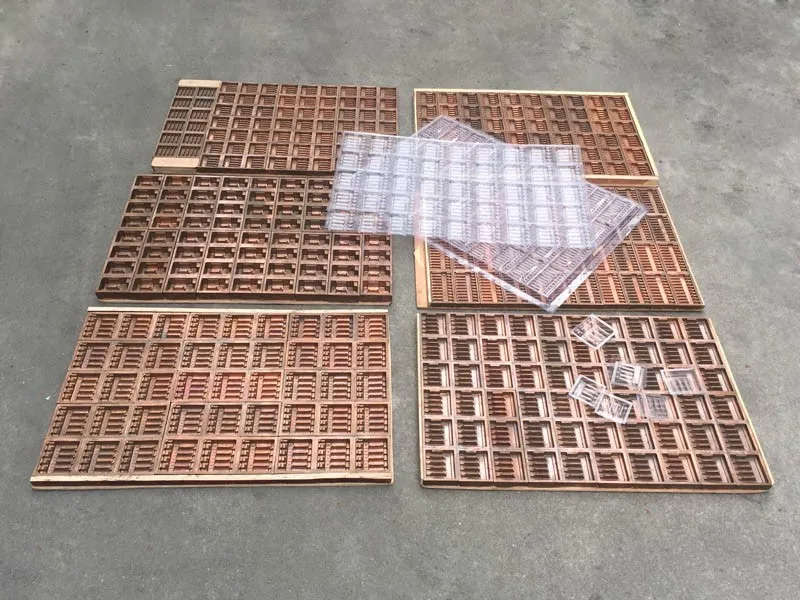

Mould & Samples

Our Service

Pre-Sales Service

* Inquiry and consulting support
* Sample testing support
* View our Factory
* Product design discuss support

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas to teach the customer everything about machine

You can see all machine when you visit our factory . we have machine in stock any time !

Visit customer 's factory
Oversea after sale service is available. Our engineers are fluent in English and have strong technical skills. Actually we have rich experience on overseas after sale service, we have been to many countries and all our customers are satisfy with our service.

Customer Feedback

The customer who bought our machine and would like to sell our machine in their local market.

we got positive feedback from each of our customer because we have complete and Professional term for after- sales support and good service for all customers . We are looking for machine agent all the time .let us get win- win together!

Packing & Delivery

Packaging
Size	1930 (L) * 1220 (W) * 1890 (D)
Weight	650kgs
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use plastic film for packing or pack it according to customers special request.
