Оборудование с барабаном для сушки
Горячие продать маниока багасса поворотный барабан биомассы вращающийся сушильной

Горячие продать маниока багасса поворотный барабан биомассы вращающийся сушильной

Категория: Оборудование с барабаном для сушки >>>
Поставщик: Zhengzhou,Sinolion,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.51 $*	0.83 $*
Aug-17-2025	0.71 $*	0.41 $*
Jul-17-2025	0.17 $*	0.43 $*
Jun-17-2025	0.28 $*	0.47 $*
May-17-2025	0.21 $*	0.15 $*
Apr-17-2025	0.62 $*	0.38 $*
Mar-17-2025	0.61 $*	0.16 $*
Feb-17-2025	0.93 $*	0.74 $*
Jan-17-2025	0.15 $*	0.2 $*

Характеристики

Product Details

Hot sell cassava bagasse rotary dryer biomass rotary drum dryer machine

Cassava bagasse rotary dryer rotary drum dryer machine is Zhengzhou Sinolion designed specially used in drying biomass materials.

The structure ferature of the cassava bagasse rotary drum dryer machine

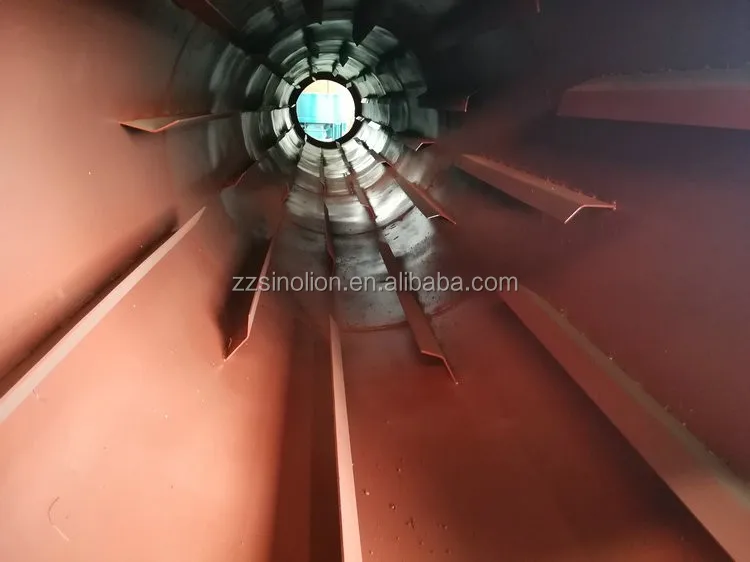

The cassava bagasse rotary drum dryer mainly include feed inlet, heat furnace, filter cartridge, rotating cylinder, material conveyor, cooling cylinder and discharging port. The rotating cylinder, which is installed on the driving roller, moves in low speed depending on the motor and slow transmission. Feed inlet is in between the heat furnace and rotating cylinder and there is stir blade in the rotating cylinder. The baffle with a ostiole is on the connected place of the rotating cylinder and filter cartridge. One end of the filter cartridge is connected with the rotating cylinder.

Product Introduction

Sinolion cassava bagasse rotary drum dryer machine advantages:

1.The rotary drum dryer adopted new combined-type feed and feed device, the center of second material without wind
2.Rotary drum dryer cleaning, maintenance is convenient
3. High heat efficiency rotary drum dryer
4. Reliable performance rotary drum dryer
6. Transmission large and small gear pin can change gear, replaced the traditional gear of cast steel, saving the cost of investment, and also greatly reduces maintenance costs and time.

Cassava bagasse rotary drum dryer dy material

Product Parameters

Model	Speed (r/min)	Gradient (%)	Intake air temperature (℃)	Capacity (t/h)	Weight (t)
GZΦ800*8000	3.8	3-5	≤700	0.8-2.0	3.5
GZΦ1000*10000	3.8	3-5	≤700	1.0-3.5	5.6
GZΦ1200*10000	3	3-5	≤700	1.8-5	14.5
GZΦ1500*14000	2.08	3-5	≤800	3.3-7.5	17.8
GZΦ1800*14000	2.08	3-5	≤800	5-9	22
GZΦ2200*16000	4.7	3-5	≤700	6-12	36
GZΦ2400*18000	4	3-5	≤800	10-15	52

Cassava bagasse rotary drum dryer machine drawing

Sinolion cassava bagasse rotary drum dryer machine Working principle:

The wet materials are conveyed to the hopper through the belt conveyor or bucket elevator, and then enter into the rotary drum dryer feed end through the hopper charger and the feeding pipe in sequence. The inclination of the feeding pipe must be greater than the natural inclination of materials in order to make the materials flow into the dryer smoothly. The rotary drum dryer cylinder with slight inclination with the horizontal line. The materials enter from the higher end, and the heat carrier enters from the lower ender; the two contact each other from opposite directions, but there are also circumstances that the heat carrier flows into the dryer body together with the material. Along with the rotation of cylinder, the materials run to the lower end due to gravity. In the forward movement of wet materials in the dryer body, the wet materials are heated directly or indirectly by the heat carrier to dry the wet materials, and then the materials are discharged from the discharge end through the belt conveyor or screw conveyor.
