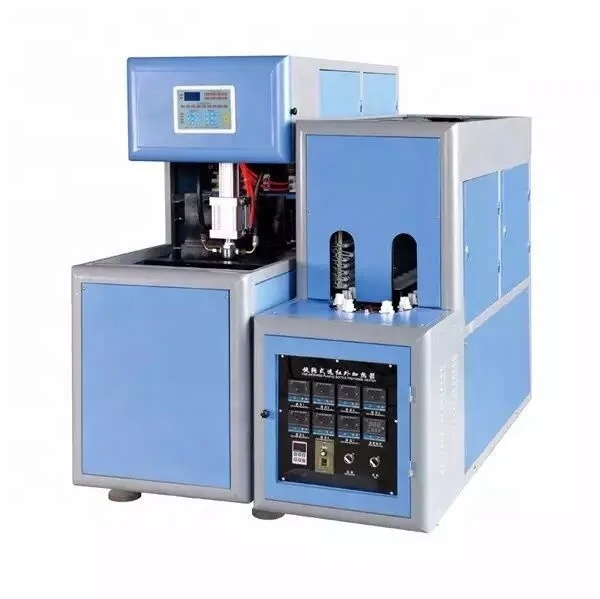

Формовочная машина для выдувания пластиковых бутылок
US $20000-$50000
Полуавтоматическая машина 5 л низкая цена для производства ПЭТ бутылок
- Категория: Выдувная машина >>>
- Поставщик: Taizhou,Huangyan,Loctite,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.47 $* | 0.35 $* |
| Aug-20-2025 | 0.17 $* | 0.47 $* |
| Jul-20-2025 | 0.51 $* | 0.23 $* |
| Jun-20-2025 | 0.30 $* | 0.98 $* |
| May-20-2025 | 0.35 $* | 0.92 $* |
| Apr-20-2025 | 0.19 $* | 0.22 $* |
| Mar-20-2025 | 0.65 $* | 0.81 $* |
| Feb-20-2025 | 0.61 $* | 0.81 $* |
| Jan-20-2025 | 0.11 $* | 0.65 $* |
Характеристики
Technical Parameter
Product Description
Main machine (blowert + oven) | Model type | Tech data |
Product Spec | Max. product volume(L/cav) | 5 |
Max. preform neck size(mm) | 150 | |
Max. product diameter(mm) | 200 | |
Max. product height (mm) | 400 | |
Cavities | 1 | |
Blow molding part | Die force (KN) | 120 |
Die stroke (mm) | 320 | |
Max. mould size(mm) | 390*350 | |
Mould thickness | Adjustable | |
Mould spacing(mm) | 500 | |
Max. pulling stroke(mm) | 400 | |
Operation pressure(Mpa) | 0.8-1.0 | |
Operation air pressure consumption (1tr/min) | 350 | |
Blow pressure(Mpa) | 1.2-2.8 | |
Blow air pressure consumption (1tr/min) | 300 | |
Output(pcs/h) | 1000-1800 | |
Machine size(LxWxH)(m) | 1.56*0.7*1.9 | |
Machine weight(KG) | 700 | |
Oven | Temperature grade(rate) | 8 |
Heating time(S) | 90-200 | |
Voltage(V) | 220 or as your request | |
Frequency(HZ) | 50/60 | |
Total power(KW) | 16 | |
Oven Size (LxWxH) | 1.45*0.65*1.15 | |
Oven weight (KG) | 330 |
Company Information
contact details
FAQ
1.Q:Are you a factory or trading company? Where is your factory located?
A: We are a factory,it is located in Huangyan,Taizhou city, Zhejiang Province, China. It's near Ningbo & Shanghai port.
2.Q:How about quality control in your factory?
A: “ Quality is the key point, do what customers needs”
3. Q.I have an idea for a new product, but don't know if it can be manufactured.
Can you help?
A. Yes! We are always happy to work with customers to evaluate the technical
feasibility of your idea or design and we can advise on materials, tooling and
likely set-up costs.
4.Q.What is your payment and delivery time?
A:"The payment is 30% by T/T as down payment,70% by T/T before shipment,and the delivery time is within 45 working days after advance payment.
Our Services
1.LOCTITE company can provide turn-key project for you, only you have any idea to start beverage factory plant.
2. LOCTITE company have professional design team, our engineer can draw bottle samples and flow chart of workshop for you .
3. LOCTITE company give you the best quotation for all kinds of beverage production, only you can tell me which kind of drink you want to product, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass,etc
After service:
1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General manual book/maintenance book
3. After one year guarantee, the seller provides payable spare parts and technician’s VISITING maintenance service.
Packaging & Shipping
