Ленточный станок широкополосный шлифовальный для продажи

Introduction:

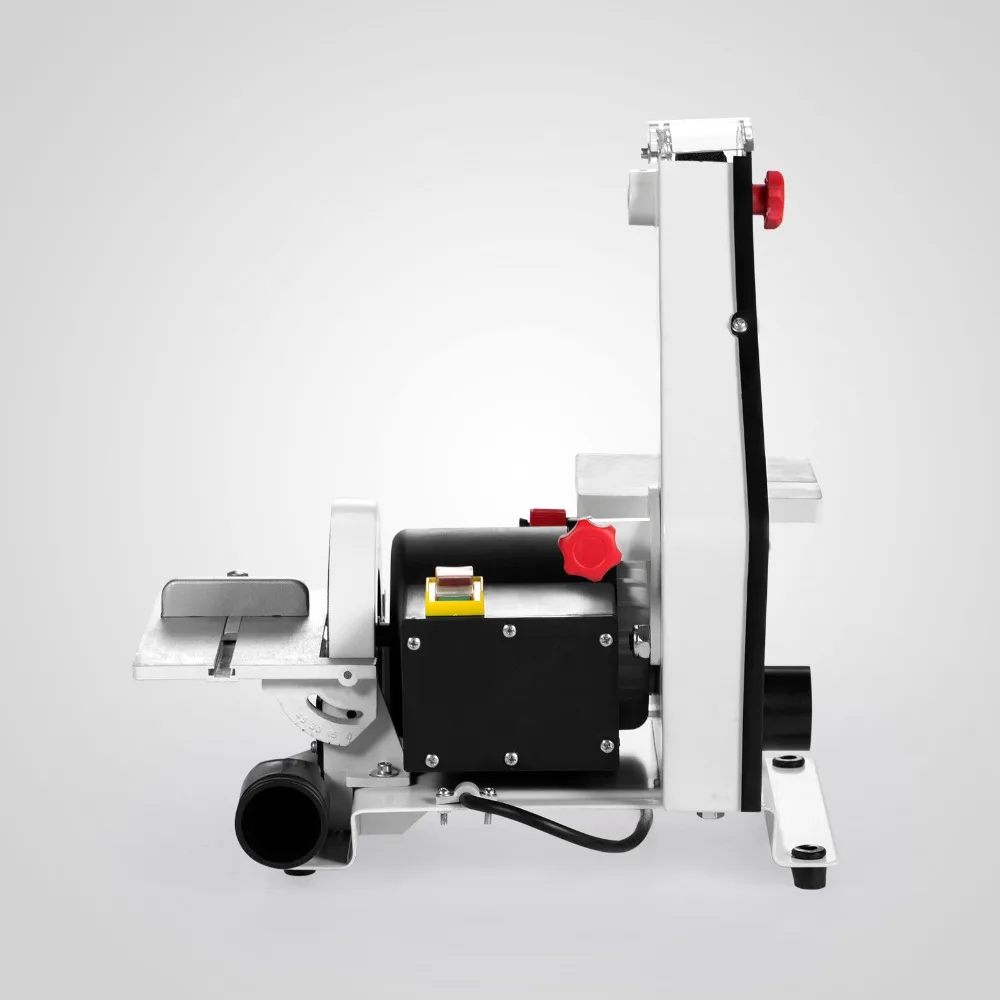

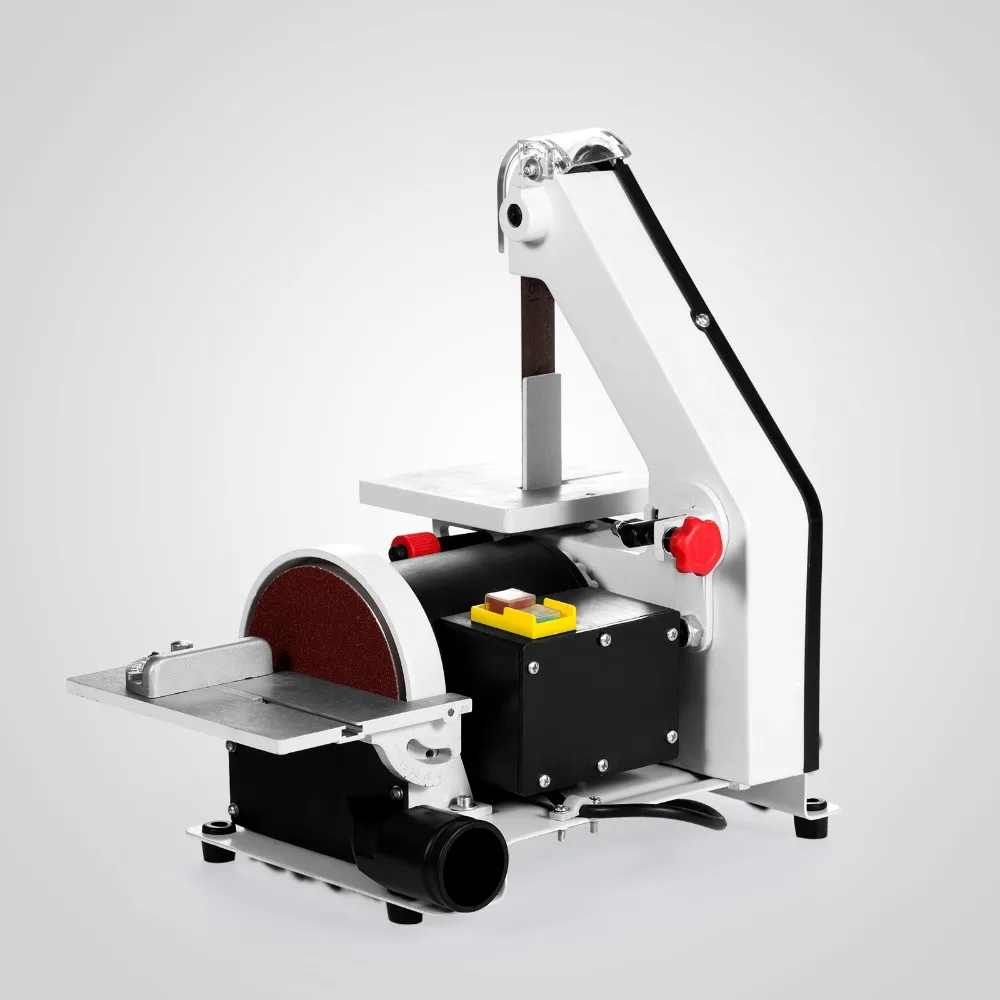

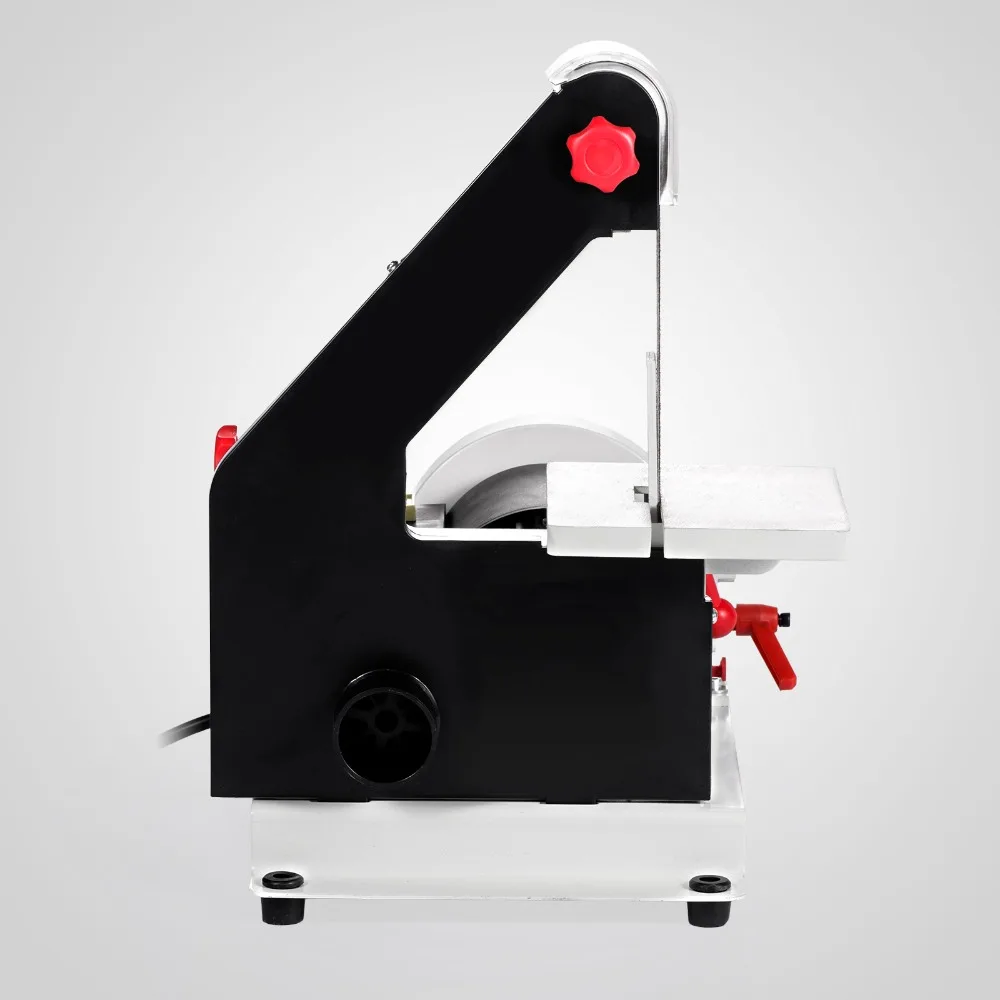

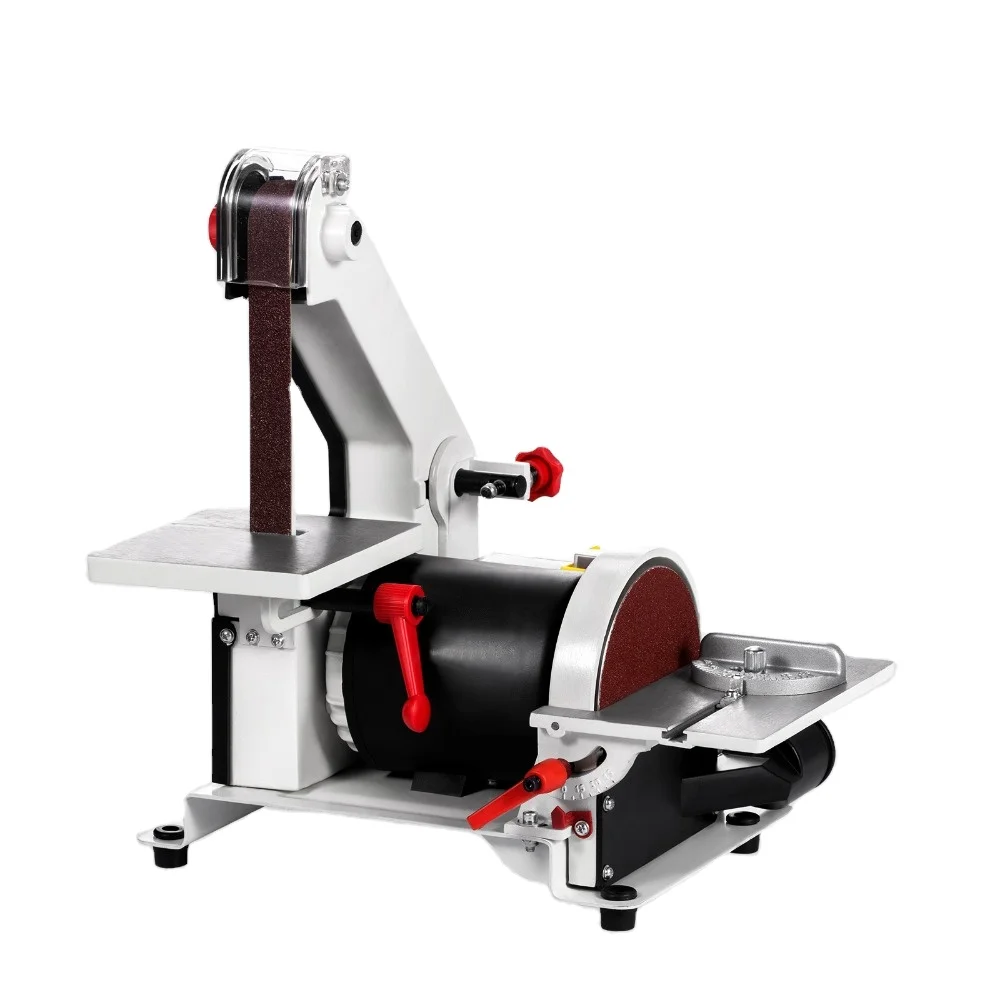

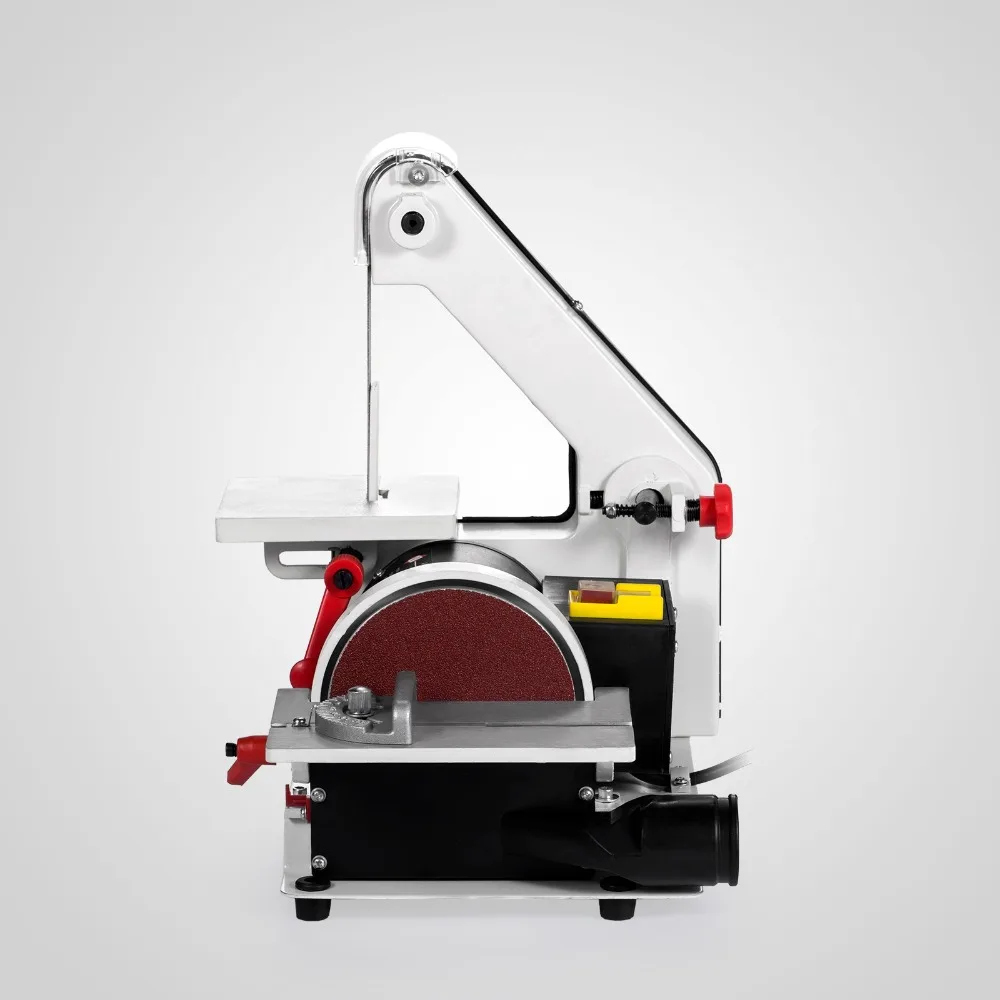

The brand belt disc grinder sander hand-held is an ideal machine for stock removal, profiling, handles and finish work, satin or mirror finish. It is all steel construction, and all steel frame is welded at all joints that makes this sander very solid and precise belt control. This product is especially small and exquisite,meanwhile it's not only very suitable for handmade crafts grinding and sanding work, but also very suitable for working in carpentry chamfer on the work-piece during the deburring small parts.and in particular chamfer small rounded corners and remove small edges.The versatile, combined belt and disc sander makes easy work of achieving a fine & smooth finish on component pieces made from wood amd plastic.With safety switch to ensure safe use,belt easy to adjust,and it can achieve horizontal and vertical processing factory Speed control (The drive will convert 1 phase into 3 phase it also steps up 230 volt into 380 volt.)allows for greater control when doing detail work and reducing heat after blades are heat treated. This grinder has top of the line idlers wheels ,motor & drive.

Note:

1.products of power line should be inserted in the connected power outlet.

2.Be sure to wear safety goggles and protective masks when working.

3.Work-pieces are sure to be put on workbench in operation.

4.The gap between adjustment table and belt or sandpaper should be less than 3mm.

5.Not to use the product in a humid environment.

Features:

• All steel construction, simple, solid & super smooth
• All steel frame welded at all joints, very solid, precise belt control
• It runs smooth and the tracking is very stable so it will not make a lot of noise.
• 4 wheel design for reduced vibration
• Speed control allows for greater control when doing detail work and reducing heat after blades are heat treated
• Supplied with an adjustable mitre gauge and fitted with medium grit abrasive belt & disc
• This set up is smooth running and the tracking is very stable
• Every detail of this belt grinder is fabricated for maximum performance, handling and precision
• Reliable belt grinders designed specifically for precise detail work
• Use for stock removal, profiling, handles and finish work, satin or mirror finish
• Tracking adjustment to keep the belt running true

Technical:

• 300 Watt, 230V motor
• 1" x 30" sanding belt operates at 13.5 metres/sec.
• Motor output speed: 2950 rpm
• Belt size: 25×762mm
• Sand disc diameter: 127mm
• Belt table size: 130×130mm
• Tilting angle of Belt table and Sand tray table (tilts & locks from 0° to 45°)
• Product Gross Weight: 7.5kg / 10kg
• 45mm O/D dust extraction port
• Supplied with an adjustable mitre gauge and fitted with medium grit abrasive belt & disc

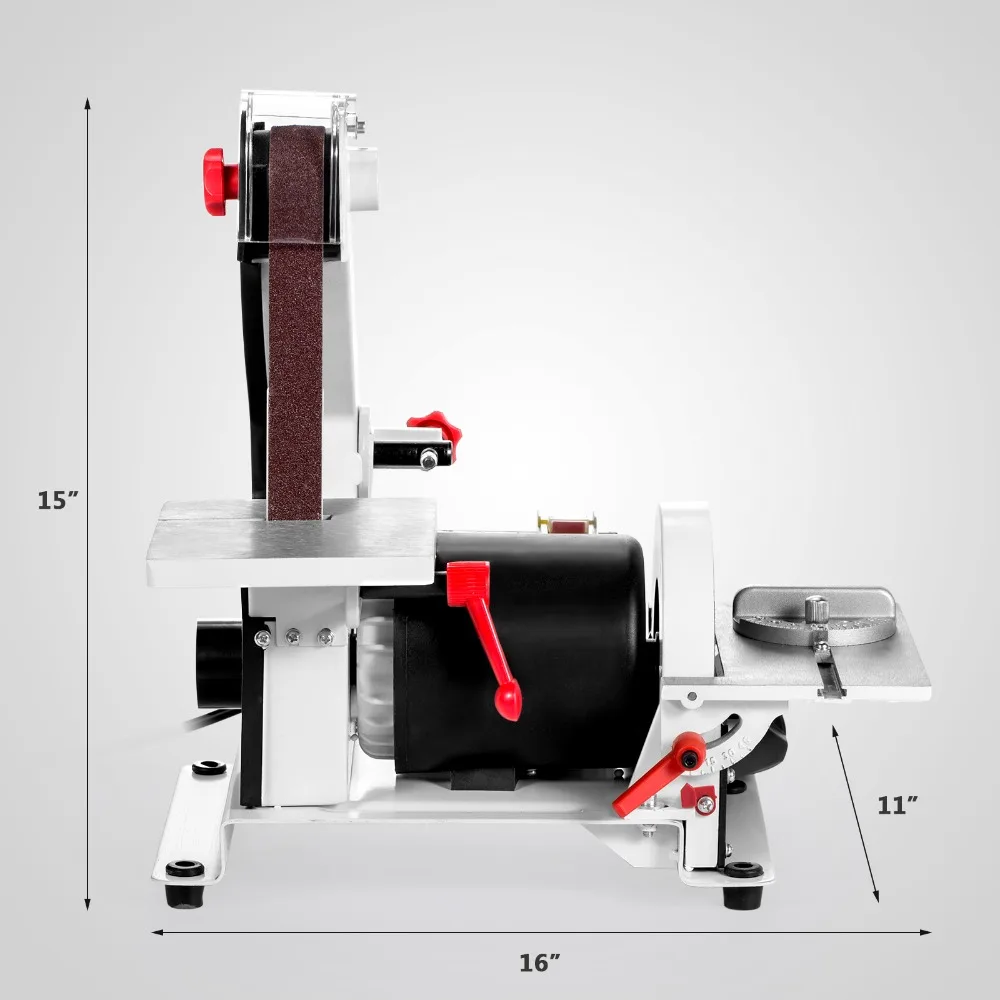

• Dimensions (LWH): 410x290x330mm
• Motor oneYear warranty and other parts half year warranty(except consumables)

Package:

• 1 X 300w Electric Machinery With All Copper Wire
• 1 X Toothed Rubber Wheel And Independent Movable Rod
• 1 X Flat Grinding Rack With Independent Movable Rod
• 1 X Concare Grinding Rack With Independent Movable Rod
• 2 X Concare Grinding Wheel
