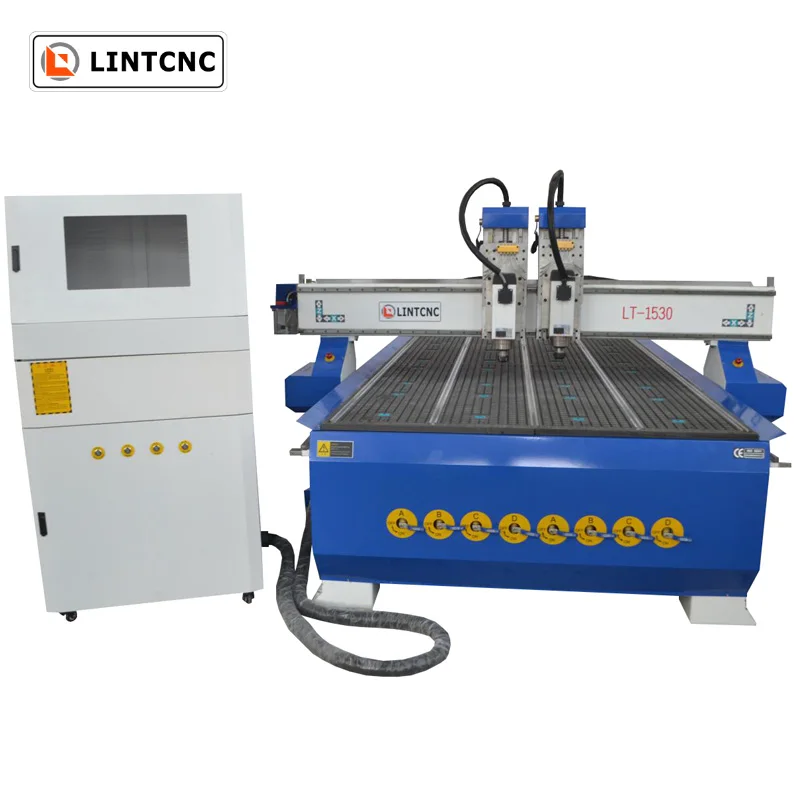

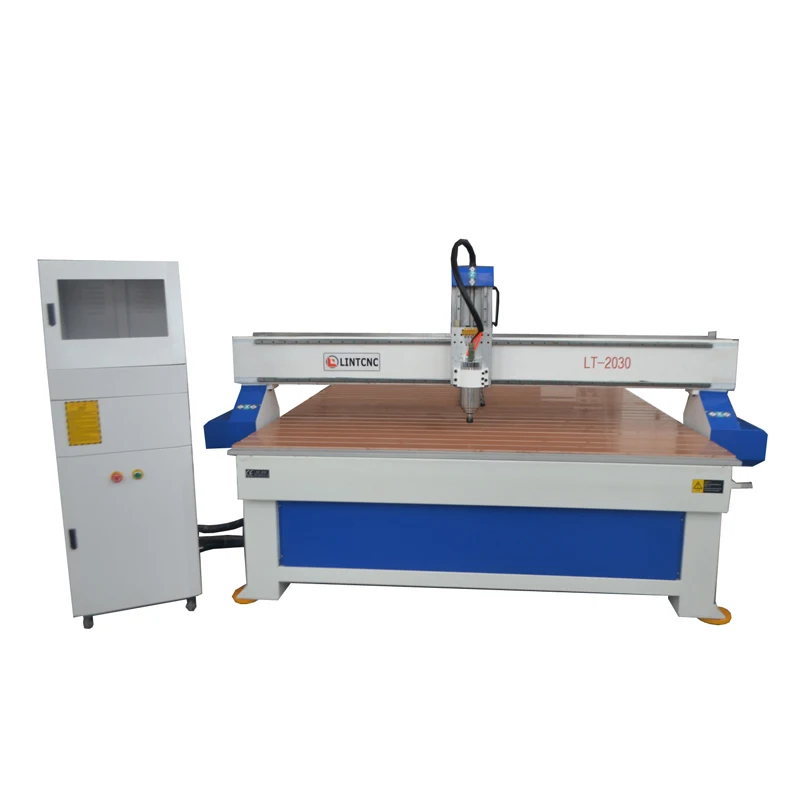

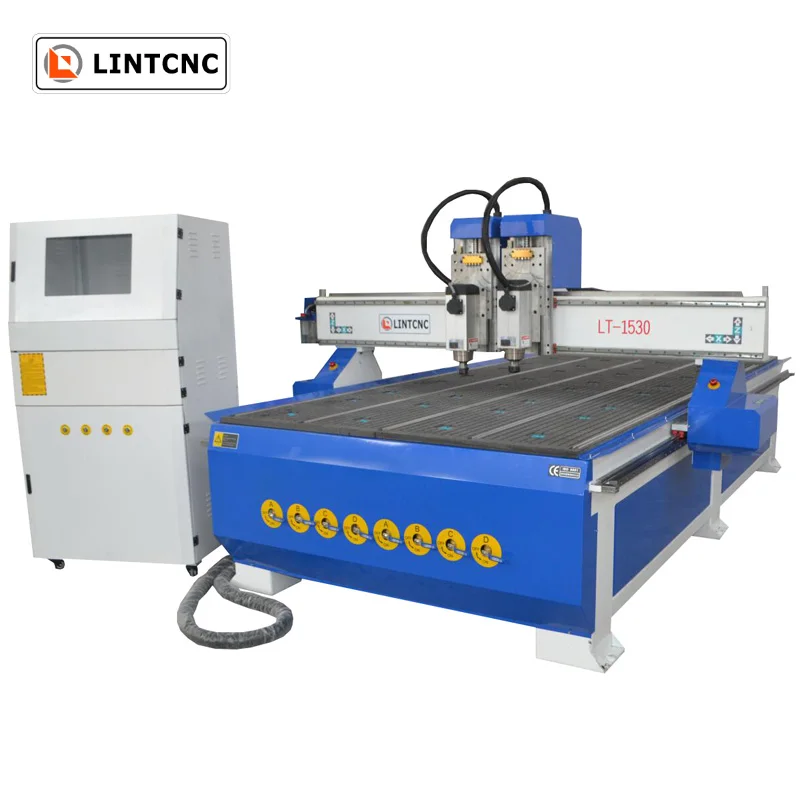

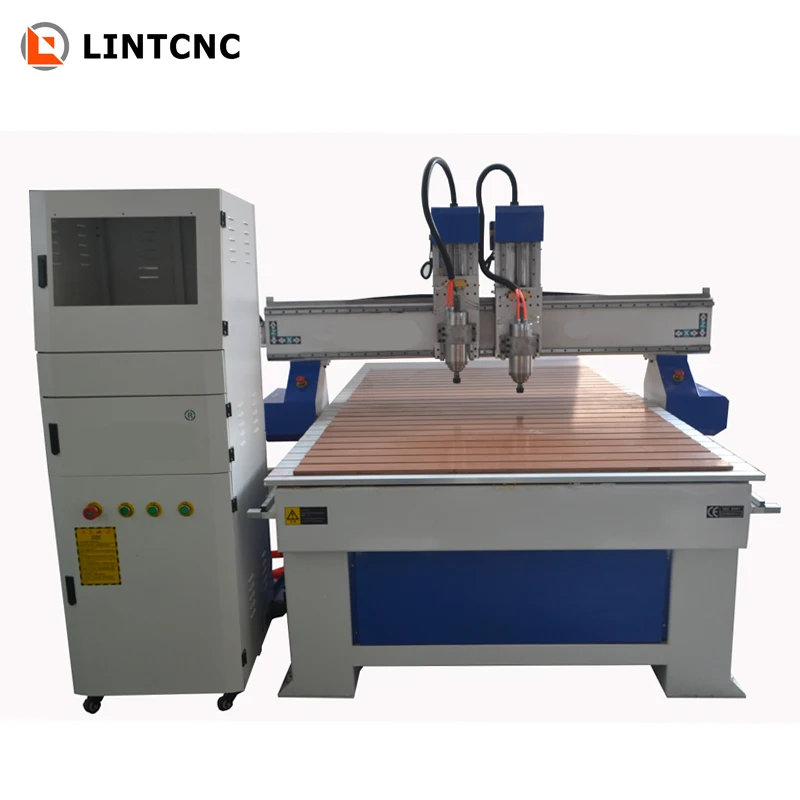

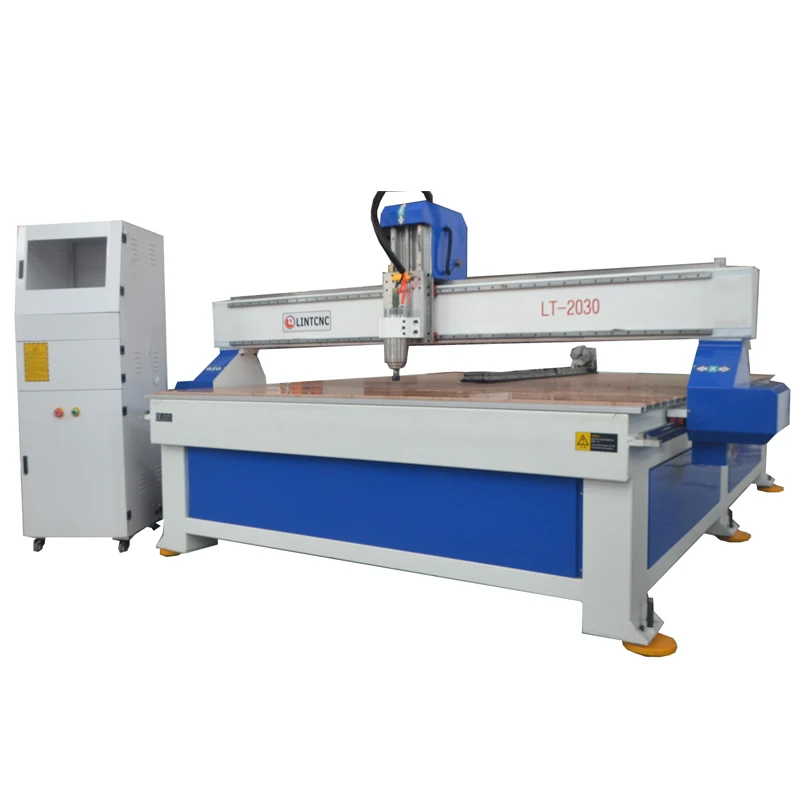

LT-1530 1530 2030 фрезерный станок для дерева с ЧПУ 2 шпинделей мебели мульти головки аппараты обработки деревянных
- Категория: Деревообрабатывающее оборудование >>>
- Поставщик: Shandong,Lintianzhiyuan,CNC,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 4939.16 $* | 5186.59 $* |
| Aug-19-2025 | 4897.42 $* | 5142.73 $* |
| Jul-19-2025 | 4109.61 $* | 4314.85 $* |
| Jun-19-2025 | 4814.27 $* | 5055.3 $* |
| May-19-2025 | 4192.31 $* | 4402.34 $* |
| Apr-19-2025 | 4731.72 $* | 4968.13 $* |
| Mar-19-2025 | 4690.22 $* | 4925.76 $* |
| Feb-19-2025 | 4648.10 $* | 4880.55 $* |
| Jan-19-2025 | 4607.16 $* | 4837.94 $* |
Характеристики
Product Description
Product Application
wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC,
acrylic, crystal, light marble and other nonmetal materials and light metal materials.

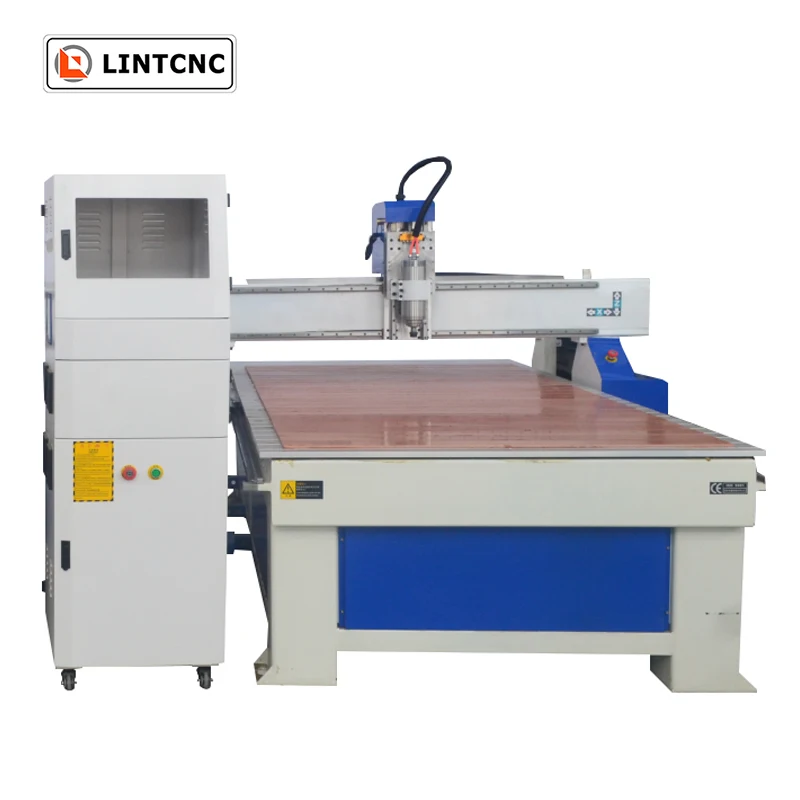

SPECIFICATIONS OF WOOD CNC ROUTER 1530 WITH ALUMINUM TABLE | ||||||
Description | 1530 wood cnc router | Motors and drivers | Stepper motor 450B and Leadshine drivers MA860H | |||
Working area | 1500*3000*200mm | Control system | Ncstudio/DSP/MACH3 with USB control system | |||
Machine structure | 8mm thickness welded steel tube,cast-iron vertical shafts and steel gantry | Working voltage | AC220V/AC380V,single phase/3 phase,50-60Hz | |||
Table style | Aluminum T-slot table with PVC | Invert | Fuling invert | |||
Spindle | 3.0KW watercooling spindle | Max.idling speed | 25m/min | |||
Spindle rotating speed | 0-24000rpm/min | Max. working speed | 12m/min | |||
Collect size | ER20 | Compatible software | Type3/Castmate/Artcam/AutoCAD | |||
Guide rail | Hiwin linear square guide rail | Instroduction formate | G code*u00*mmg*plt. | |||
Driving mode | X,Y axis by helical gear rack,Z axis by TBI ball screw | Control Cabinet | Independent | |||
Main Features
Features introduction of wood cnc router 1530
1. Z axis feeding height 200mm
2. Square tube welded steel frame structure-8mm thickness
3. Vacuum table +5.5kw Vacuum pump
4. X axis rack and pinion drive, Y axis 2 way rack and pinion drive and Z axis 2510 Ball
screw
5. X, Y, Z axis Taiwan square rails PMI
6. 450B stepper motor and MA860H Leadshine driver or servo motor and driver
7. 3.0KW water cooling spindle and 3.7kw Fuling inverter, other spindles are optional
1. Z axis feeding height 200mm
2. Square tube welded steel frame structure-8mm thickness
3. Vacuum table +5.5kw Vacuum pump
4. X axis rack and pinion drive, Y axis 2 way rack and pinion drive and Z axis 2510 Ball
screw
5. X, Y, Z axis Taiwan square rails PMI
6. 450B stepper motor and MA860H Leadshine driver or servo motor and driver
7. 3.0KW water cooling spindle and 3.7kw Fuling inverter, other spindles are optional
8. Nc-Studio-5.4.49 control system, DSP or Mach 3 is optional
Detailed Images
Machine Parts
Name: Water-cooling spindle
Original: China
Domestic famous spindle,3.0KW/4.5KW is available,strong spindle,fast cutting engraving speed,water cooling mode,high efficiency.
Machine Parts
Name: Fuling invert
Original:China
China best invert,efficient controling the speed of the spindle.
Machine Parts
Name: Auto Tool sensor/calibration
Original: China
Helping to set the z axis convenient.
Main Parts
Name: Independent control cabinet
Original: China
Perfect protector for drivers and invert.
Our Service
Technial service
1. We will supply with the machine operation manual in English version for installing and operation.
2.Customer can come to our factory training .
Warranty
1. Our warranty is 12 months counting from the date when the Machine arrives at the port of destination.
2. We will supply after service 24 hours,customer can contact us any time.
Packing & Delivery
Packaging | ||
Size | 3700(L) * 2200 (W) * 2000 (D)mm | |
Weight | 1500KG | |
Packaging Details | The normal package is one plywood case with water-proof materials.Being fit for long delivery trip. | |
