Plastic seed tray forming

Категория: Packaging Forming Machines >>>
Поставщик: Guangzhou,Looker,Packaging,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.99 $*	0.44 $*
Aug-17-2025	0.45 $*	0.2 $*
Jul-17-2025	0.9 $*	0.68 $*
Jun-17-2025	0.92 $*	0.52 $*
May-17-2025	0.1 $*	0.2 $*
Apr-17-2025	0.16 $*	0.66 $*
Mar-17-2025	0.83 $*	0.81 $*
Feb-17-2025	0.65 $*	0.74 $*
Jan-17-2025	0.49 $*	0.41 $*

Характеристики

Product Description

Product Application

Suitable for PVC, PE, PET, PETG, PP, PC, PS, HIPS, APET etc, the machine furnace produce heat to soften the plastic sheet, then vacuum pump sucks the plastic sheet down to the forming mould area to finish the forming, different forming mould enable to have different forming shape. This machine is ideal for the sample making purpose and small quantity order production.

Main Features

1.Fix with high quality vacuum pump and has stable performance and strong suction. independent temperature control system, simple operation and easy maintenance.
2.Auto-running furnace design instead pushing by hand, It really saves manpower meanwhile improves working efficiency and forming products quality.
3.Button control or foot pedal control available, convenient operation.
4.25pcs ceramic infrared heating boards which can be controlled separately, suit for different size or different thickness material.
5.25pcs Solid state voltage regulators, control heating boards simple and visualized.
6.Large-scale cooling fan which can cool the products quickly.
7.Water-spray cooling system which suit for thick material.(optional)
8.Manual style and Semi-auto style available

\t Model	\t LK-61A
\t Power supply	\t AC380V
\t Power	\t 12.5KW
\t Max.forming size	\t 560*610mm
\t Max. forming height	\t 200mm
\t Speed	\t 200~300moulds/H
\t Thickness of material	\t 0.2~1.5mm
\t N. weight	\t 650kgs
\t Machine size	\t 18301400 2200mm
\t Material	\t PVC, PET PP.PS

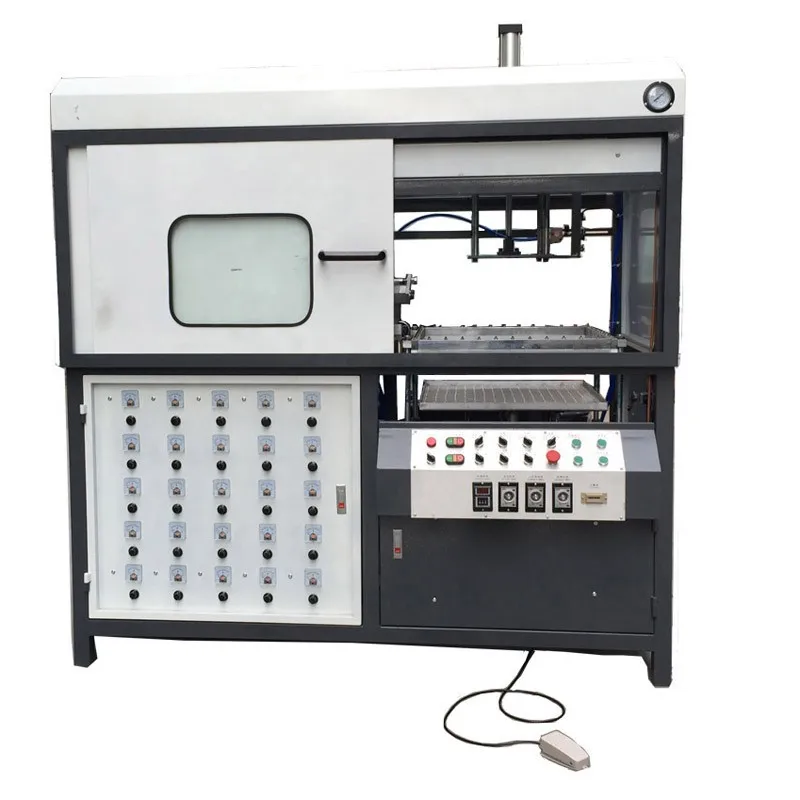

Machine & samples

Detailed Images

Machine Parts

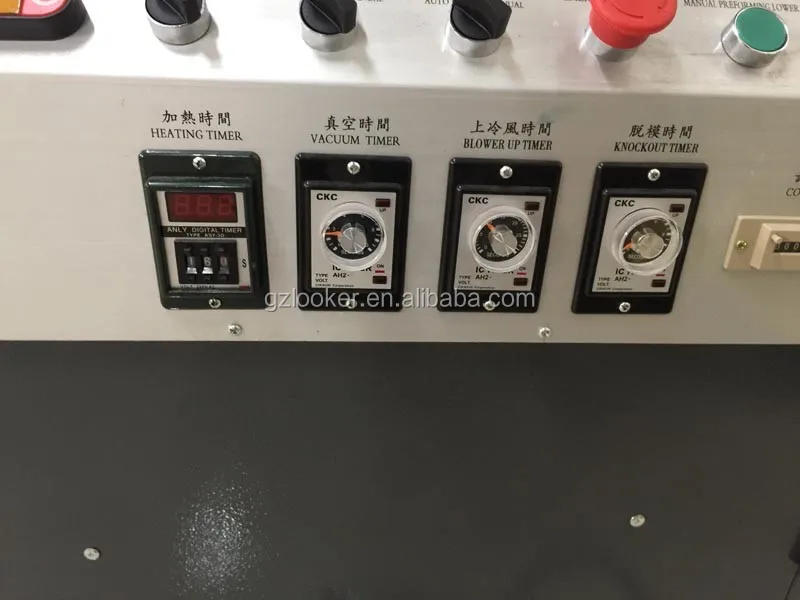

Name: Controll Board

Brand: Looker

Original: China

Four function timers for control forming process.

Machine Parts

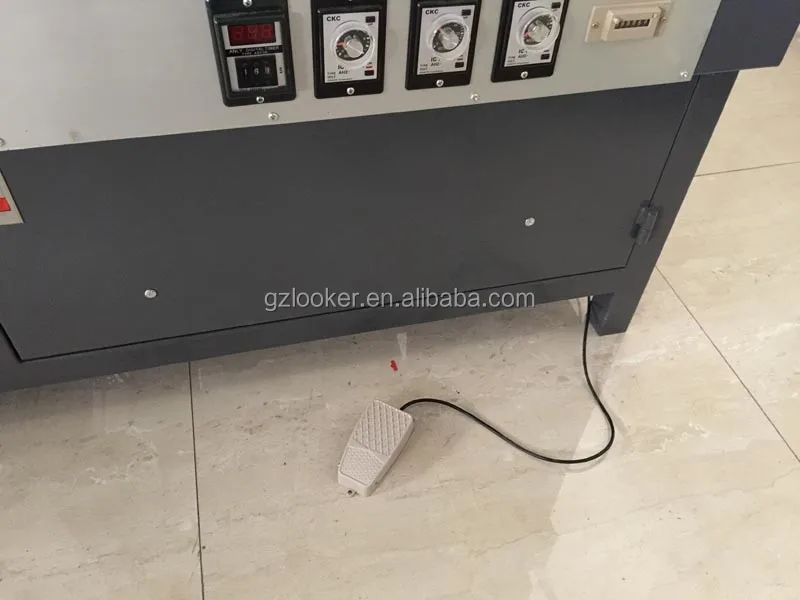

Name: Foot Pedal
Brand: Looker
Original: China
Food pedal mode enable furnace auto-running, release hand and increase production efficiency. convenient operation

Machine Parts

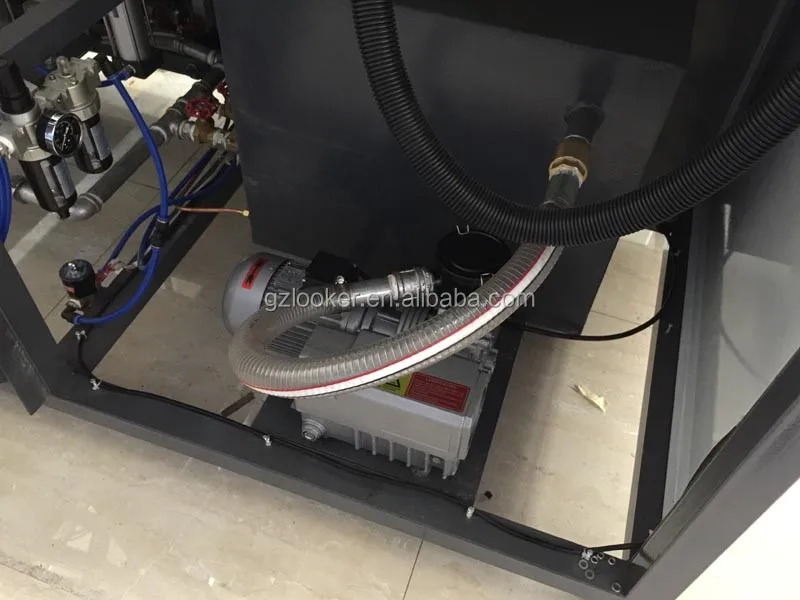

Name: Vacuum Pump
Brand: Looker
Original: China
.

Machine Parts

Name: Roller Carriage
Brand: Looker
Original: China

The PVC rolls will put on the back of machine .

one rolls is 50kgs

610mm width for the standard machine

Machine Parts

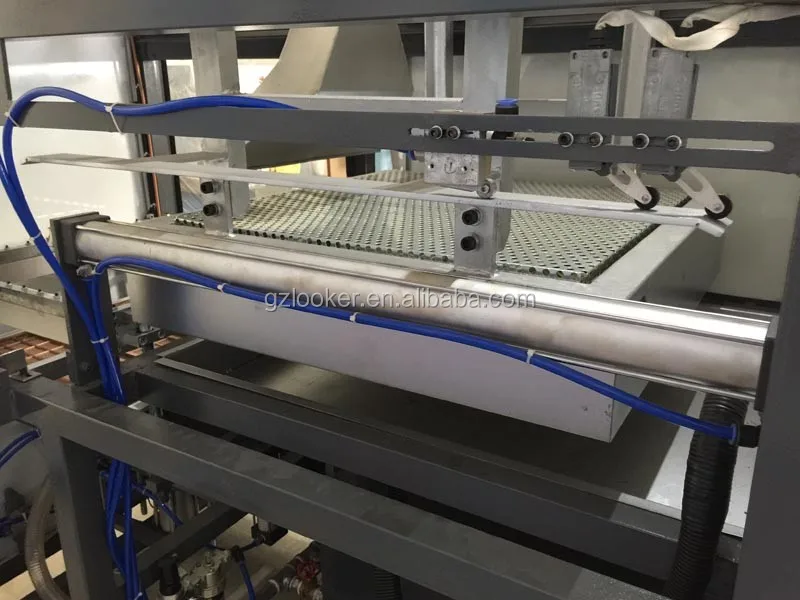

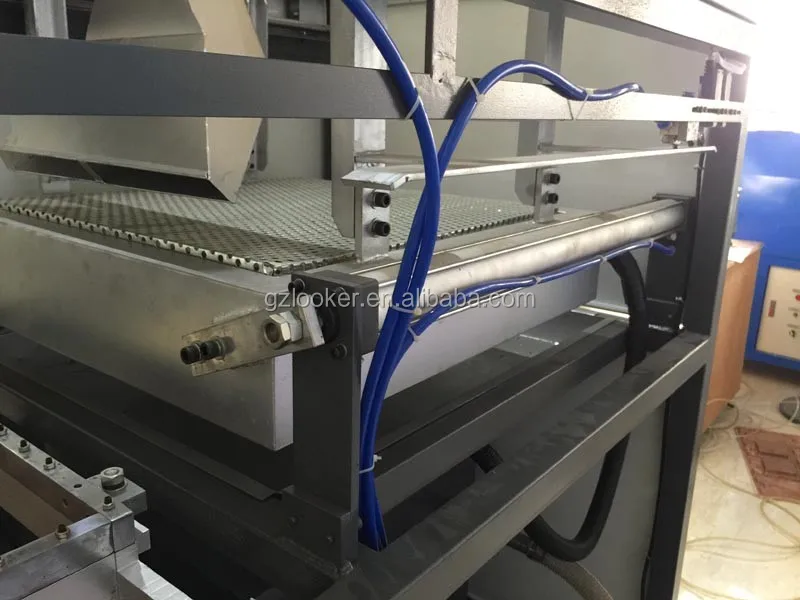

Name: Furnace Auto-running System
Brand: Looker
Original: China

Automatic push furnace design, greatly reduce the labor, improve production efficiency and product quality

Our Service

Pre-Sales Service

* Inquiry and consulting support
* Sample testing support
* View our Factory
* Product design discuss support

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas to teach the customer everything about machine

Visit customer 's factory
Overseas after sale service is available. Our engineers are fluent in English and have strong technical skills. Actually we have rich experience on overseas after sale service, we have been to many countries and all our customers are satisfy with our service.

Packing & Delivery

\t Packaging
\t Size	\t 1930 (L) * 1220 (W) * 1890 (D)
\t Weight	\t 650kgs
\t Packaging Details	\t The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use plastic film for packing or pack it according to customers special request.
