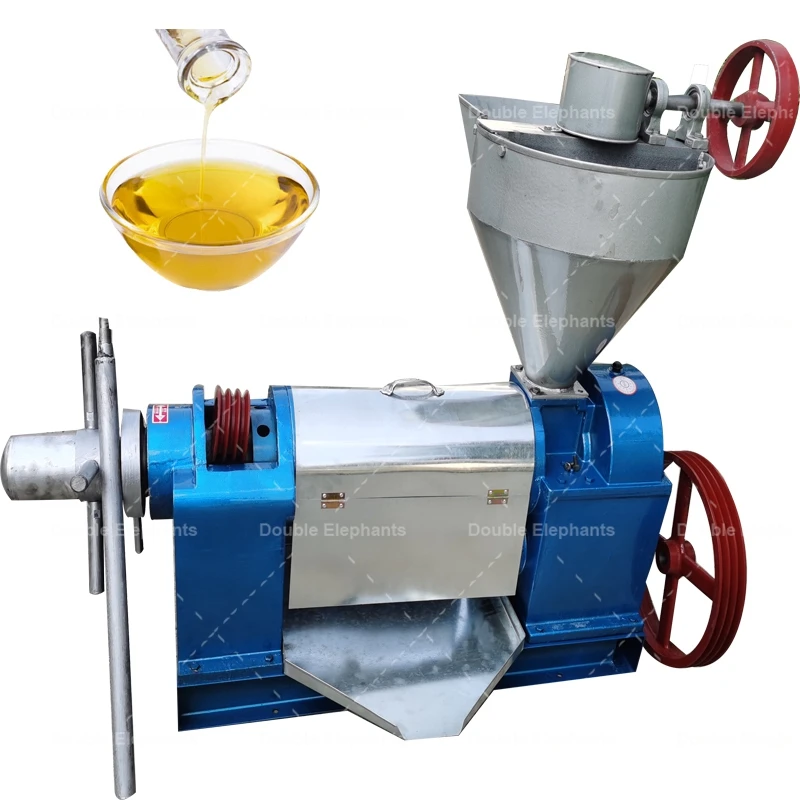

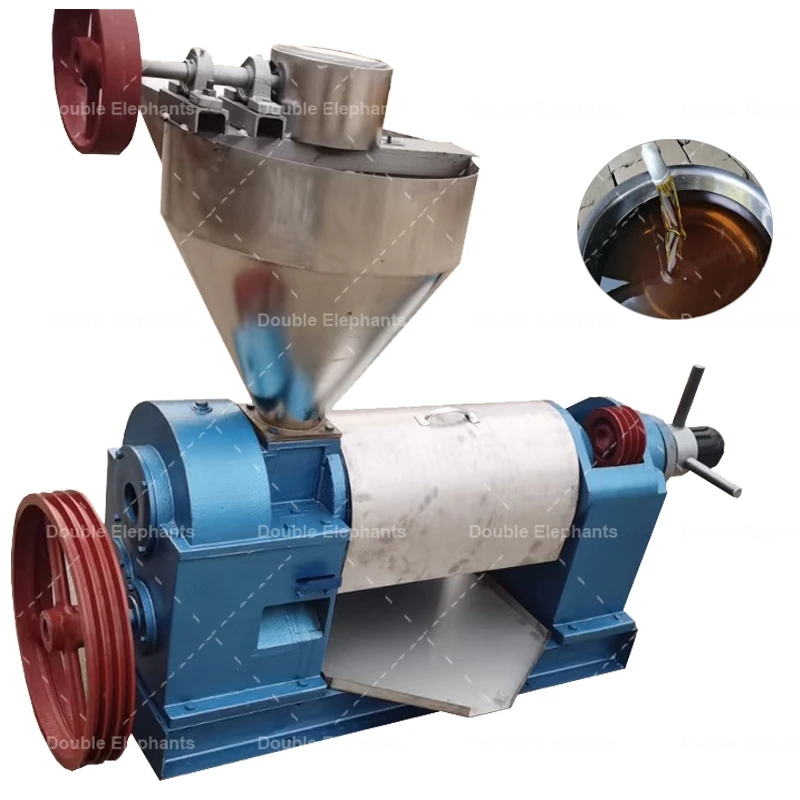

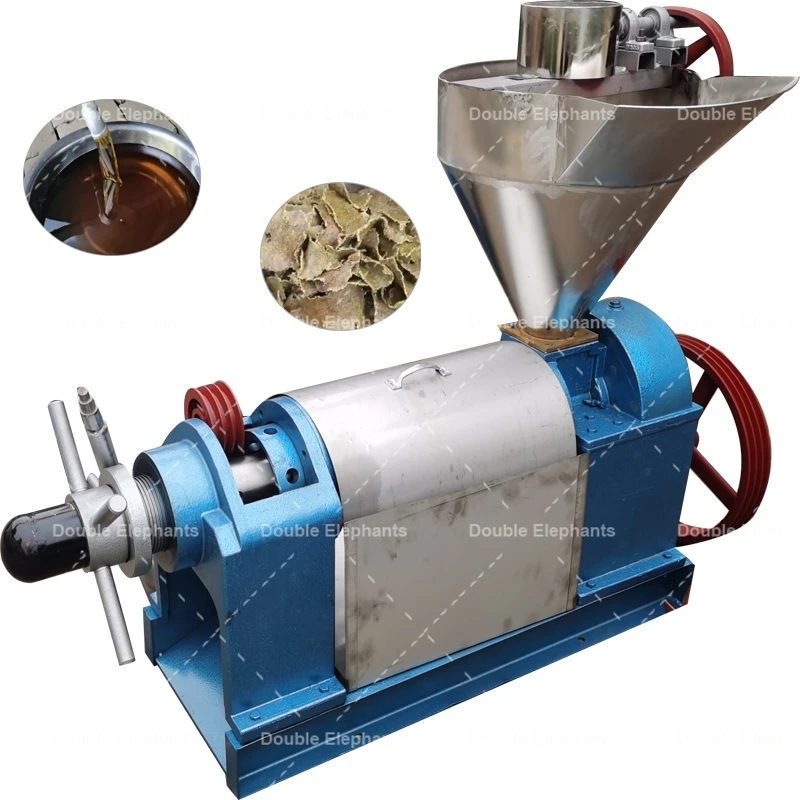

6YL-95A/ZX-10 Mustard seed palm kernel peanut oil expeller press extraction machine

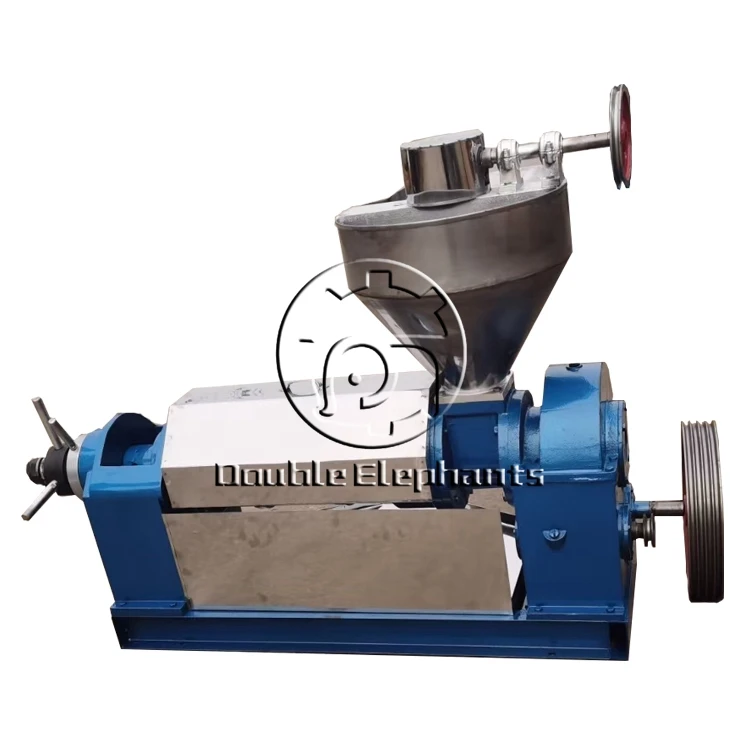

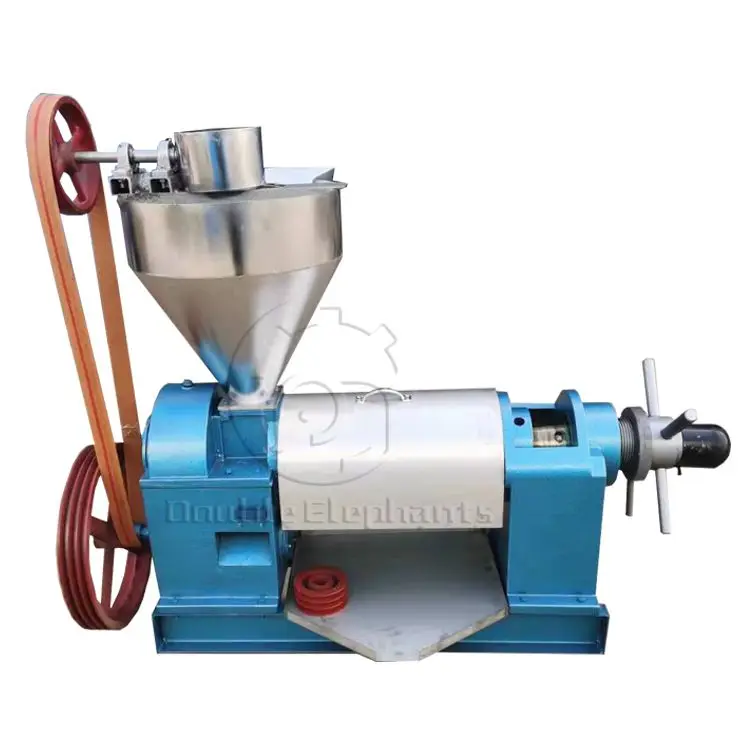

ZX-85 oil expeller

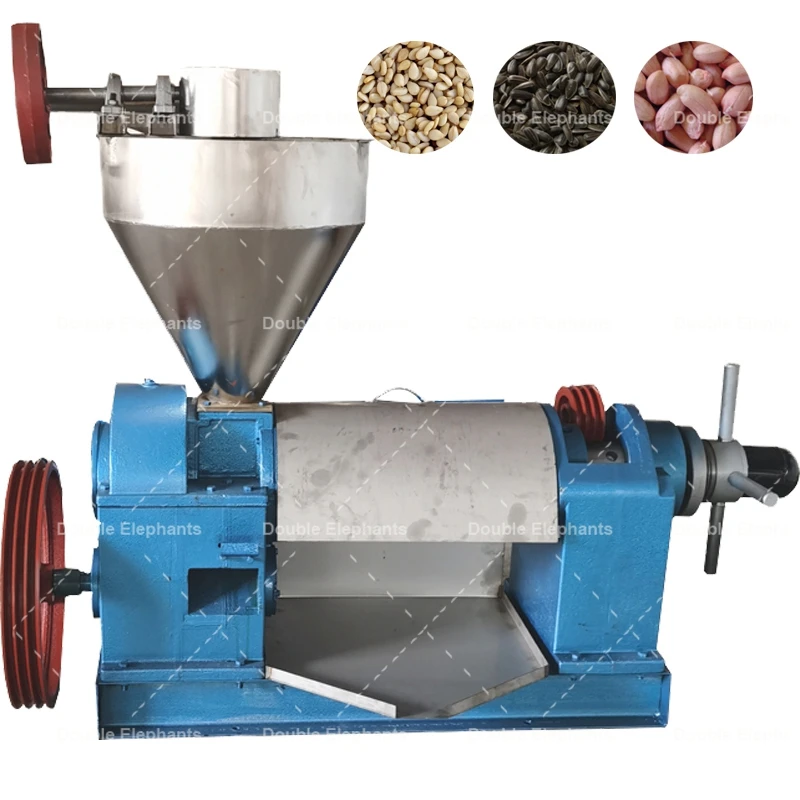

ZX105 ZX130 oil press machine

Working principle of oil extraction machine

When oil extraction machine per and then moves forwards by the rotating pressing screw and is pressed. Under the high-pressure condition in the chamber, friction between material and screw, between material and chamber will be created, which also creates friction and relative movement among material particles. On the other hand, root diameter of the pressing screw varies larger from one end to the other. Hence, when rotating, it not only pushes particles moving forwards but turns them outwards as well. Meanwhile, particles adjacent the screw will rotate along with screw's rotating, causing every particle inside the chamber to posses different speed. Therefore, relative movement among particles creates heat which is necessary during manufacturing because of helping protein change property, damage colloid, increase plasticity, decrea



Feature of oil extraction machine

1. Simple,convenient,energy saving,competitive price.

2.This oil press machine is composed of feeder, gearbox, pressing cage, screw shaft and machine stand etc

3. final oil is high quality, good smell, and high yield rate.

4. this avocado oil extraction machine uses high carbon steel, which through high frequency quenching and heat-resisting, it is high hardness and strength, good abrasion resistance that suit for high temperature and high pressure continous working, all this had improved the service life of the oil press for decades



Main technical data for oil extraction machine



Model	ZX85	6YL-95A/ZX10	ZX105	ZX130
Capacity	60-80kg/h	150-200kg/h	200-300KG/H	450-500kg/h
Main power	5.5kw	7.5kw	15kw	18.5kw
Size	1200*400*900	1600*700*1350mm	1850*700*1350mm	2000*800*1380mm
Weight	260kg	500kg	580kg	850kg



Application for oil extraction machine

Our oil extraction machine are suitable for  all kinds of plant oil materials  such aspeanut, soybean, rapeseed, cottonseed, sesame, olive, sunflower, coconut, cocoa etc. Suitable for medium-small scale oil factory and private user, as well as for the pre-pressing of extraction oil factory.



The structure of oil extraction machine
 This oil extraction machine are consisted of 5 parts including hopper, gearbox, press case, pressing screw, machine body.



3D drawing for soybean oil production line



Description of the process for soybean oil production line



Clearing equipment for soybean oil production line

1.Screening machine is for ridding off big and small impurity.

2.Magneticor is isto rid off the iron, Stable quanlity,easy operation,rational structure,beautiful feature,low  noise,high productivity.

3.Dust catcher is to rid off the dust,reduce the pollution of air, Little waste gas:compare with other methods,exhaust hardly contains dust,decrease air pollution and loss of oil.



Crusher equipment for soybean oil production line

To make the sunflower seed into pieces between the thickness 0.3 – 0.35 mm , so it’s  well proportioned by heating.





Steaming and drying process for soybean oil production line

The process is to Add the hot water into the seeds crushed/flaked to moist ,to add steams for steaming the seeds, to dry the seeds for ridding off more water content .

In the process, with the water and temperature to make the protein of seeds change the character , make the oil moleculeo loose for easyly pressing to get rude oil ,also get the better cake and oil .

Water content :5 – 10 %; temperature : 105 – 110 degrees ; Requiring Time : 60mins .





Pressing process for soybean oil production line

The process is to press the seeds and get enough oil . Requiring water content :3.5- 4.2 % ;Temperature 105 – 110 degrees ; Residue oil of cake : 6% or so .





Filtering oil for soybean oil production line

Firstly to fite the crude oil with oil-dreg sieves,who run reposefully, less malfunction, less occupying area , it’s the better oil-dreg seperator,then use oil filter.



Final oil sample
