Формовочная машина для выдувания пластиковых бутылок
US $20000-$50000
CM-8Y полуавтоматические выдувные
- Категория: Выдувная машина >>>
- Поставщик: Shenzhen,Kisen,Drinking,Water,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 8568.79 $* | 8996.36 $* |
| Aug-18-2025 | 8496.75 $* | 8921.49 $* |
| Jul-18-2025 | 7128.0 $* | 7484.23 $* |
| Jun-18-2025 | 8352.83 $* | 8770.20 $* |
| May-18-2025 | 7272.92 $* | 7636.46 $* |
| Apr-18-2025 | 8208.96 $* | 8618.94 $* |
| Mar-18-2025 | 8136.32 $* | 8543.90 $* |
| Feb-18-2025 | 8064.2 $* | 8467.10 $* |
| Jan-18-2025 | 7992.7 $* | 8392.91 $* |
Характеристики

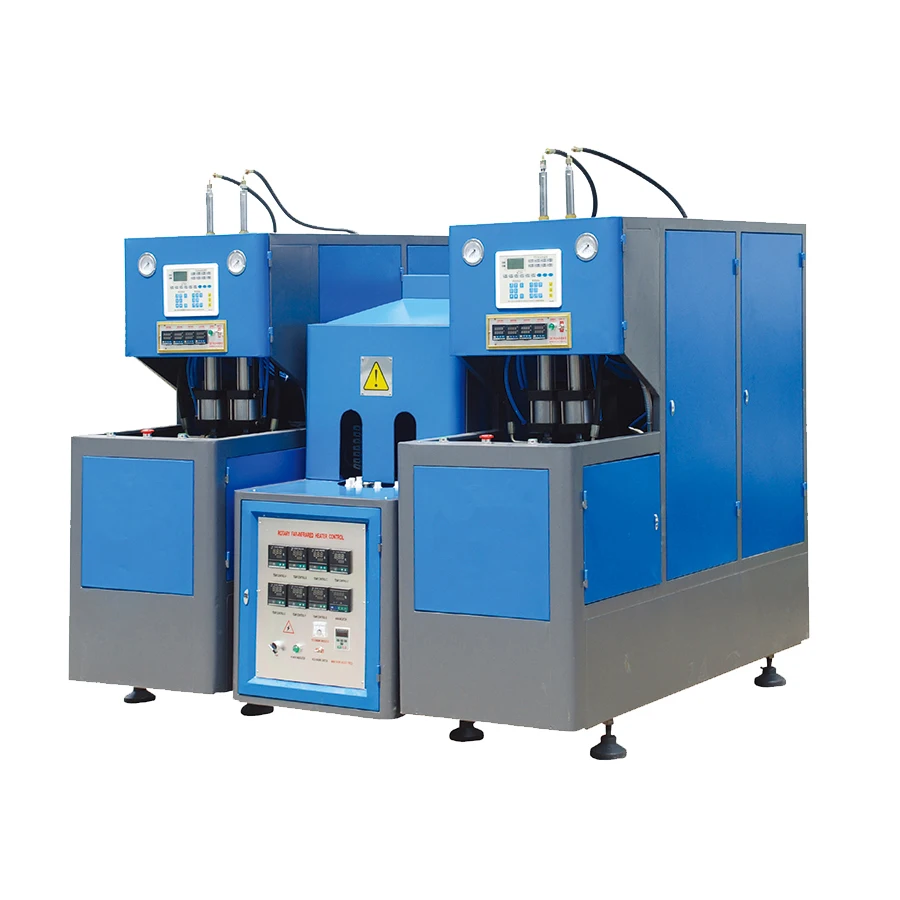

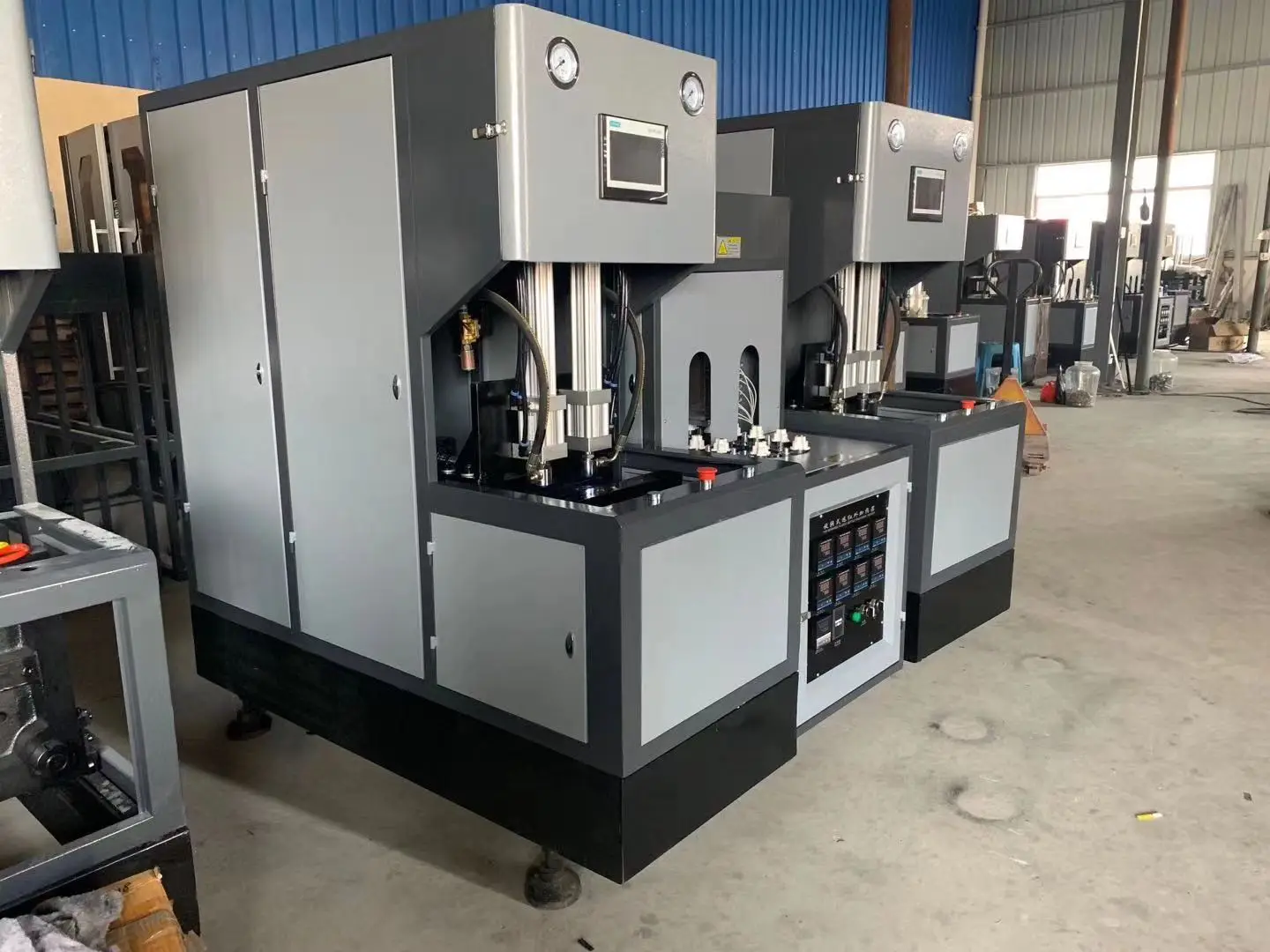

CM-8Y semi automatic pet blowing machine(Installation in Bangladesh)
Trait:
CM-8Y semi automatic pet blowing machine is suitable for producing PET plastic containers and bottles from 0.1L to 2L. It is widely used to produce the carbonated bottle, mineral water bottle, pesticide bottle, oil bottle, cosmetics bottle, wide-mouth bottle etc.
*Adopting double crank to adjust mould, heavy locking mould, stable and fast.
*Adopting infrared oven to heat the preform, the preform rotated and heated equally.
*The air system has been divided into two parts: pneumatic action part and bottle blowing part to meet the different requirements for the action and blowing. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
*The pet bottle blow moulding machine price is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
*The semi automatic pet blowing machine can be operated in the step-by-step mode and the semi-auto mode.
*The pet bottle blow moulding machine price is small with low investment, easy and safe for operating.
Engineering item:
- 1. Capacity:1400-1800pcs/hr
- 2. Max volume of product: 2Liter
Description:
Technique Parameter of semi automatic pet blowing machine:
Model | ITEM |
| CM-8Y |
Container | Product material | / | PET |
Volume | L | 0.1~2L | |
Theoretical output | pcs/h | 1400-1800 | |
Preform length | mm | Max350 | |
Preform inner diameter | mm | φ5-38 | |
Mould | Max.mould plate Diameter(L*W) | mm | 350*380 |
Max.mould thickness | mm | 180 | |
Clamping force | KN | 45 | |
Mould opening stroke | mm | 160 | |
Machine size and Weight | Main machine (L*W*H) | cm | 160*60*161 |
Main machine weight | kg | 500 | |
Heater (L* W*H) | cm | 187*63*145 | |
Heater weight | kg | 250 | |
Power | kw | 17.5 |
Related Products
Company Information
Shenzhen Kisen Drinking Water Equipment Co.,Ltd.was founded in 2016, It is the leading manufacturers and suppliers of water filter system,Ro water treatment plant/Mineral water plant,water bottling machines and liquid filling machine for the pure water, mineral/spring water carbonated drink, juice beverage,pet bottle blowing machine,plastic moulding machine and water pouch packing machine in South of China. We have been dedicated to make it easy for customer to open one water bottling plant.
We provide over 70 types of products, including water purification machine,Ro water purifier, bottle washing filling capping machine, blow molding machine, bottle labeling & packing machine and more.Moreover,Shenzhen Kisen Drinking Water Equipment Co.,Ltd. has found markets in over 60 countries Eritrea, Tanzania, Seychelles Libya, Morocco, Guinea, Liberia, Ghana, Nigeria, Cameroon, Equatorial Guinea, Gabon, Congo, Democratic Republic of Congo, Zambia, Angola Botswana, South Africa, Mauritius, Iraq, Qatar,India, Sri Lanka, Burma,Russia, Malaysia, Philippines, Azerbaijan,Suriname, Peru,United States.
Our vision: Make it easy to start bottled water business.
Shenzhen Kisen Drinking Water Equipment Co.,Ltd. believes that only our customers achieve sustainably economic success and then we can develop and grow together. Our corporate philosophy and decision-making strictly follow this principle.
We listen carefully to our customers and study their ideas, and then offer high quality, customized and feasible products. Of course, it is far from enough.
We regard every customer as our partners, and provide service, support and advice for factory planning, installation, training, operation and product marketing from an integrated perspective, no matter if they buy individual components or complete production lines.
All the machines and equipments we sold have gone through goverment inspection before shipment, and come with regular spare parts and tools, and plus our excellent after-sales service, which in the long run, can avoid many expensive downtimes for our customers.
